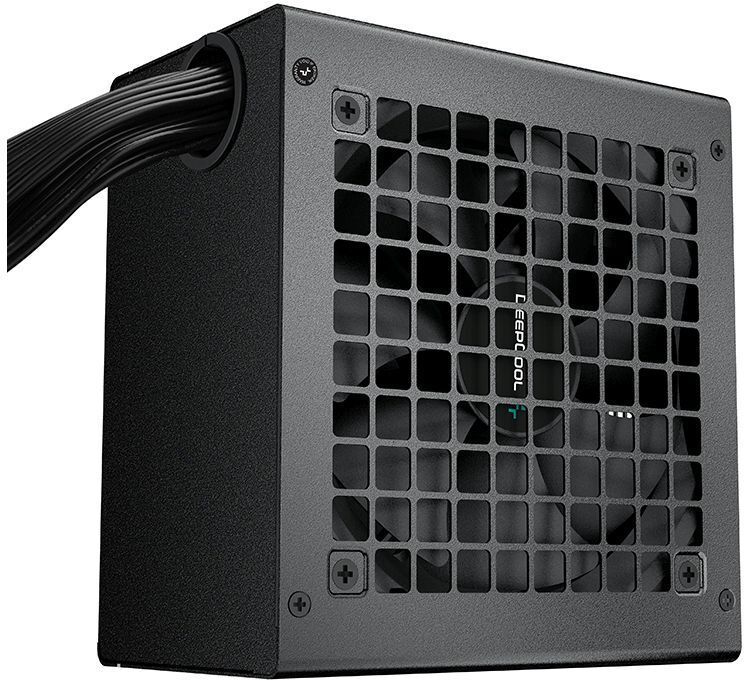

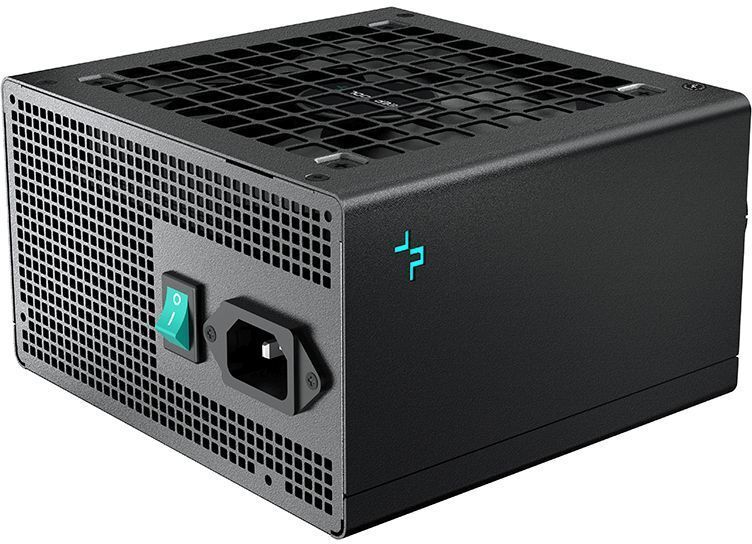

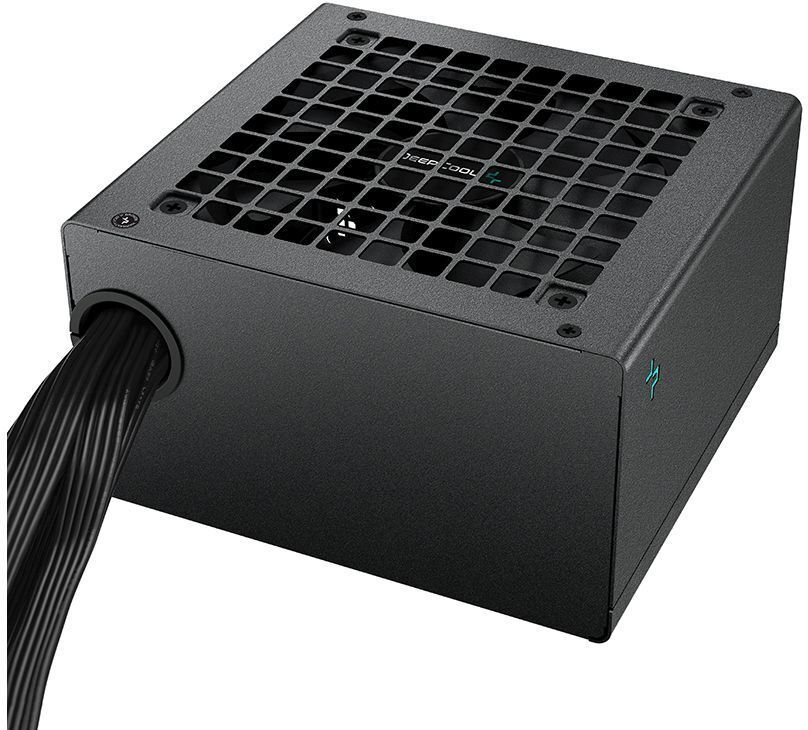

DEEPCOOL PK800D 800W 80PLUS BRONZE ATX PSU NON MODULAR – 120mm FAN – ACTIVE PFC+DC to DC – ATX12V V2.4 – ERP LOT 6 COMPLIANT – Operation Temperature up to 40°C – STEALTH BLACK

$ 90.00 ---ONLY---
SKU: R-PK800D-FA0B-CN Categories: ,

800W 80PLUS BRONZE ATX PSU NON MODULAR

Expert Features

  • BEAUTIFUL IN BRONZE  : The PK-D series is certified 80 PLUS Bronze, delivering up to 85% efficiency under typical load minimizing excess heat waste and lowering energy costs.
  • DC-DC CONVERSION : A highly efficient DC-DC board designed for the +3.3V and +5V rails help achieve tighter voltage regulation and improve system compatibility for next-generation components.
  • TOUGH AND DURABLE : Designed to operate effortlessly in high temperatures up to 40°C and high altitudes up to 5000m while providing continuous stable power output.
  •  ERP LOT 6 COMPLIANT : Designed to be highly power efficient when in power standby mode to meet international ErP Lot 6 standards to lower overall energy consumption.
  •  STEALTH BLACK : Black direct power cables help blend in with other components.

Connectors Provided

  • One Main Power Connector 24 (20+4)Pin x1
  • One EPS 12V Connector 8 (4+4)Pin x2
  • Two PCI-E (6+2)Pin x2
  • Two SATA x4
  • One 4Pin Peripheral x4

Expert Specifications

Form factorATX
Real power at load648
Power800
Fan120
Video cards6+2-pin 4 pcs.
Motherboard power supply20+4 pin
Efficiency (certificate 80 plus)Bronze
Power factor correction (PFC)active

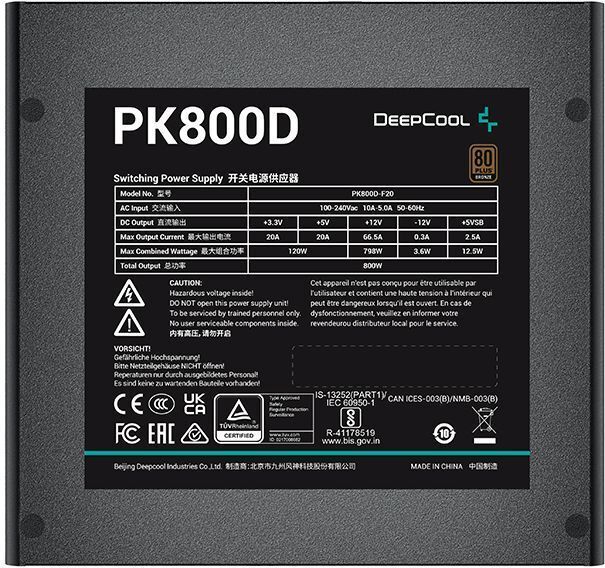

The output characteristics

+5V20
+3.3V20
+12V166.5
-12V0.3
+5Vsb2.5

Connectors

Connection to the motherboard20+4 pin, 4+4 pin 2 pcs.
Connection to video cards6+2-pin 4 шт.
The processor power4 pin, 8 pin, 8+4 pin, 8+8 pin
Number connectors 4-Pin Molex4
Number of SATA connectors8

Appearance

ColorBlack
Dimensions150 x 140 x 86

additional characteristics

Cracking protection+
Status PSUNew
AdditionallySafety

  • OCP (Overload protection for any of the outputs of the unit individually)
  • OVP (Overvoltage protection in the network)
  • OPP (Overload protection)
  • OTP (Protection Over Temperature)
  • SCP (Short Circuit Protection)
  • UVP (Under Voltage Protection)
TypeATX12V V2.4
Product Dimensions150×140×86mm (W x L x H)
80PLUS CertificationsBronze
Fan Size120mm
Fan BearingHypro Bearing
TopologyActive PFC+DC to DC
CapacitorsTaiwan capacitor
Power Good Signal100-150ms
Hold Up Time≥16ms(80% Load)
Efficiency≥85% Under Typical Load(50% Loading)
ProtectionSCP,OPP,OTP,OVP,OCP,UVP
Operation Temperature0 – 40 °C
RegulatoryCB/CE/FCC/CAN ICES-003(B)/NMB-003(B)/ TUV-RH/CCC/UKCA/EAC/RCM/BIS/KC
Erp RegulationErP 2013
MTBF100,000 Hours

R-PK800D-FA0B-CN
