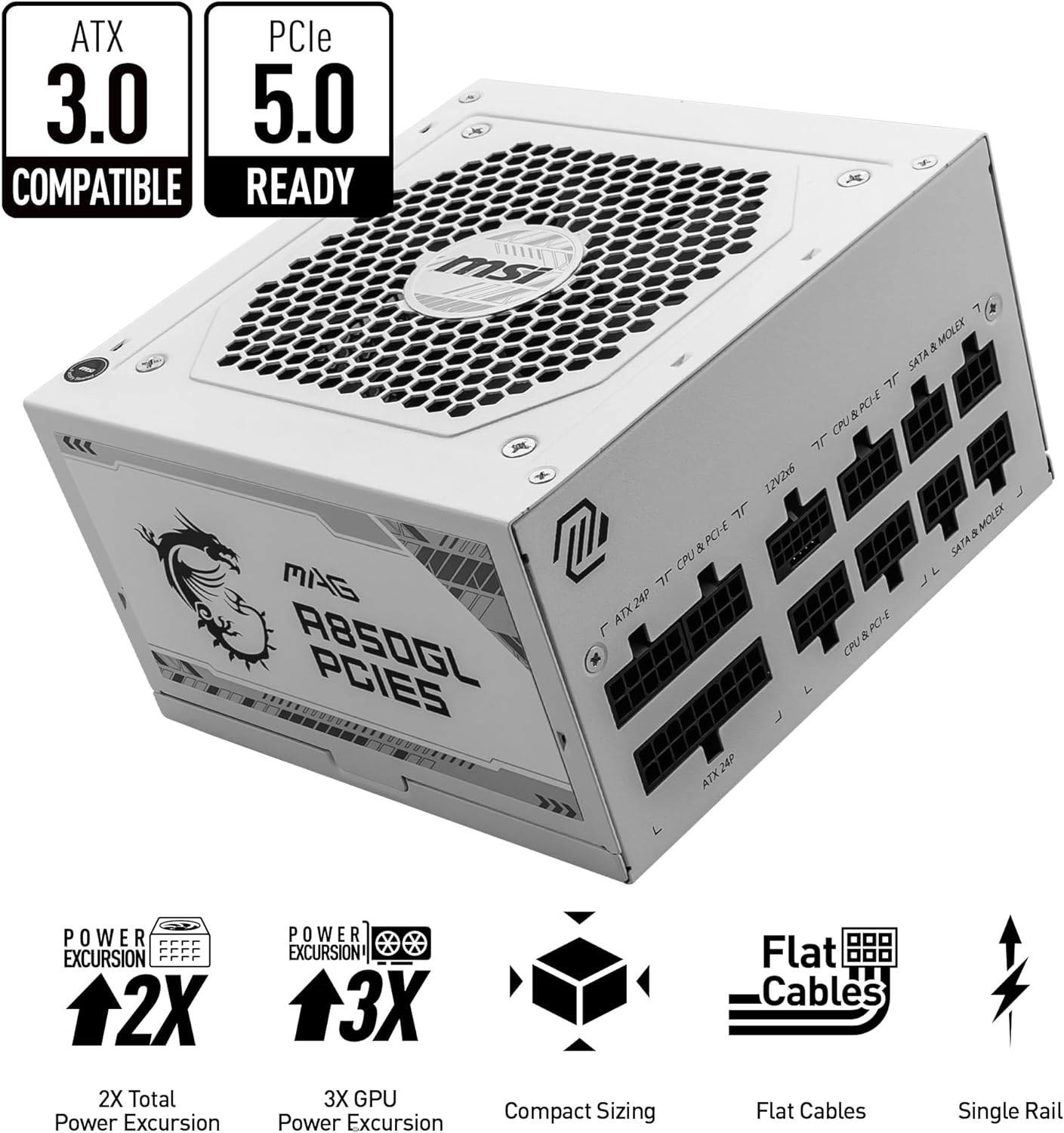

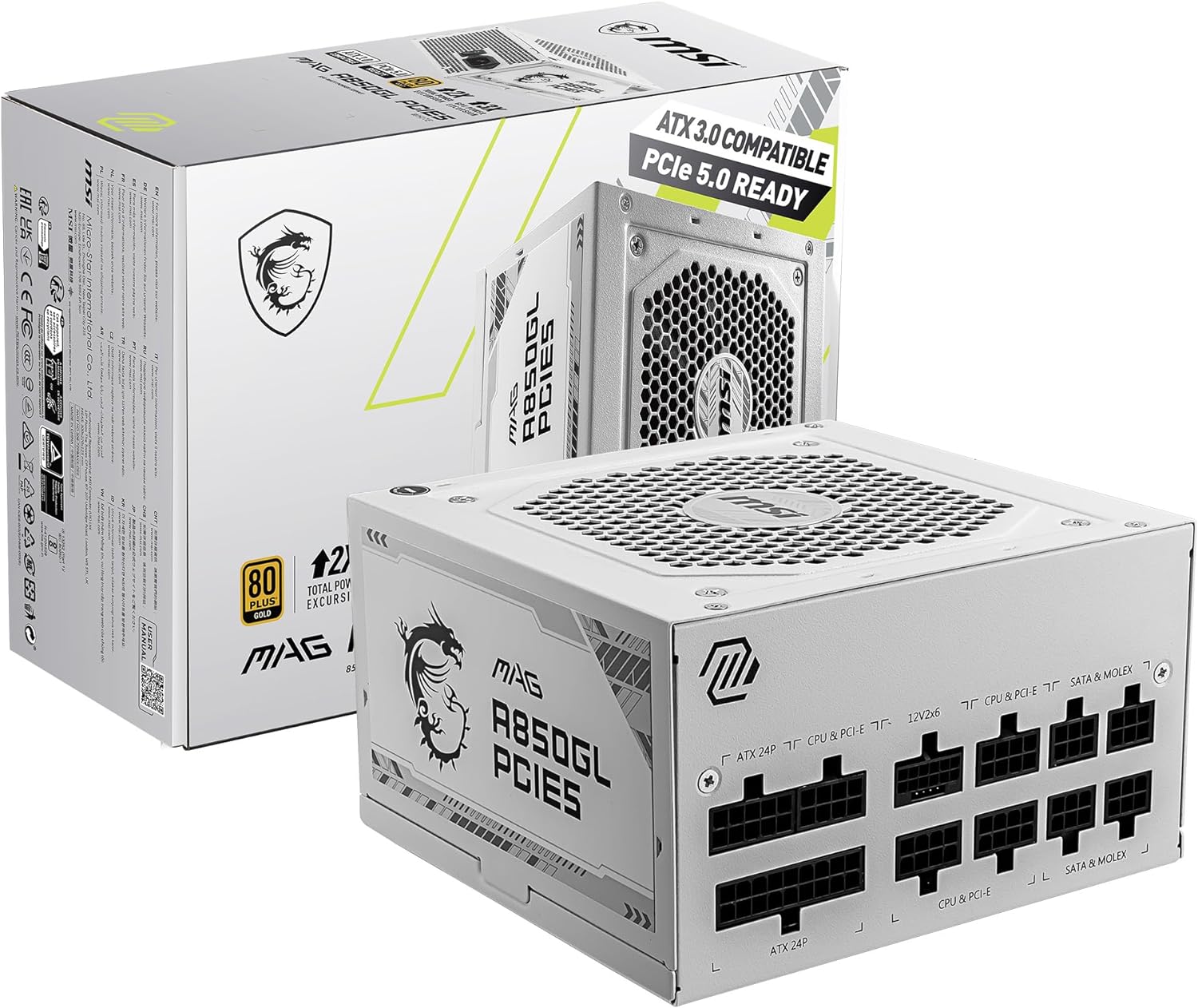

MSI MAG 850GL PCIE 5 White Gaming Power Supply – Full Modular – 80 Plus Gold Certified 850W – Compact Size – ATX PSU
-11%
PCIE 5 White 850W Power Supply
Expert Features
- ATX 3.0 compatible, native PCIe 5.0connector
- Supports NVIDIA® GeForce RTX™40 Series graphics cards
- Full modular design, Flat cables

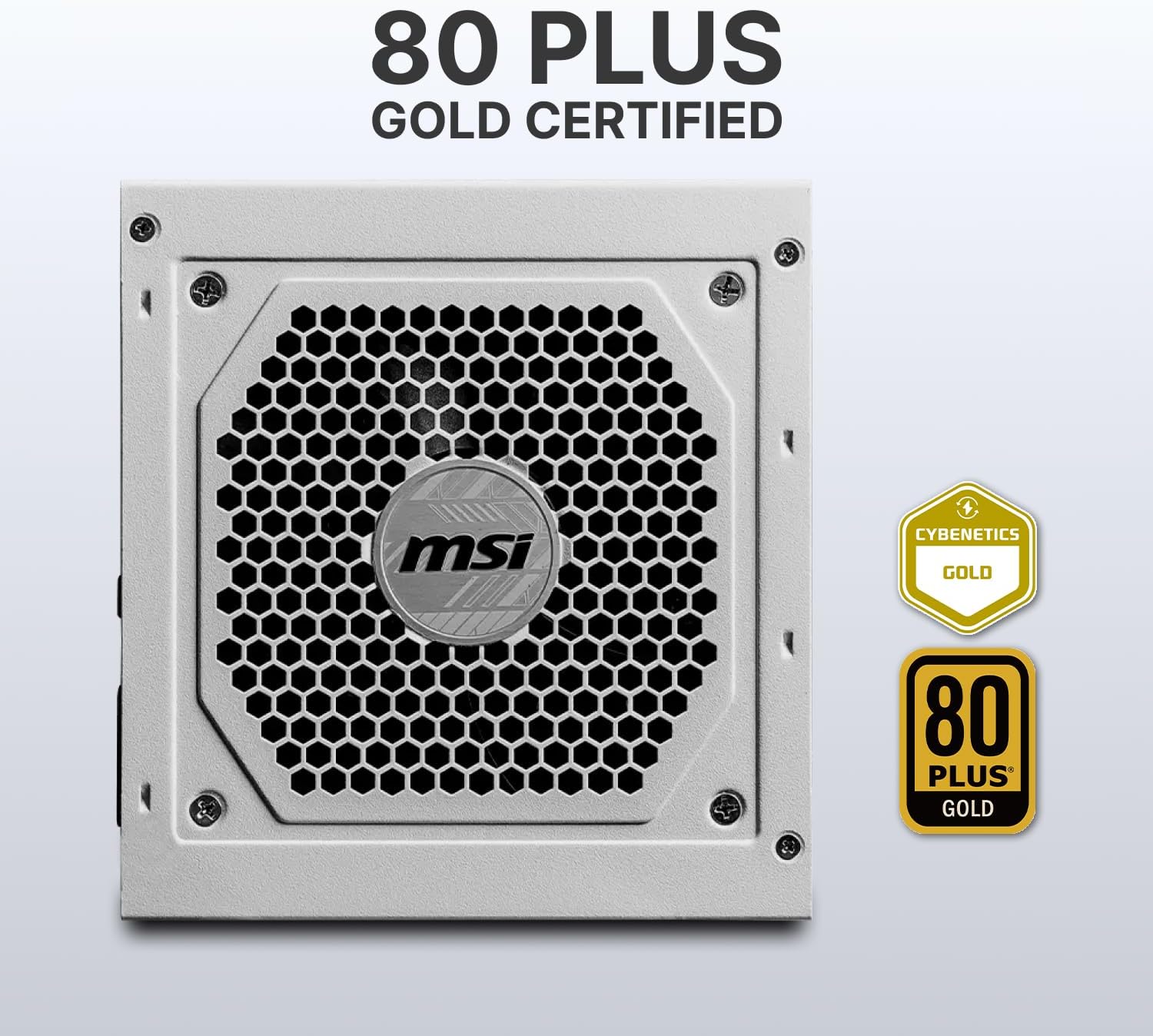

- 80 Plus Gold certified for high efficiency
- Active PFC design, Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
- 120mm Fluid Dynamic Bearing Fan
- LLC Full Bridge Topology with DC-DC module design
Expert Specs
| Brand | MSI |
|---|---|
| Model | MAG A850GL PCIE5 White |
| Color | White |
|---|---|
| Type | Intel ATX 12V |
| Maximum Power | 850 W |
| Fans | 1 x 120 mm Fluid Dynamic Bearing |
| PFC | Active |
| Max PSU Length | 150 mm |
| Modular | Full Modular |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Protection | OVP, OCP, OTP, OPP, SCP, UVP |
| Input Voltage | 100 – 240 V |
| Input Frequency Range | 47 – 63 Hz |
| Input Current | 12A (Max.) |
| Output | +5V@20A, +3.3V@20A, +12V@70.5A, -12V@0.3A, +5VSB@2.5A |
| Connectors |
|
| Dimensions | 11.81 * 8.66 * 4.92″ |
|---|---|
| Weight | 6.39 lbs |
From the manufacturer

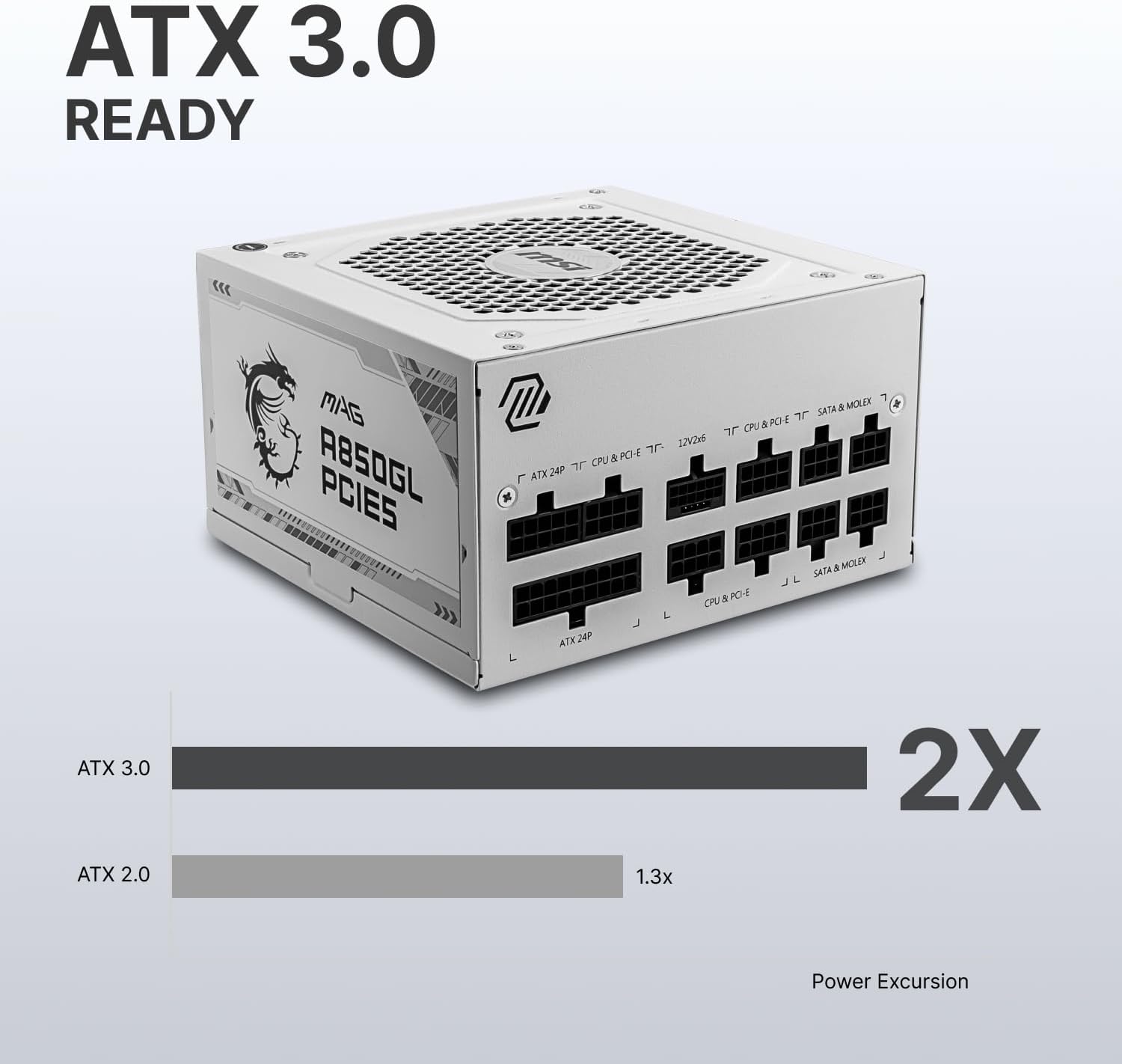

ATX 3.0 COMPATIBLE
The MAG A850GL PCIE5 WHITE power supply features an output port that meets the standards of PCIe 5.0 and Intel PSDG (Power Supply Design Guide) ATX 3.0. Additionally, it boasts the capability to handle up to 2x total power excursion and 3x GPU power excursion.
Level Up Your Game

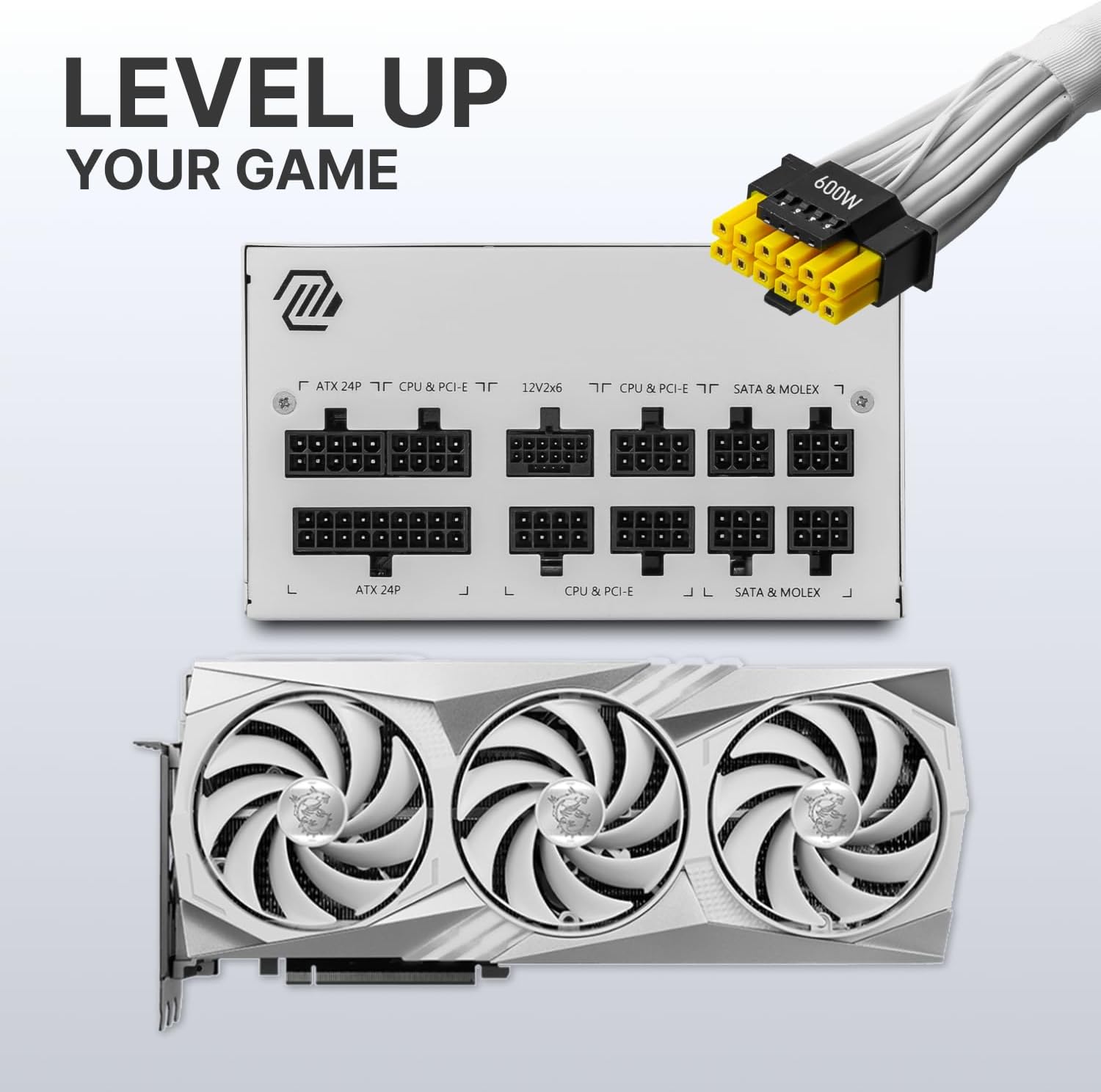

16 PIN PCIe CONNECTOR
With a 16-PIN PCIe connector, this PSU supports Nvidia 40 Series graphics cards.
16 PIN PCIe CONNECTOR COMPACT SIZING 80 PLUS GOLD CERTIFIED
Balanced Cooling Experience

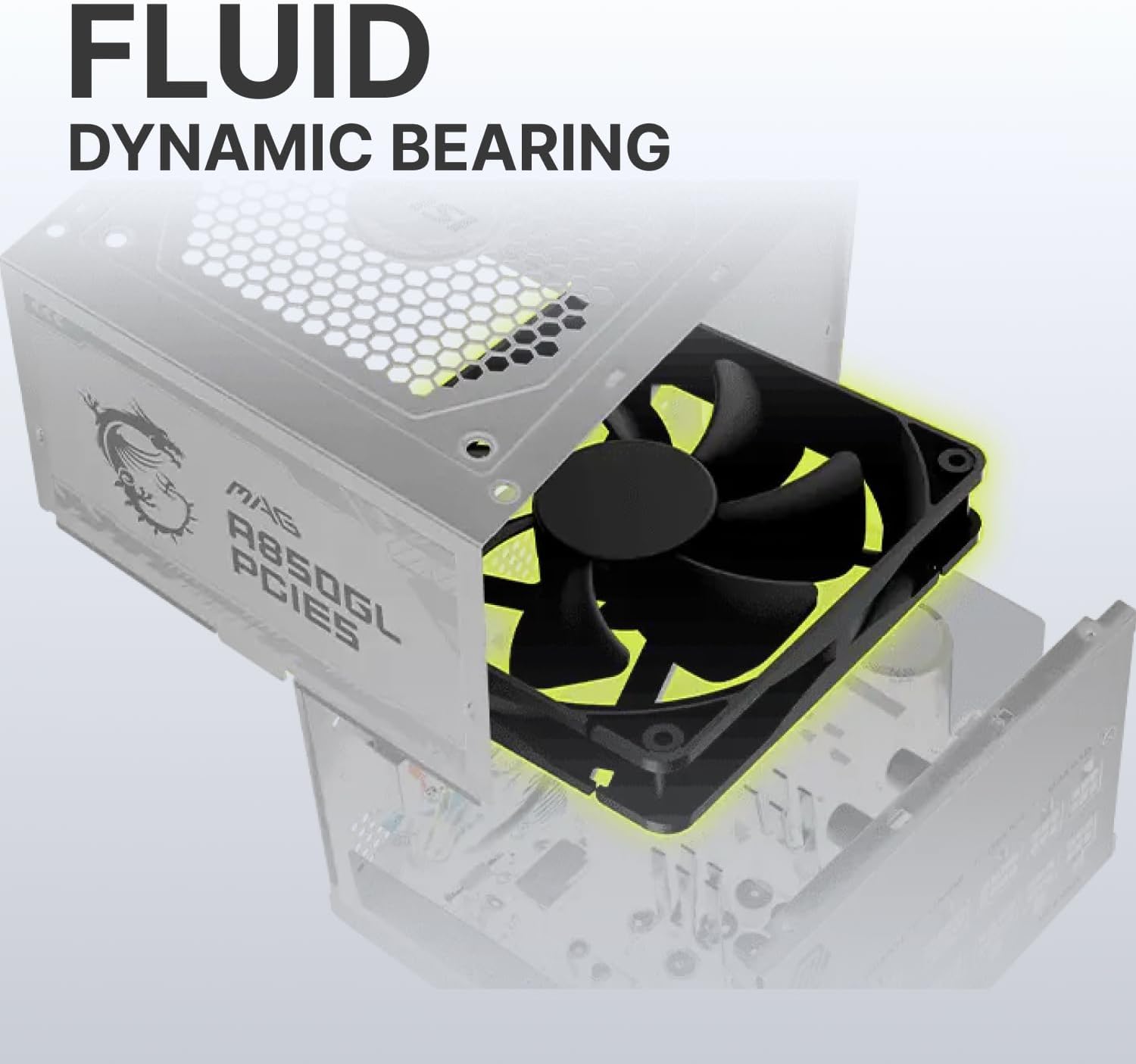

FLUID DYNAMIC BEARING
The power supply’s fan incorporates a fluid dynamic bearing, achieving an optimal balance between cooling performance and noise levels.
All The More Organized
FLAT BLACK CABLES
Flat cables ease PC cable management, minimizing hassle and unobstructed airflow in the system.

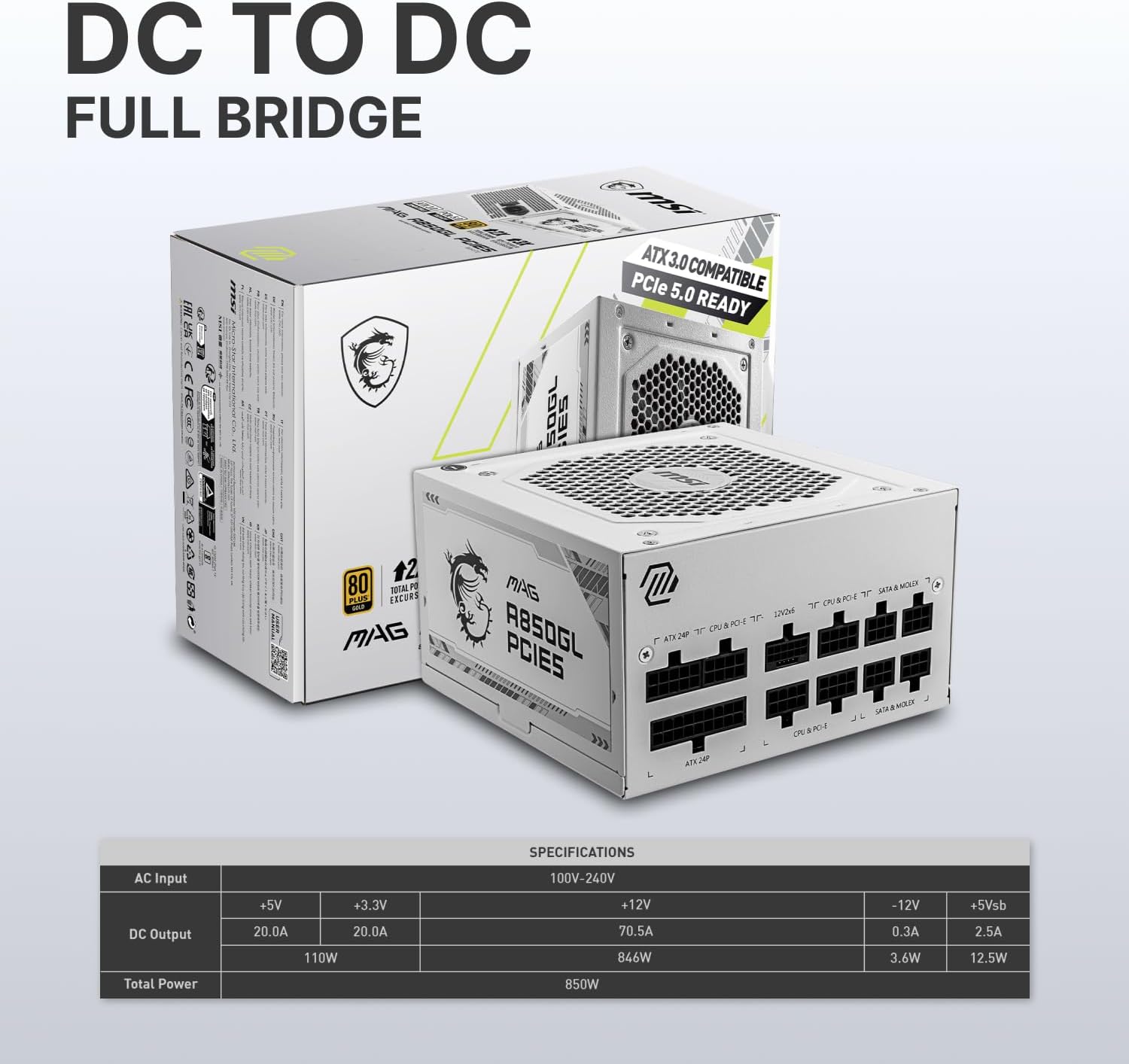

FLAT BLACK CABLES FULLY MODULAR DESIGN FULL BRIDGE DC TO DC
Description
PCIE 5 White 850W Power Supply
MSI MAG 850GL PCIE 5 White Gaming Power Supply – Full Modular – 80 Plus Gold Certified 850W – Compact Size – ATX PSU
