MSI PCIE5  ATX  Modular 850W PSU

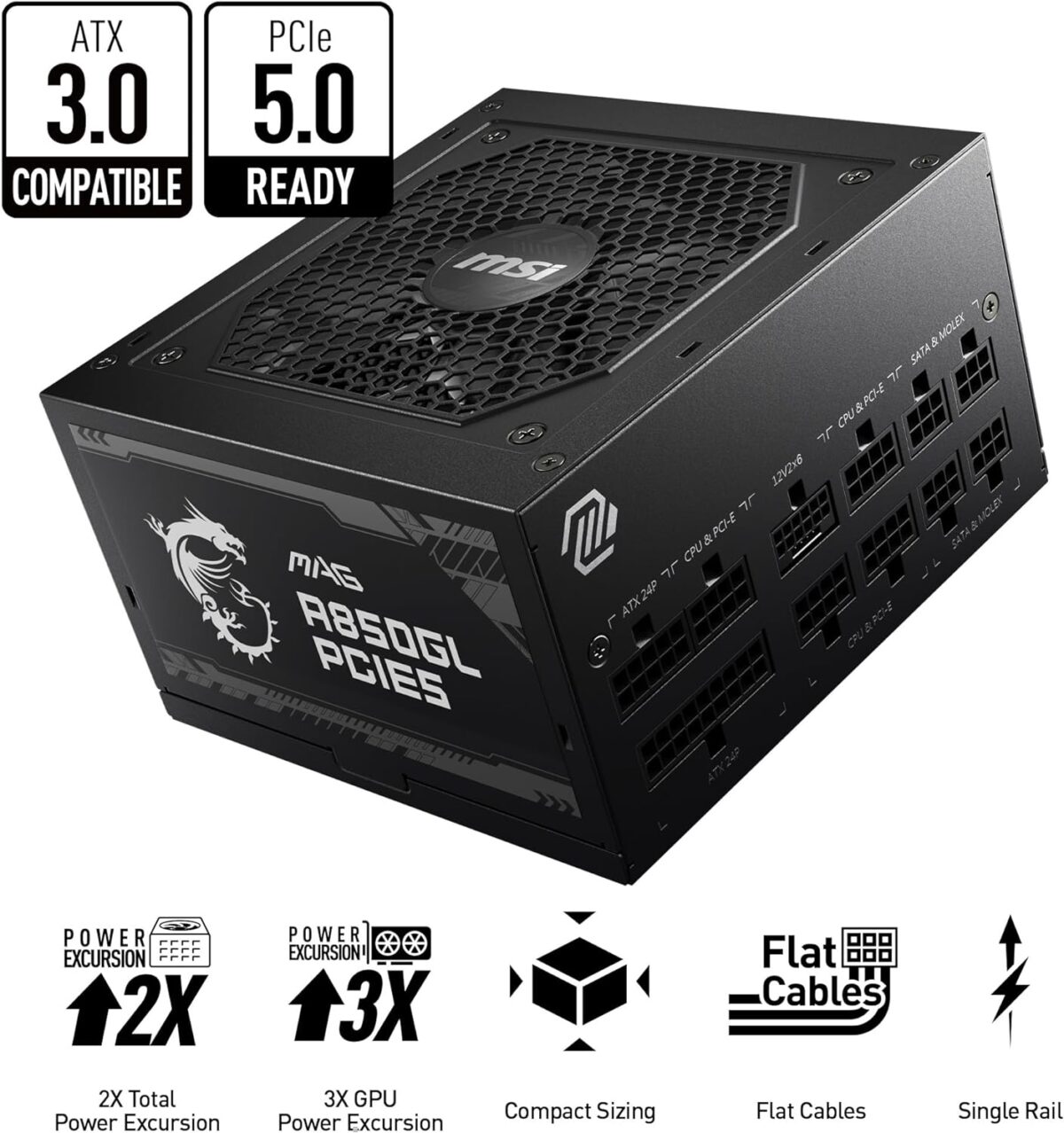

MSI MAG A850GL PCIE 5 & ATX 3.0 Gaming Power Supply – Full Modular – 80 Plus Gold Certified 850W – Compact Size – ATX PSU

• ATX 3.0 compatible, native PCIe 5.0 connector
• Supports NVIDIA^® GeForce RTX^™ 40 Series graphics cards
• Full modular design, Flat cables
• 80 Plus Gold certified for high efficiency
• Active PFC design, Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
• 120mm Fluid Dynamic Bearing Fan
• LLC Full Bridge Topology with DC-DC module design



unite as one

The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

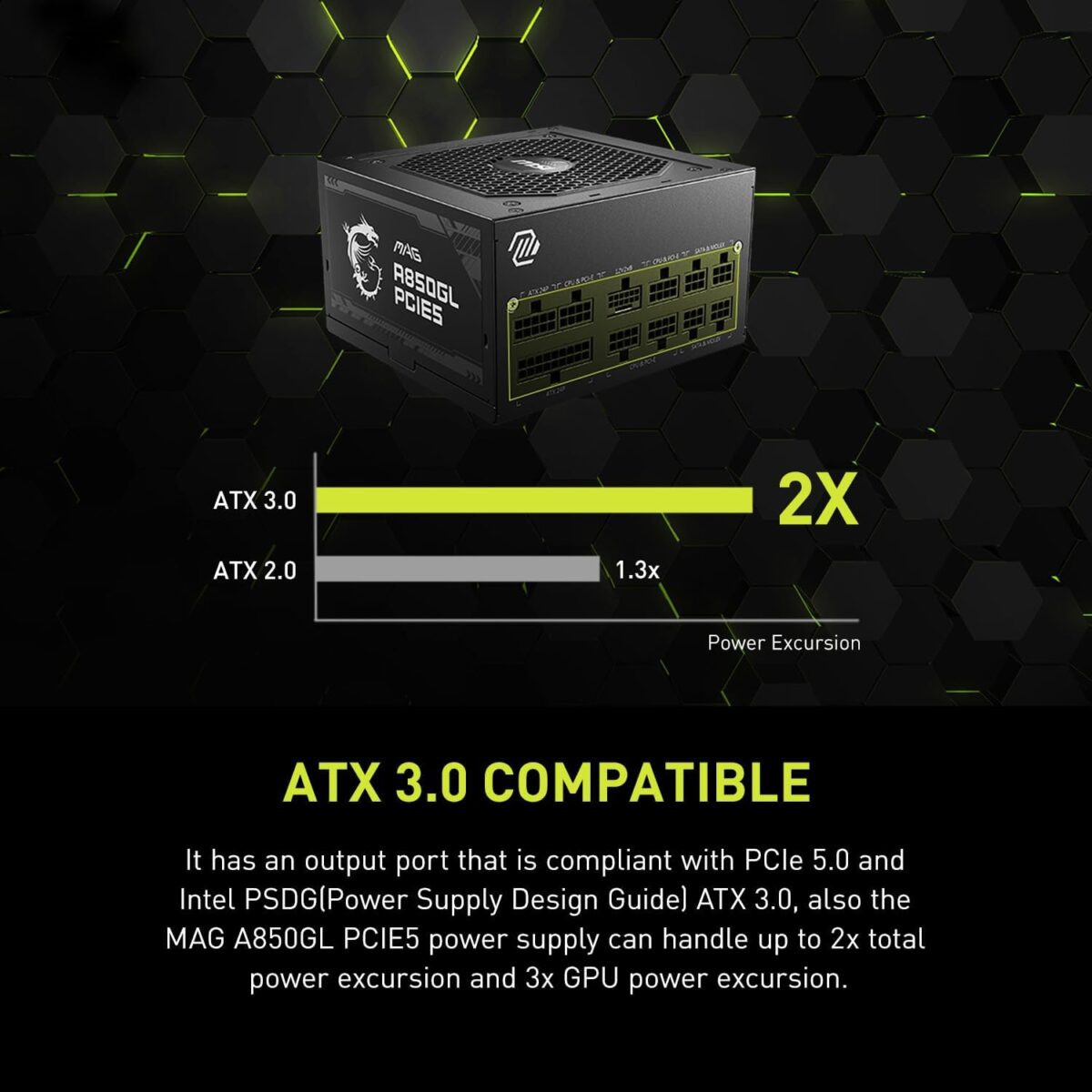

ATX 3.0 COMPATIBLE

It has an output port that is compliant with PCIe 5.0 and Intel PSDG(Power Supply Design Guide) ATX 3.0, also the MAG A850GL PCIE5 power supply can handle up to 2x total power excursion and 3x GPU power excursion.



3X

GPU Power Excursions









LEVEL UP YOUR GAME

With native 16 PIN PCIe connector this power supply is ready for NVIDIA® GeForce RTX™ 40 Series graphics cards. It can freely pipe up to 600W of power to PCIe 5.0 graphics cards.

DUAL-COLOR 16-PIN CABLE

The 16 Pin PCIe cable’s connector color has been changed to yellow so that users can easily see if the connector has been plugged in properly. Besides, the Dual-color 16-pin cabledual-color also won Wccftech awards in the 2023 COMPUTEX



80 PLUS GOLD CERTIFIED

The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

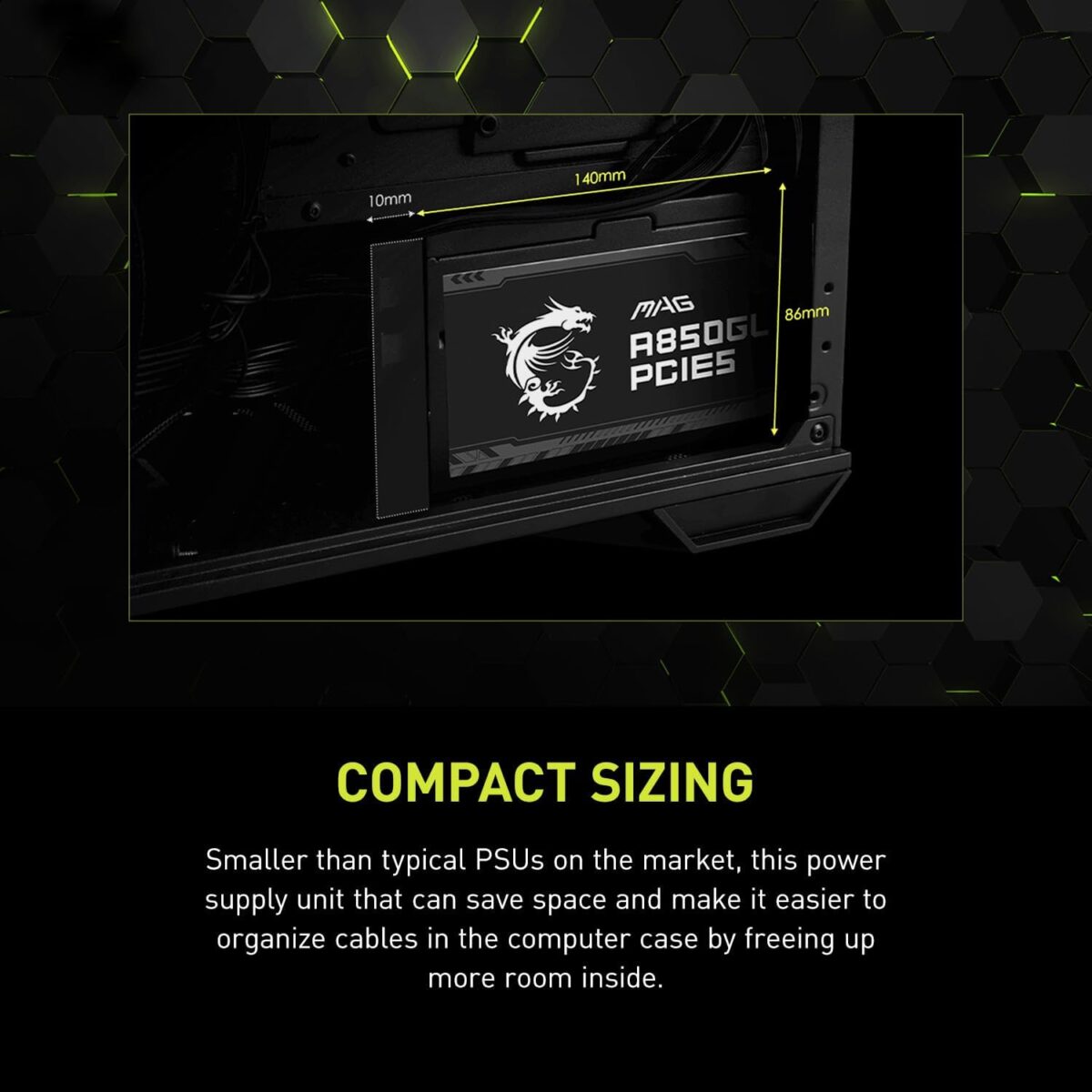

COMPACT SIZING

Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.

*The photo is only for illustration

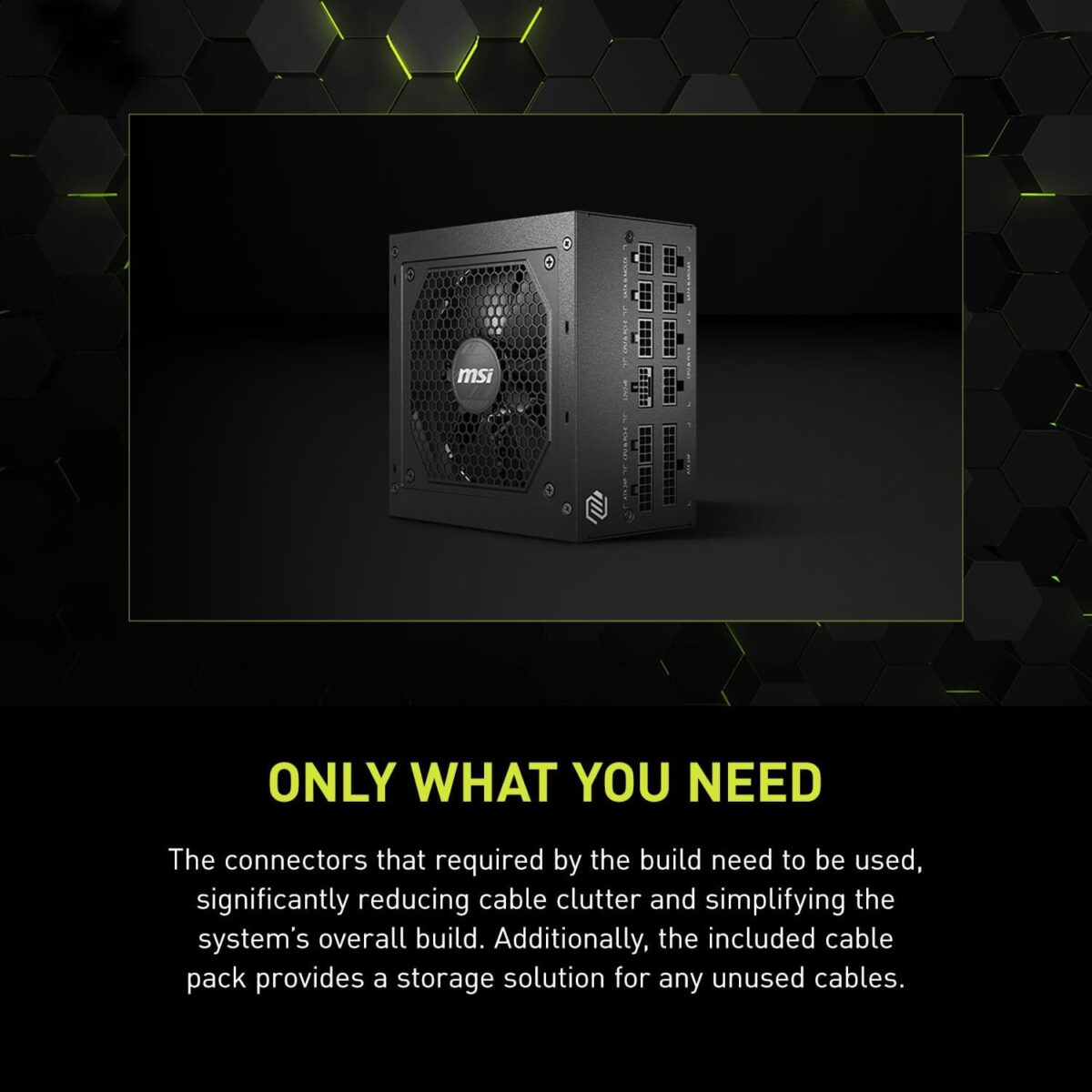

ONLY WHAT YOU NEED

The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.

ALL THE MORE ORGANIZED

Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.

*The photo is only for illustration

FLUID DYNAMIC BEARING

The power supply’s fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.

*The picture is for illustrative only.

DC TO DC & FULL BRIDGE

DC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.

THE POWER YOU HAVE

The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply’s 5 CPU & PCI-E slots are more than plenty.

PROTECTION MECHANISMS

To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.

OCP

Over Current Protection

OTP

Over Temperature Protection

OVP

Over Voltage Protection

OPP

Over Power Protection

UVP

Under Voltage Protection

SCP

Short Circuit Protection

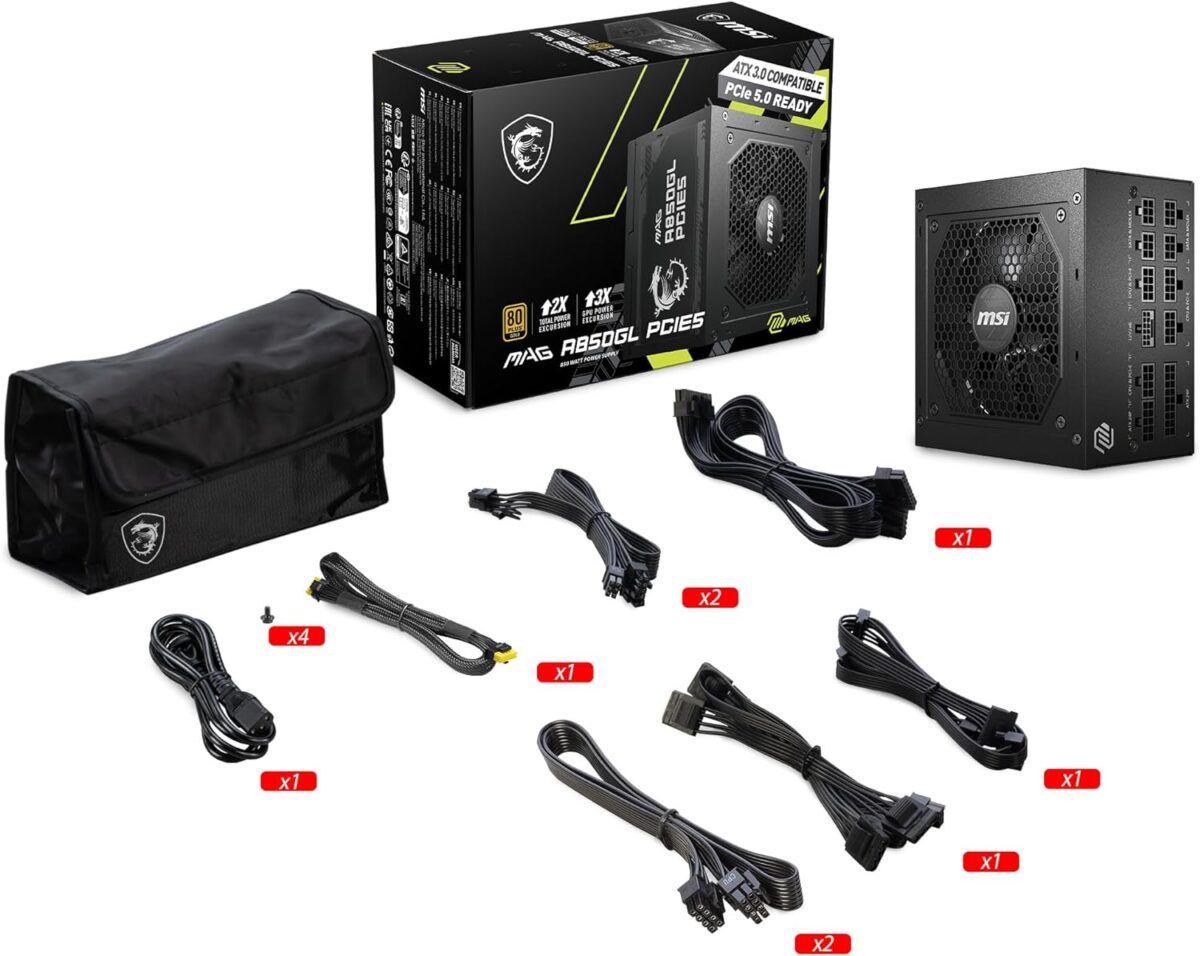

CONNECTORS

• ATX Cable x1

• PCIe (8 PIN to 6+2 PIN) Cable x2

• EPS (8 PIN to 4+4 PIN) Cable x2

• SATA Cable x2

• MOLEX/FDD Cable x1

SPECIFICATION / FICHE TECHNIQUE
AC Input	100-240V~, 12A , 47-63Hz
DC Output	+5V	+3.3V	+12V	-12V	+5Vsb
	20.0A	20.0A	70.5A	0.3A	2.5A
Total Power	110W		846W	3.6W	12.5W
	850W

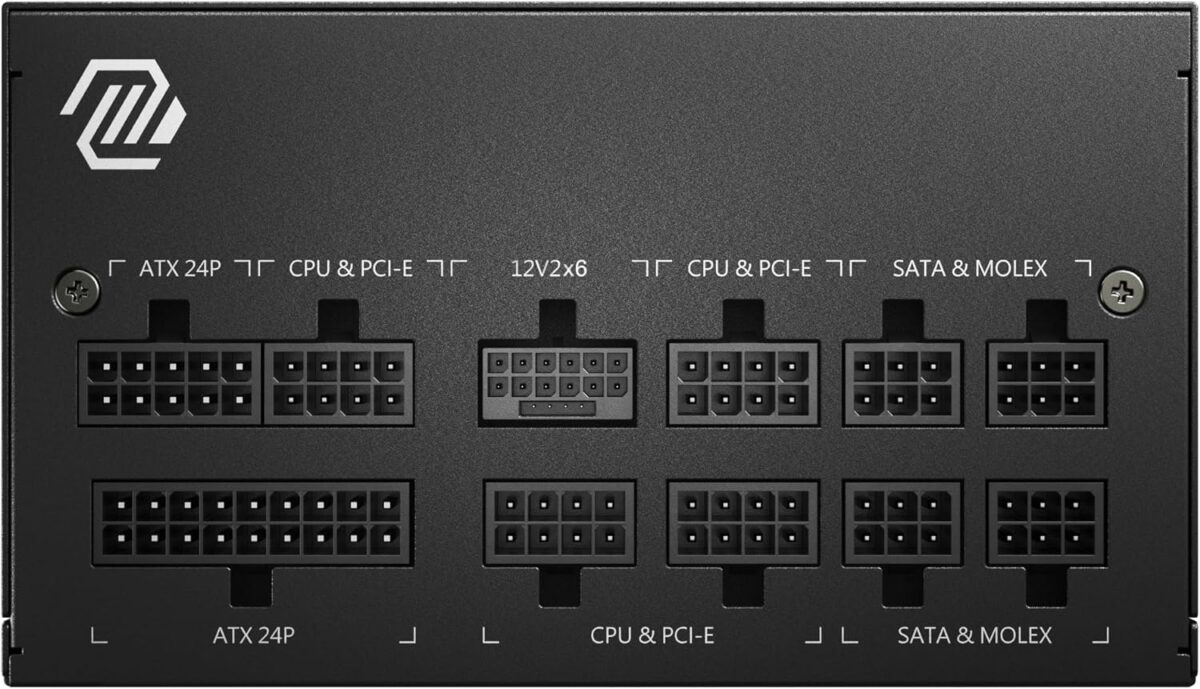

CONNECTOR / CONNECTEUR
ATX(20+4 PIN)	EPS(4+4 PIN)	PCI-E(16 PIN)	PCI-E(6+2 PIN)	SATA	MOLEX(PERIPHERAL)	FDD
1	2	1	4	8	4	1
