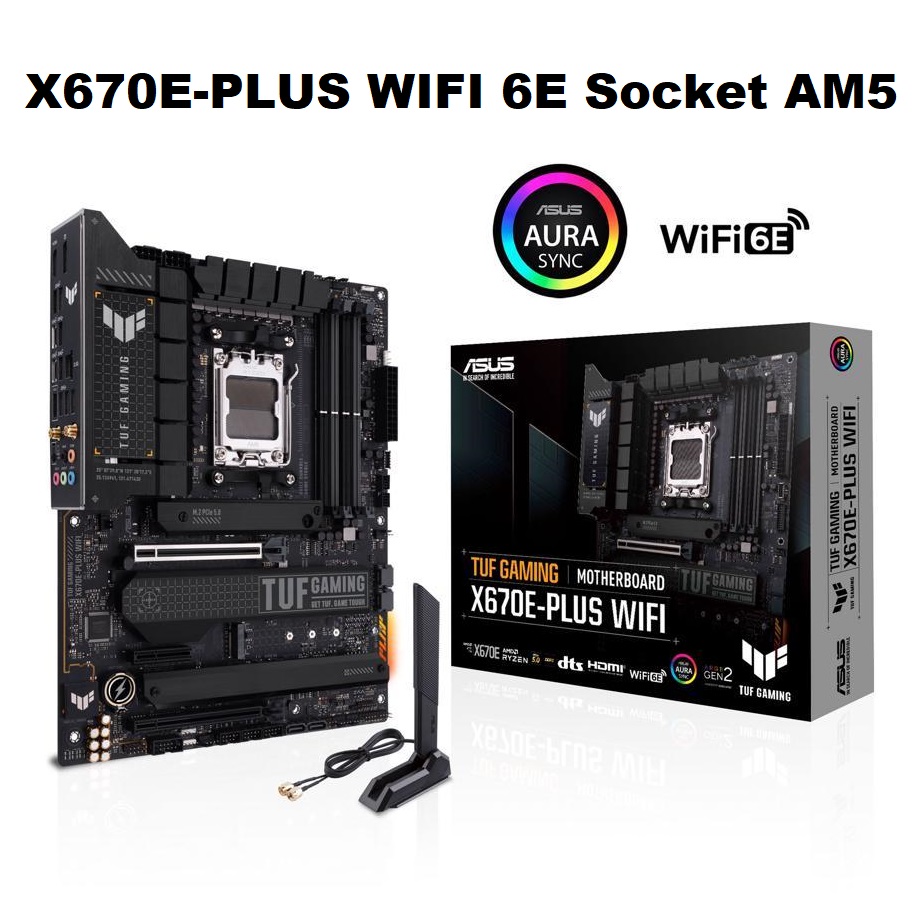

90MB1BK0-MVAAY0-USED X670E-PLUS WIFI AM5 DDR5 GAMING Motherboard ASUS TUF GAMING X670E-PLUS WIFI 6E Socket AM5 (LGA 1718) Ryzen 7000 ATX Gaming DDR5 Motherboard (16 Power Stages, PCIe 5.0,  WiFi 6E , 2.5 Gb Ethernet, Two-Way AI Noise Cancelation, Aura RGB Lighting)

ASUS TUF GAMING X670E-PLUS WIFI 6E Socket AM5 (LGA 1718) Ryzen 7000 ATX Gaming DDR5 Motherboard (16 Power Stages, PCIe 5.0,  WiFi 6E , 2.5 Gb Ethernet, Two-Way AI Noise Cancelation, Aura RGB Lighting) – USED

$ 274.00 ---ONLY---
SKU: 90MB1BK0-MVAAY0-USED Categories: ,

X670E-PLUS WIFI AM5 DDR5 GAMING Motherboard

EXPERT FEATURES

  • AMD AM5 socket: Ready for AMD Ryzen 7000 Series desktop processors.
  • Enhanced power solution: 14+2 teamed power stages, eight-layer PCB, 8+8 ProCool sockets, alloy chokes and durable capacitors for stable power delivery.
  • Next-gen connectivity: PCIe 5.0, USB 3.2 Gen2x2 Type-C, front USB 3.2 Gen 2 Type-C, USB4 support.
  • Made for online Gaming: Realtek 2.5 Gb Ethernet, WiFi 6E and TUF LANGuard .
  • Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences.
  • Comprehensive cooling: Enlarged VRM and PCH heatsinks, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility in Armoury Crate.
  • Aura Sync RGB effects: Stylish edge lighting design, addressable RGB headers and RGB strip header support.
  • Enhanced Power Solution: 14+2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability and performance.

EXPERT SPECS


BrandASUS
SeriesTUF
ModelTUF GAMING X670E-PLUS WIFI
Part Number90MB1BK0-M0AAY0

Supported CPU

CPU Socket TypeAM5
CPU TypeAMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list.

Chipsets

ChipsetAMD X670E

Memory

Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*

* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
Memory FeatureSupports AMD EXTended Profiles for Overclocking (EXPO)
OptiMem II

Expansion Slots

PCI Express 5.0 x161 x PCIe 5.0 x16 slot(s)

* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).

PCI Express 4.0 x161 x PCIe 4.0 x16 slot (supports x4 mode)
PCI Express x41 x PCIe 4.0 x4 slots

Storage Devices

SATA 6Gb/s4 x SATA 6Gb/s
M.2AMD Ryzen 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)AMD X670 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)**
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

*AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
** M.2_2 slot shares bandwidth with SATA_1&2. When M.2_w runs at PCIe x4 mode, SATA_1&2 will be disabled.

SATA RAID0/1/10
Onboard Audio

Audio Chipset

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*

– Impedance sense for front and rear headphone outputs
– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
– Supports up to 32-Bit/192 kHz playback*

Audio Features

– Audio shielding
– Premium audio capacitors
– Dedicated audio PCB layers
– Audio cover
– Unique de-pop circuit

* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

Audio Channels7.1 Channels

LAN Chipset1 x Realtek 2.5Gb Ethernet

Max LAN Speed

2.5Gbps

Wireless LAN

Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
* WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
BluetoothBluetooth v5.2


Rear Panel Ports

1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
4 x USB 3.2 Gen 2 port(s) (3 x Type-A, 1 x USB Type-C)
5 x USB 3.2 Gen 1 port(s) (5 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack button


Internal I/O Connectors

1 x USB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports

Other Connectors

Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 4 x 4-pin Chassis Fan headers
  • 1 x W_PUMP+ header(s)
Storage related
  • 4 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x AURA RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x 20-3 pin System Panel header with Chassis intrude function
  • 1 x Thermal Sensor header
  • 1 x Thunderbolt header

Physical Spec

Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0″ x 9.6″
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors

Windows 11 CompatibilitySupported


Features

TUF PROTECTION
– DIGI+ VRM (- Digital power design with DrMOS)
– ESD Guards
– LANGuard
– Overvoltage Protection
– Safeslot
– Stainless-Steel Back I/OASUS Q-Design
– M.2 Q-Latch
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot

ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design

ASUS EZ DIY
– BIOS FlashBack button
– BIOS FlashBack LED
– Clear CMOS button
– ProCool
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM

AURA Sync
– AURA RGB header
– Addressable Gen 2 headers

BIOS
– 256 Mb Flash ROM, UEFI AMI BIOS



Package Contents

Cables
2 x SATA 6Gb/s cablesMiscellaneous
1 x ASUS Wi-Fi moving antenna
2 x Rubber packages for M.2
2 x Screw packages for M.2 SSD

Installation Media
1 x Support DVD

Documentation
1 x TUF certification card
1 x User guide

Description

90MB1BK0-MVAAY0-USED

X670E-PLUS WIFI AM5 DDR5 GAMING Motherboard

ASUS TUF GAMING X670E-PLUS WIFI 6E Socket AM5 (LGA 1718) Ryzen 7000 ATX Gaming DDR5 Motherboard (16 Power Stages, PCIe 5.0,  WiFi 6E , 2.5 Gb Ethernet, Two-Way AI Noise Cancelation, Aura RGB Lighting)
