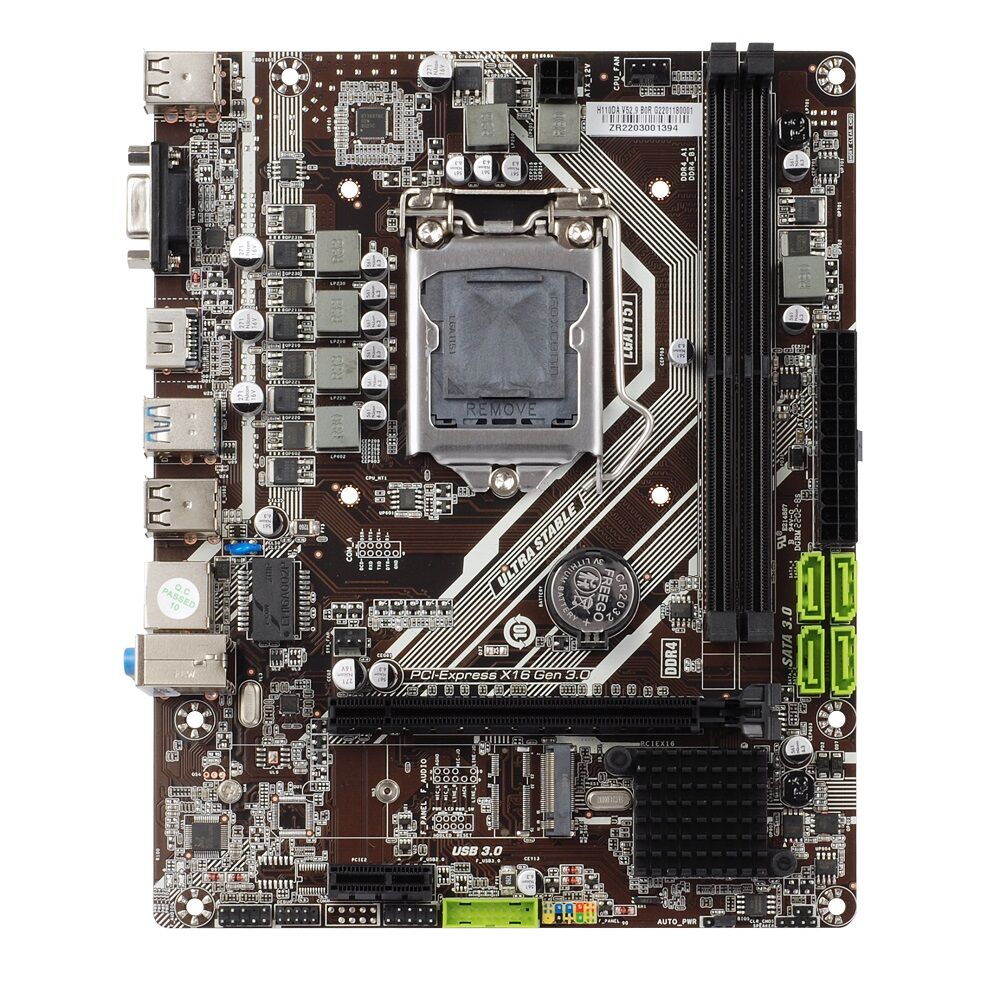

Esonic M.2 H110DA1 Computer Motherboard OEM/ODM LGA1151 desktop mATX mainboard for 6/7/8/9th Gen CPU
$ 60.00 ---ONLY---
Out stock
Out of stock
Key Specifications/ Special Features:
Specification
Product Name | Esonic M.2 H110 Computer Motherboard High Quality OEM/ODM LGA1151 desktop mATX mainboard for 6/7/8/9th gen CPU |
Brand | Esonic motherboard |
Chipset | Intel® H110 Chipset |
Processor Support | Supports Intel® Socket 1151 Processors Supports 6/7/8/9th Gen Core™i7/ i5/ i3/Pentium®/Celeron® Processors |
Memory Support | 2 * DDR4 2400/2666/3200Mhz DIMM, Max. 32GB (For more information on compatible components, please check with manufacturer) |
LAN | support Realtek® 10/100 MBS |
Audio | Chip integrated by Realtek®ALC662 / ALC897 Flexible 6-channel |
SATA | 4 * SATA 3Gb/s port(s), |
M.2 | 1 * M2_SSD(2280) slot, supports PCI-E/ SATA signals |
SLOTS | 1 PCI Express x16 3.0 slot 1 PCI Express x1 3.0 slot |
USB | 4 * USB 3.0 port (2 at back panel, blue, 2 at mid-board) 6 * USB 2.0 port (4 at back panel, black, 2 at mid-board) |

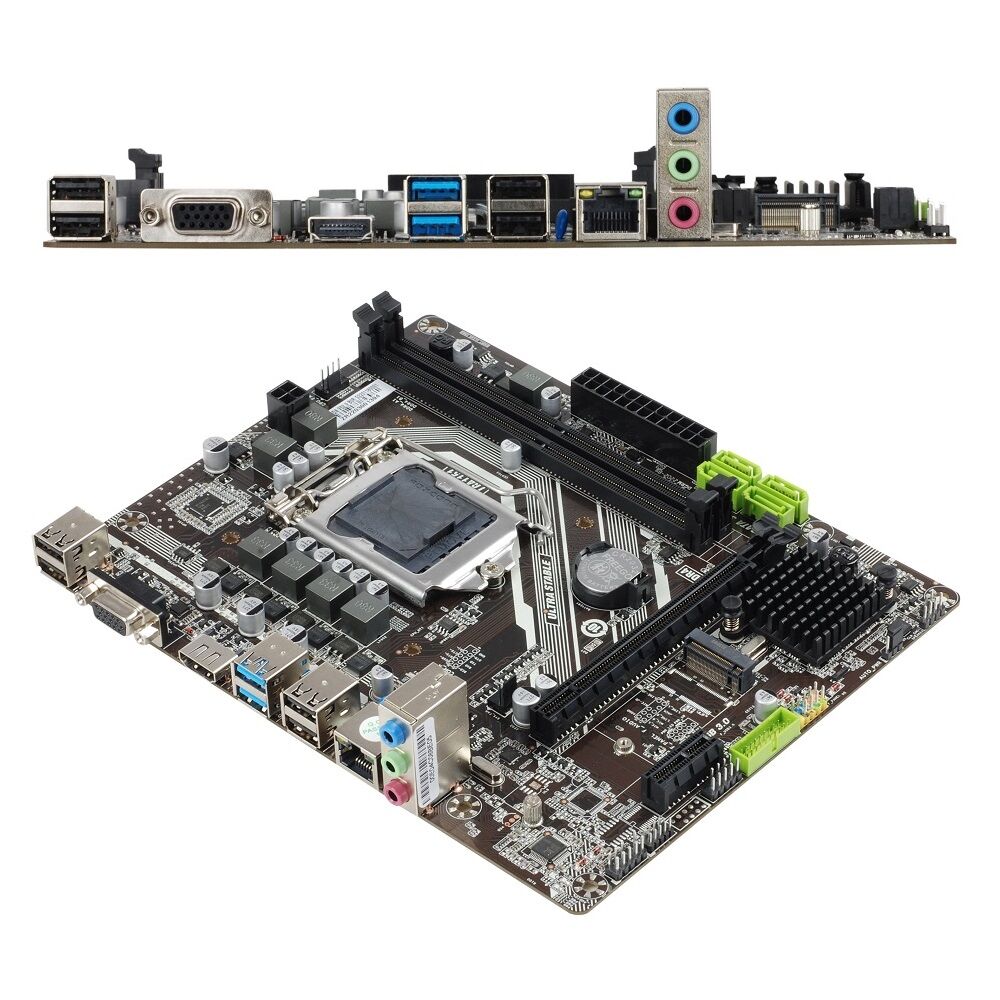

Back panel | 1 * VGA port 1 * HDMI port 2 * USB 3.0 Ports 4 * USB 2.0 Ports 1 * LAN jack 3 * flexible audio jacks |

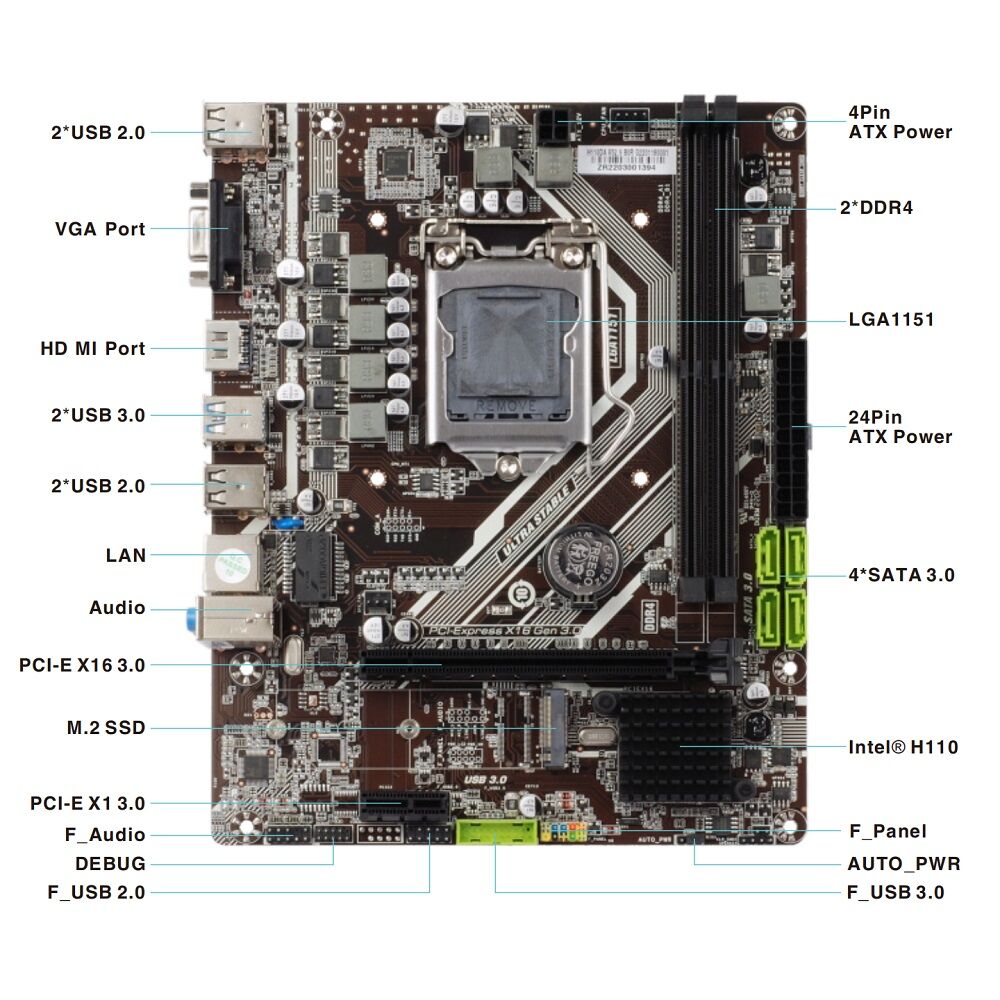

On-Board Pinheaders / Connectors | 1 * USB 2.0 pinheader 1 * USB 3.0 pinheader 1 * DEBUG pinheader 1 * AUTO_PWR pinheader 1 * Front Panel 1 * Front Panel Audio |
Form Factor | ATX (21.5cm X 17cm) 6 mounting holes |
Accessories | SATA cable 1X I/O Backboard 1X User Manual 1X Drives installed CD |
Pictures
Description
Esonic M.2 H110 Computer Motherboard High Quality OEM/ODM LGA1151 desktop mATX mainboard for 6/7/8/9th Gen CPU
LGA1151 Motherboard mATX 9th Gen CPU
