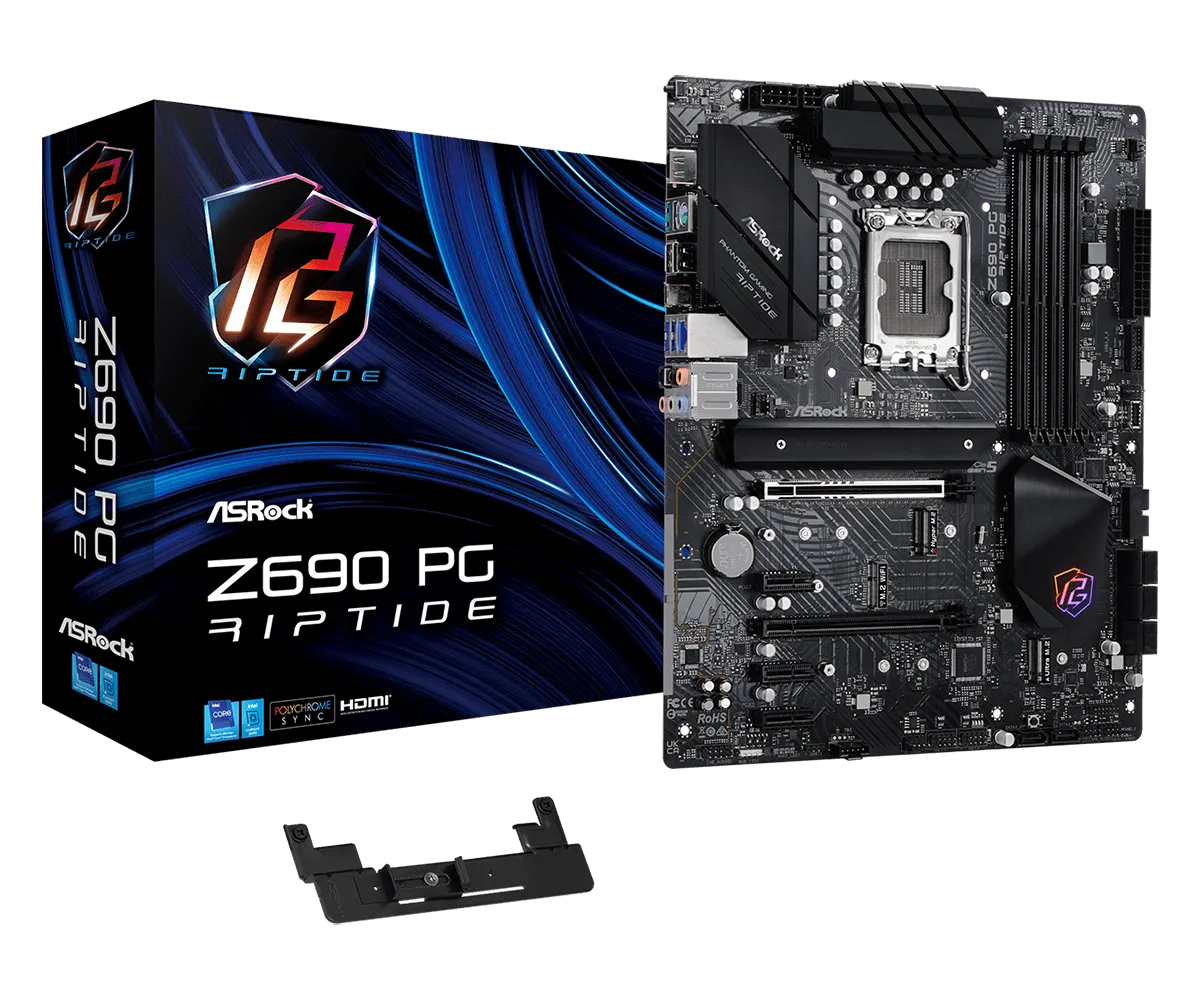

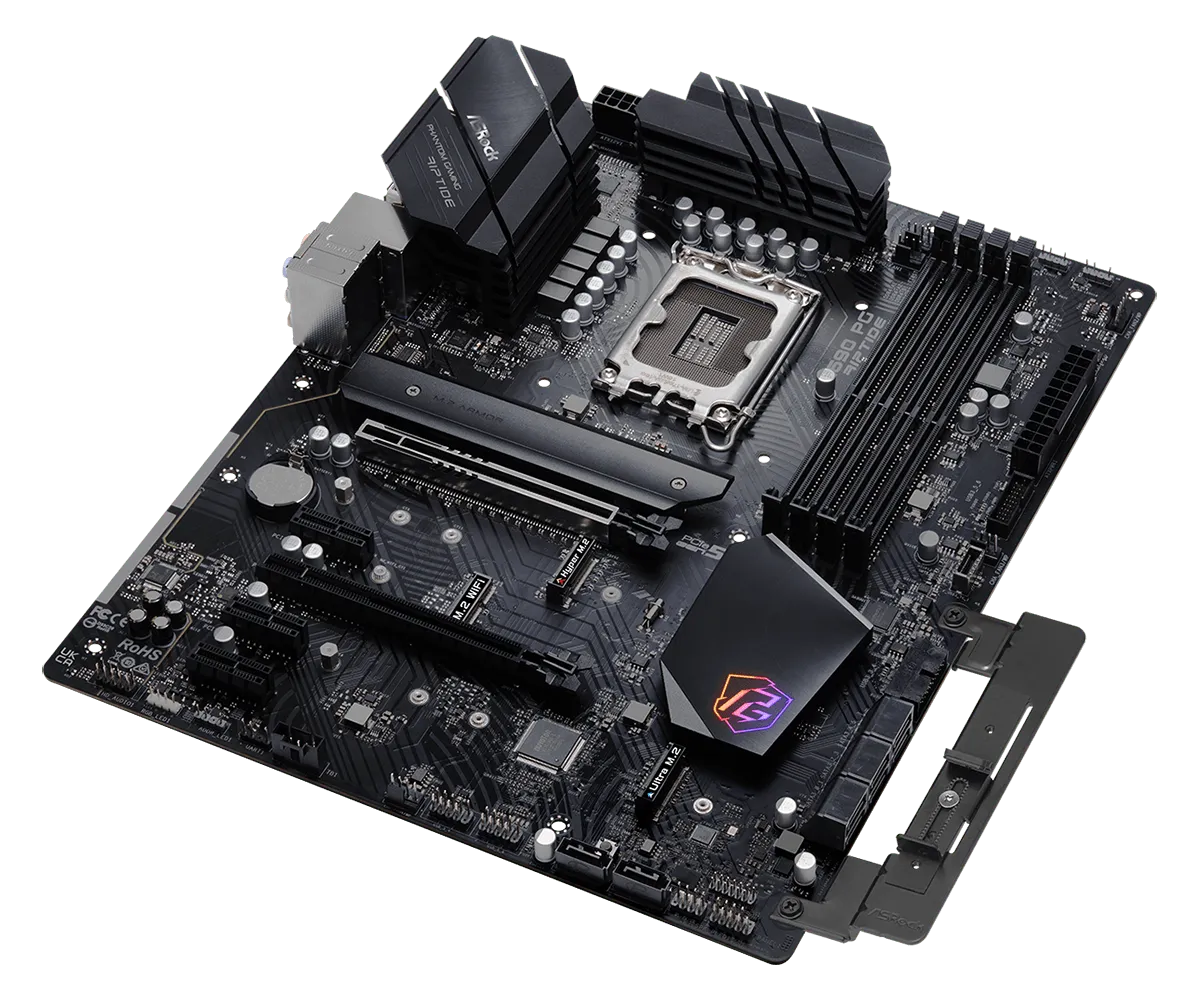

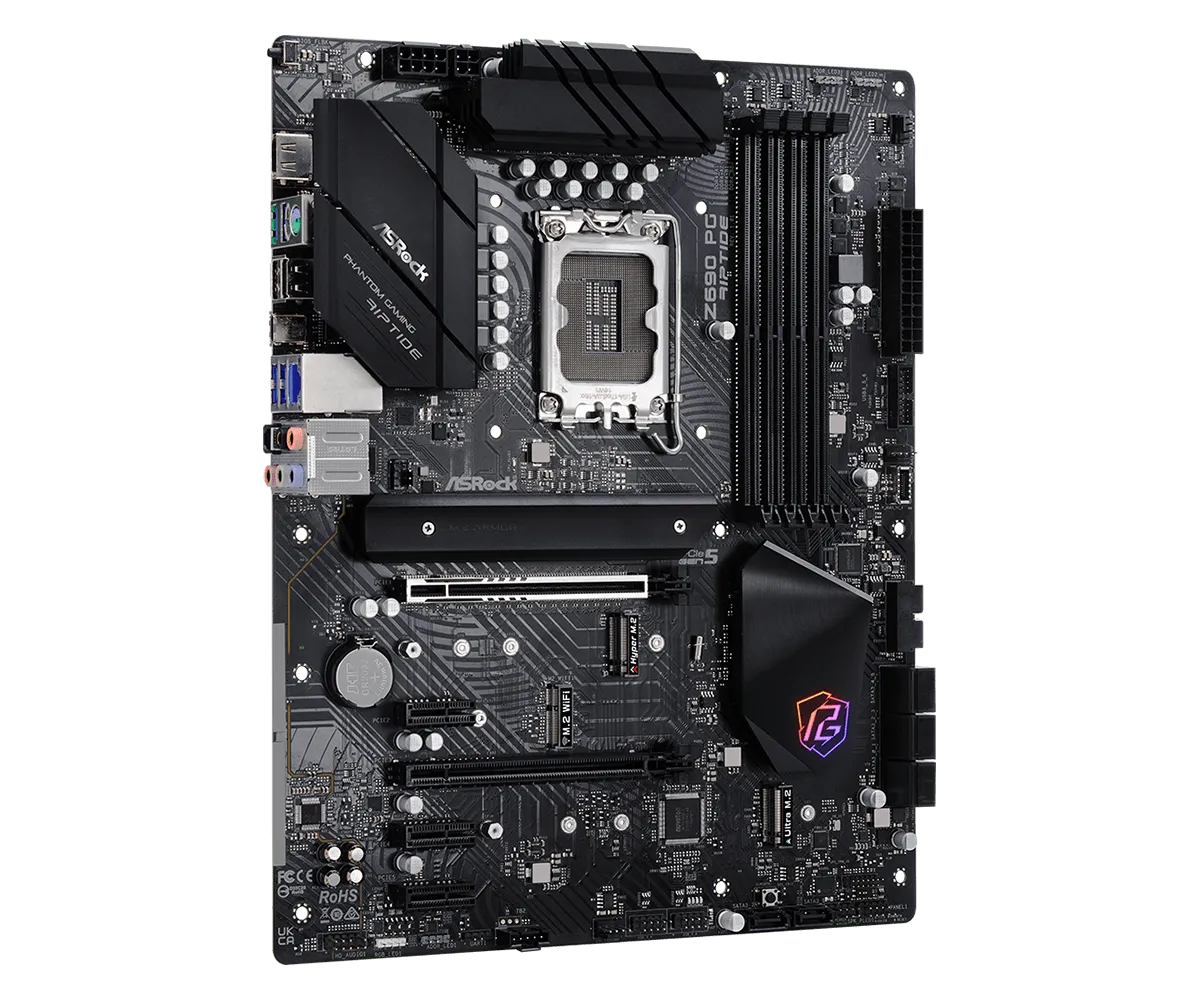

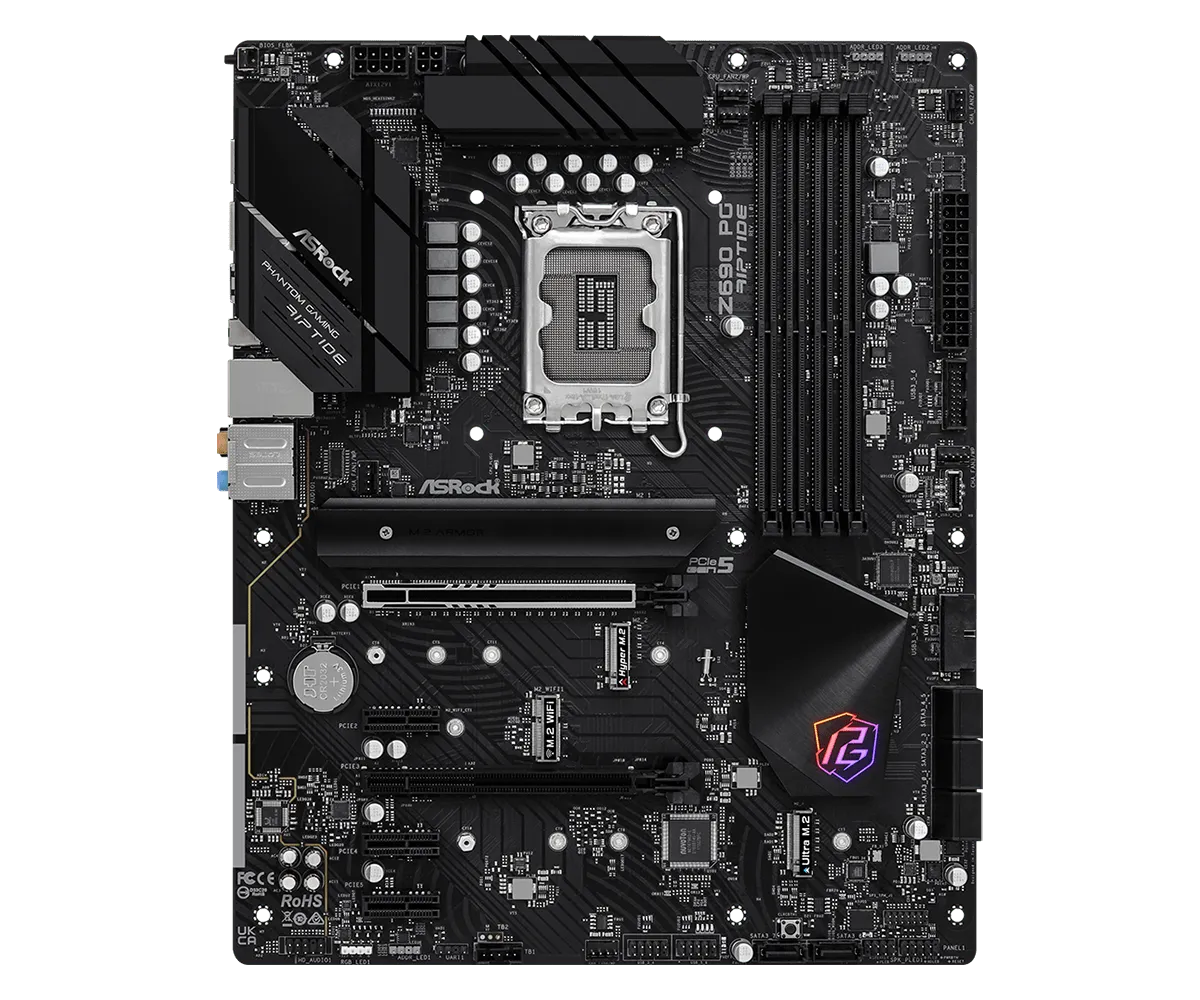

ASROCK Z690 PC RIPTIDE DDR4 LGA 1700 MOTHERBOARD

$ 233.00 $ 199.00 ---ONLY---
-15%
SKU: 90-MXBHQ0-A0UAYZ Categories: ,

90-MXBHQ0-A0UAYZ

ASROCK Z690 PC RIPTIDE DDR4 LGA 1700 MOTHERBOARD

  • ASRock USB 3.2 Gen2
    – ASRock USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
    – ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
    ASRock Super Alloy
    – XXL Aluminum Alloy Heatsink
    – Premium Power Choke
    – 55A Dr.MOS
    – Premium Memory Alloy Choke (Reduces 70% core loss compared to iron power choke)
    – Matte Black PCB
    – High Density Glass Fabric PCB
    – 2oz Copper PCB
    Killer 2.5G LAN
    ASRock Auto Driver Installer
    ASRock Steel Slot
    ASRock Full Coverage M.2 Heatsink
    ASRock Hyper M.2 (PCIe Gen4x4)
    ASRock POST Status Checker (PSC)
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop
  • CPU
    – Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
    – Digi Power design
    – 13 Power Phase design
    – Supports Intel® Hybrid Technology
    – Supports Intel® Turbo Boost Max 3.0 Technology
  • Chipset
    – Intel® Z690
  • Memory
    – Dual Channel DDR4 Memory Technology
    – 4 x DDR4 DIMM Slots
    – Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
    – Supports ECC UDIMM memory modules (operate in non-ECC mode)
    – Max. capacity of system memory: 128GB**
    – Supports Intel® Extreme Memory Profile (XMP) 2.0

    *Supports DDR4 3200 natively.

    **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

  • BIOS
    – 256Mb AMI UEFI Legal BIOS with multilingual GUI support
    – ACPI 6.0 Compliant wake up events
    – SMBIOS 2.7 Support
    – CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment
  • Graphics
    – Intel® Xe Graphics Architecture (Gen 12)
    – Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
    – Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible Port

    *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
  • Audio
    – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    – Supports Surge Protection
    – Gold Audio Jacks
    – Nahimic Audio
  • LAN
    – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    – Killer E3100G
    – Supports Killer LAN Software
    – Supports Wake-On-LAN
    – Supports Lightning/ESD Protection
    – Supports Energy Efficient Ethernet 802.3az
    – Supports PXE
  • Slots
    CPU:
    – 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
    Chipset:
    – 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
    – 3 x PCIe 3.0 x1 Slots (PCIE2, PCIE4 and PCIE5)*
    – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)- Supports AMD CrossFire™

    *Supports NVMe SSD as boot disks
  • Storage
    CPU:
    – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    Chipset:
    – 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    – 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
    – 8 x SATA3 6.0 Gb/s Connectors**

    *Supports Intel® Optane™ Memory H Series (M2_2 and M2_3 only)
    Supports Intel® Volume Management Device (VMD)
    Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit**If M2_3 is occupied by a SATA-type M.2 device, SATA3_7 will be disabled.
