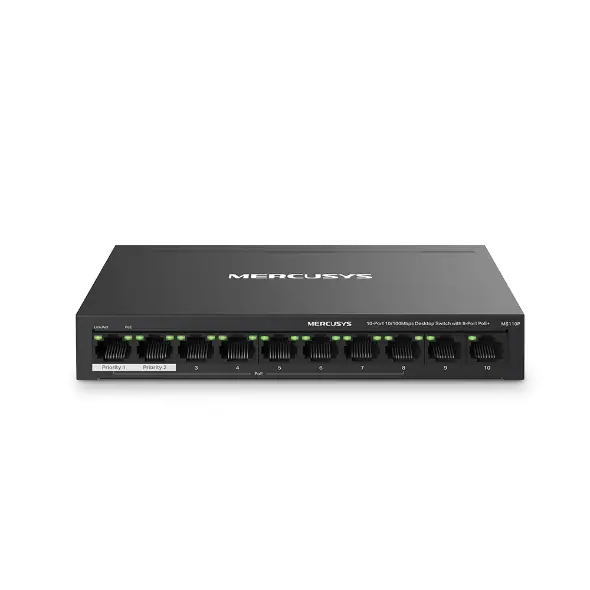

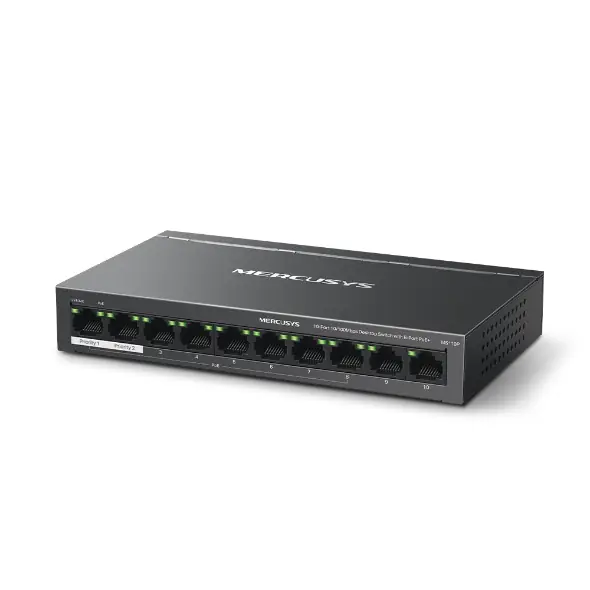

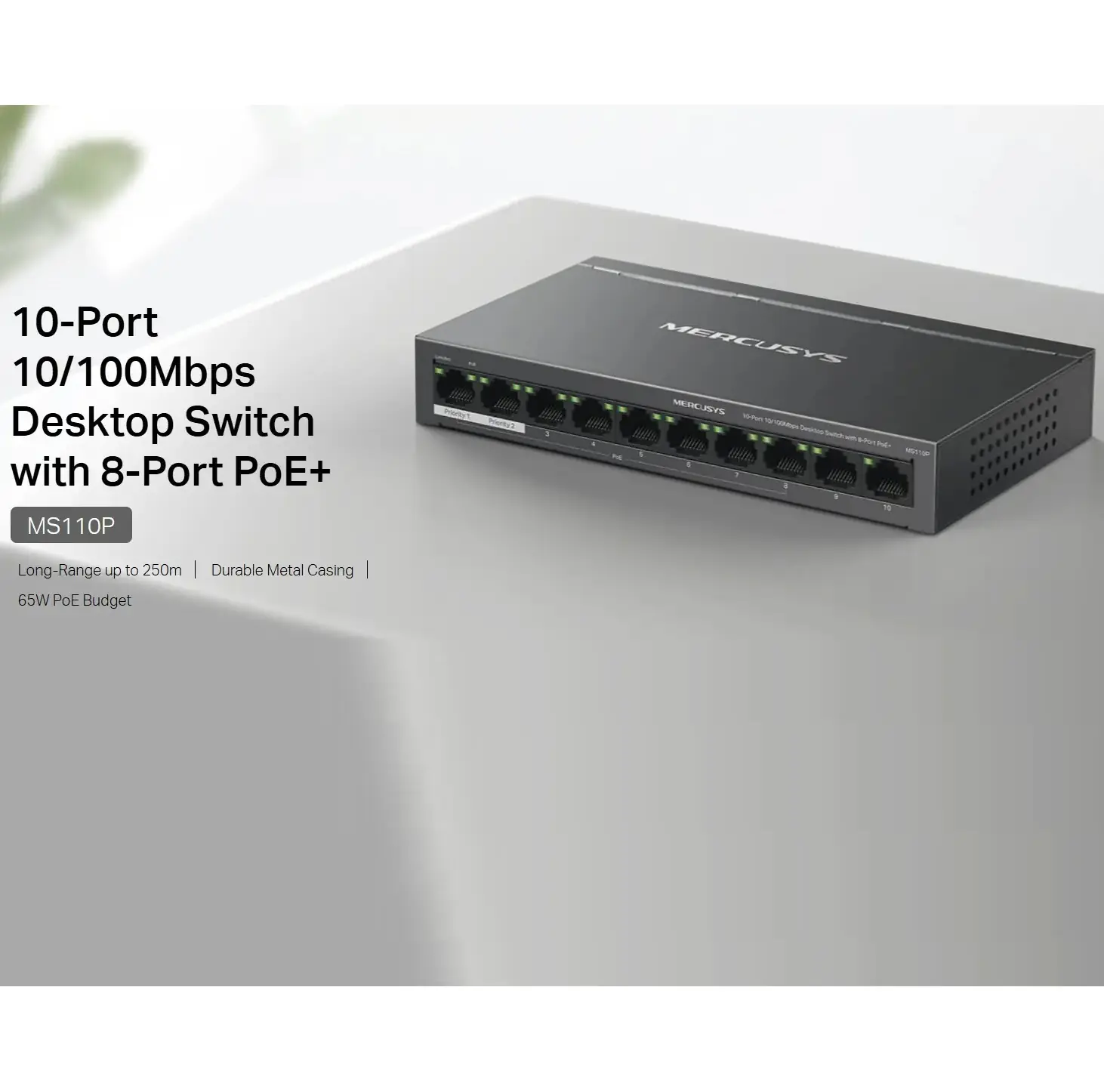

Mercusys MS110P 10-Port 10/100Mbps Desktop Switch with 8 PoE+ Ports, 65W Power Budget, 250m Long-Range, Plug & Play, PoE Auto Recovery

Name: Mercusys MS110P 10-Port 10/100Mbps Desktop Switch with 8 PoE+ Ports, 65W Power Budget, 250m Long-Range, Plug & Play, PoE Auto Recovery | Expert-Zone
SKU: MS110P
Price: 29.00 USD
Availability: OutOfStock

$ 29.00 ---ONLY---

OUT OF STOCK

Add to compare

Description

Expert Features

8× PoE+ Ports (802.3af/at Compliant) – Delivering up to 30W per port with a total 65W PoE budget

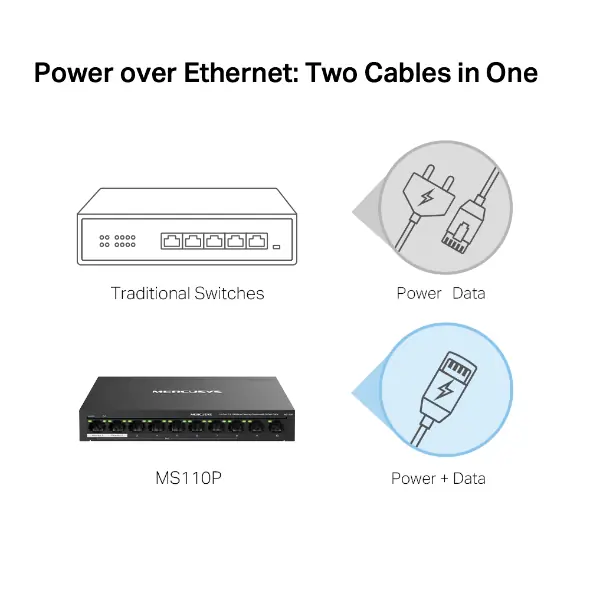

Two-in-One Cable System – Power and data transferred through a single cable for easy deployment

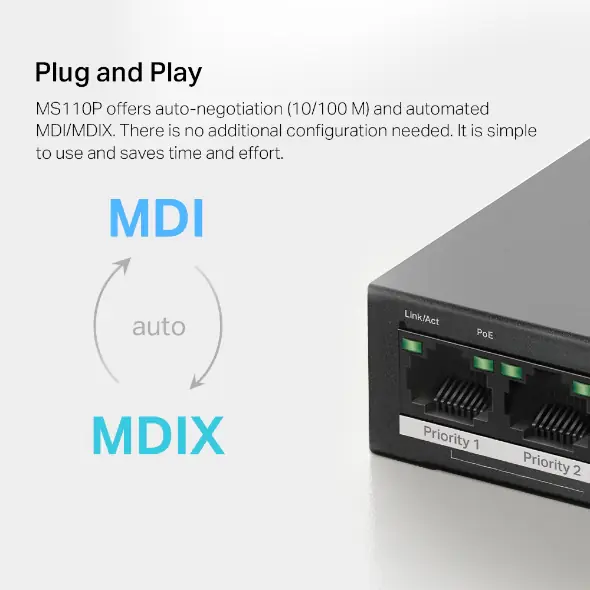

Plug & Play Installation – No software configuration required; auto-negotiation and MDI/MDIX supported

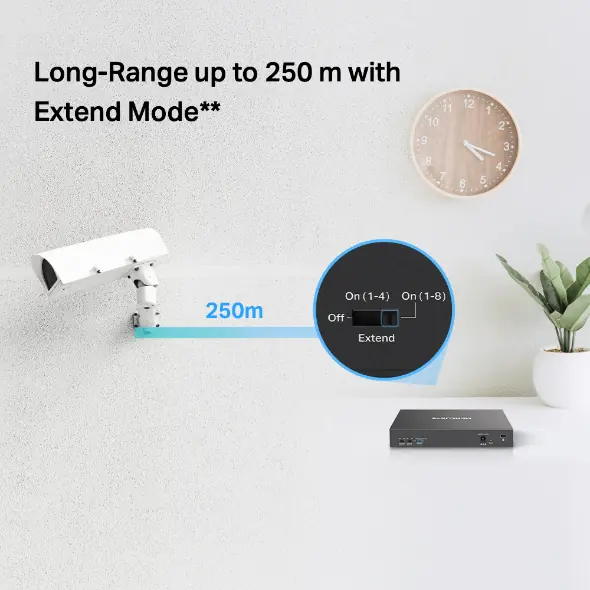

Extend Mode – Extends PoE transmission distance up to 250 meters for long-range deployments
PoE Auto Recovery – Automatically reboots unresponsive PoE devices to ensure uninterrupted operation

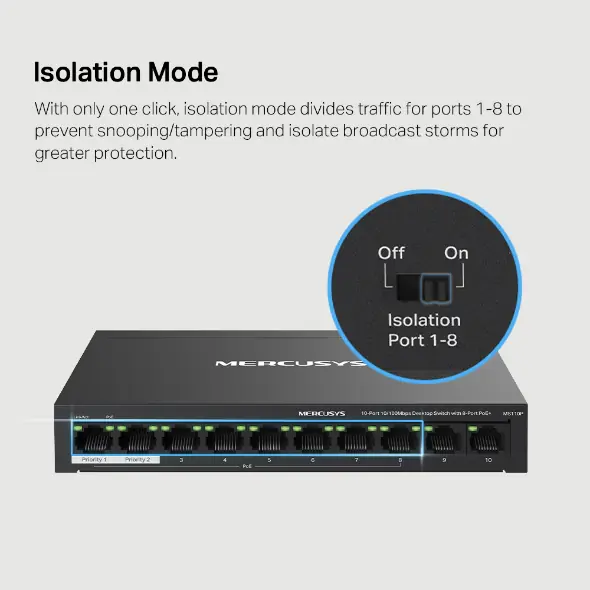

Traffic Isolation Mode – One-click separation of ports 1–8 for increased network security and broadcast storm protection

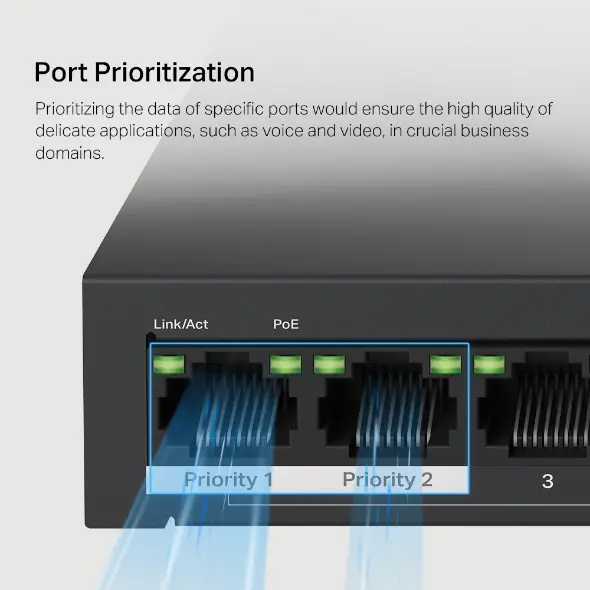

Port Prioritization – Ensures reliable performance for critical applications like IP voice and video
2 Uplink Ports – Dedicated uplinks for Internet and NVR connection, especially when isolation mode is active

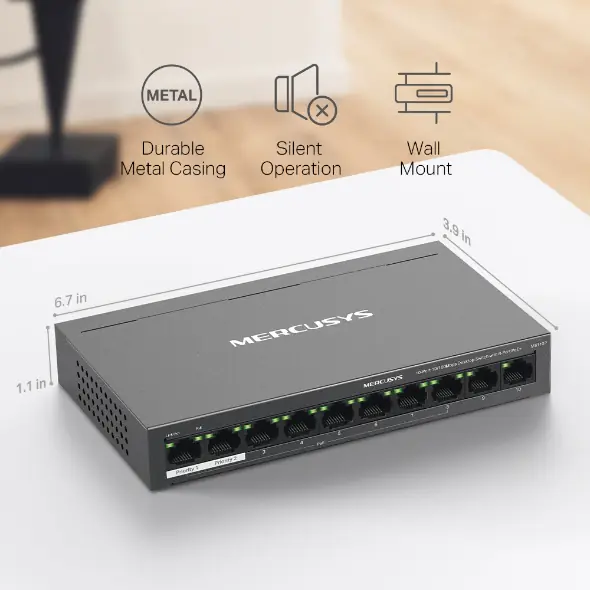

Durable Metal Housing – Enhanced heat dissipation, silent operation, and long-lasting performance
Wide Compatibility – Ideal for IP cameras, access points, IP phones, PCs, and video recorders in small business environments

Expert Specs

Specification	Details
Model	Mercusys MS110P
Ports	10 × 10/100 Mbps RJ45 ports (8 PoE+ ports)
PoE Standards	IEEE 802.3af/at compliant
PoE Budget	65 Watts total
Max PoE Power/Port	30 Watts
Uplink Ports	2 (for Internet and NVR)
Extend Mode Range	Up to 250 meters on ports 1–8
Traffic Isolation	Supported (1-click for ports 1–8)
Port Prioritization	Supported
Installation	Plug & Play, Auto MDI/MDIX
Material	Metal Casing
Cooling	Silent Operation (fan-less)
Mounting	Wall-mount capable
Use Case	Offices, dormitories, retail shops, and surveillance
