SKU: MS108G

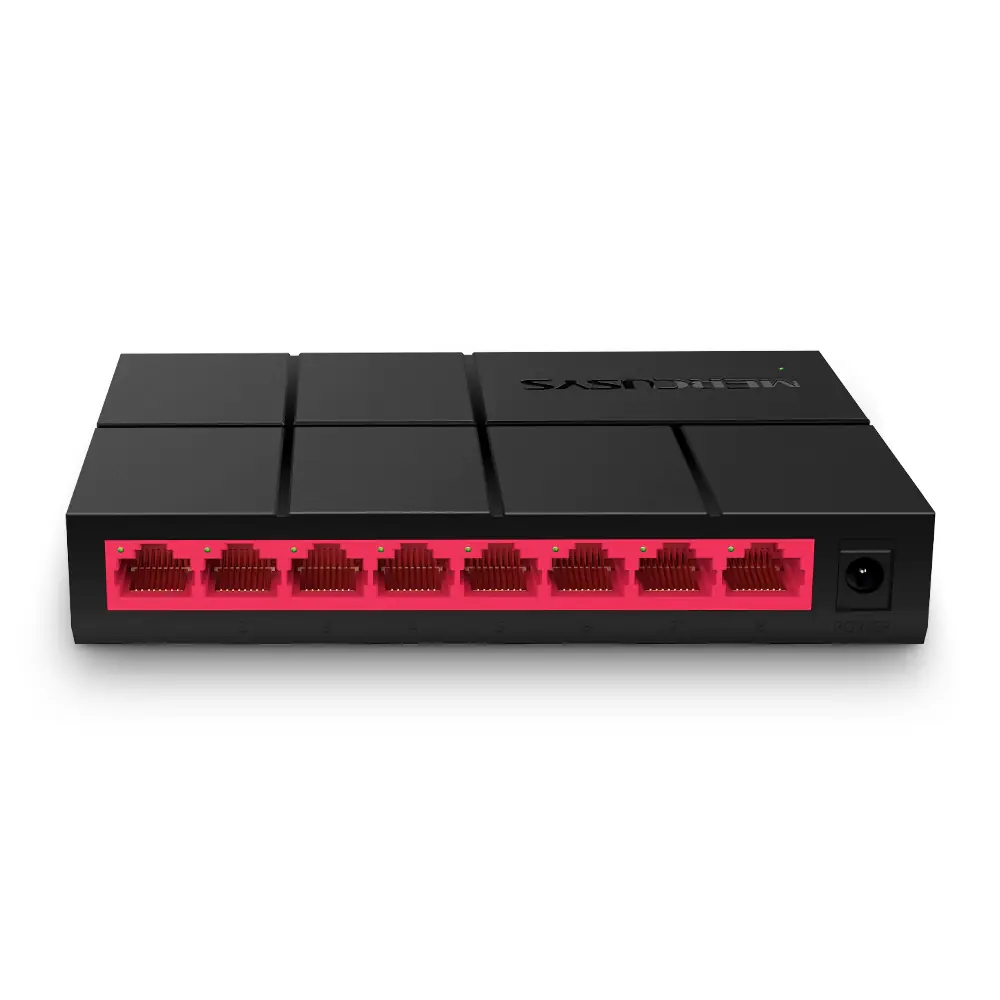

MERCUSYS MS108G – 8-Port Gigabit Desktop Switch with Auto MDI/MDIX, Energy-Efficient Design, Plug & Play Setup, Compact Form Factor

$ 16.00

OUT OF STOCK

OUT OF STOCK

Description

Expert Features

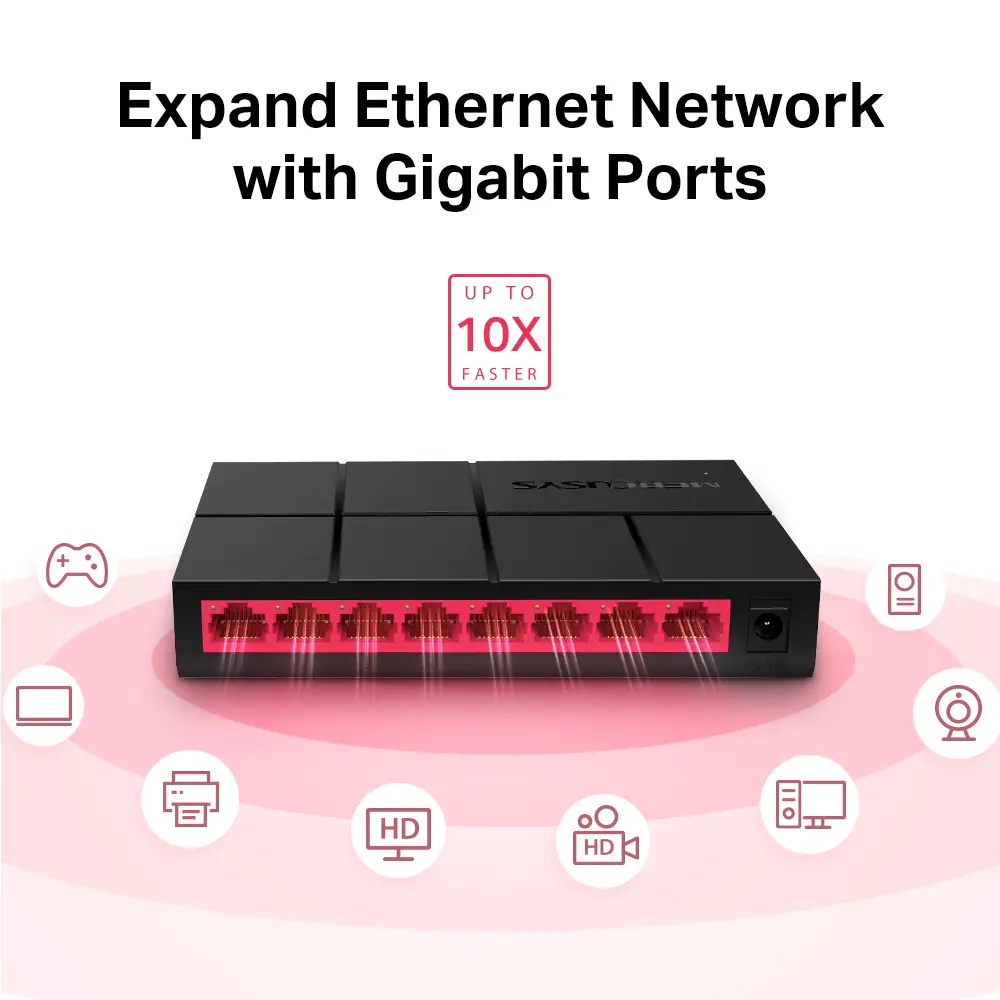

  • High-Speed Connectivity: Equipped with eight 10/100/1000 Mbps auto-negotiation RJ45 ports, ensuring seamless data transmission for various devices.
  • Auto MDI/MDIX Support: Eliminates the need for crossover cables, simplifying installation and maintenance.

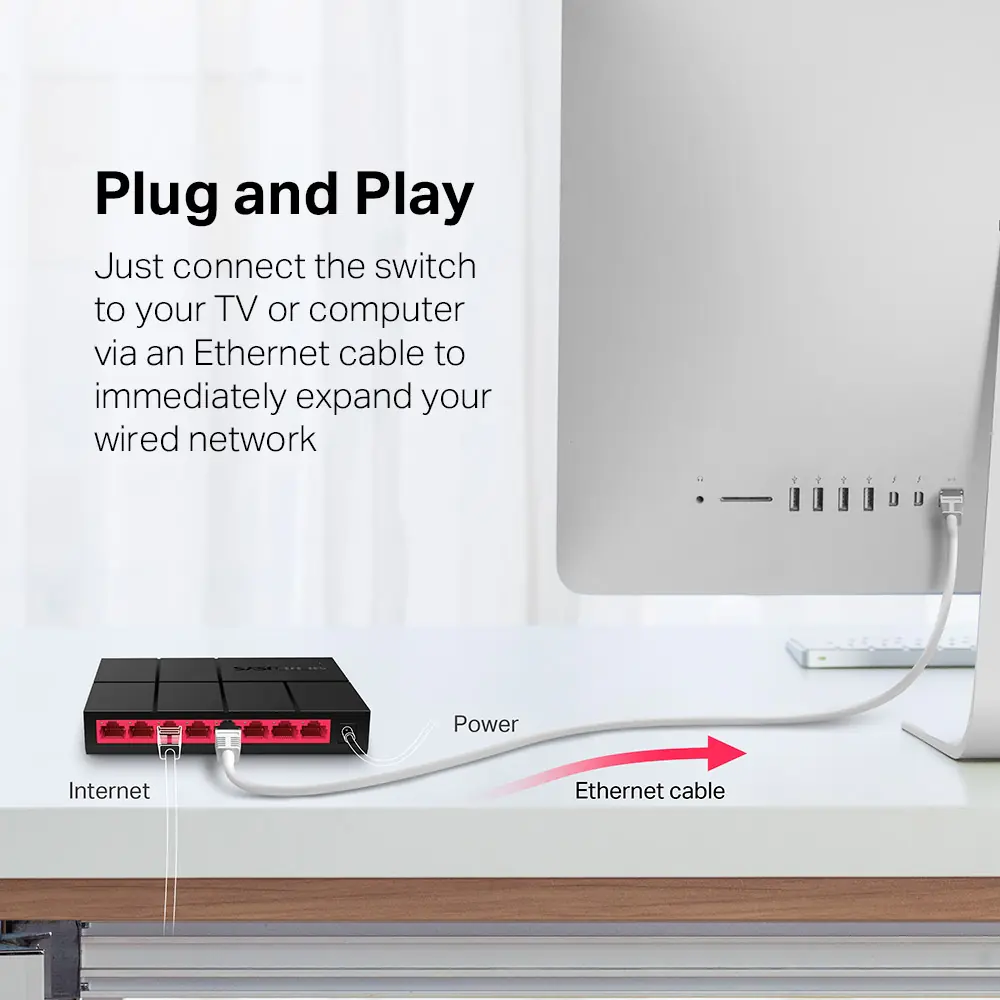

  • Plug and Play: No configuration required; simply connect your devices to expand your wired network effortlessly.

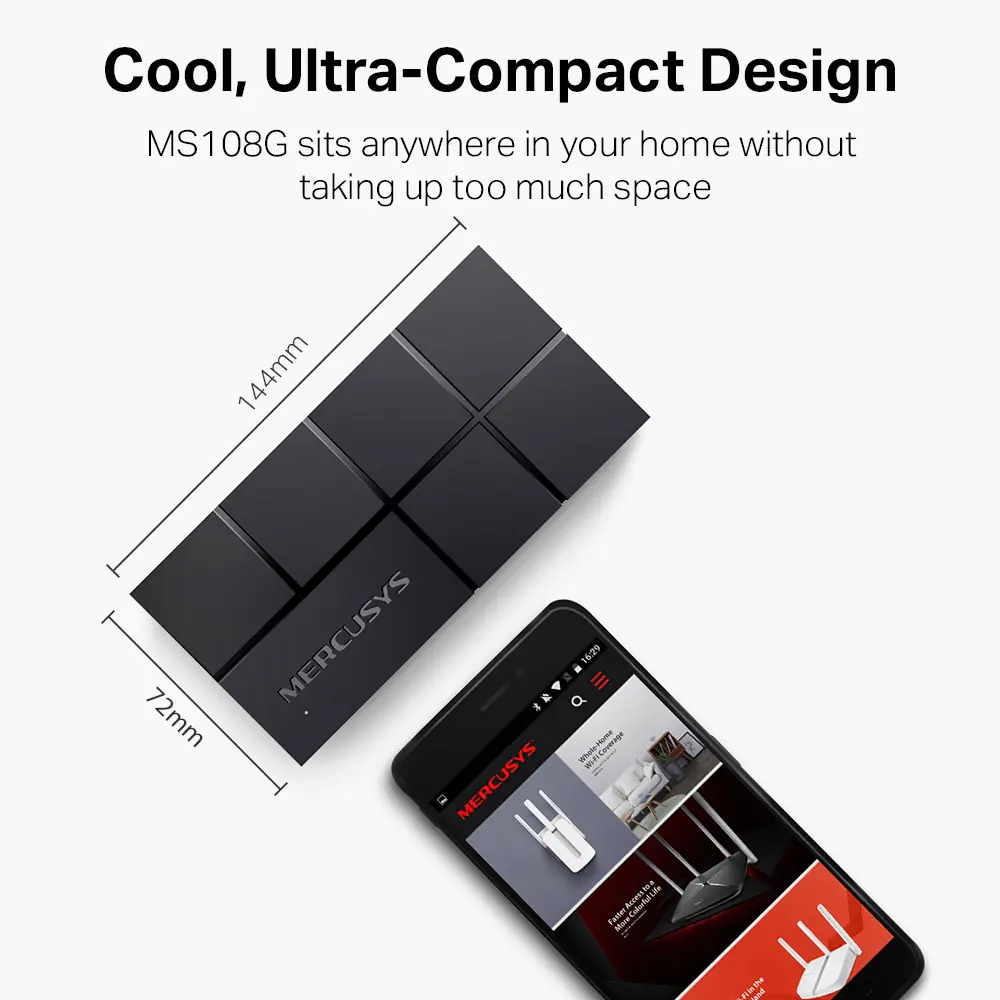

  • Compact Design: Sleek and ultra-compact form factor allows for flexible placement in home or office environments.
  • Energy-Efficient Technology: Green Ethernet technology reduces power consumption by up to 82%, contributing to a greener environment.
  • Reliable Performance: Features MAC address learning and store-and-forward switching for stable and efficient network performance.
  • Compatibility: Fully compatible with 4K Ultra HD TVs, computers, printers, IP cameras, game consoles, and more.

Expert Specs

CategoryDetails
ModelMS108G
Ports8× 10/100/1000 Mbps RJ45, Auto-Negotiation, Auto MDI/MDIX
Standards and ProtocolsIEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD
Data Rates10/100/1000 Mbps at Half Duplex; 20/200/2000 Mbps at Full Duplex
Buffer Capacity64 KB
Jumbo Frame9 KB
Transfer MethodStore and Forward
LED IndicatorsPower, Link/Activity per port
External Power Supply9V/0.6A
Dimensions127 × 60.3 × 22 mm
Operating Temperature0°C to 40°C (32°F to 104°F)
Operating Humidity10% to 90% RH, non-condensing
Mounting OptionsDesktop
CasingPlastic
ColorBlack and Red
Power ConsumptionMaximum: 5.4W
