Maxtor AP-12 High-Performance Silicone Thermal Pad, 14.8W/m·K Thermal Conductivity, 120 × 120 × 1.0mm, Electrically Insulating, Cut-to-Fit for GPU VRAM, VRM, SSD & Laptop Cooling | Grey
Original price was: $ 10.00.$ 9.00Current price is: $ 9.00.
-14%
Whopping Discounts on Full PC Builds!
Maxtor AP-12 High-Performance Silicone Thermal Pad, 14.8W/m·K Thermal Conductivity, 120 × 120 × 0.5mm, (1 pcs) Silicone, Electrically Insulating, Cut-to-Fit for GPU VRAM, VRM, SSD & Laptop Cooling | Grey
Original price was: $ 7.00.$ 6.00Current price is: $ 6.00.
Description
Expert Features
- 14.8 W/m·K Thermal Conductivity: High-performance silicone thermal interface material designed to transfer heat from electronic components into compatible cooling surfaces.
- 120 × 120 mm Large Sheet: Generous square format provides flexible cutting options for GPU memory chips, motherboard components, SSDs, and custom electronics repairs.
- Precision 0.5 mm Thickness: Thin thermal interface pad suitable for assemblies requiring a 0.5 mm gap-filling material, subject to original component clearance.
- Electrically Insulating: Non-electrically conductive silicone formulation helps reduce short-circuit risks when installed near sensitive electronic components.
- High Compressibility: Soft, conformable material adapts to mating surfaces under appropriate mounting pressure, helping improve thermal contact.
- Wide Operating Temperature Range: Manufacturer-rated operating range of −50°C to +250°C for demanding electronic thermal-management applications.
- GPU VRAM & VRM Cooling: Suitable for replacing appropriately sized thermal pads between graphics-card memory, voltage-regulation components, and their cooling assemblies.
- SSD & Motherboard Applications: Can be cut to fit compatible M.2 SSD cooling interfaces, chipsets, memory modules, and other electronic components.

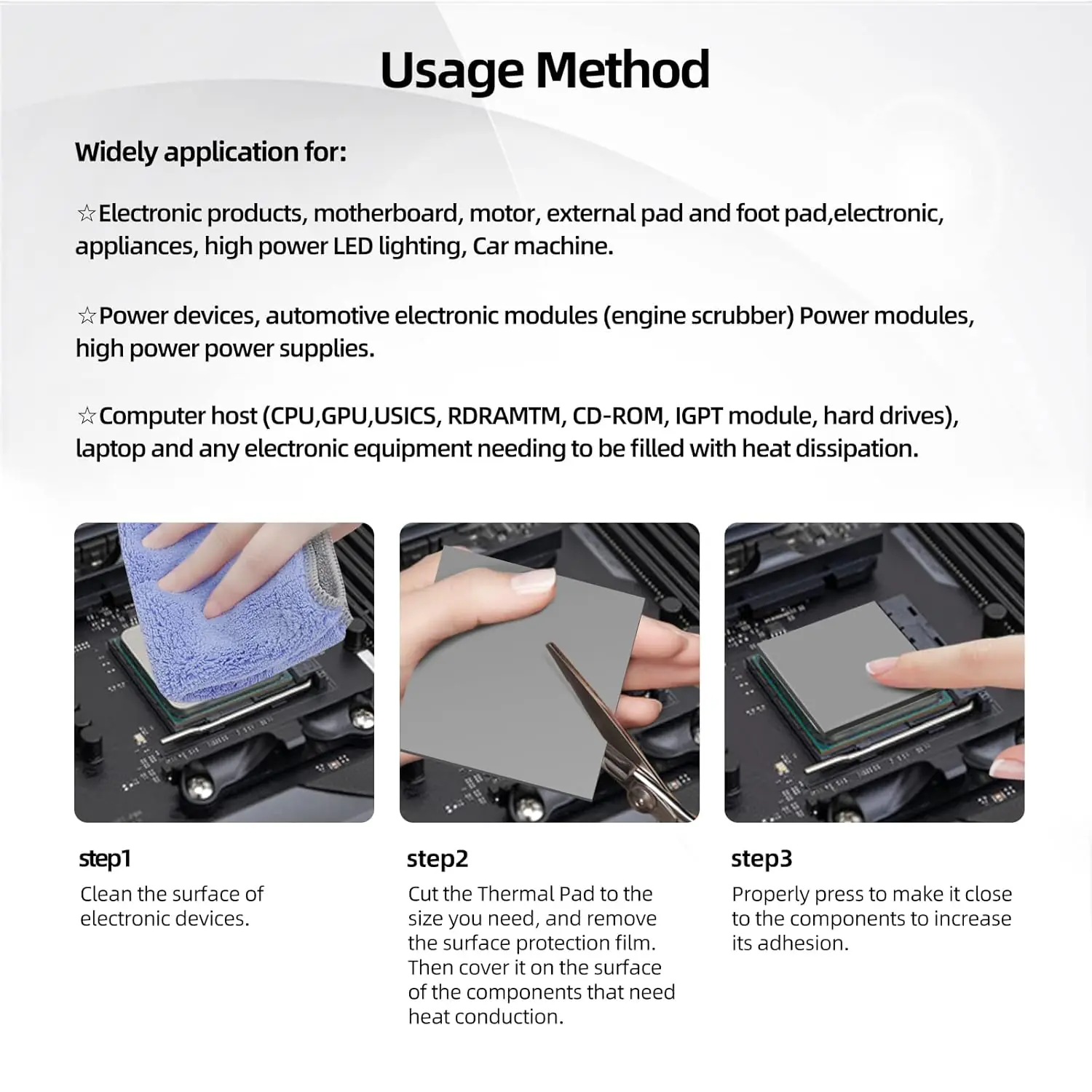

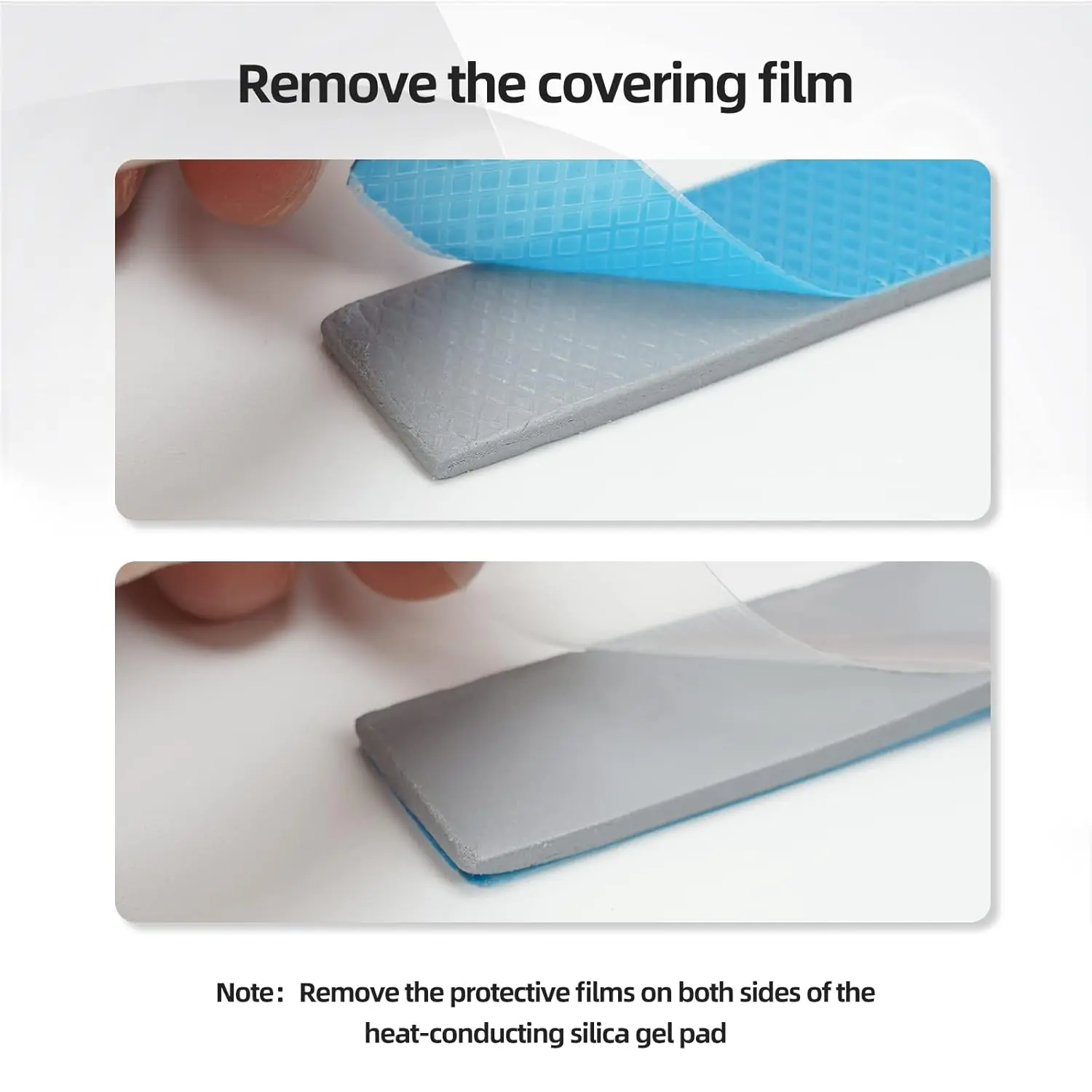

- Clean, Pre-Formed Installation: Cut the pad to size, remove its protective liners, and position it without the spreading or mess associated with thermal grease.
- Non-Curing Silicone Material: Designed to remain a flexible thermal interface rather than hardening into a permanent solid layer.
- Customizable Cut-to-Fit Design: Trim the sheet into smaller pieces for multiple properly measured contact areas while maintaining the original 0.5 mm thickness.
- Laptop & Desktop Servicing: Practical for GPU, laptop, workstation, and desktop thermal-pad replacement where the required thickness and contact geometry match.
Expert Specs
| Brand | Maxtor |
|---|---|
| Model | AP-12 |
| Product Type | High-Performance Thermal Pad |
| Material | Silicone-Based Thermal Interface Material |
| Thermal Conductivity | 14.8 W/m·K |
| Sheet Length | 120 mm |
| Sheet Width | 120 mm |
| Sheet Dimensions | 120 × 120 mm |
| Thickness | 0.5 mm |
| Shape | Square, Cut-to-Fit Sheet |
| Color | Gray |
| Electrical Conductivity | Non-Conductive / Electrically Insulating |
| Operating Temperature | −50°C to +250°C |
| Hardness | 30–55 Sc (manufacturer notation) |
| Material Behavior | Non-Curing |
| Compressibility | High Compressibility |
| Application Method | Cut, Peel Protective Liners, Position |
| Primary Applications | GPU VRAM, VRM, Motherboard Components |
| Additional Applications | SSD/M.2, Chipsets, Memory Modules, ICs |
| Compatible Cooling Interfaces | Appropriate Heatsinks and Electronic Cooling Surfaces |
| Manufacturer-Listed Shelf Life | 5 Years |
| Manufacturer-Listed Standards | RoHS, REACH, ISO (ISO standard unspecified) |
Compatibility note: Confirm that your equipment requires a 0.5 mm thermal pad and verify the original contact geometry before installation. Do not assume that a gap-filling thermal pad replaces thermal paste on a bare CPU or GPU die.
