SKU:
R-PNC00M-FC0B-EU

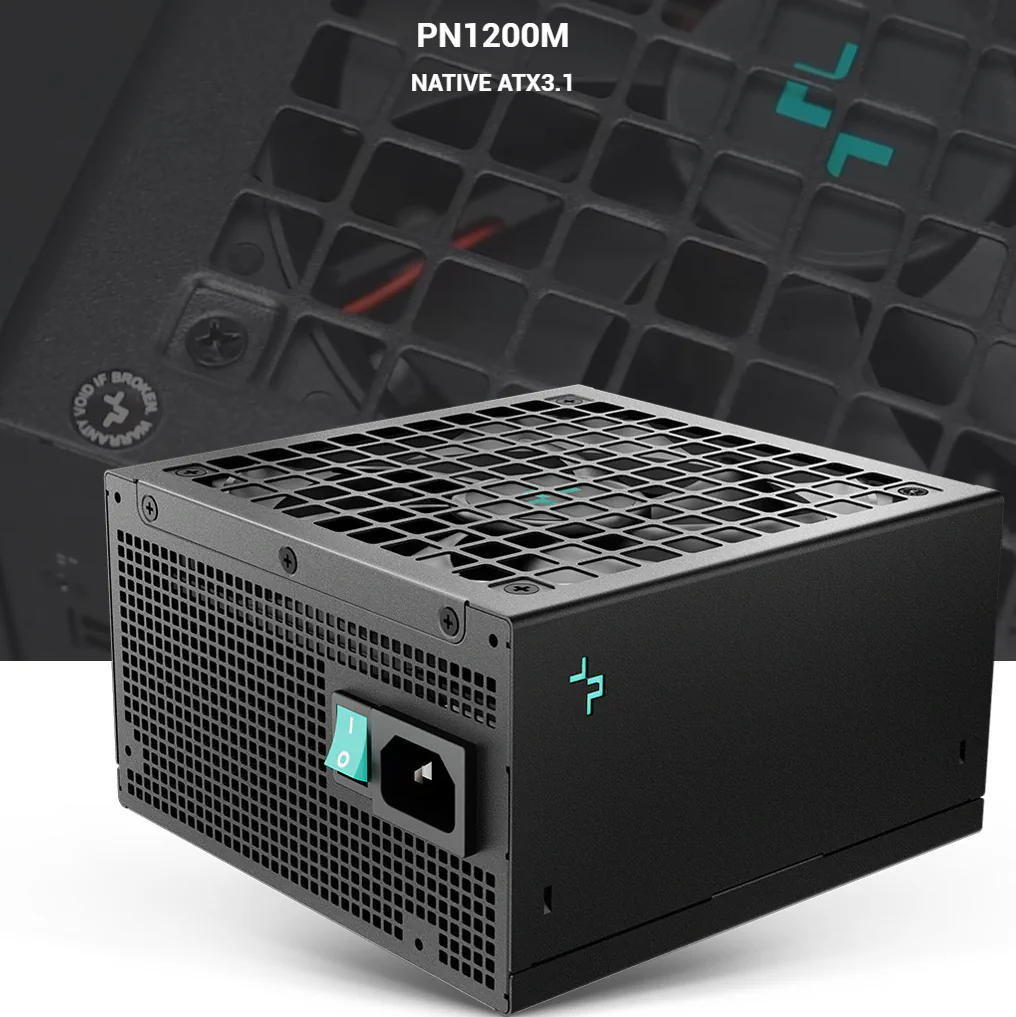

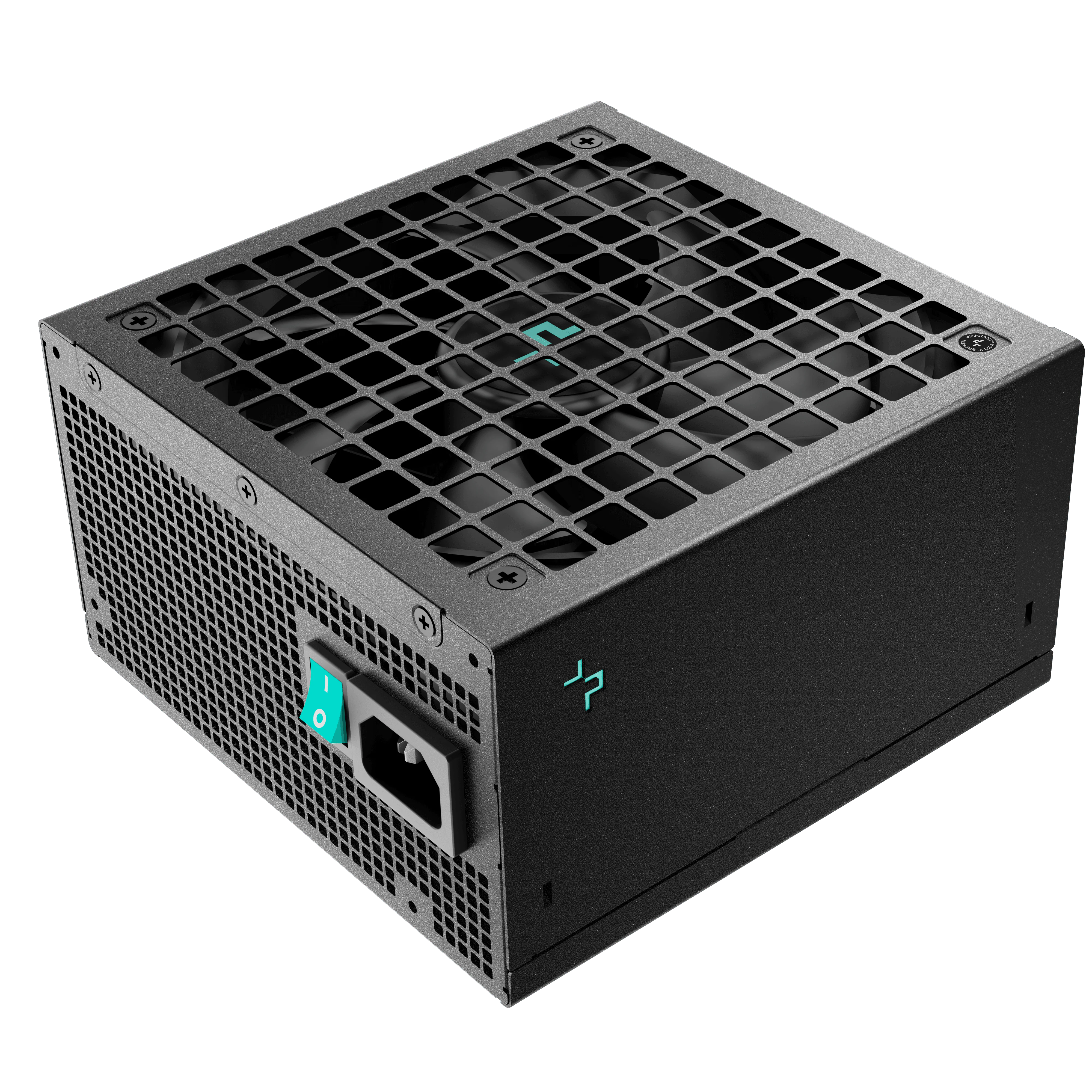

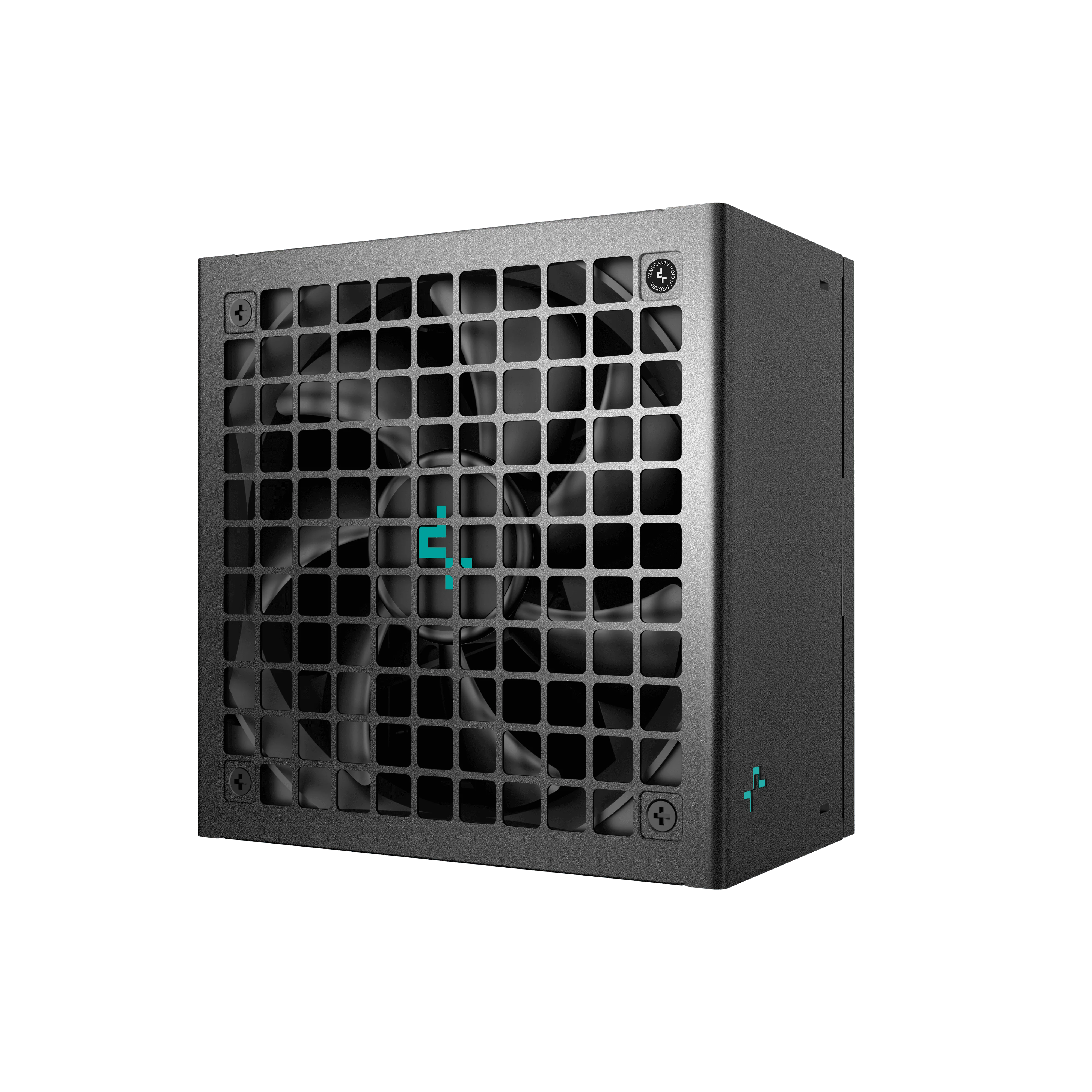

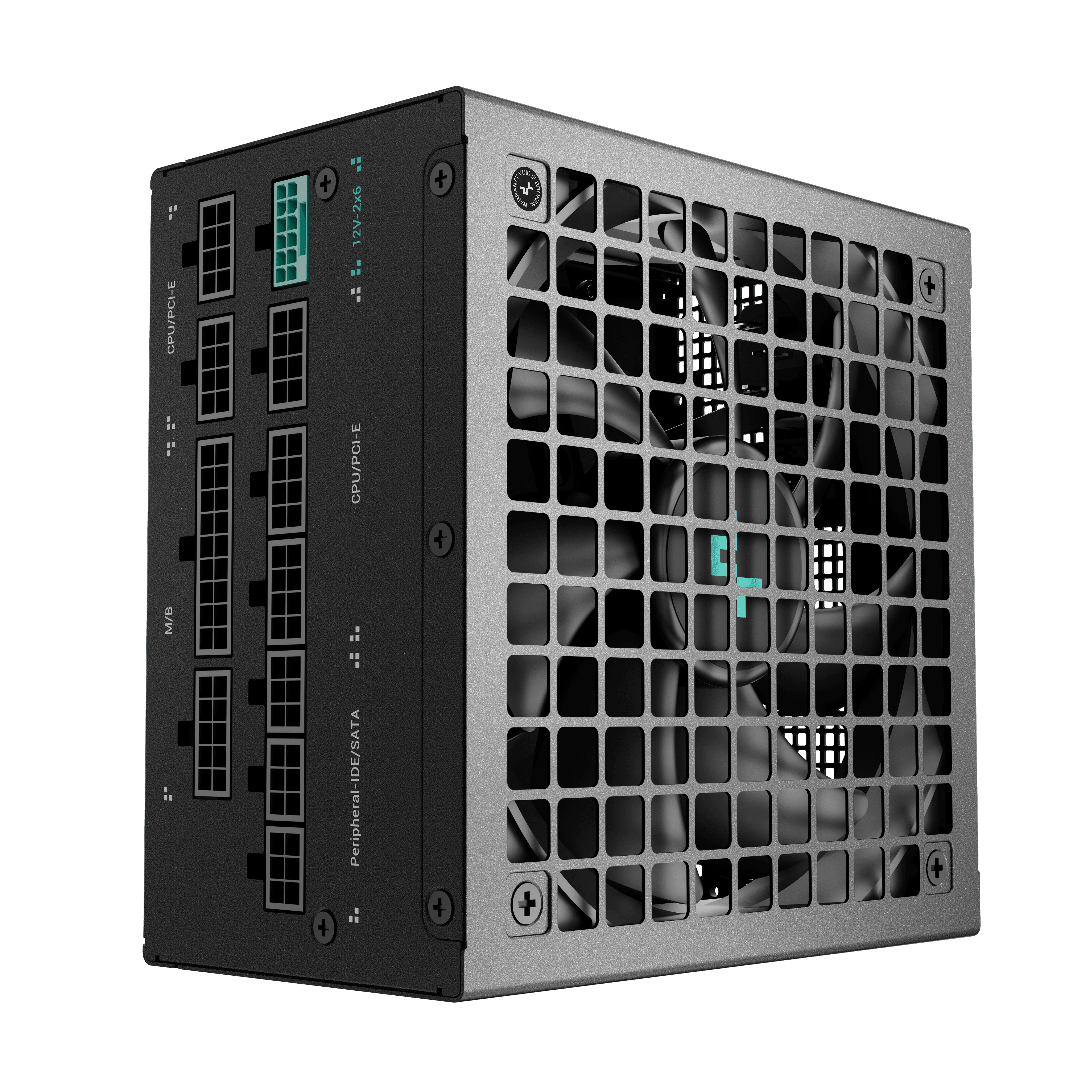

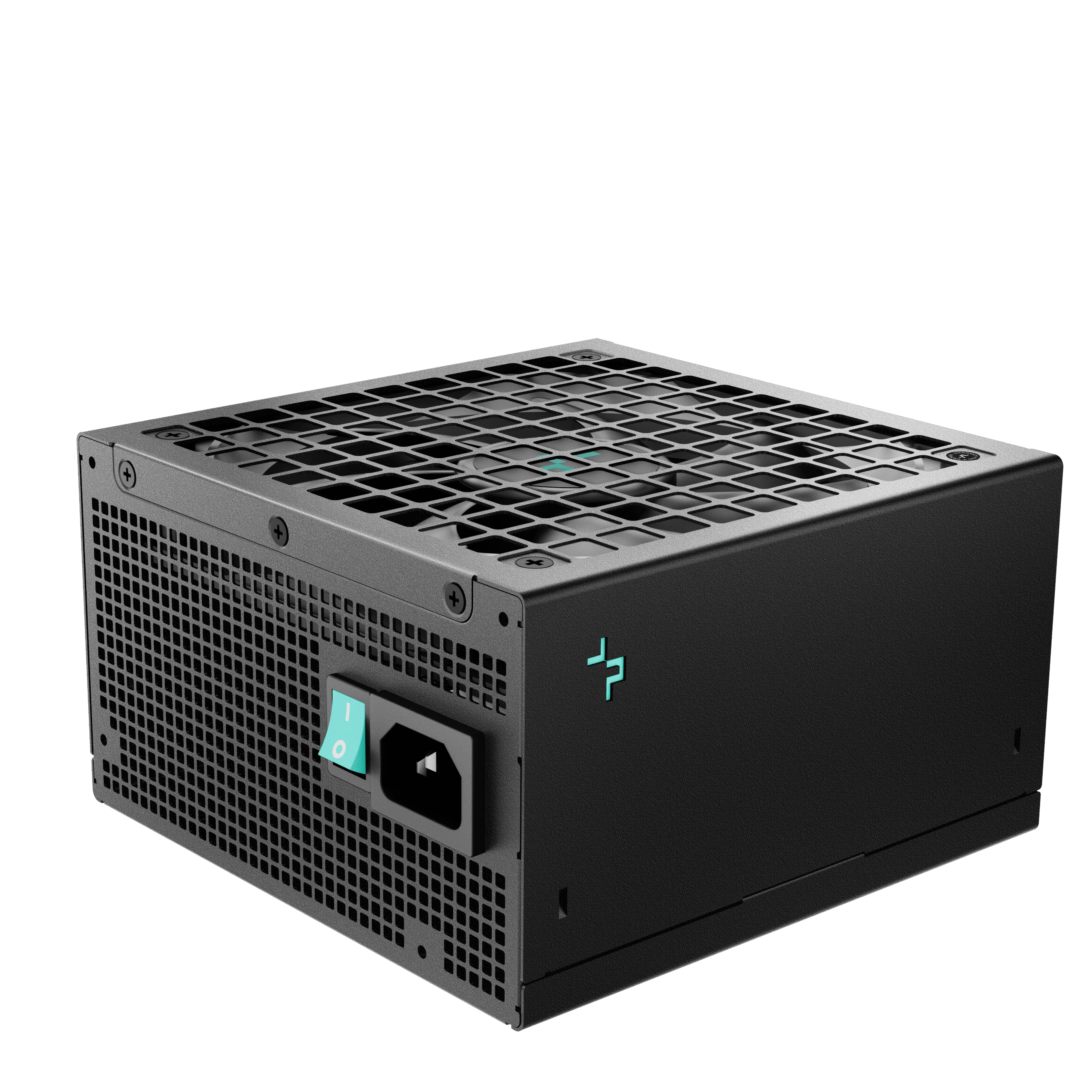

DeepCool PN1200M ATX 3.1 1200W Power Supply, 80 Plus Gold, Cybernetics Gold PCIe 5.1 12V-2×6 Cable, Fully Sleeved Cables, 135mm FDB Fan, Japanese Capacitor | BLACK
$ 168.00 ---ONLY---
OUT OF STOCK
OUT OF STOCK
Share:
Description
⚡ Geeky Feature Highlights

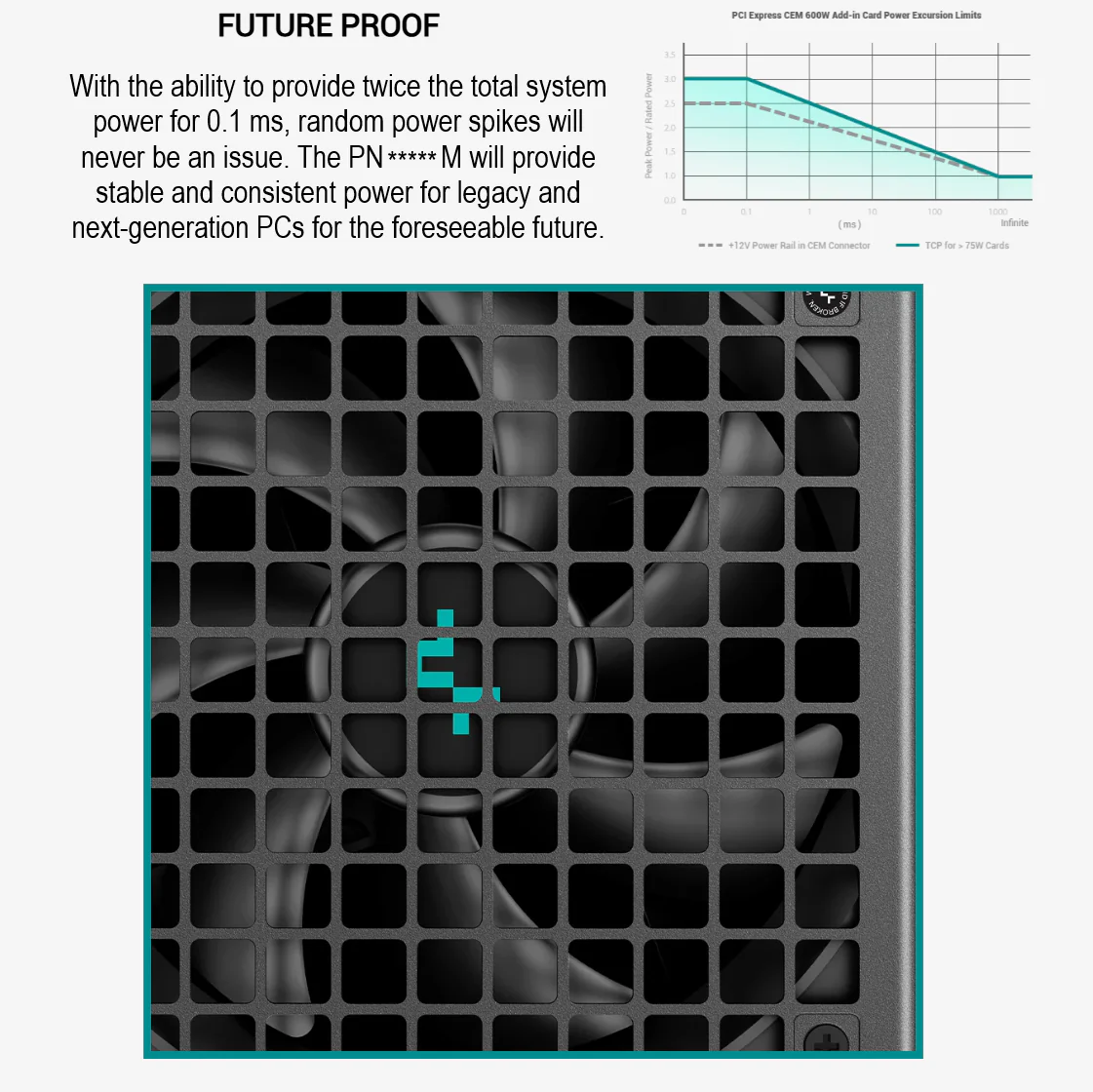

- ATX 3.1 + PCIe 5.1-Ready: Future-proofed with a native 12V-2×6 (600W) cable for next-gen GPUs—perfect for high-end builds that crave stable, spiky power.

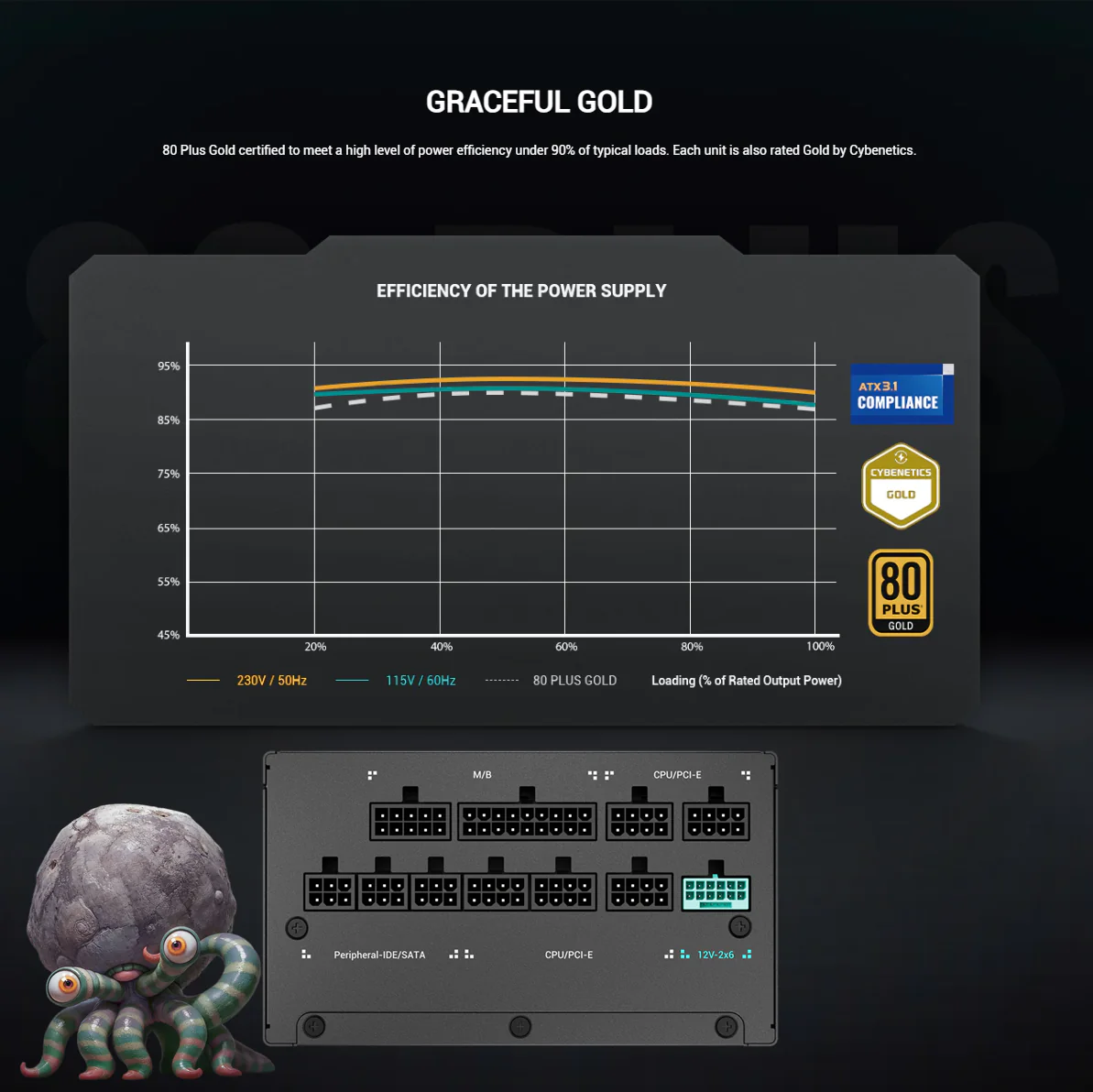

- Gracefully Gold Certified: 80 Plus Gold & Cybenetics Gold certified to deliver 90% efficiency under typical loads—less waste, more watts.

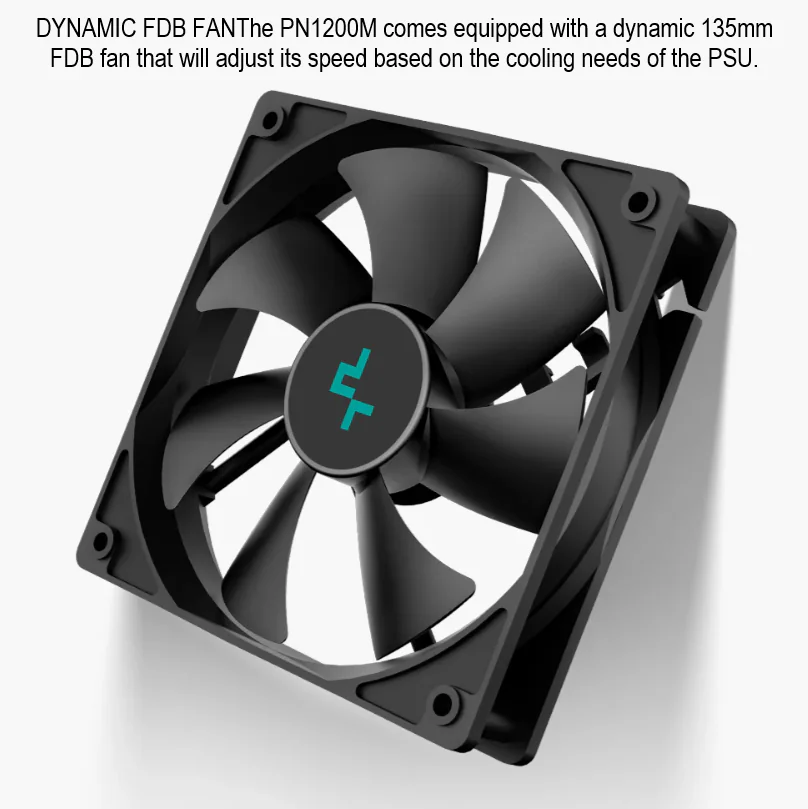

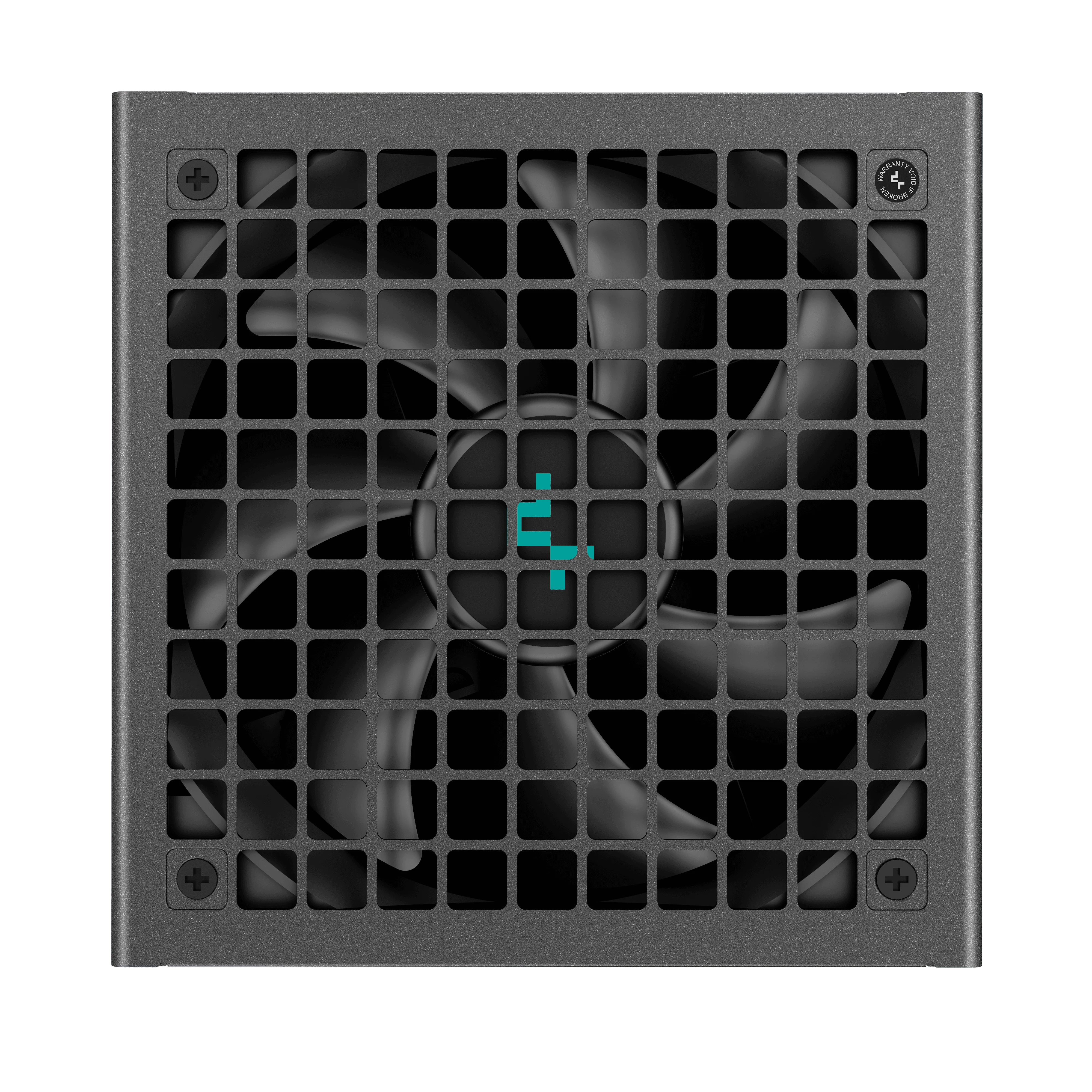

- FDB Fan Whisper Mode: Equipped with a dynamic 135mm Fluid Dynamic Bearing fan that intelligently ramps up only when needed—cool, quiet, and calculated.

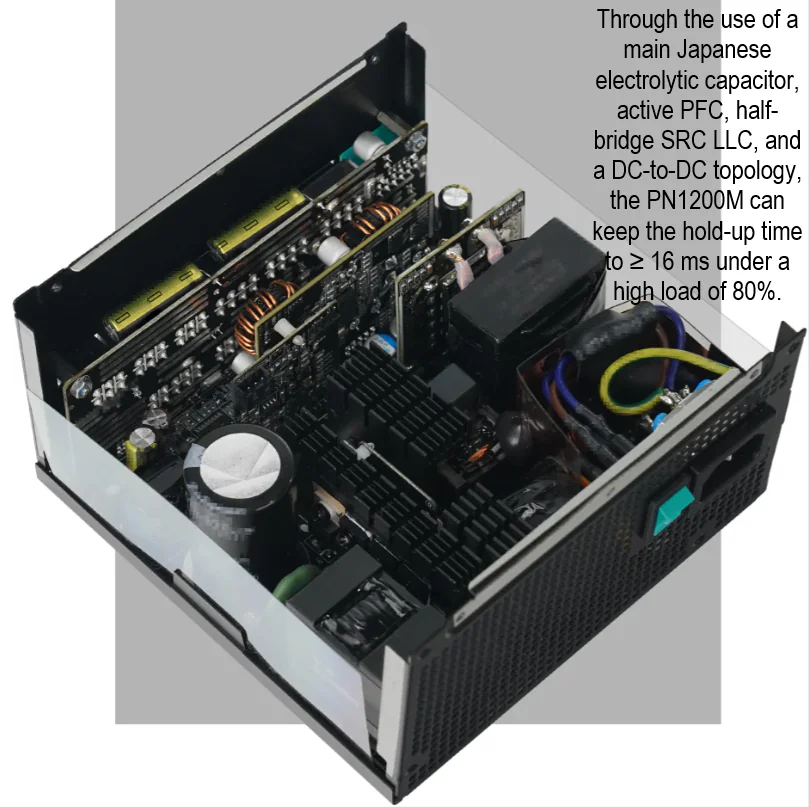

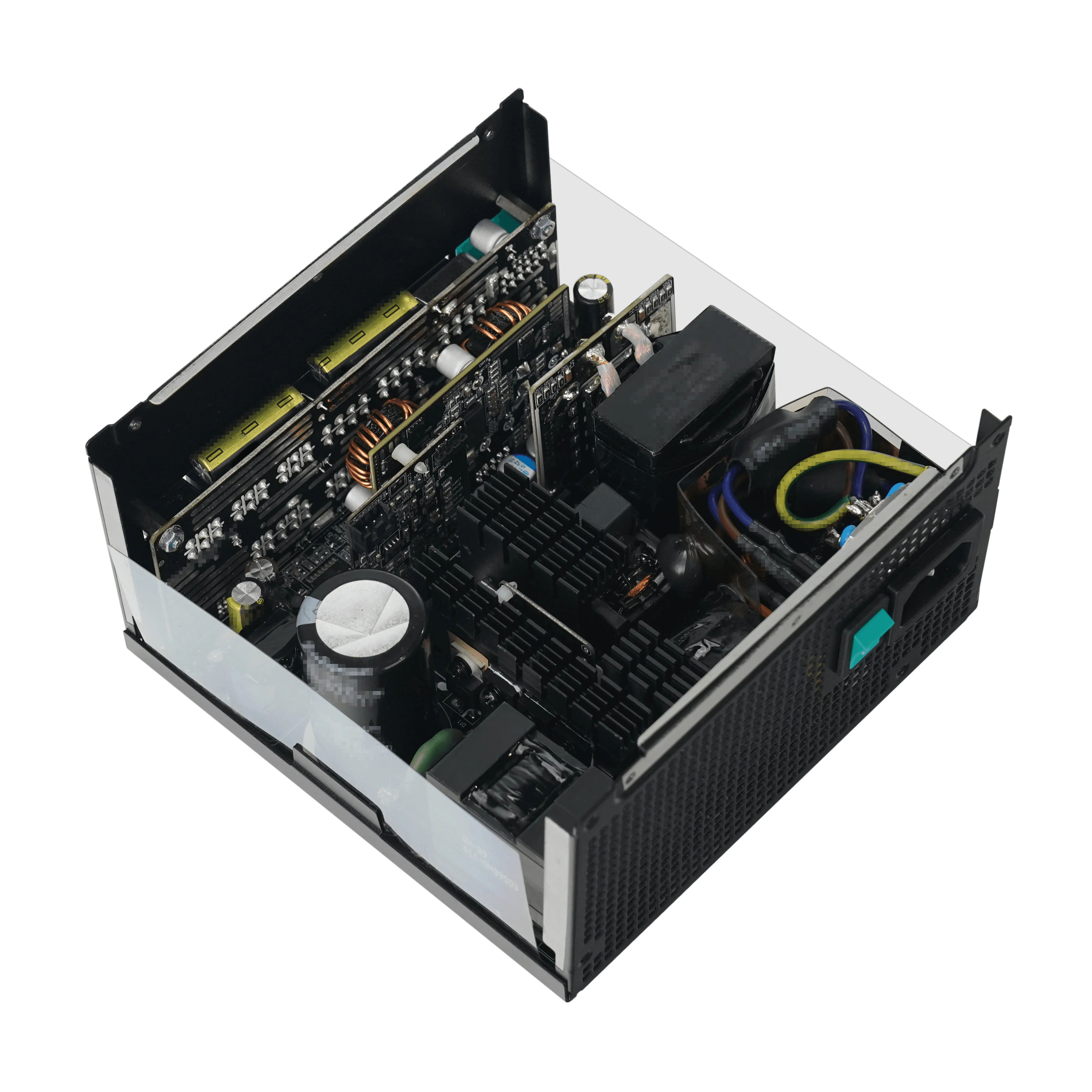

- Premium Components Inside: Includes a 105°C Japanese bulk capacitor and DC-to-DC topology with Half-Bridge + LLC structure—rock-solid stability with low ripple.

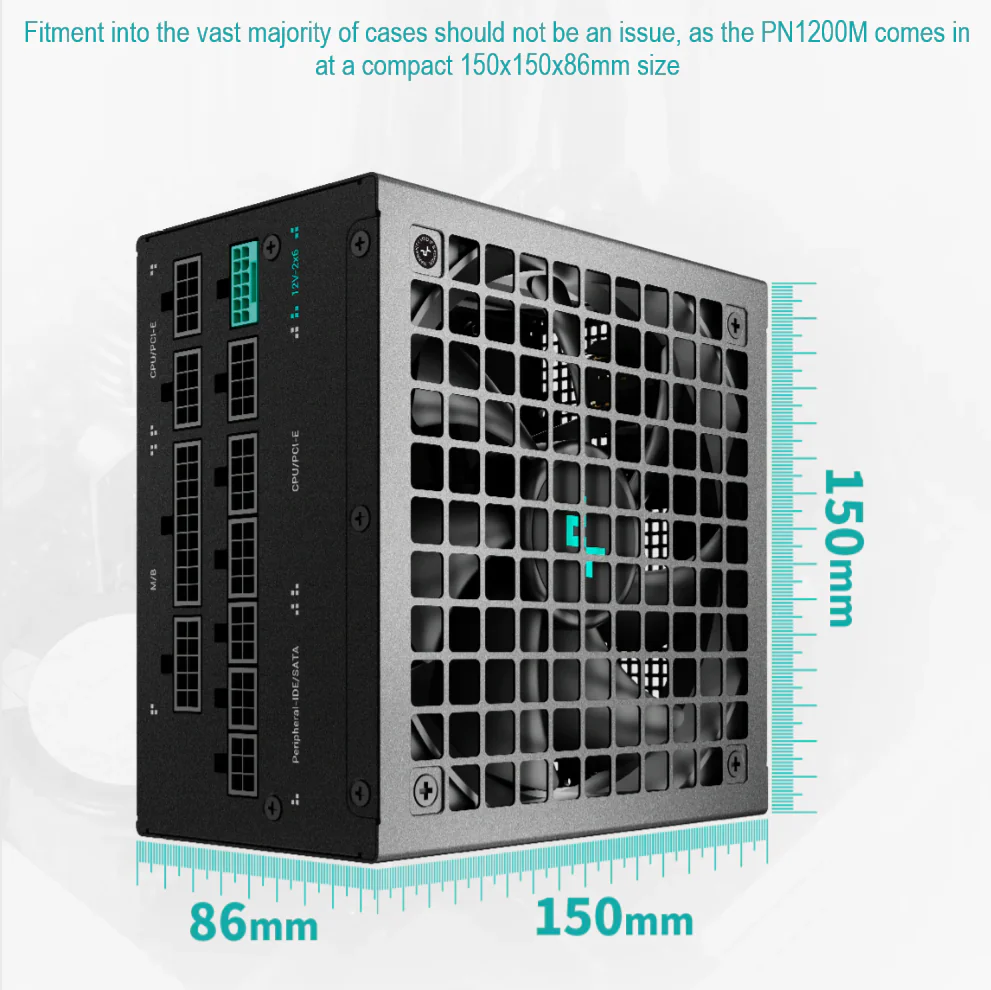

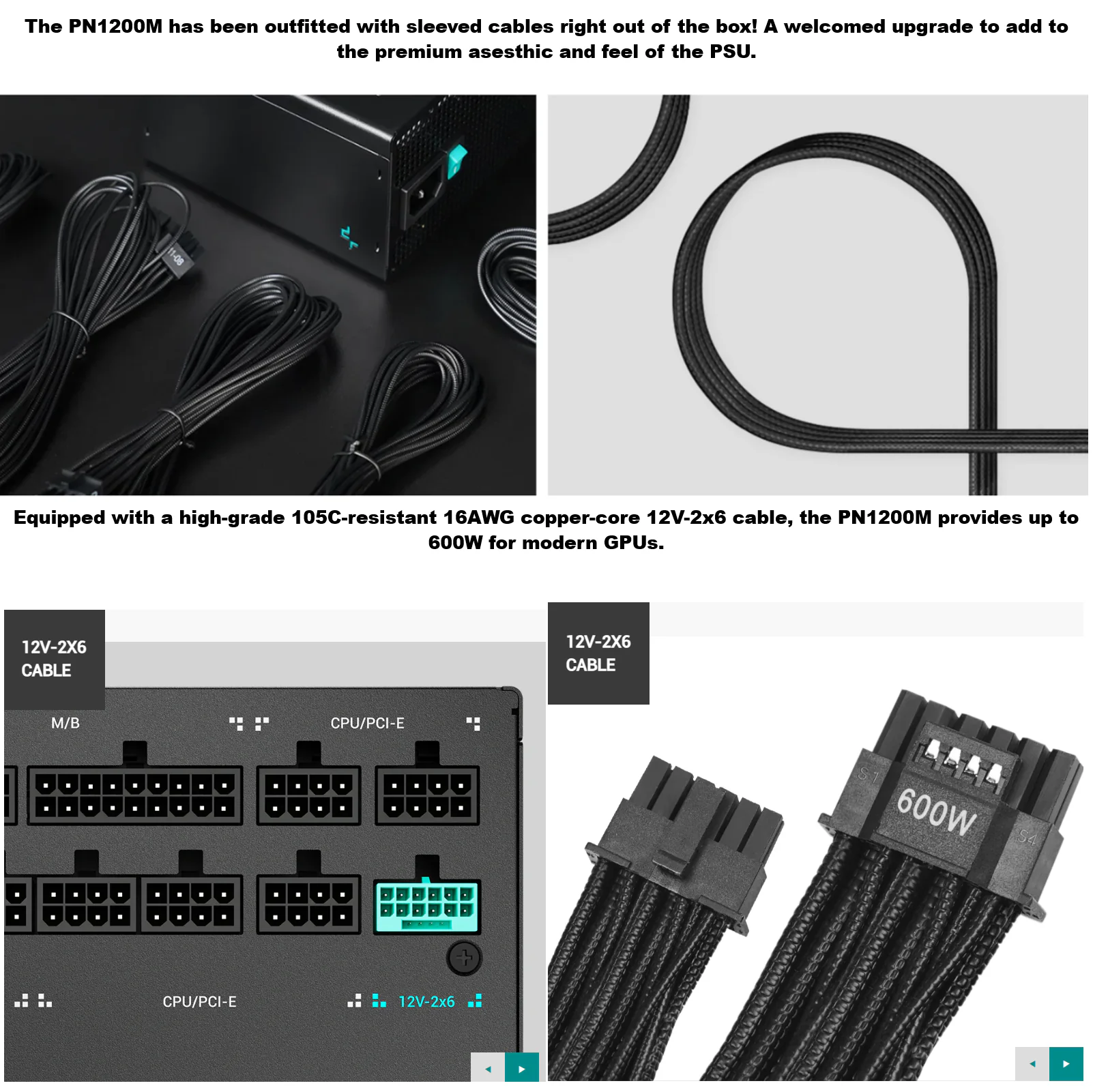

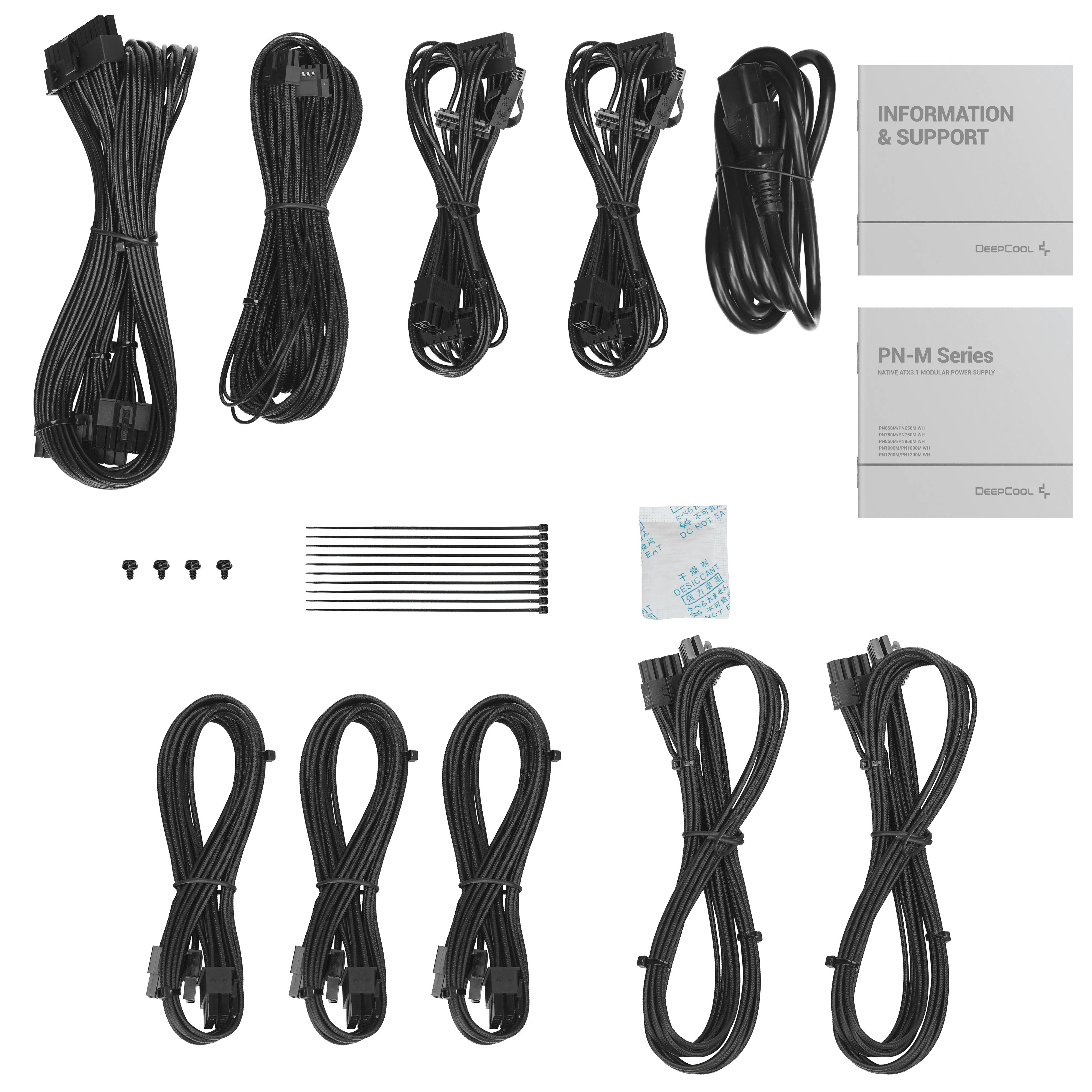

- Sleeved Cables, Compact Build: Fully sleeved for aesthetics, compact 150x150x86mm size for better case compatibility.

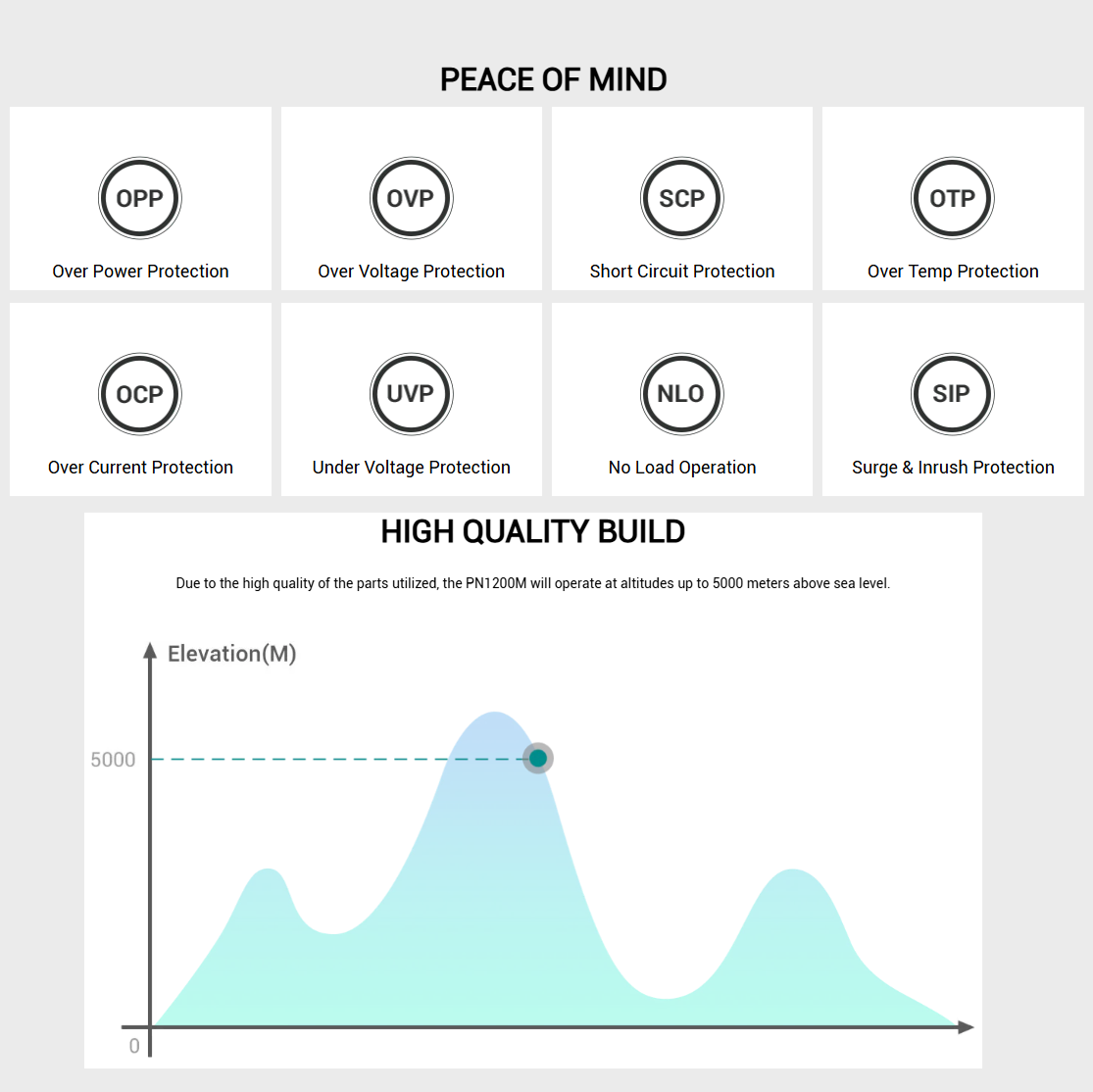

- Stacked Protection Features: Includes OVP, OPP, SCP, OTP, OCP, UVP, NLO, SIP—like a power ninja guarding your rig.
- Extreme Endurance: MTBF of 100,000 hours and built to function at 5,000m elevation








📊 Technical Specifications
| Category | Specification |
|---|---|
| Model | DeepCool PN1200M |
| Power Output | 1200W |
| Form Factor | ATX12V v3.1 |
| Efficiency Cert. | 80 Plus Gold & Cybenetics Gold |
| Efficiency | ≥90% at 50% load |
| PSU Topology | Active PFC + Half Bridge SRC LLC + DC-to-DC |
| Capacitors | Japanese bulk capacitor |
| Fan Type | 135mm Fluid Dynamic Bearing |
| Dimensions | 150 × 150 × 86 mm (W x L x H) |
| Hold-Up Time | ≥16 ms @ 80% load |
| Power Good Signal | 100–150 ms |
| Operating Temp | 0 – 40°C |
| MTBF | 100,000 hours |

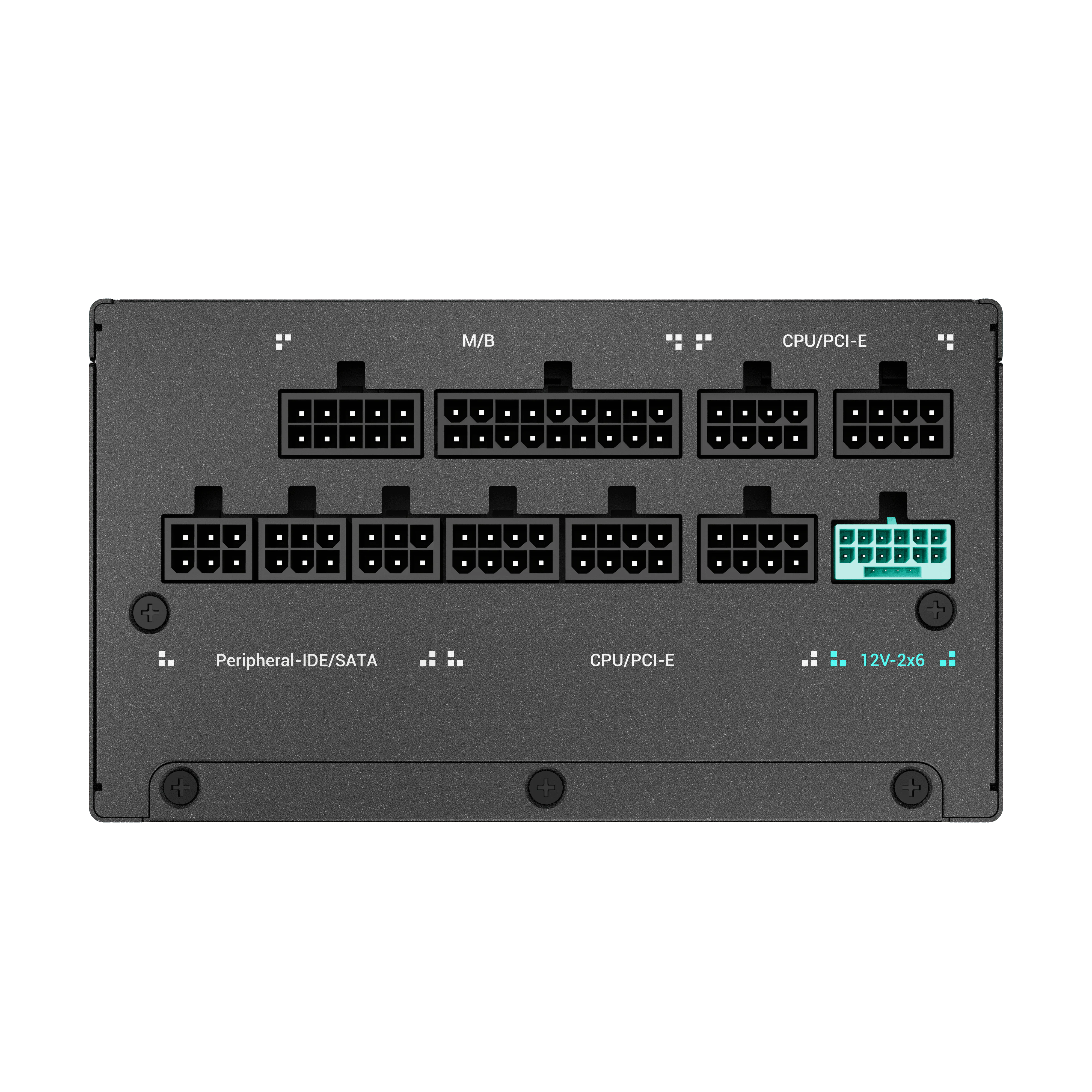

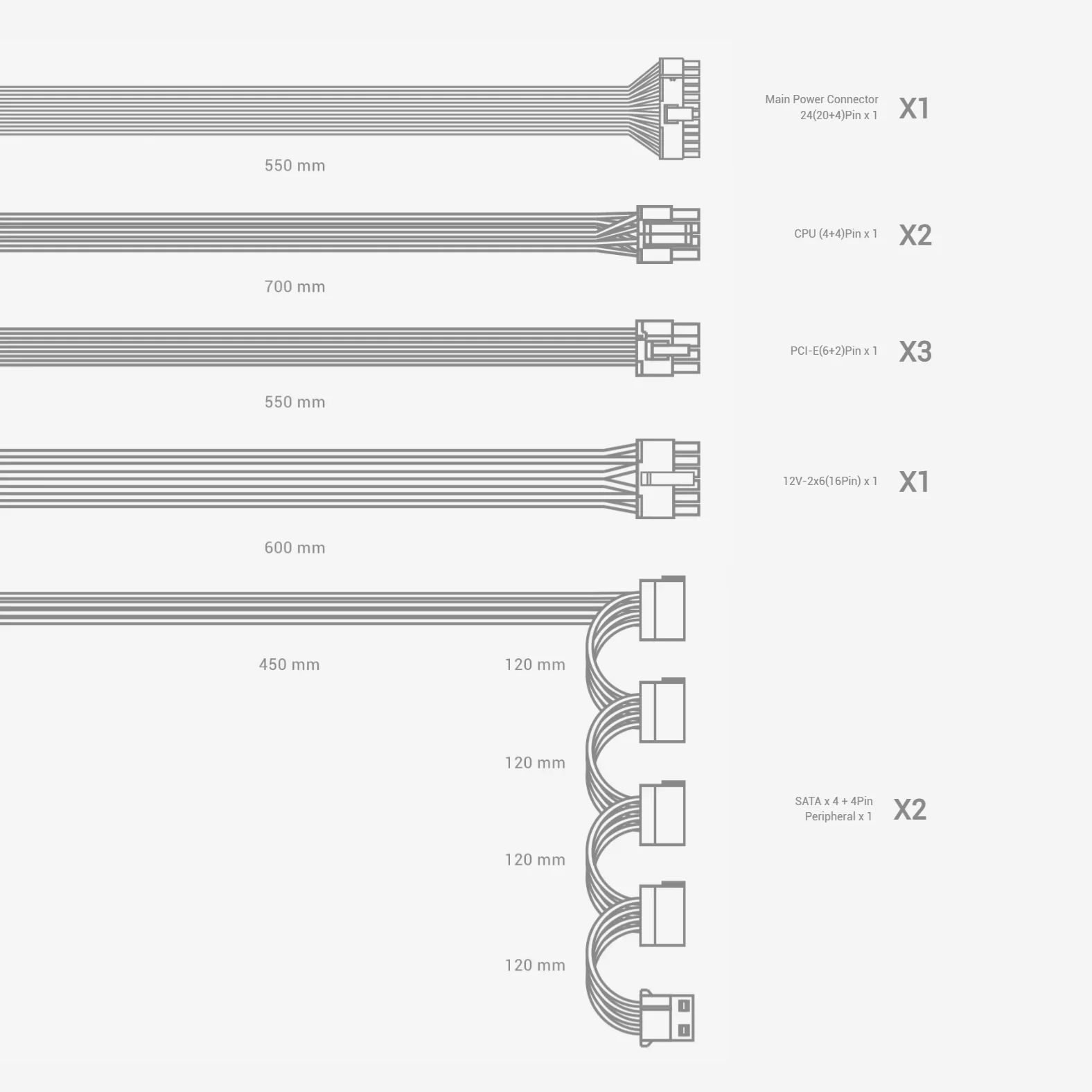

| Main Connectors | 24-pin x1, EPS 8-pin x2, PCIe 8-pin x3, 12V-2×6 x1 |
| SATA / Molex | SATA x4 + 4-Pin Peripheral x1 (x2 cables) |
| Protection Features | OVP, OPP, SCP, OTP, OCP, UVP, NLO, SIP |
| Certifications | CE, FCC, CCC, TUV, cTUVus, RCM, EAC, BISE, RoHS |
| Warranty | 1 Year |
| EAN / P/N | Not listed in source |
