DeepCool Fan Hub Control 4PWM 3Pin/4Pin DEEPCOOL FH-04 PWM Fan Hub, Supports up to 4 Fans (3-pin or 4-pin), Occupying only One 4-pin Motherboard Header (System Fan or CPU Fan) DP-F04PWM-HUB

DEEPCOOL FH-04 PWM Fan Hub, Supports up to 4 Fans (3-pin or 4-pin), Occupying only One 4-pin Motherboard Header (System Fan or CPU Fan)

Brand :

$ 6.00 ---ONLY---
SKU: DP-F04PWM-HUB Categories: , , , ,

DeepCool Fan Hub Control 4PWM 3Pin/4Pin

Expert Features

PWM FUNCTION DESIGN

  • FH-04Enables users to greatly expand cooling capability within the chassis and enjoy enhanced system performance.
  • FH-04 is able to extend up to 4 fans and compatible with 3-pin/4-pin Fans.

PWM FUNCTION DESIGN

  • Each port has its own PWM function
  • The fan speed is simultaneously adjustable

EASY TO INSTALL

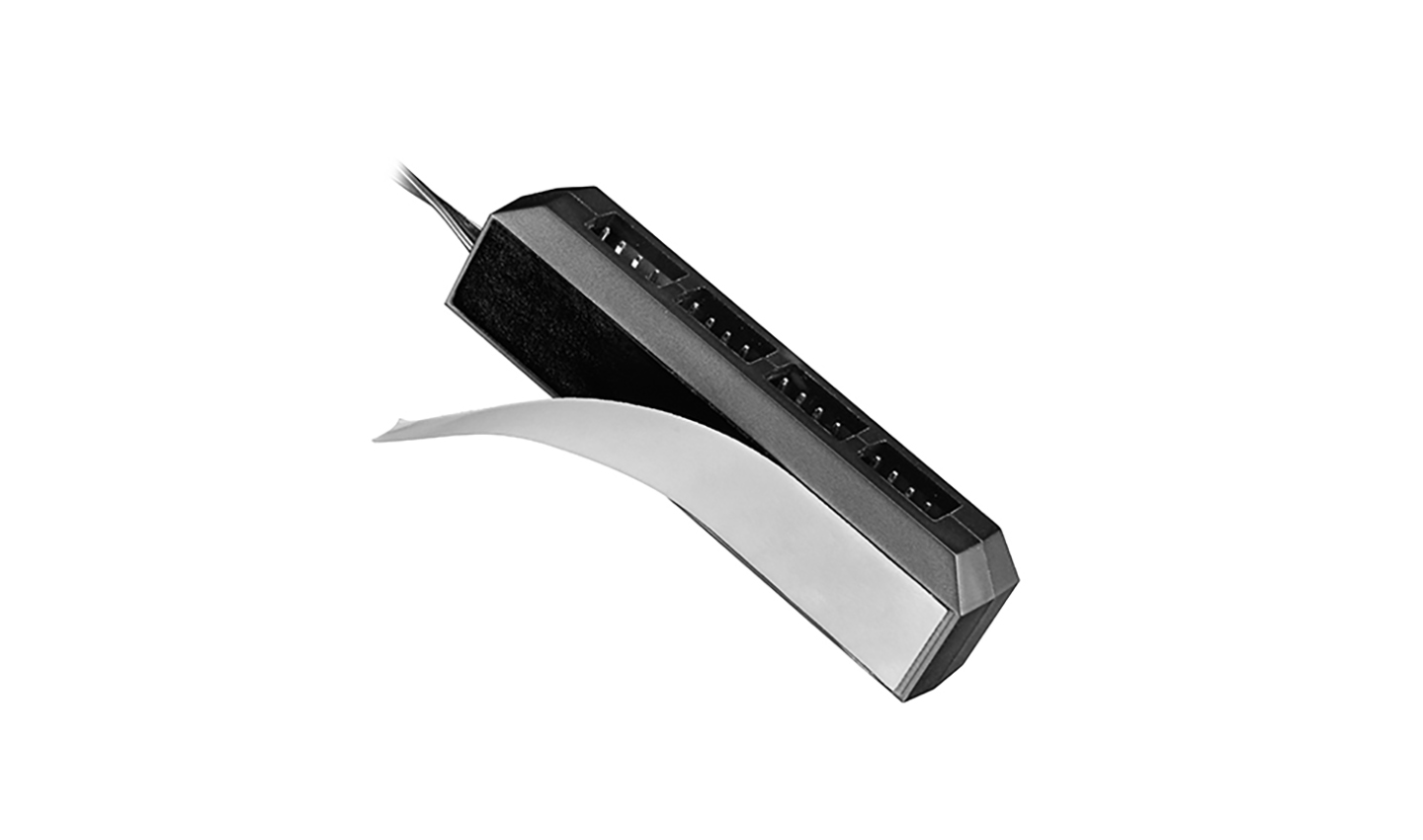

  • FH-04 is easily installed with the included double-sided adhesive.

STABLE SATA POWER INPUT

  • Powered by a stable SATA connection to the system PSU
  • The FH-10 delivers safe and reliable power for up to 10 fans

DeepCool Fan Hub Control 4PWM 3Pin/4Pin

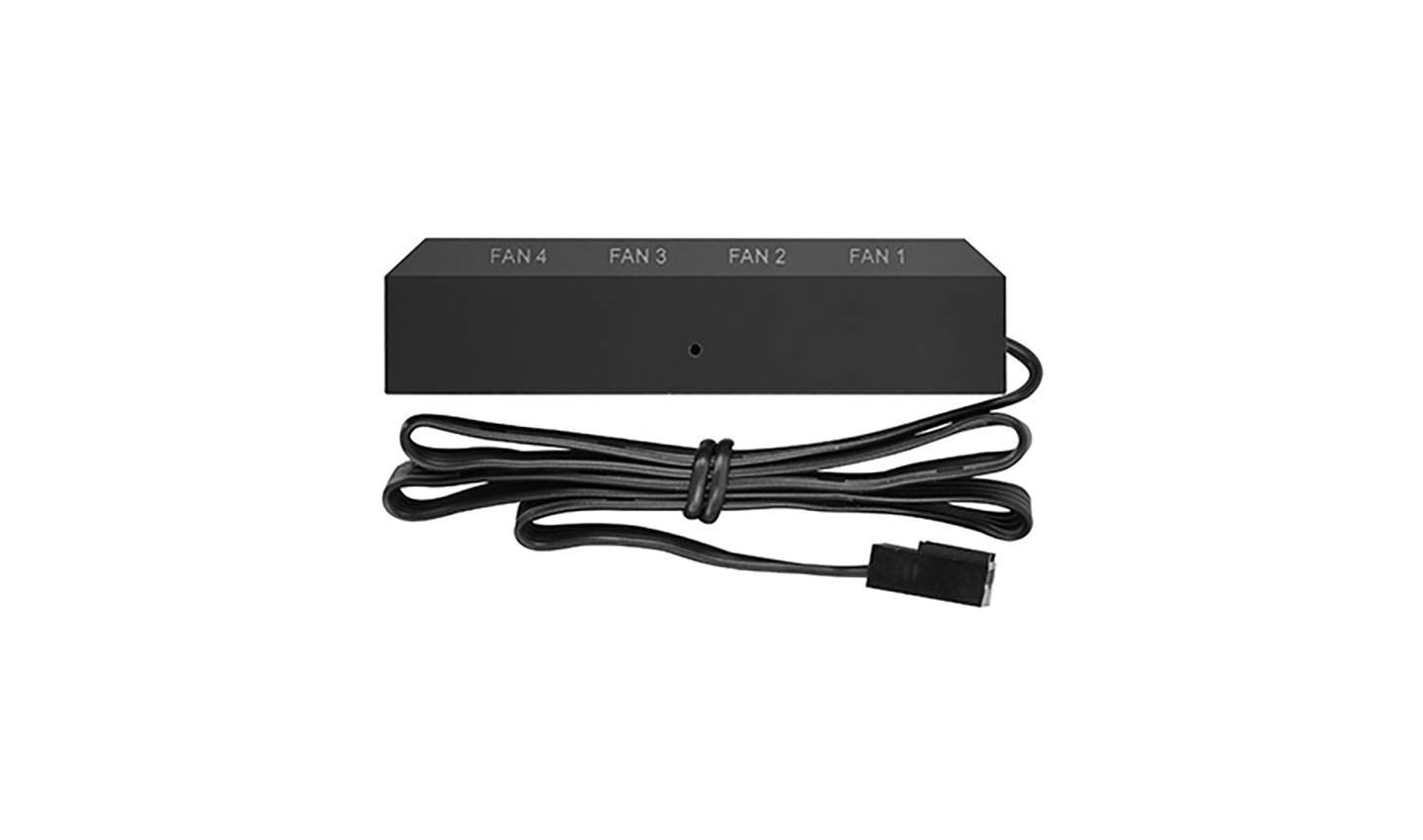

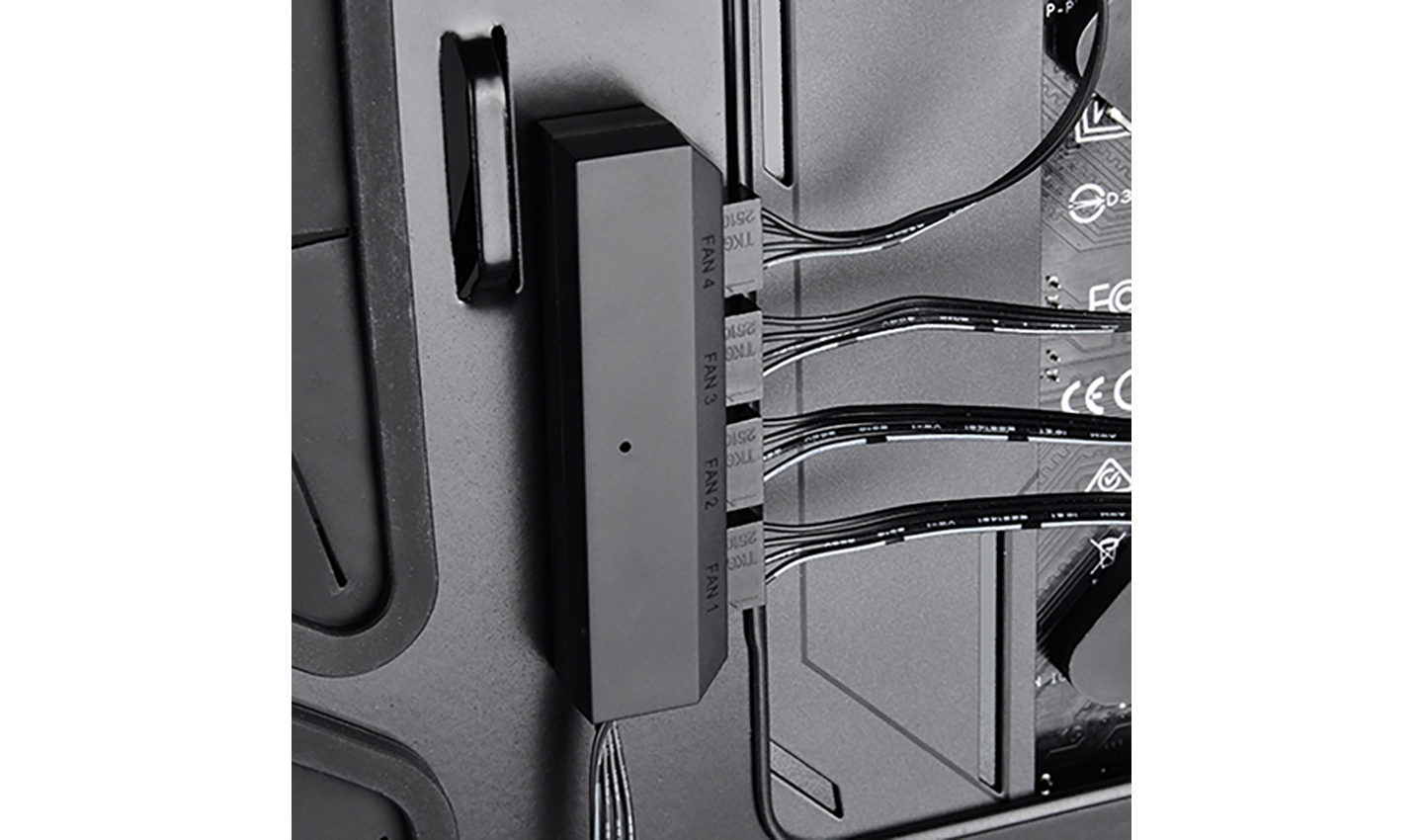

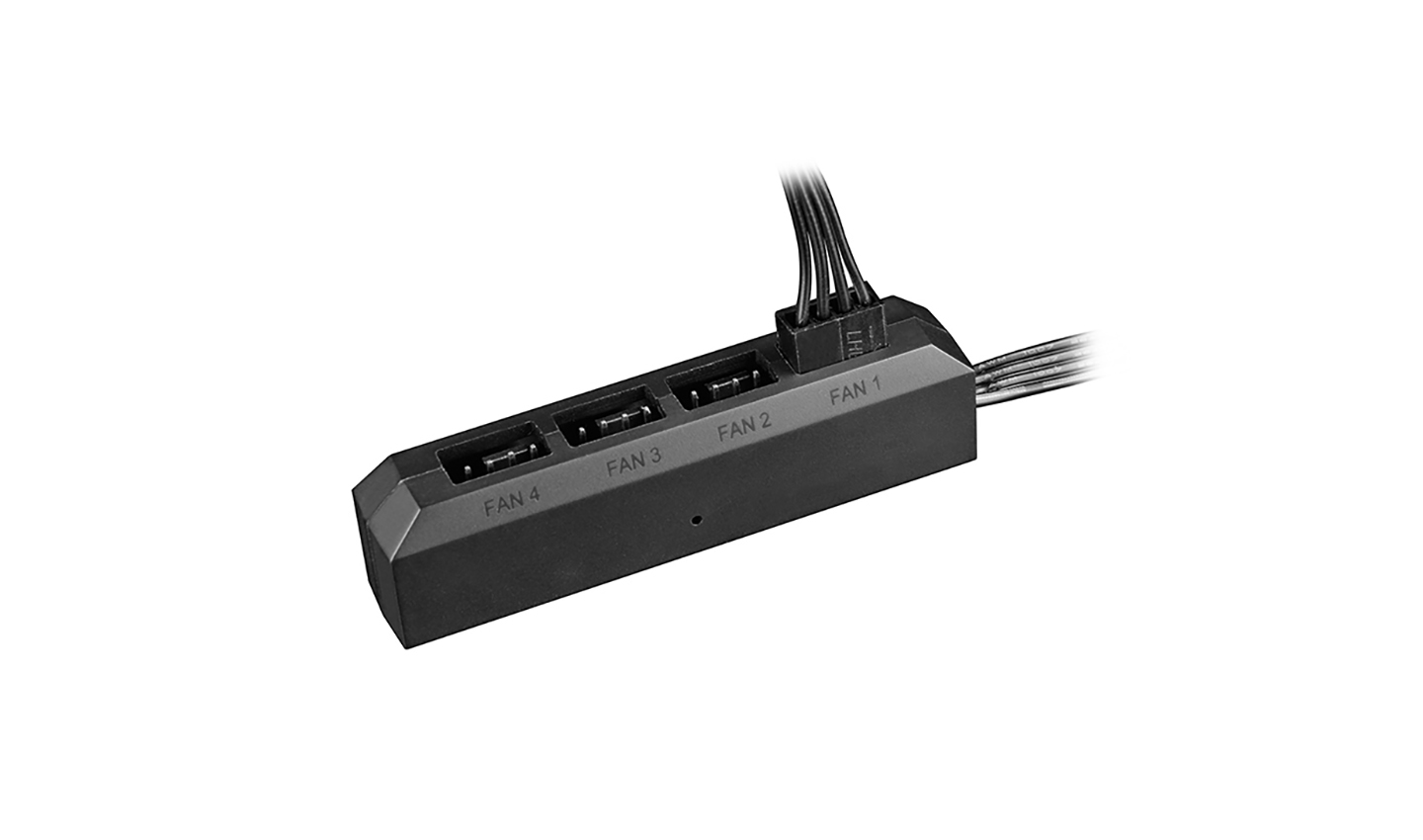

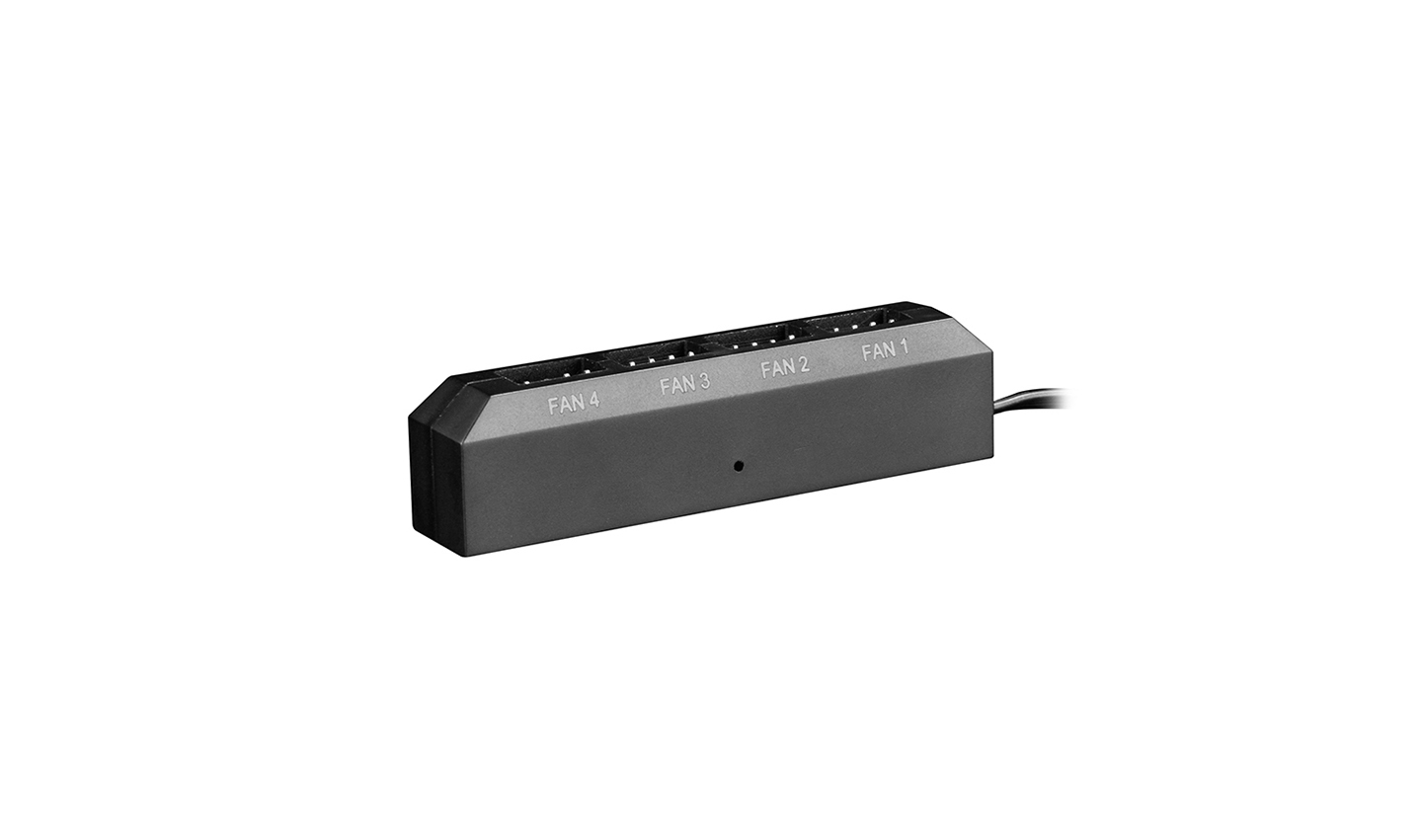

Deepcool FH-04 4-Port Fan Hub - Desktop Overview 1

Deepcool FH-04 4-Port Fan Hub - Desktop Overview 2

DEEPCOOL logoFH-04 4 Port Fan Hub Installation GuideDEEPCOOL FH-04 4 Port Fan Hub

FH-04 4 Port Fan Hub

This installation guide is applicable for FAN HUB series. PRODUCT SCHEMATIC DRAWING How to Use Tear off the foil to stick the deviceDEEPCOOL FH-04 4 Port Fan Hub - fig1This fan hub supports up to 4 fans, PWM function compatible. Note: The data of FAN I can be obtained by BIOS or other software, PWM function is not available when 3-Pin port is applied.DEEPCOOL FH-04 4 Port Fan Hub - fig2









Expert Spec

Product Dimension 68×13×17.5 mm
Net Weight 22 g
Port Type 4-pin×1
Extension Port 4-pin×4
Length of HUB Strip Cable 550 mm
Mounting Method Double-faced Adhesive
EAN 6933412795995
P/N DP-F04PWM-HUB
