DeepCool ARGB Hub 12 Ports 3Pin

Expert Features

【Addressable RGB SYNC CONTROL】

• Fit for Motherboard with 3-pin Addressable RGB header(+5V, DATA, N/A, GND)
• Compatible with Asus Aura Sync, Gigabyte RGB Fusion, MSI Mystic Light Sync, ASROCK Polychrome Sync and SignalRGB software.

【Safe, efficient stable output】

• more concise and more efficient,Even with full loaded, it still can maintain stable output.

【Small body, large capacity】

• Multi line management and control, keep the cables neat, support ARGB fan, ARGB light bar, etc., and synchronize the light efficiency of 5V 3pin interface equipment.

【ARGB hub 5V 3 pin fan controller pc】

• Only supports 5V 3pin ARGB fan Supports the installation of 12 groups of ARGB devices, supports ARGB fans, ARGB light strips, and other 3-pin 5V interface devices, lighting effect synchronization
• The + 12V 4Pin RGB interface device is not supported! Do not insert!
• DeepCool SC700 A-RGB Fan Hub, 12-Port 5V 3pin ARGB Fan HUB

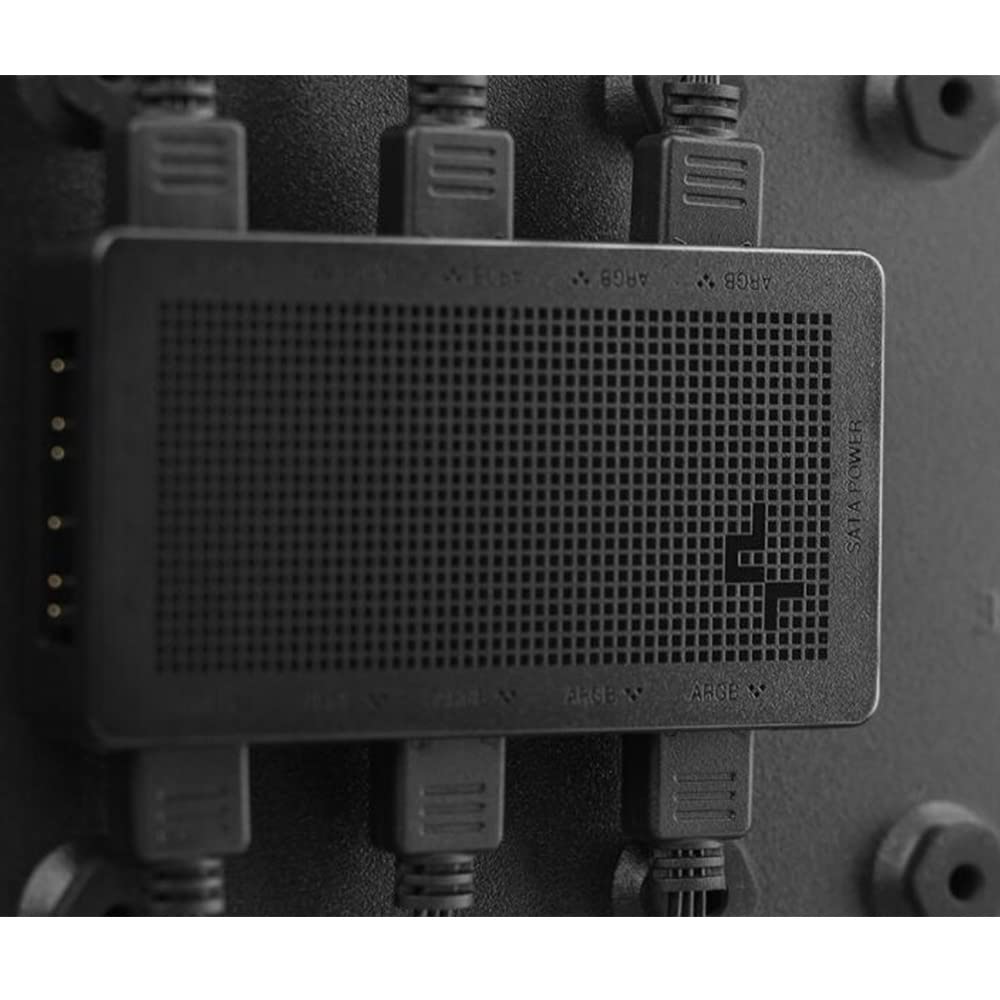

• Magnetic backplane Design
• Suitable for 5V 3-Pin Aura Sync, Gigabyte RGB Fusion, msi Mystic Light sync, SATA Powered

Expert Details



Expert Specifications

Port Type	ARGB-3Pin
RGB Connector	12 Ports x 3Pin Addressable RGB
Length of ARGB HUB Connector cable	538mm (Asus Asrock MSI)
RGB Rated Voltage	5V DC
RGB Safety Current	0.5A(1Port) / Total 6A(12 Ports)
Power Connector	SATA Power
Power Safety Current	6A Max
Mounting Method	Magnetic
Product Color	Black
