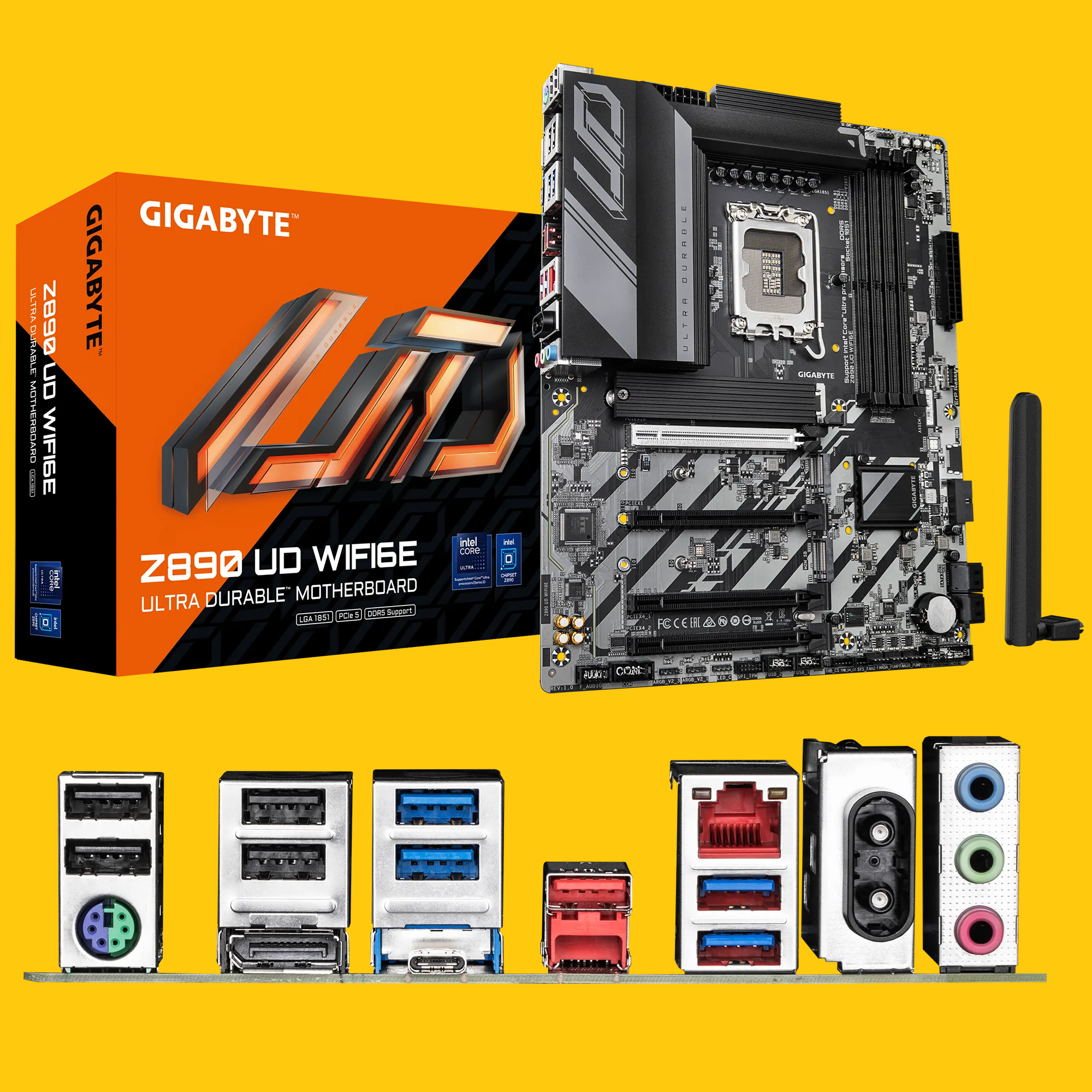

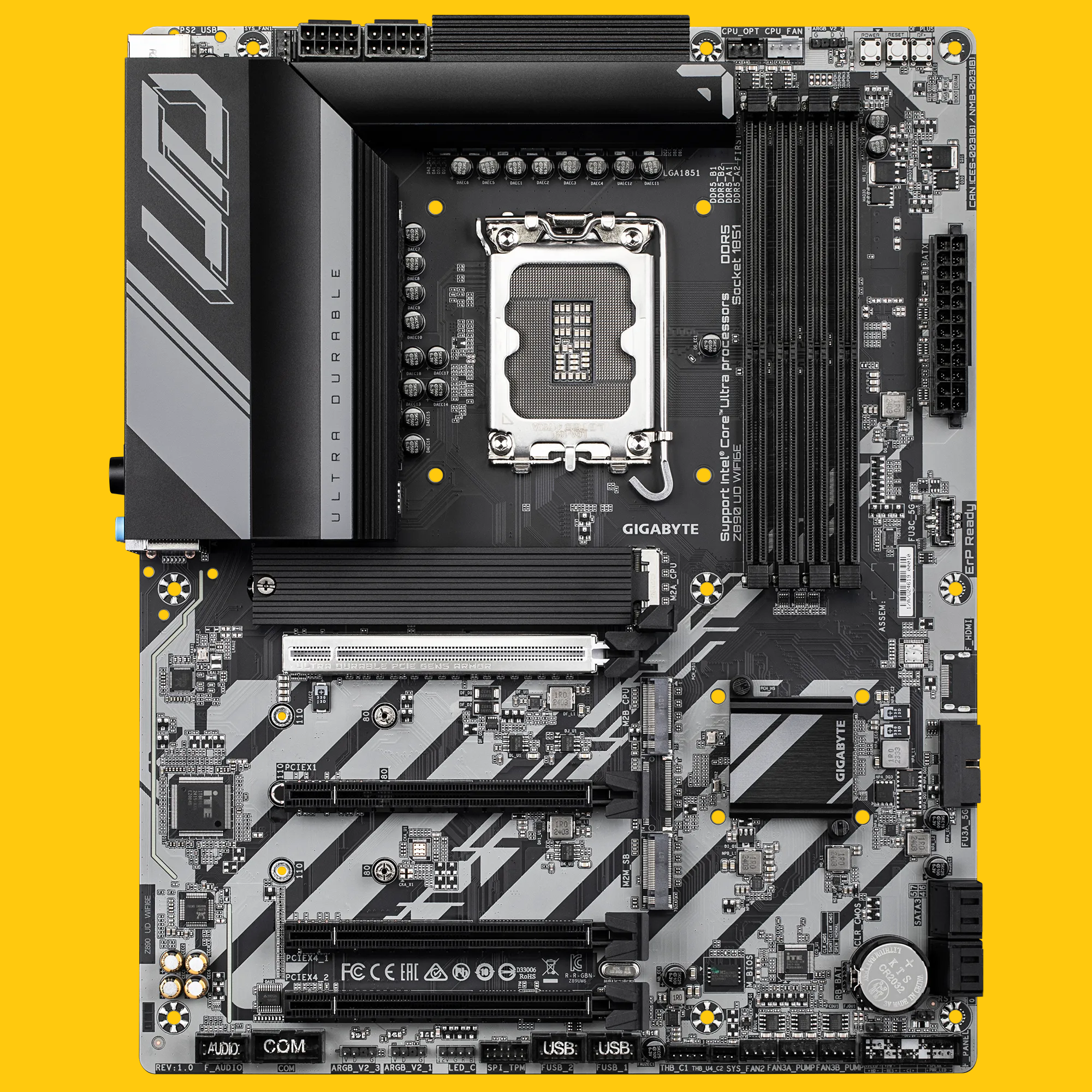

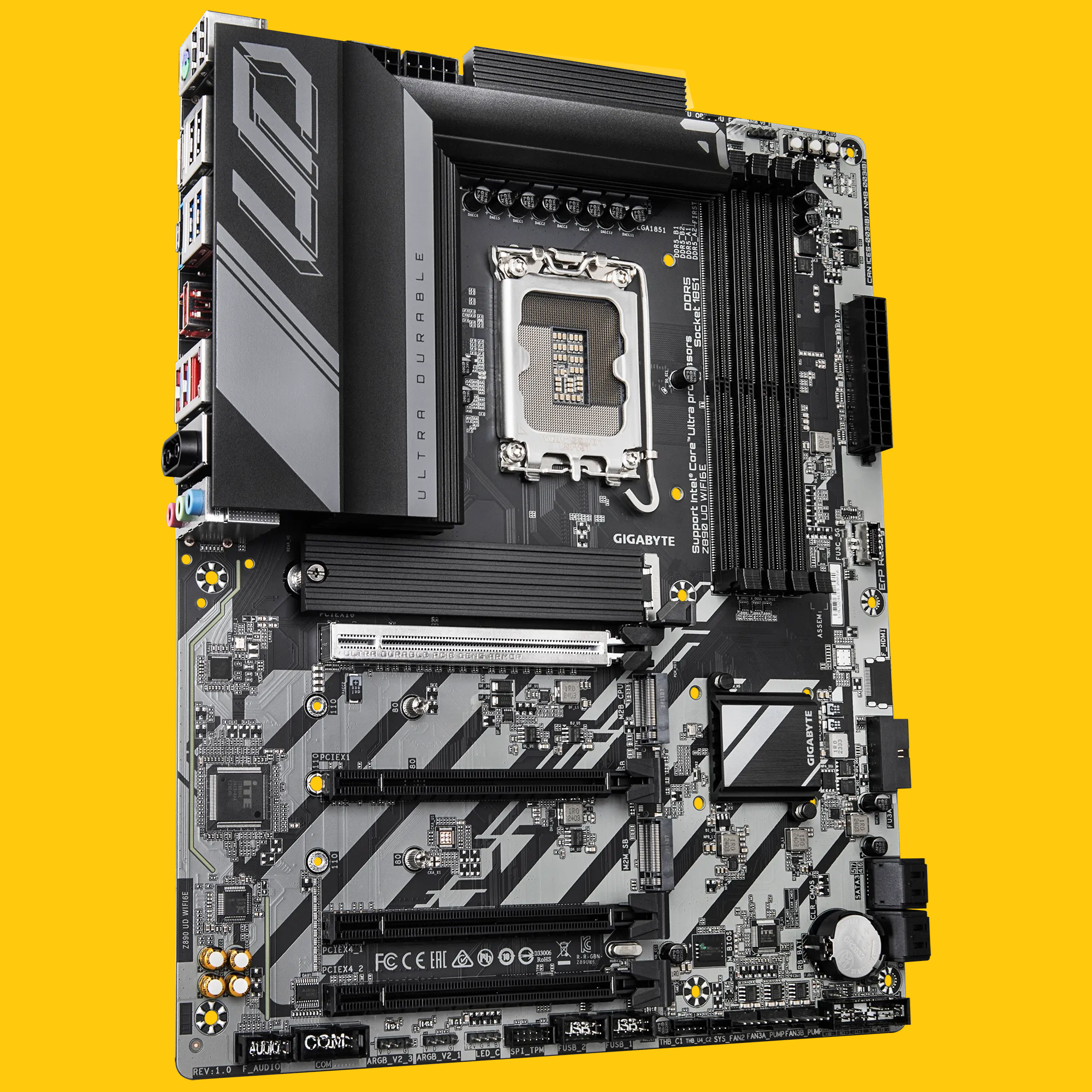

GIGABYTE Z890 UD WIFI6E Intel Core Ultra (Series 2) LGA 1851 Motherboard, ATX, DDR5, 3X M.2, PCIe 5.0, Front USB Type-C, WIFI6E, 2.5GbE LAN, EZ-Latch

Name: GIGABYTE Z890 UD WIFI6E Core Ultra Motherboard LGA1851
SKU: GIG-Z890-UD-WIFI6E
Price: 277.00 USD
Availability: InStock

$ 277.00 ---ONLY---

SKU: GIG-Z890-UD-WIFI6E Categories: COMPUTER PARTS, Motherboards

Z890 UD WIFI6E Core Ultra Motherboard LGA1851

Supports Intel® Core™ Ultra processors (Series 2)

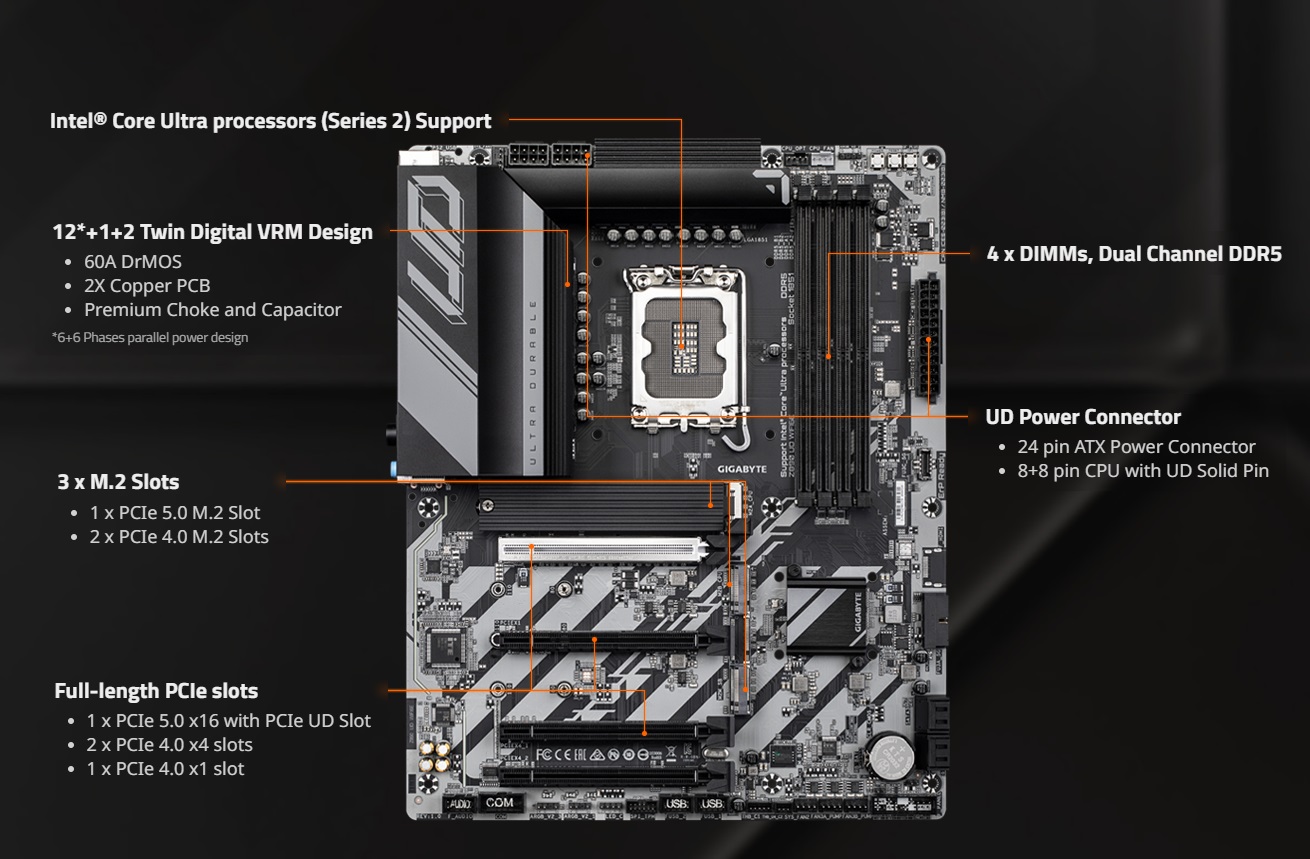

Digital twin 12+1+2 phases VRM solution
D5 Bionic Corsa for Infinite Memory Performance
AI Perfdrive : Provides optimal and customized BIOS preset profile for users
Premium Compatibility : 4*DDR5 with XMP Memory Module Support

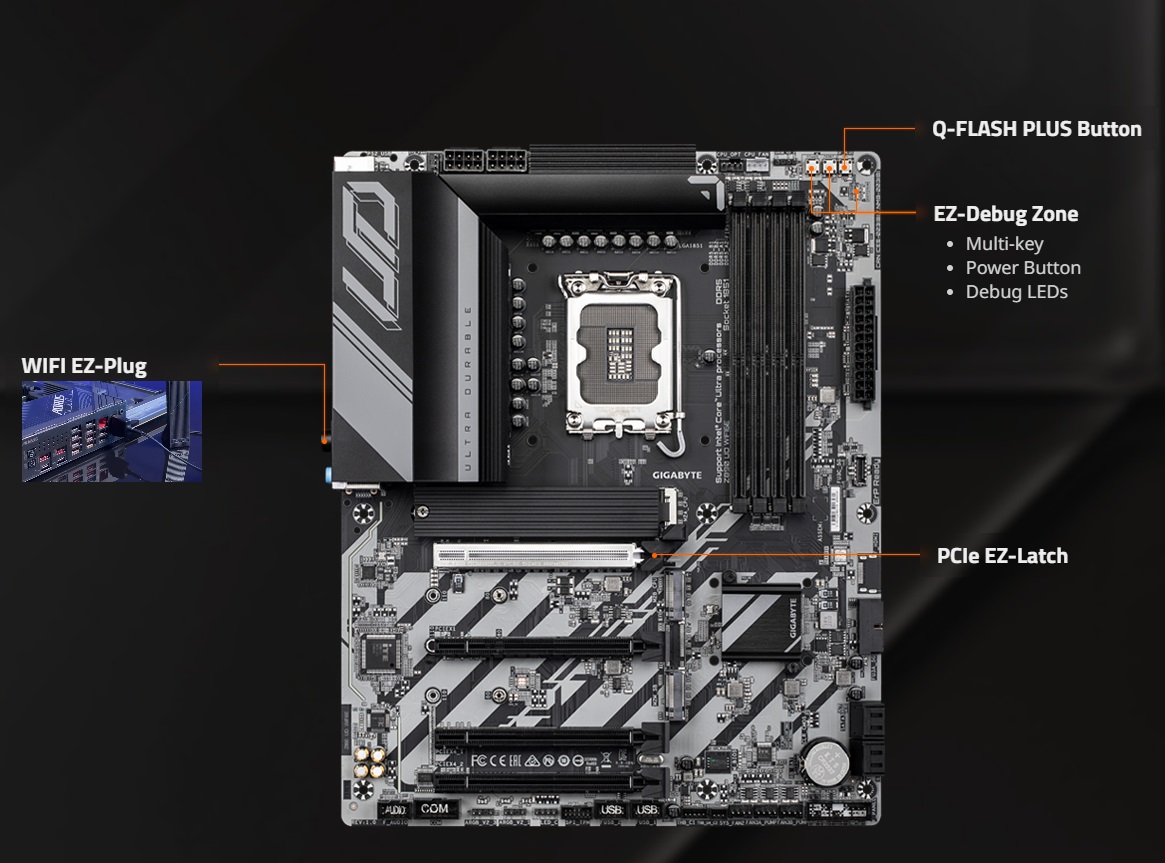

WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
EZ-Latch : PCIe x16 Slot with Quick Release Design
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
New Power Monitor in HWinfo for real-time monitoring on CPU power phases
Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4

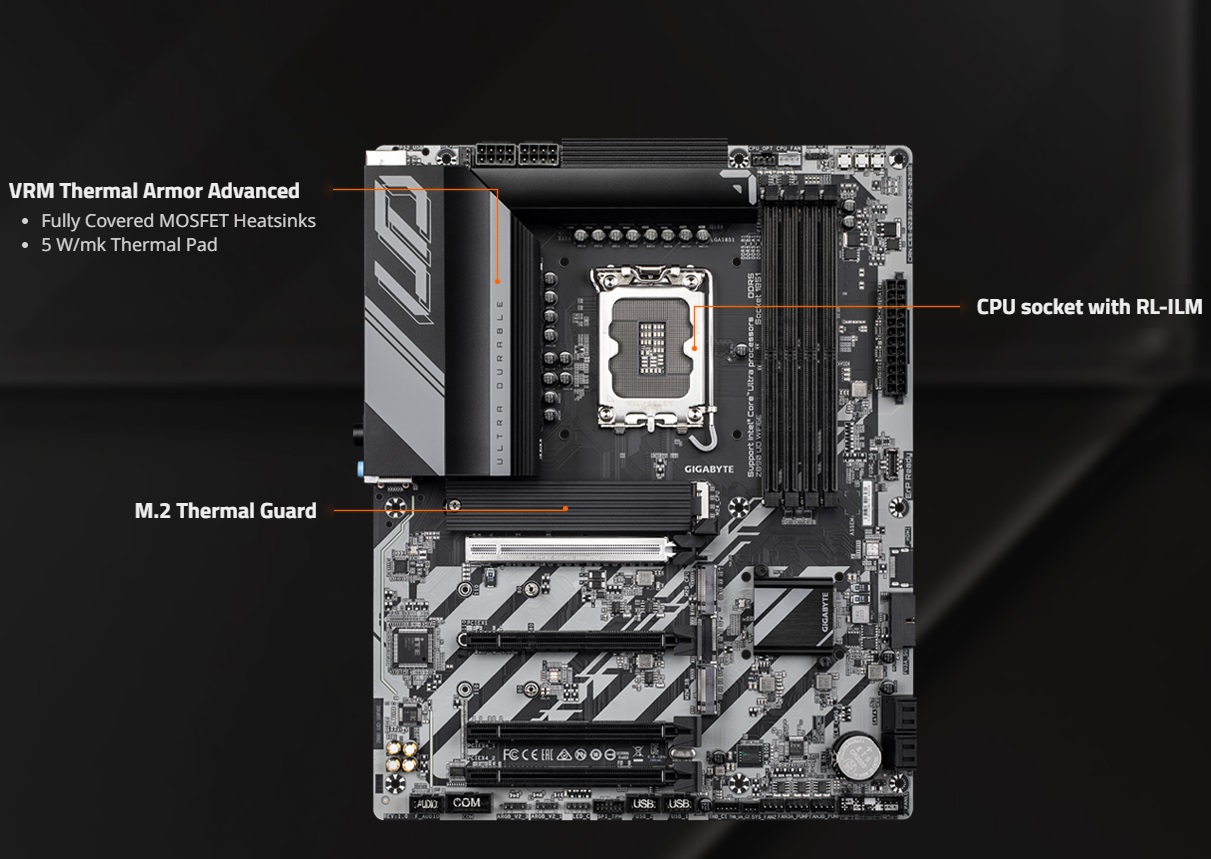

Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
Fast Networking : 2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity : USB4 Type-C with DP-Alt, DisplayPort

Expert Specs

Model
Brand	GIGABYTE
Model	Z890 UD WIFI6E

Supported CPU
CPU Socket Type	LGA 1851
CPU Type	Intel Core Ultra Processors (Series 2)

Chipsets
Chipset	Intel Z890

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8800 / DDR5 9066 / DDR5 9200
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
Memory Feature	Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module

Expansion Slots
PCI Express 5.0 x16	1 x PCI Express 5.0 x16
PCI Express 4.0 x16	2 x PCI Express 4.0 x16

Onboard Audio
Audio Channels	7.1 Channels

Onboard LAN
Max LAN Speed	2.5Gbps
Wireless LAN	Intel Wi-Fi 6E AX211 (PCB rev. 1.0) – WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

Rear Panel Ports
Back I/O Ports	1 x DisplayPort / 1 x LAN (RJ45) / 1 x PS/2 Keyboard/Mouse Combo / 1 x USB4 / 3 x Audio Jacks / 4 x USB 2.0/1.1 / 4 x USB 3.2 Gen 1

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	ATX
