Z890 AORUS ELITE WIFI7 Motherboard Ultra Core LGA 1851 DDR5 (1)

Z890 AORUS ELITE WIFI7 Motherboard Ultra Core LGA 1851 DDR5 (3)

GIGABYTE Z890 AORUS ELITE WIFI7 Motherboard – Ultra Core Series 2, LGA 1851, ATX, DDR5, 4x M.2 Slots, PCIe 5.0, Thunderbolt 4, WIFI7, 2.5GbE LAN, EZ-Latch

Name: Z890 AORUS ELITE WIFI7 Motherboard Ultra Core LGA 1851 DDR5
SKU: GIG-Z890-AORUS-ELITE
Price: 349.00 USD
Availability: InStock

~~$ 355.00~~ $ 349.00 ---ONLY---

-2%

SKU: GIG-Z890-AORUS-ELITE Categories: COMPUTER PARTS, Motherboards

Z890 AORUS ELITE WIFI7 Motherboard Ultra Core

Expert Features

Supports Intel® Core™ Ultra processors (Series 2)

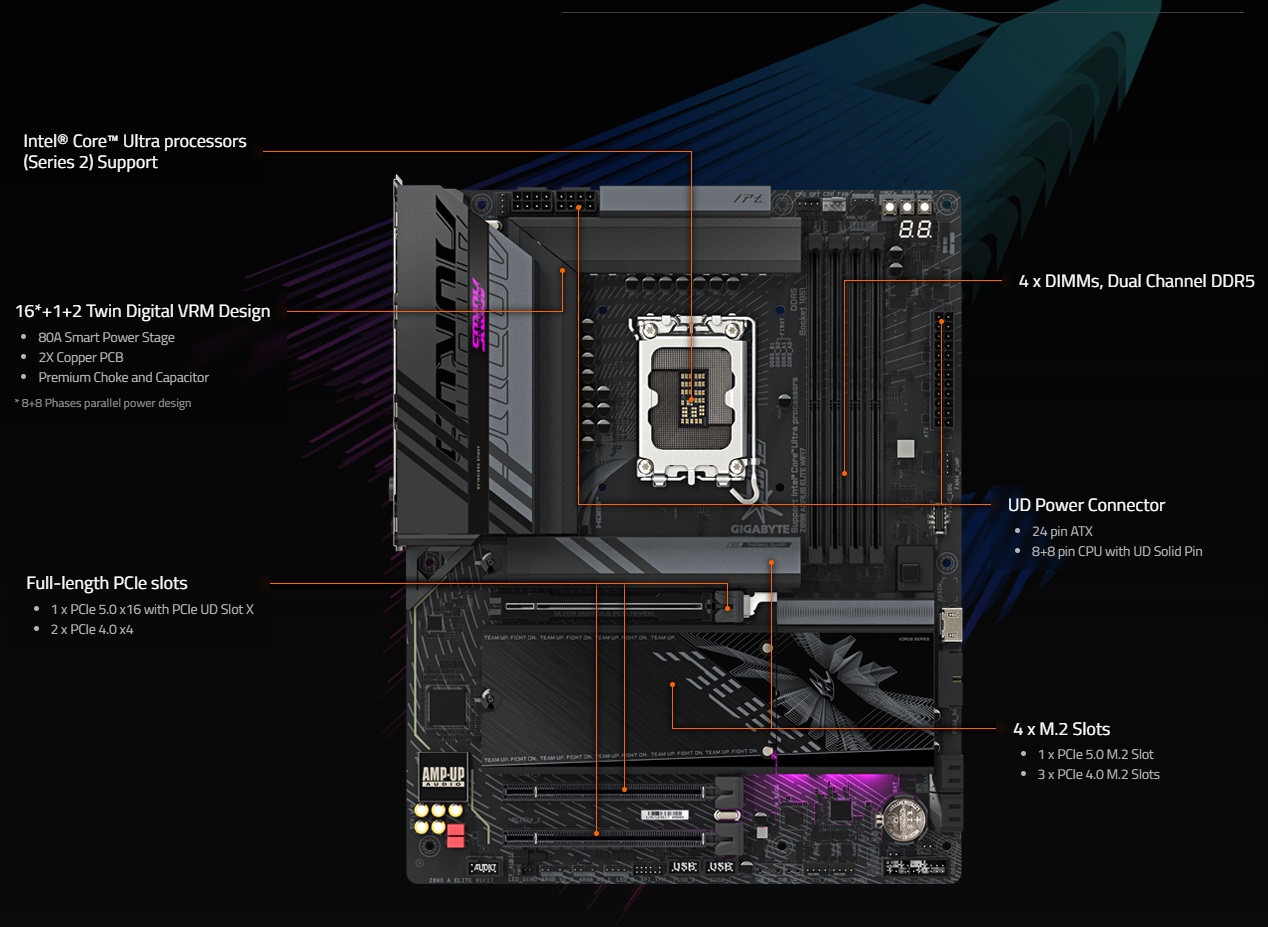

Digital twin 16+1+2 phases VRM solution
D5 Bionic Corsa for Infinite Memory Performance
AI Perfdrive : Provides optimal and customized BIOS preset profile for users
Premium Compatibility : 4*DDR5 with XMP Memory Module Support
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation

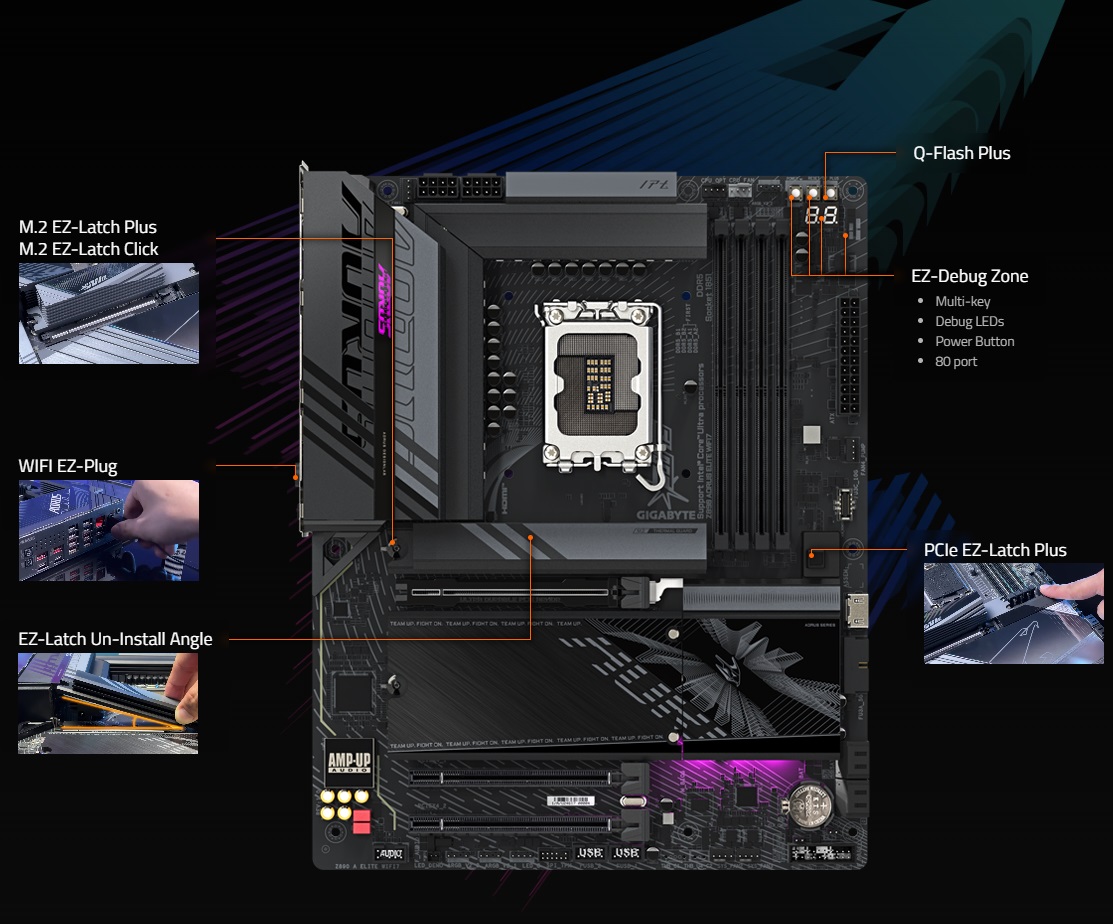

EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click : M.2 heatsinks with screwless design
Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
New Power Monitor in HWinfo for real-time monitoring on CPU power phases
Ultra-Fast Storage : 4*M.2 slots, including 1* PCIe 5.0 x4
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard L
Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity : THUNDERBOLT™ 4 Type-C with DP-Alt, DisplayPort
High-Res Audio : ALC1220 & WIMA Audiophile Grade Capacitors
Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card

Expert Specs

Model
Brand	GIGABYTE
Series	AORUS
Model	Z890 AORUS ELITE WIFI7

Supported CPU
CPU Socket Type	LGA 1851
CPU Type	Intel Core Ultra Processors (Series 2)

Chipsets
Chipset	Intel Z890

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200 / DDR5 8266 / DDR5 8400 / DDR5 8600 / DDR5 8800 / DDR5 8933 / DDR5 9066 / DDR5 9200
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
Memory Feature	Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module

Expansion Slots
PCI Express 5.0 x16	1 x PCI Express 5.0 x16
PCI Express 4.0 x16	2 x PCI Express 4.0 x16

Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	4 x M.2
SATA RAID	0/1/0+1/5/10

Onboard Audio
Audio Channels	7.1 Channels

Onboard LAN
Max LAN Speed	2.5Gbps
Wireless LAN	WIFI 7

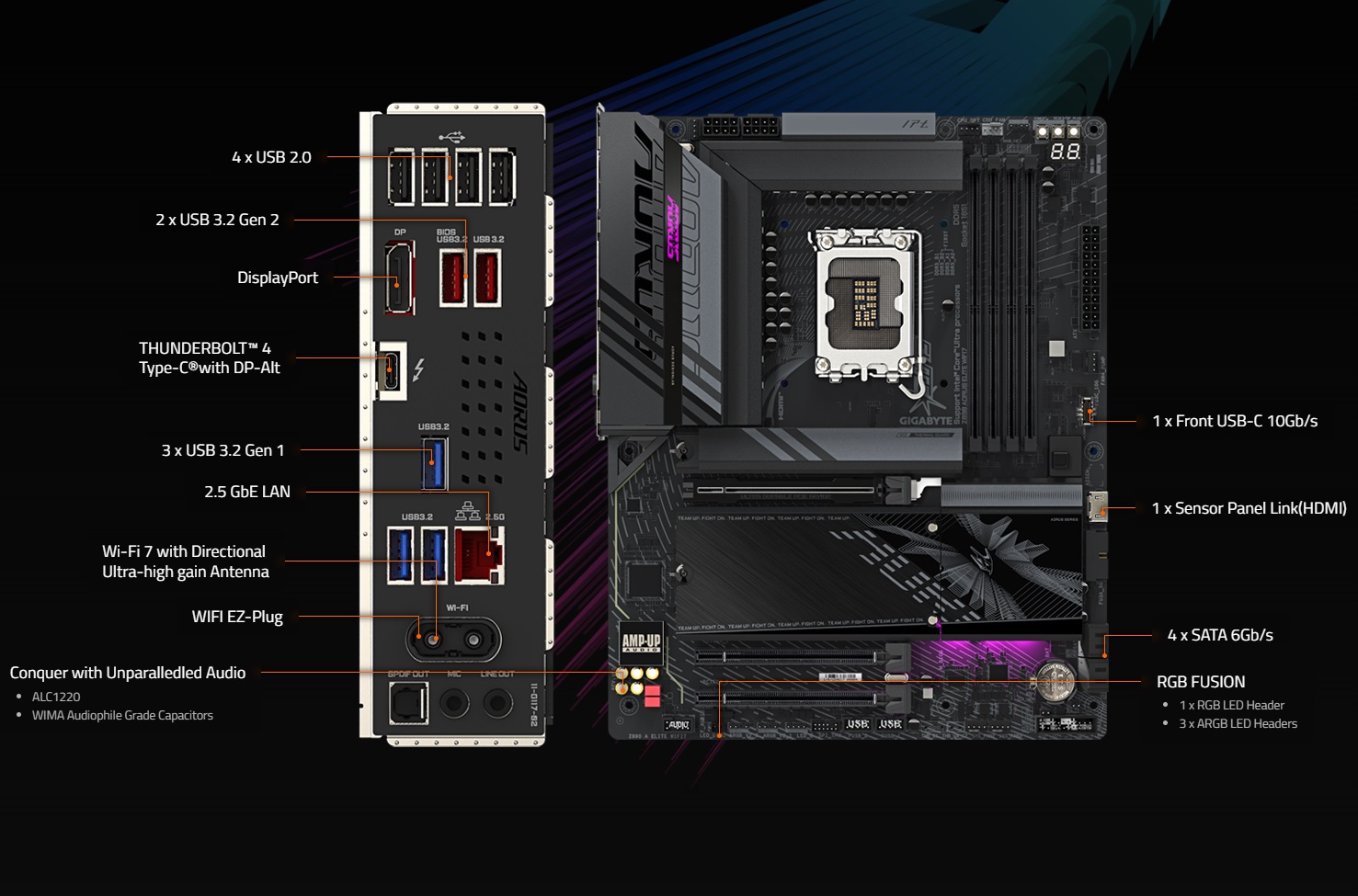

Rear Panel Ports
Back I/O Ports	1 x DisplayPort / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x Thunderbolt 4 / 2 x Audio Jacks / 2 x USB 3.2 Gen 2 Type-A / 3 x USB 3.1 Gen 1 / 4 x USB 2.0/1.1

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	ATX

Description

GIG-Z890-AORUS-ELITE

Z890 AORUS ELITE WIFI7 Motherboard Ultra Core

GIGABYTE Z890 AORUS ELITE WIFI7 Motherboard – Ultra Core Series 2, LGA 1851, ATX, DDR5, 4x M.2 Slots, PCIe 5.0, Thunderbolt 4, WIFI7, 2.5GbE LAN, EZ-Latch
