UPS NCTS 6KVA 4.8KW NU6K16 ONLINE

$ 490.00 ---ONLY---
Out stock

Out of stock

SKU: UPS-NCTS-6KVA Categories: ,

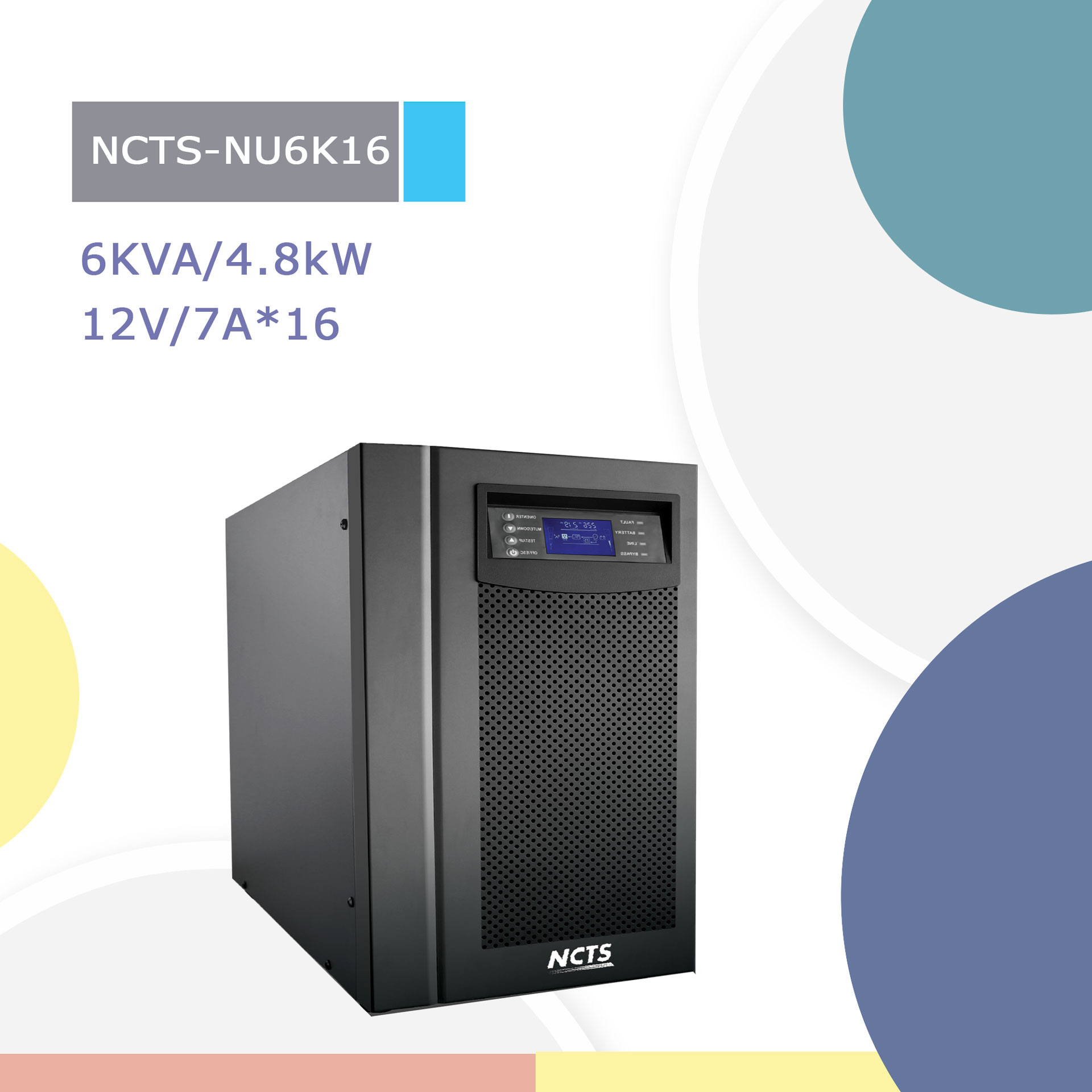

Smart UPS On-Line SRV 6000VA / 6KVA

NCTS Smart UPS On-Line SRV 6000VA 4.8KW / 4.8KW battery group voltage 192V

  • Load power factor is 0.8, adaptive for the development trend for electrical Equipment and the load capacity is more strong
  •  Active input power factor correction (PFC), input power factor is over 0.98
  • Wide input voltage and frequency range, adaptive for extreme adverse grid environment of remote areas
  • It can be connected with generators
  • Zero transfer time effective ensures the safety and reliability of load operation

Smart UPS On-Line SRV 6000VA / 6KVA ; Specifications

Specification

Single Phase In & Out

Rated output capacity

6KVA/4.8KW

Rated

Rated voltage

220VAC

AC input

Input voltage range

120-275VAC±5

Input

frequency range

(45-55)±0.5Hz

bypass voltage

80VACx(1±5%)-285VACx(1±5%)

Battery Input

battery group voltage

192V

battery method

Internal

Battery capacity & quantity

12V 7ah X16 PCS

backup time(half/full)

half load≥10 minutes,full load≥5minutes(standard)

maximum input current                     when power on

<150% of rated current

battery

charging

time

5hours can charge to 90%(standard)

AC output

Output

voltage

220VAC±1%(invert output)

Output frequency

50±5Hz(when AC input is normal)  50Hz±1% (when ac inout is abnormal )

wave form

sine wave  THD<3%( linear load)  sine waveTHD<8%(Nonlinear load)

output power factor

0.8

Overload Protection

105-125% ,Transfer to Bypass after 1 Min

Output current peak coefficient

03:01

Transfer time between                    AC and Battery

0ms

Communication and monitoring functions

RS232(can transfer to 485,Dry node,Smart slot(can expand to SNMP,SMS and other monitoring methods)

Tower

N.W(KG)

57

G.W(KG)

64

Unit Size(W X H X D)mm

515*250*620

Carton Size(W X H X D)mm

660*365*730

Description

NCTS Smart UPS On-Line SRV 6000VA 4.8KW / 4.8KW battery group voltage 192V

Smart UPS On-Line SRV 6000VA 6KVA
