SKU: 12TL1W-WHITE

UNI FAN TL 120 White Performance ARGB Fan With LCP Blades, Dual-Zone RGB, Infinity Mirror, 90.1CFM Airflow, 2600RPM Speed, 33dB Noise, 28mm Frame, FDB Bearing | WHITE

$ 33.00 ---ONLY---

Description

🧊 Expert Features – UNI FAN TL 120 (12TL1W)

  • Slide-In Daisy-Chain System: Say goodbye to cable spaghetti—snap fans together like LEGO with the sleek interlocking mechanism.
  • LCP Fan Blades: Crafted from Liquid Crystal Polymer for ultra-tight tolerance, high-speed stability, and whisper-quiet operation.

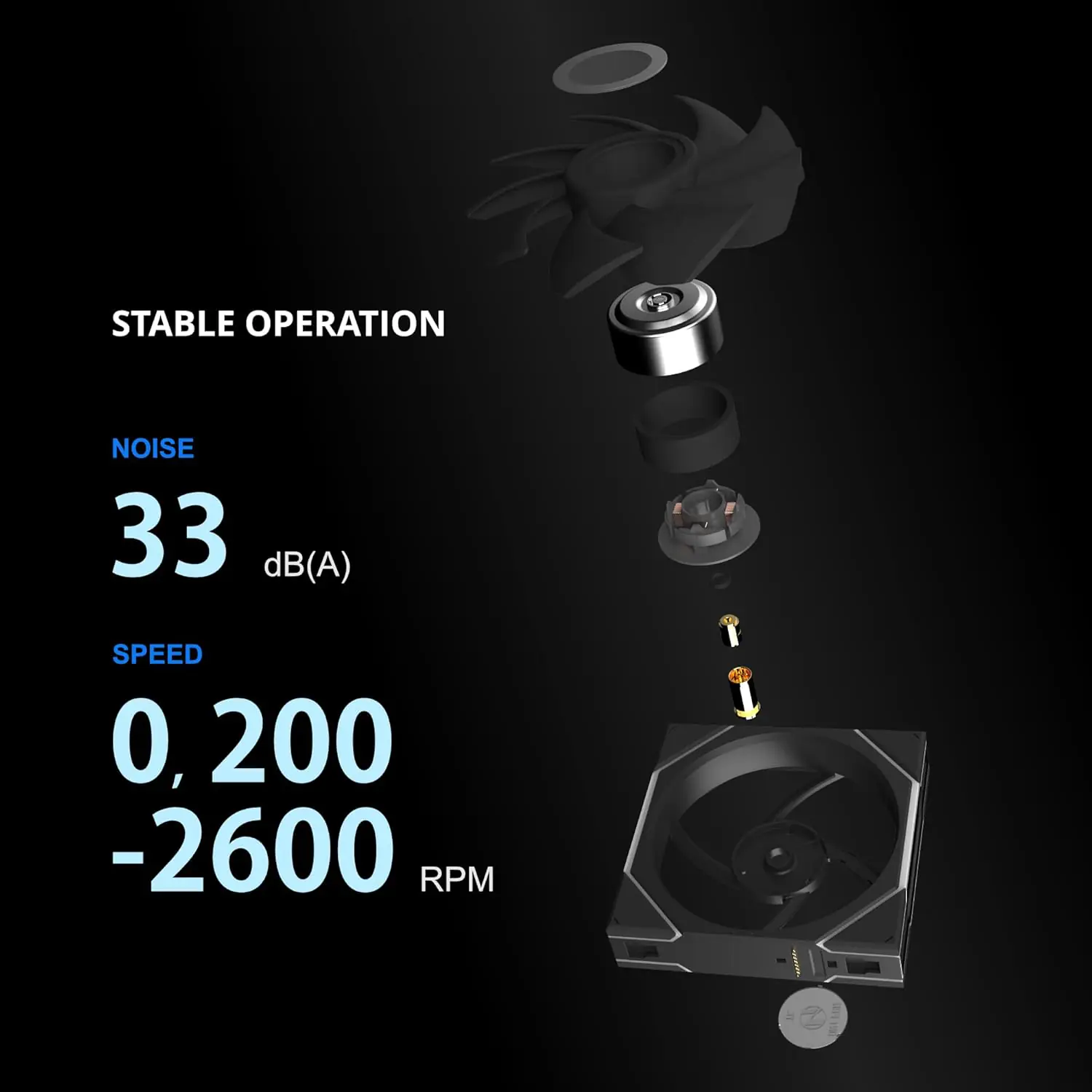

  • FDB Bearing + Copper Shielding: Fluid Dynamic Bearings reduce friction, while the copper core reinforces the impeller shaft—built to run smooth for years.

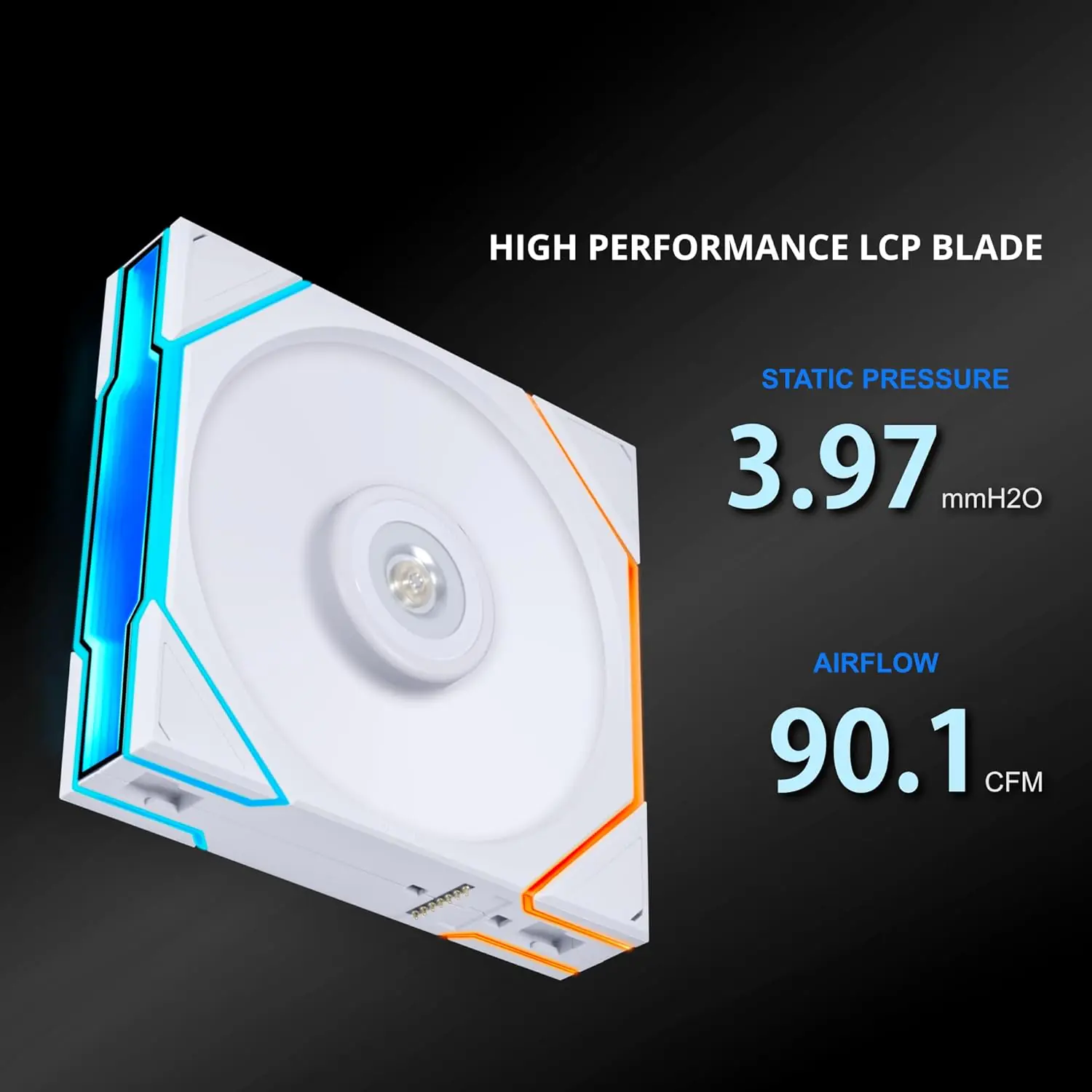

  • Engineered for Silence & Performance: Thick 28mm fan frame, 9 LCP blades, and rubber pads offer powerful airflow (90.1 CFM) without the noise (max 33 dBA).

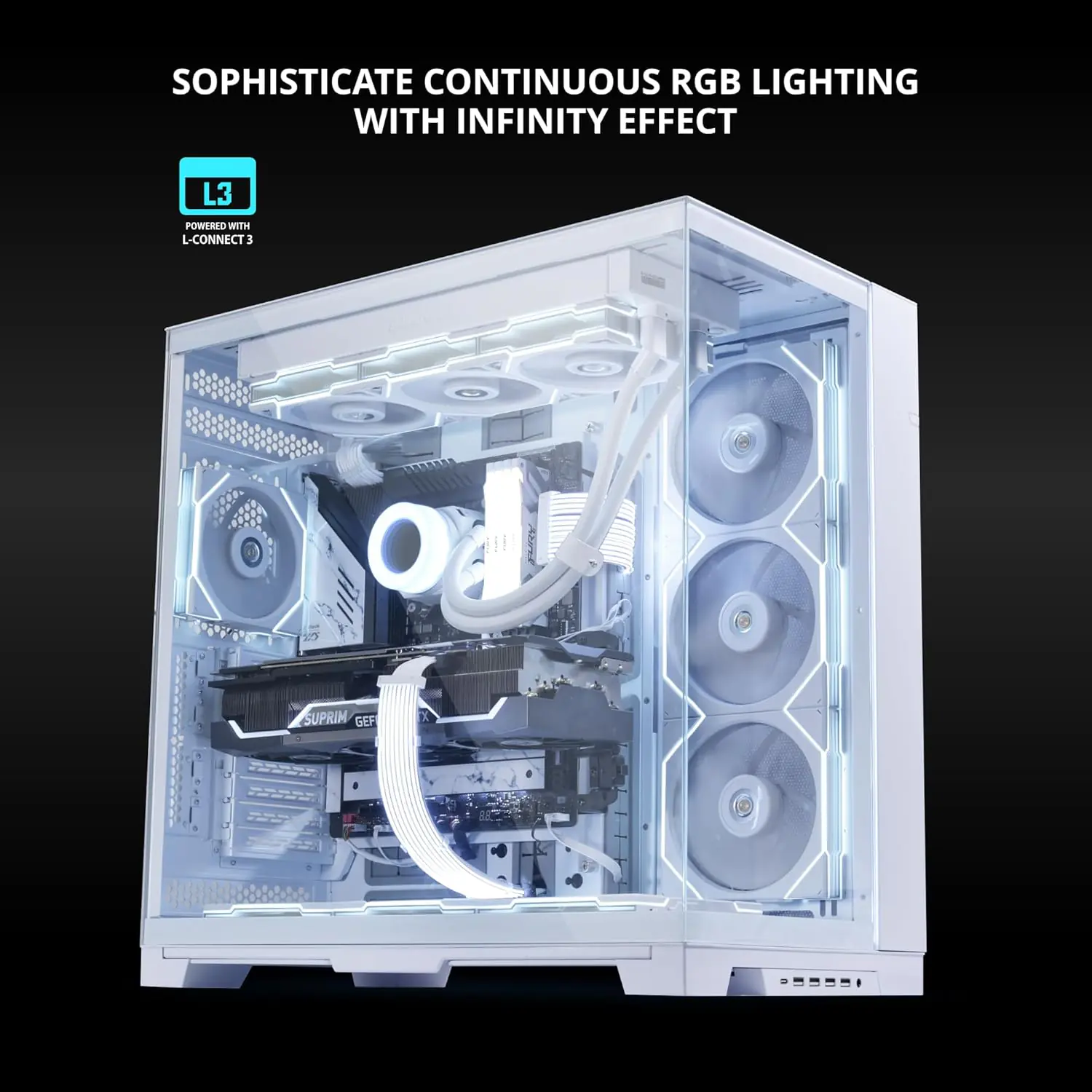

  • Infinity Mirror Lighting: Features an enlarged mirror edge with 26 side-mounted LEDs and dual-zone RGB lighting—glow like a sci-fi engine.
  • Total Control with L-Connect 3: Adjust lighting and speed per fan cluster; control up to 16 TL and TL LCD fans via a shared controller (sold separately).
  • Flexible Cable Routing: Plug-in connection from either side of the fan—no more rerouting headaches.
  • Daisy Chain 10 Fans per Port: Build a clean, synchronized cooling wall with fewer cables—just add POGO daisy-chain extension cables.
  • Custom Cooling Profiles: Control each cluster’s RPM and lighting style independently, whether for case airflow or radiator pressure zones.
  • Smooth, Screwless Aesthetic: Covered anti-vibration pads hide mounting screws for a visually seamless setup.

📊 Expert Specs – UNI FAN TL 120 (12TL1W)

Specification Details
Model UNI FAN TL 120 (12TL1W) – White
Number of Fans 1
Controller Included No (sold separately or in triple pack)
Fan Dimensions 124 x 120 x 28 mm
Fan Speed 0, 200 – 2600 RPM
Max Airflow 90.1 CFM
Max Static Pressure 3.97 mmHâ‚‚O
Noise Level 33 dB(A) max
Bearing Type Fluid Dynamic Bearing (FDB)
Material PA66 + LCP Blades
Lighting Zones Dual-zone, 26 LEDs per fan
Infinity Mirror Enlarged, side-mounted, dual-sided
Power Input 5.8W
Voltage 12V (fan), 5V (LED)
Connector Type UNI FAN Controller Cable (P-7P), Extension (P-P)
Mounting Rubber-padded screw covers
Daisy-Chain Support Up to 10 fans per controller port
Software L-Connect 3
Compatibility TL & TL LCD (controller required)
