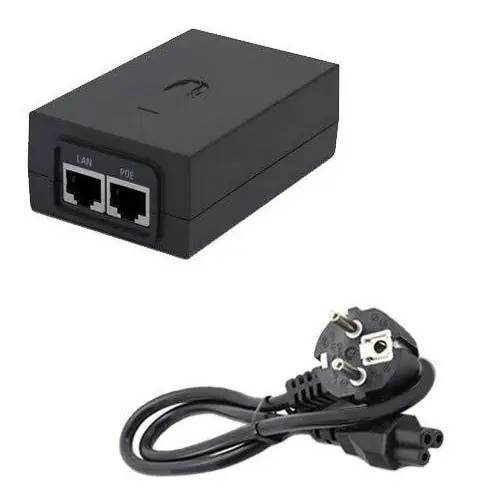

AD-UBIQUITY-48V Ubiquiti DC 48V POE Injector Ethernet Adapter Ubiquiti DC 48V 0.5A Wall EU Plug POE Injector RJ45  Ethernet Adapter Supports IP Phone Camera Switch Power Supply ; Gigabit LAN port RJ45 shielded socket ; Surge Protection | BLACK

Ubiquiti DC 48V 0.5A Wall EU Plug POE Injector RJ45  Ethernet Adapter Supports IP Phone Camera Switch Power Supply ; Gigabit LAN port RJ45 shielded socket ; Surge Protection | BLACK

$ 15.00 ---ONLY---
SKU: AD-UBIQUITY-48V Categories: , , ,

Expert Features

Ubiquiti 48 V DC PoE Adapters providing a variety of features to help protect your PoE devices.
  • Surge and clamping protection
  • Maximum surge discharge
  • Peak pulse current
  • AC cable with earth ground

Expert Specification

POE-48-24W-G
Dimensions 92 x 60 x 33 mm (3.6 x 2.4 x 1.3″)
Weight 159 g (5.6 oz)
Output voltage 48V DC @ 0.5A
LAN activity indicator No
Gigabit LAN port Yes
Remote reset capability No
Reset button No
Rated voltage 100-240V AC @ 50/60Hz
Input current 0.6A @ 120V AC, 0.4A @ 240V AC
Inrush current <65A Peak @ 120V AC, <130A peak @ 230V AC
Efficiency 80+%
Output ripple 1% Max.
Switching frequency 65 kHz
Line regulation ≤ 3%
Load regulation ≤ 5%
2-pair powering Pins 4, 5 (+) and Pins 7, 8 (-)
4-pair powering –
Storage temperature -30 to 70°C (-22 to 158° F)
Ambient operating temperature 0 to 40° C (32 to 104° F)
Ambient operating humidity 35 to 95% noncondensing
AC connector IEC-320 C6
Data IN / PoE RJ45 shielded socket
Surge protection Difference and common mode
Clamping protection 11V data, 60V power
Max. surge discharge 1500A (8/20 μs) power
Peak pulse current 36A (10/1000 μs) data
Shunt capacitance <5 pF data
Response time <1 ns
Certifications CE, FCC, IC, UL

Description

AD-UBIQUITY-48V

Ubiquiti DC 48V POE Injector Ethernet Adapter

Ubiquiti DC 48V 0.5A Wall EU Plug POE Injector RJ45  Ethernet Adapter Supports IP Phone Camera Switch Power Supply ; Gigabit LAN port RJ45 shielded socket ; Surge Protection | BLACK

Ubiquiti DC 48V POE Injector Ethernet Adapter  Ubiquiti DC 48V POE Injector Ethernet Adapter
