Description

Expert Features

Next-Generation Wi-Fi 7 BE5000 Performance: The EAP723 delivers exceptional BE5000 dual-band Wi-Fi speeds with 4324 Mbps on 5 GHz and 688 Mbps on 2.4 GHz, offering ultra-fast throughput for high-density environments and modern business workloads. Perfect for enterprises, hospitality, retail spaces, offices, and classrooms requiring uninterrupted high-speed connectivity.
Higher Efficiency with 4K-QAM & 240 MHz Bandwidth: Wi-Fi 7 introduces 4K-QAM modulation for up to 20% more data per symbol and 240 MHz channels, enabling many more simultaneous transmissions with improved stability and reduced interference.
Multi-Link Operation (MLO): MLO allows devices to transmit over both 2.4 GHz and 5 GHz at the same time, reducing latency and delivering smoother performance for real-time applications such as video conferencing, cloud access, and VoIP.

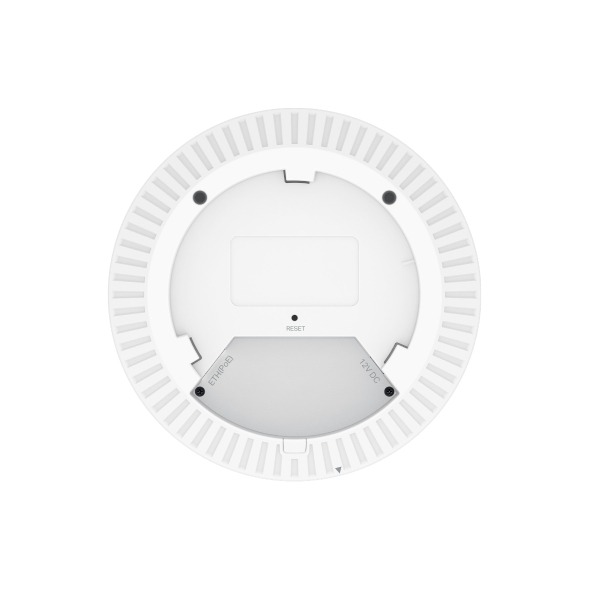

2.5GbE Port for True Wi-Fi 7 Throughput: The integrated 2.5 Gigabit Ethernet port ensures full multi-gigabit backhaul performance. Compatible with 802.3at PoE+, offering flexible ceiling or wall deployments without extra power cabling. Optional 12V DC input (adapter not included).
Omada SDN Integration: Fully supports the Omada Software Defined Networking platform with centralized cloud or local management—offering intelligent monitoring, remote configuration, zero-touch provisioning, and full network unification with switches, routers, and outdoor APs.
Omada Mesh for Flexible Installations: Enables wireless mesh backhaul between access points, reducing wiring needs and allowing better coverage in complex layouts. Includes intelligent self-organization and self-healing for stable network continuity.
Seamless Fast Roaming: Automatically transitions clients between access points for uninterrupted streaming, calls, and real-time sessions while moving across coverage areas.
Enterprise-Grade Security: Features WPA3, captive portal authentication, VLAN support, rogue AP detection, 4000 MAC filtering entries, wireless isolation, and high-security guest network with up to 16 SSIDs.

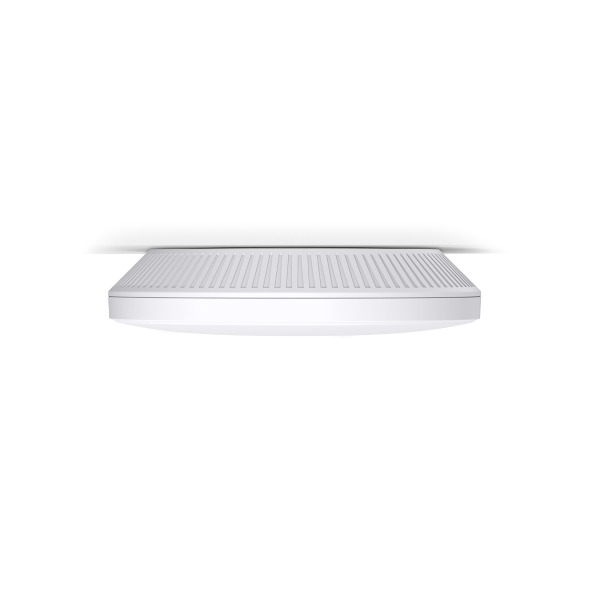

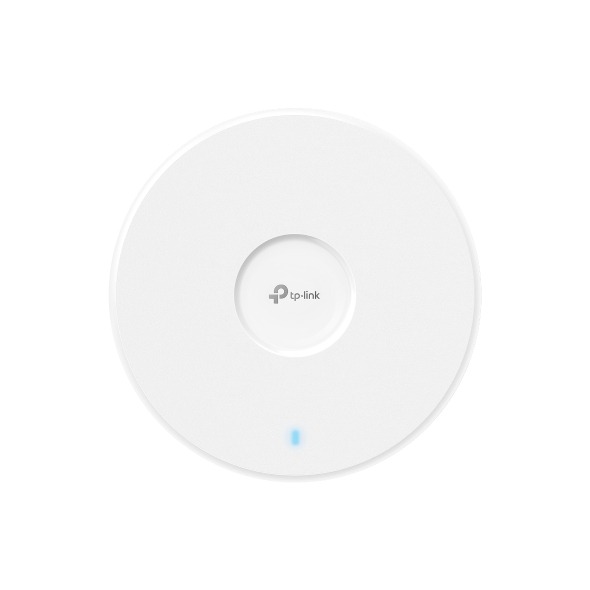

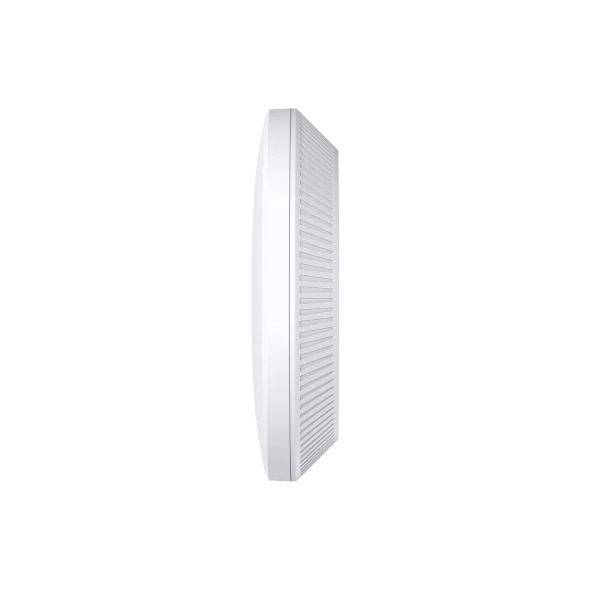

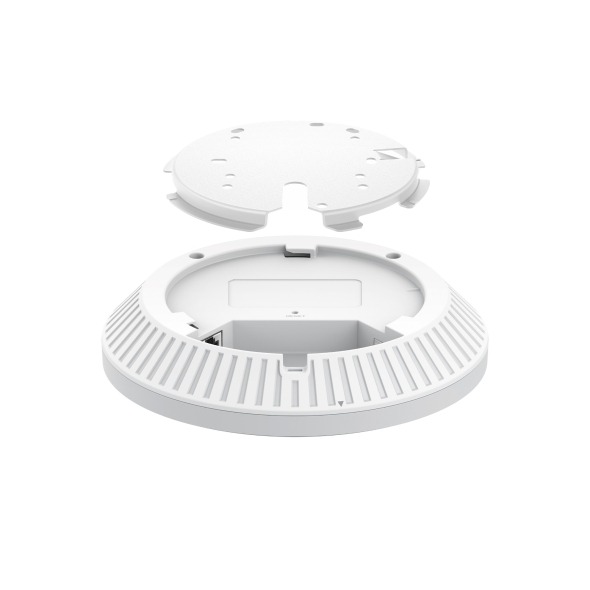

Compact, Elegant Commercial Design: Modern 160 × 160 × 36.7 mm slim form factor blends seamlessly into business, retail, and hospitality environments, supporting ceiling, wall, or junction box mounting with included hardware.

Expert Specs

Category	Specification
Model	TP-Link EAP723
Wireless Standard	Wi-Fi 7 (802.11be)
Bands	2.4 GHz + 5 GHz
Speed	688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz)
Total WiFi Speed	5.0 Gbps
Modulation	4K-QAM
Channel Width	Up to 240 MHz (EHT240)
Ethernet Port	1× 2.5G Ethernet
Power	802.3at PoE+, 12V DC (adapter not included)
Max Power Consumption	17.8W PoE, 14W DC
Antennas	2× 4.0 dBi (2.4 GHz), 2× 5.0 dBi (5 GHz)
Dimensions	160 × 160 × 36.7 mm
Mounting	Ceiling, wall, junction box
Coverage	Up to 140 m² (1500 ft²)
Concurrent Clients	250+
Key Wireless Features	MLO, OFDMA, MU-MIMO, Mesh, Seamless Roaming, Beamforming
Advanced Functions	Band Steering, Airtime Fairness, Load Balance, Rate Limit
Management	Omada Cloud/Software/Hardware Controllers, Omada App
Security	WPA3, Captive Portal, VLAN, Rogue AP Detection, MAC Filtering (4000 entries)
SSIDs	16 total (8 per band)
