TL-SG1210P 10-Port Gigabit Desktop Switch with 8-Port PoE+

$ 75.00 ---ONLY---
SKU: TL-SG1210P Categories: ,

TL-SG1210P 10-Port Gigabit Desktop Switch with 8-Port PoE+

  • 9 10/100/1000Mbps RJ45 ports, 1 Gigabit SFP port

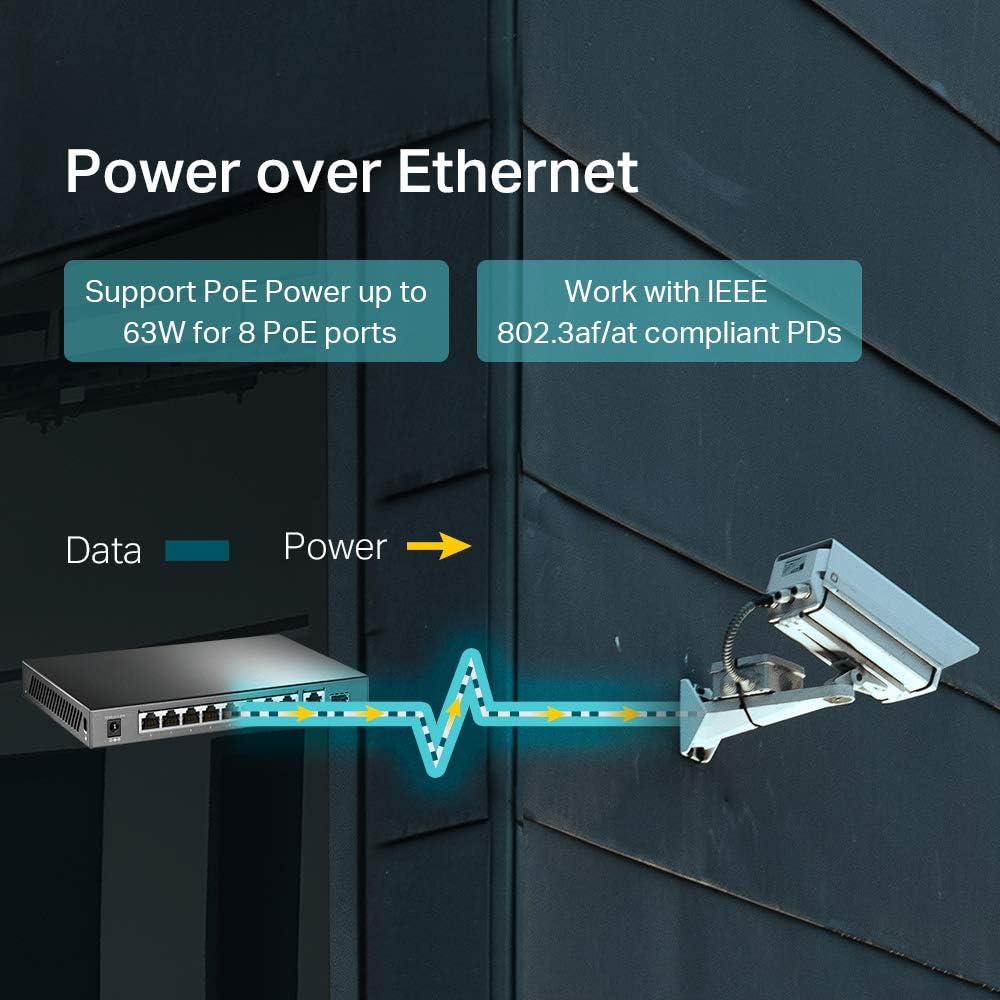

  • With 8 PoE+ ports, transfers data and power on one single cable
  • Works with IEEE 802.3af/at compliant PDs and expands office network
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • High PoE power budget with up to 30W for each PoE port and 63W for all PoE ports

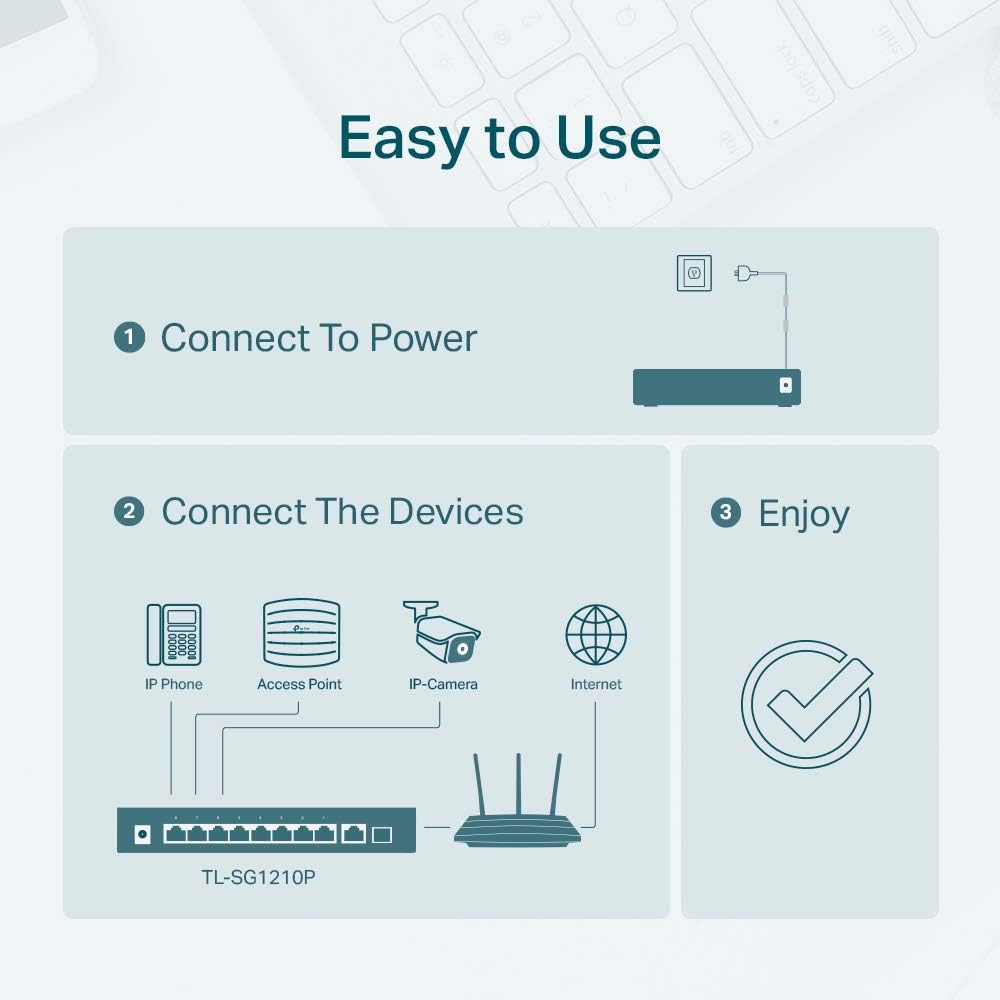

  • Easy to use, with no configuration and installation needed

HARDWARE FEATURES

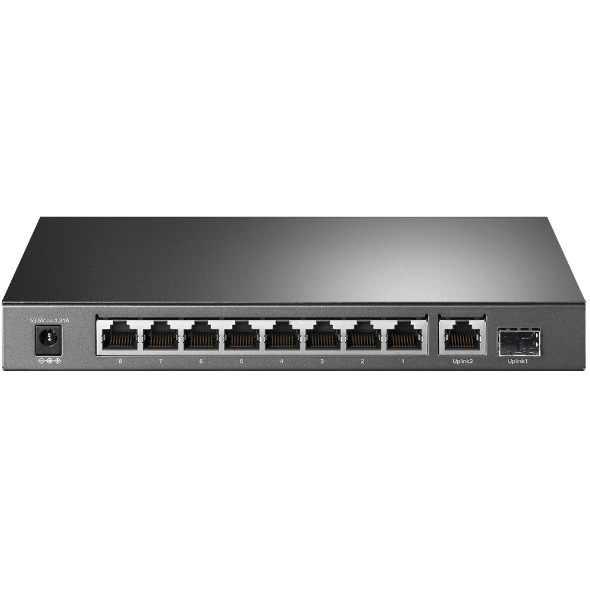

Interface 8 PoE+ 10/100/1000Mbps RJ45 Ports
1 10/100/1000Mbps RJ45 Port
1 Gigabit SFP Slot

Network Media

  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-X MMF, SMF
Fan Quantity Fanless
Physical Security Lock Yes
Power Supply External Power Adapter(Output: 53.5VDC / 1.31A)
Packet Forwarding Rate 14.88 Mpps

PoE+ Ports(RJ45)

  • Standard: 802.3at/802.3af compliant
  • PoE Ports: Port1- Port 8
  • PoE Power Budget: 63W
Mac Address Table 4K
Jumbo Frame 16 KB
Switching Capacity 20 Gbps
Dimensions ( W x D x H ) 209 × 126 × 26 mm
Max Power Consumption
  • 7.11 W (220/50Hz. no PD connected)
  • 78.13 W (220/50Hz. with 63W PD connected)

Max Heat Dissipation

  • 24.25 BTU/h (no PD connected)
  • 266.42 BTU/h (with 63W PD connected)

SOFTWARE FEATURES

Advanced Features Compatible With IEEE 802.3af/at Compliant PDs
EEE802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transmission Method Store-And-Forward

OTHERS

Certification CE, FCC, RoHS

Package Contents

TL-SG1210P, Power Adapter, Installation Guide
Environment Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing

Description

TL-SG1210P 10-Port Gigabit Desktop Switch PoE+
