SKU:
TG-MP-HC-120-100-10-

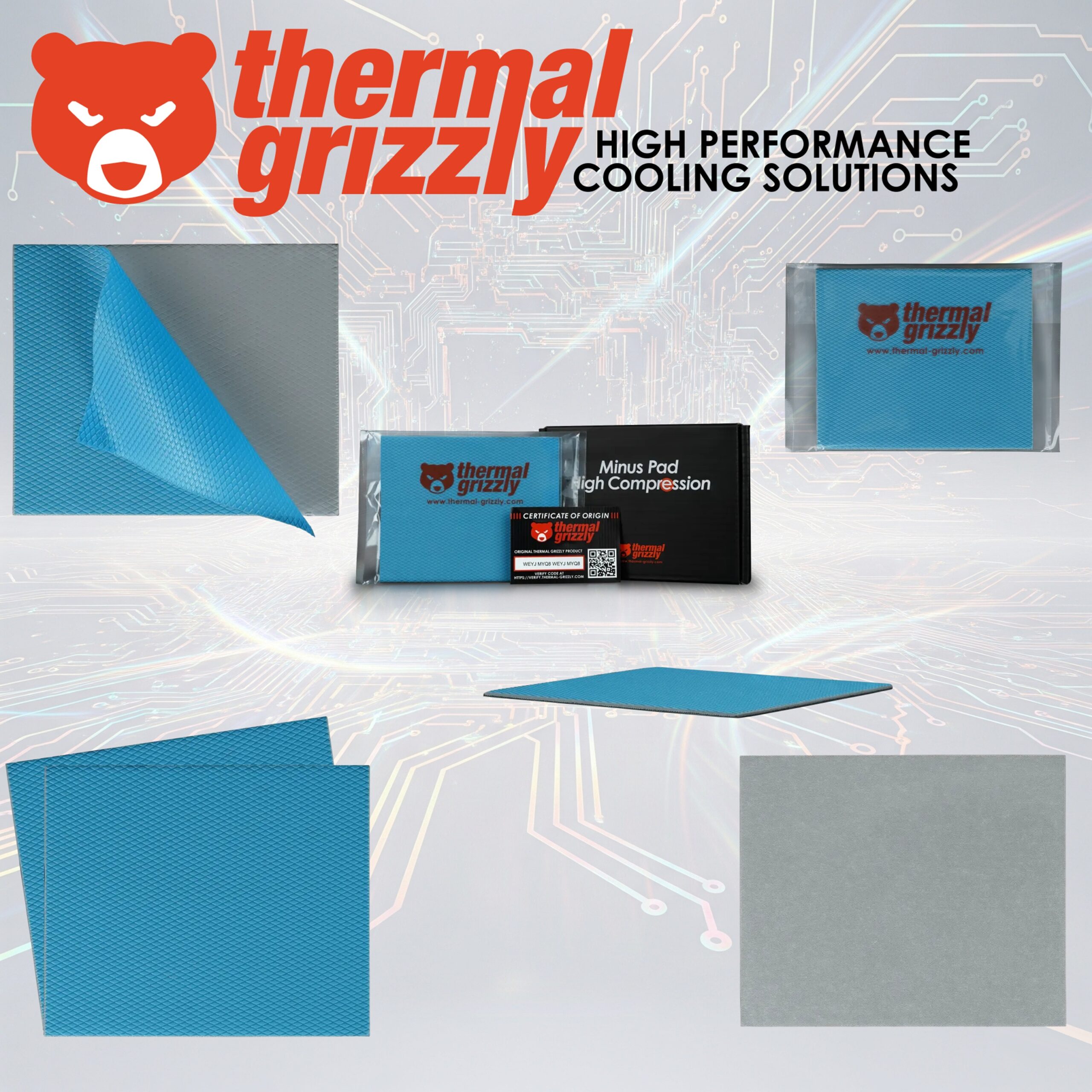

Thermal Grizzly MINUS PAD High Compression 120x100x1.0mm Thermal Pad 2-Pack, High Compressibility, Excellent Thermal Conductivity, Non-Conductive Silicone , for SSDs, GPUs & Electronics | TG-MP-HC-120-100-10-2
$ 27.00
Share:
Description
Expert Features
- Extremely High Compressibility: Designed to compress significantly under mounting pressure, allowing a single pad thickness to accommodate varying component height differences.
- Excellent Thermal Conductivity Under Pressure: Maintains—and can even improve—thermal conductivity when compressed, ensuring efficient heat transfer in demanding setups.
- Ideal For GPU Water Cooling Conversions: Particularly practical for graphics card modifications where multiple components such as VRAM and VRMs require consistent thermal contact.
- Single Thickness Multi-Surface Coverage: One pad can be used simultaneously across memory chips, voltage regulators, and other contact points within the same assembly.
- Height Tolerance Adaptation: Effectively compensates for uneven component heights as long as sufficient contact pressure and lateral expansion space are available.
- Electrically Non-Conductive Material: Safe for use around sensitive electronic components without risk of electrical short circuits.
- Optimized For Unknown Pad Thickness Scenarios: Well-suited for replacements when the exact factory pad thickness is uncertain, using slightly thicker pads that compress into place.
- Controlled Compression Behavior: Expands laterally along the X and Y axes under pressure, enabling seamless surface contact across components.
- Easy To Handle And Install: Flexible silicone material allows straightforward cutting, positioning, and mounting during system assembly or modification.
- High Versatility Of Use: Suitable for GPUs, SSDs, voltage regulators, and other heat-generating components where contact pressure is sufficient.

Expert Specs
| Category | Specification |
|---|---|
| Manufacturer | Thermal Grizzly |
| Product Name | Minus Pad High Compression |
| Series | TG Minus Pad High Compression |
| Part Number | TG-MP-HC-120-100-10-2 |
| EAN | 4260711992018 |
| Material | Silicone |
| Electrical Conductivity | Electrically Non-Conductive |
| Color | Dark Grey |
| Dimensions | 120 × 100 × 1.0 mm |
| Thickness | 1.0 mm |
| Pack Quantity | 2 Pads |
| Item Weight | 35 g |
| Mounting Type | Adhesive Mount |
| Application Type | Thermal Interface Pad |
| Intended Use | CPUs, GPUs, VRAM, Voltage Regulators, SSDs |
| Package Contents | Thermal Pad |
| Product Form Factor | Sheet |
| Handling Characteristics | High Compressibility |
