Tenda S108 8-Port Desktop Switch , Cost-effective SOHO Switch , Wall or Desktop Mount , 8×10/100M Auto-negotiation RJ45 Ports (Auto MDI/MDIX) , Supports10/100M – White
-7%

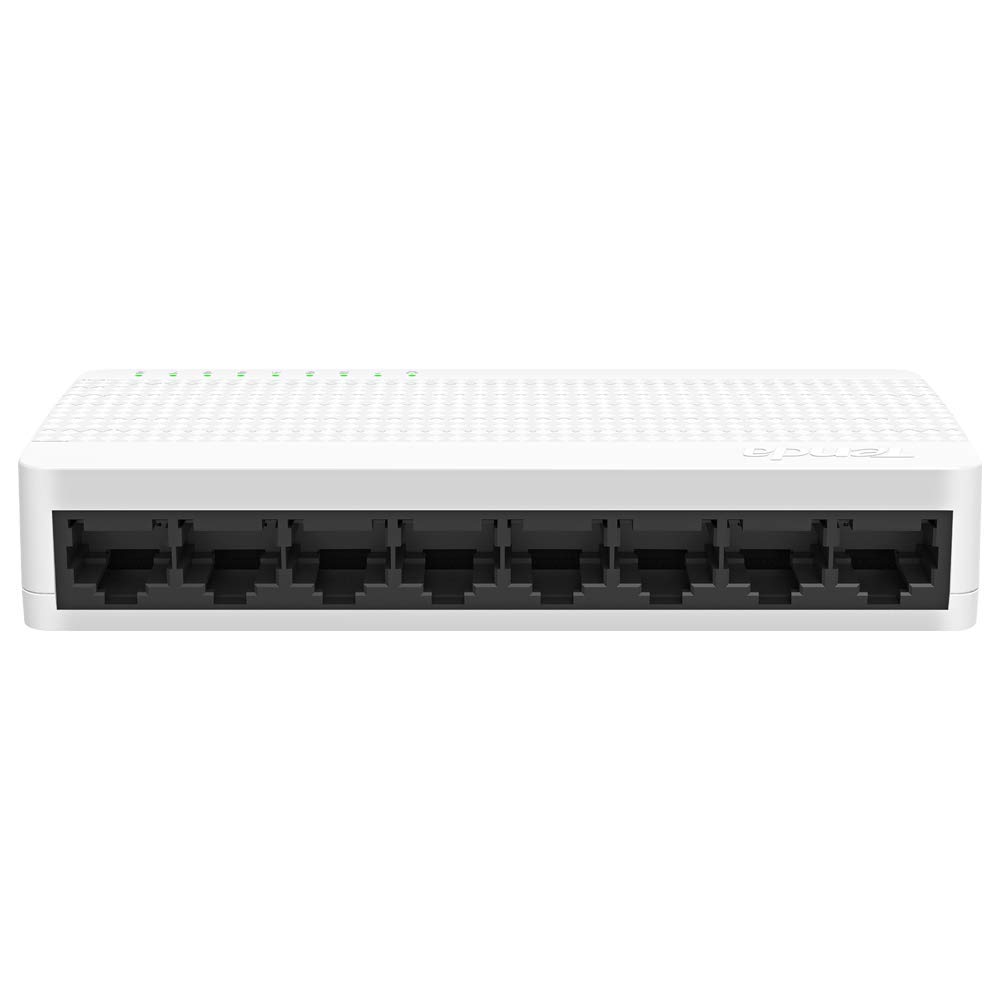

Tenda S108 8-Port Desktop SOHO Switch
Expert Features
- 8*10/100 Mbps auto-negotiation RJ45 ports obtains the fastest possible connection (Auto MDI/MDIX)
- Compliant with IEEE802.3,IEEE802.3u,IEEE802.3X standard
- 8* LED indicators display the connection status
- Supports10/100M full duplex and half duplex
- Store-and-forward mode
- Supports MAC address auto learning and auto aging

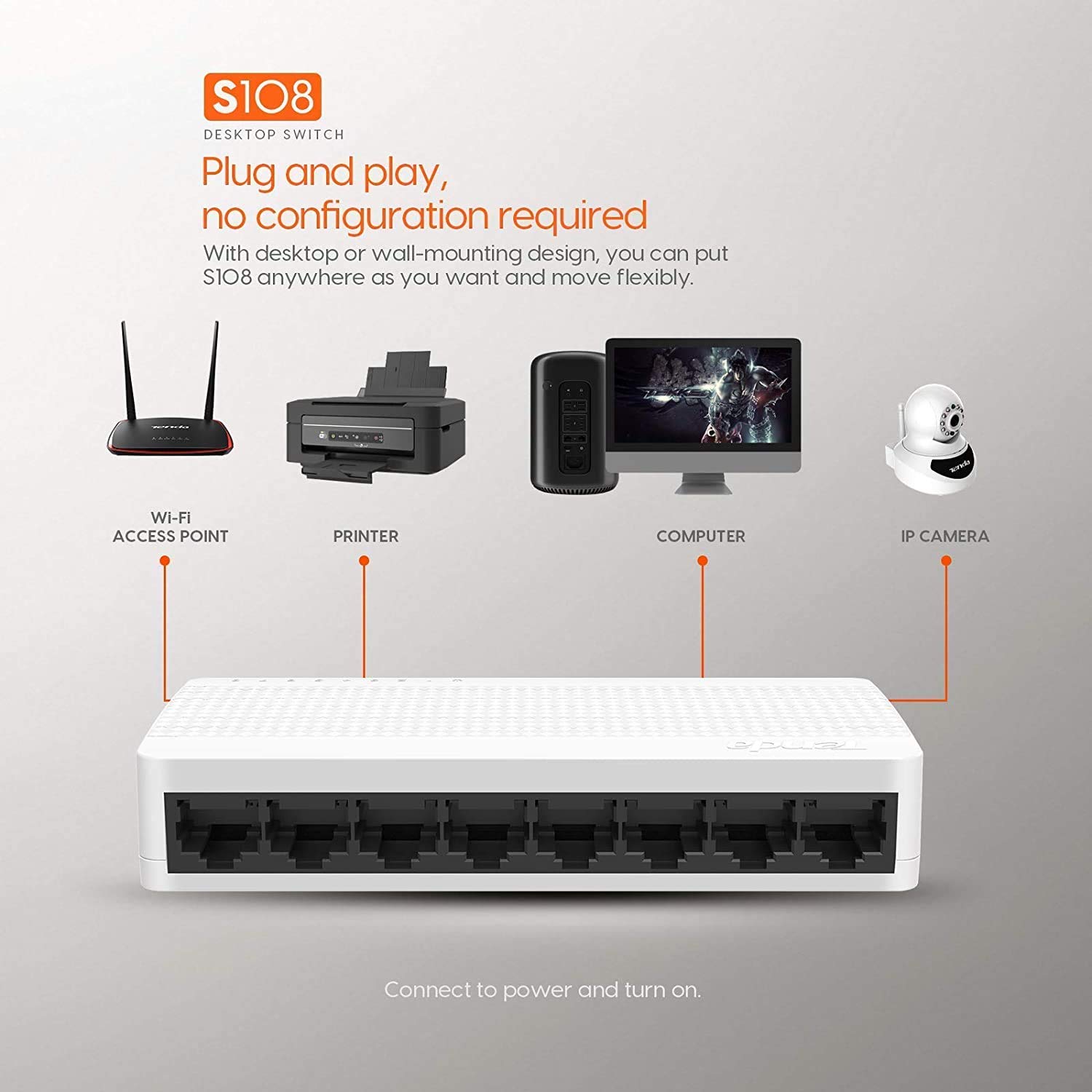

- Supports to connect with IP-camera
- Plug-and-play without configuration
- Cost-effective SOHO switch, Supports wall-mounting and desktop installation Energy saving technologies help you save power and money
- Blazing fast network without data loss, green and energy-saving
- Transmission Media: 10Base-T: Cat. 3 UTP or better; 100Base-TX: Cat.5 UTP
- Forwarding Speed: 10mbps – 14880pps and 100mbps – 148800pps
- Switching Capacity: 1.6gbps
Expert Specs
Network standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
LED Indicator | 1* Power, 8* Link/Act |
Interfaces | 8*10/100 Base-TX Ethernet ports (Auto MDI/MDIX) |
Transmission media | Recommended: CAT5/5e UTP or better |
Dimension | 124.0mmx59.0mmx23.1mm |
Material | Plastic |
Level of protection | ESD: Air discharge: ±8kV Contact discharge: ±6kV |
Forwarding mode | Store-and-forward |
Switch capacity | 1.6Gbps |
Packet forwarding rate | 1.19Mpps |
Buffer | 448K |
MAC address table | 1K |
Power | Input: 100-240V AC 50/60Hz Output: 5.0V 0.6A ( External Power Adapter ) |
Power consumption | Max:<2.15W |
Mounting | Desktop mounting: support Wall mounting: support Rack mounting:non-support |
Environment | Operating temperature: 0°C – 45℃ Storage temperature: -40°C – 70°C Operating humidity: (10% – 90%) RH, non-condensing Storage humidity: (5% – 90%) RH, non-condensing |
Certification | CE, FCC, RoHS |
Protocols | CDMA/CD |
MAC address learning | Auto-Learning and Auto-Aging |
Funtions | plug-and-play |
Description
TENDA-S108
Tenda S108 8-Port Desktop SOHO Switch
Tenda S108 8-Port Desktop Switch , Cost-effective SOHO Switch , Wall or Desktop Mount , 8×10/100M Auto-negotiation RJ45 Ports (Auto MDI/MDIX) , Supports10/100M – White
Tenda S108 8-Port Desktop SOHO Switch
