S78-440L430-P83 SPATIUM M480 PRO PCIe4 NVMe 1TB with Heatsink MSI SPATIUM M480 PRO PCIe 4.0 NVMe M.2 1TB with Heatsink ; Up to 7400 MB/s Read and 6000 MB/s Write ; Bronze-colored Aluminum Heatsink ; 3D NAND Flash ; Hardware Encryption & Data Protection Software

MSI SPATIUM M480 PRO PCIe 4.0 NVMe M.2 1TB with Heatsink ; Up to 7400 MB/s Read and 6000 MB/s Write ; Bronze-colored Aluminum Heatsink ; 3D NAND Flash ; Hardware Encryption & Data Protection Software

$ 94.00 ---ONLY---
SKU: S78-440L430-P83 Categories: , ,

SPATIUM M480 PRO PCIe4 NVMe 1TB with Heatsink

Expert Features:

  • PCIe Gen4 Interface: Up to 7400 MB/s read and 6000 MB/s write speeds for rapid data transfer and ultra-fast load times.
  • Performance Boost: Up to 60% faster random read/write speeds compared to traditional storage, optimizing gameplay and productivity.

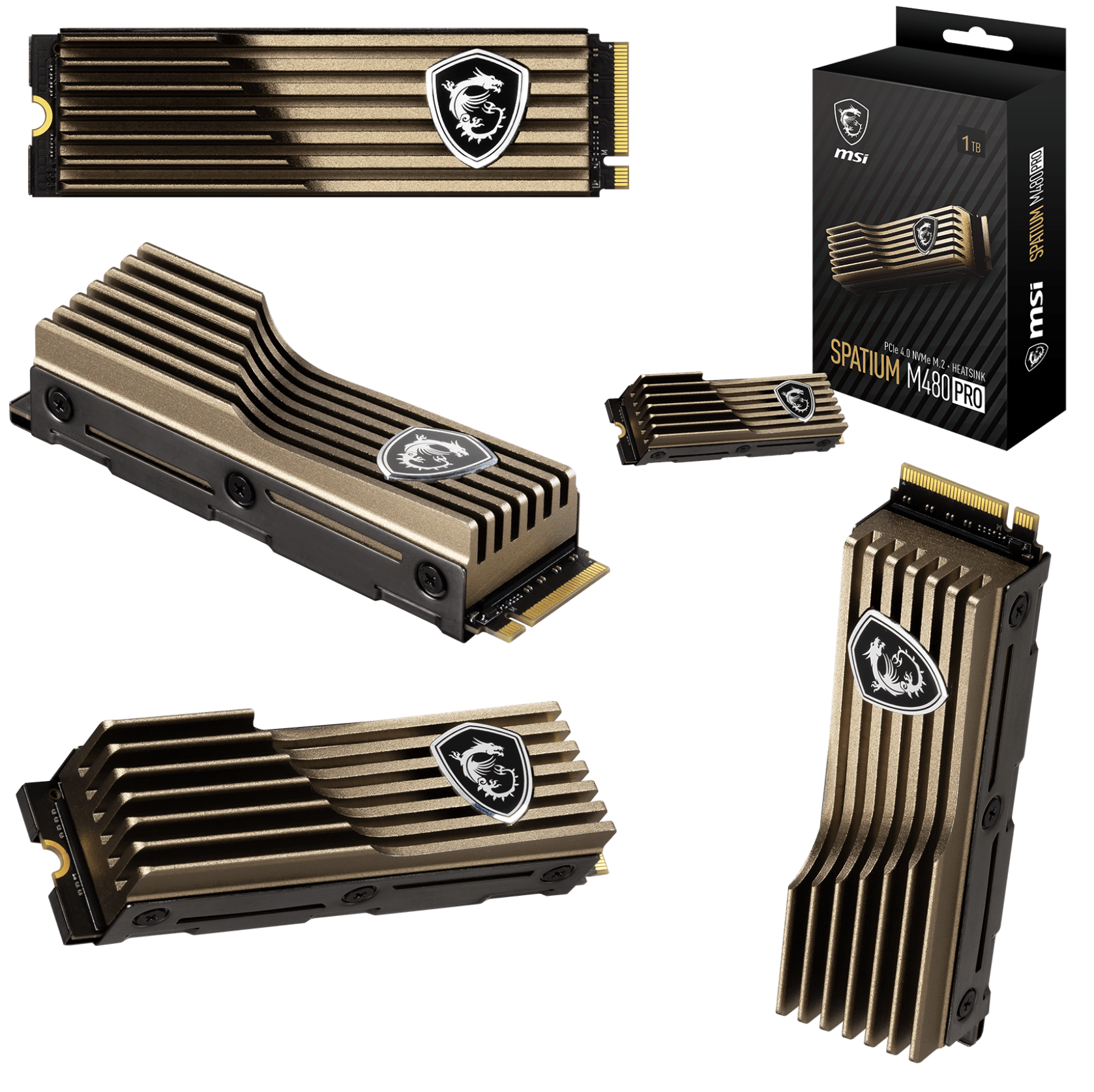

  • Advanced Cooling: Bronze-colored aluminum heatsink with a stacked fin structure for efficient heat dissipation, maintaining max performance during heavy loads.
  • High-Capacity Storage: 3D NAND flash technology offers up to 1TB of storage in a compact M.2 2280 form factor.
  • Data Security: Built-in error-correction capabilities (ECC) and end-to-end data protection ensure reliable data transfer and system stability.
  • TRIM Support: Optimizes data management and extends SSD lifespan for uninterrupted gaming or content creation.
  • S.M.A.R.T Monitoring: Monitors the health of the drive and helps identify potential issues to keep your system running smoothly.
  • AES 256 Hardware Encryption: Ensures secure data protection with fast hardware-based encryption.
  • Enhanced Longevity: Up to 3000 TBW (Terabytes Written), ensuring durability for years of high-performance use.
  • Optimized for Gamers & Creators: Designed for low latency and minimal wait times in game loading, video editing, and heavy-duty tasks.
  • Data Protection Software: MSI Center and Actiphy backup software for real-time monitoring, data migration, and disaster recovery.
  • Easy Installation: M.2 2280 form factor fits most desktops for straightforward installation.

Expert Specs

SPATIUM M480 PRO PCIe 4.0 NVMe M.2 1TB
Model Name SPATIUM M480 PRO PCIe 4.0 NVMe M.2
Capacity 1TB
Controller PHISON E18
Flash Memory 3D NAND
DRAM Cache 1GB DDR4
Form Factor M.2 2280
Interface PCIe Gen4 x4, NVMe 1.4
Compatibility PCIe Gen4 / Gen3 / Gen2 / Gen1
Dimensions 80.40mm (L) x 24.00mm (W) x 10.70mm (H), PS5 Compatible
Sequential Read up to (MB/s) 7400
Sequential Write up to (MB/s) 6000
Random Read 4KB up to (IOPS) 750,000
Random Write 4KB up to (IOPS) 1,000,000
Maximum Operating Power (W) 9.5
Idle Power PS3 (mW) 40
Low Power L1.2 (mW) 3
Operating Temperatures 0°C – 70°C
Storage Temperatures -40°C – 85°C
Terabytes Written (TBW) 700
Mean Time Between Failure (MTBF) Up to 1,600,000 Hours
Limited Warranty 5 Years, or the coverage for the maximum TBW as stated, whichever comes first.
Advanced Features TRIM (Performance Optimization, OS Support required)
SMART (Self-Monitoring, Analysis and Reporting Technology)
LDPC (Low Density Parity Check) ECC Algorithm
End to End Data Path Protection
APST (Autonomous Power State Transition)
AES256/Pyrite (Encryption, Data Security)

Description

S78-440L430-P83

SPATIUM M480 PRO PCIe4 NVMe 1TB with Heatsink

MSI SPATIUM M480 PRO PCIe 4.0 NVMe M.2 1TB with Heatsink ; Up to 7400 MB/s Read and 6000 MB/s Write ; Bronze-colored Aluminum Heatsink ; 3D NAND Flash ; Hardware Encryption & Data Protection Software

SPATIUM M480 PRO PCIe4 NVMe 1TB with Heatsink  SPATIUM M480 PRO PCIe4 NVMe 1TB with Heatsink  SPATIUM M480 PRO PCIe4 NVMe 1TB with Heatsink
