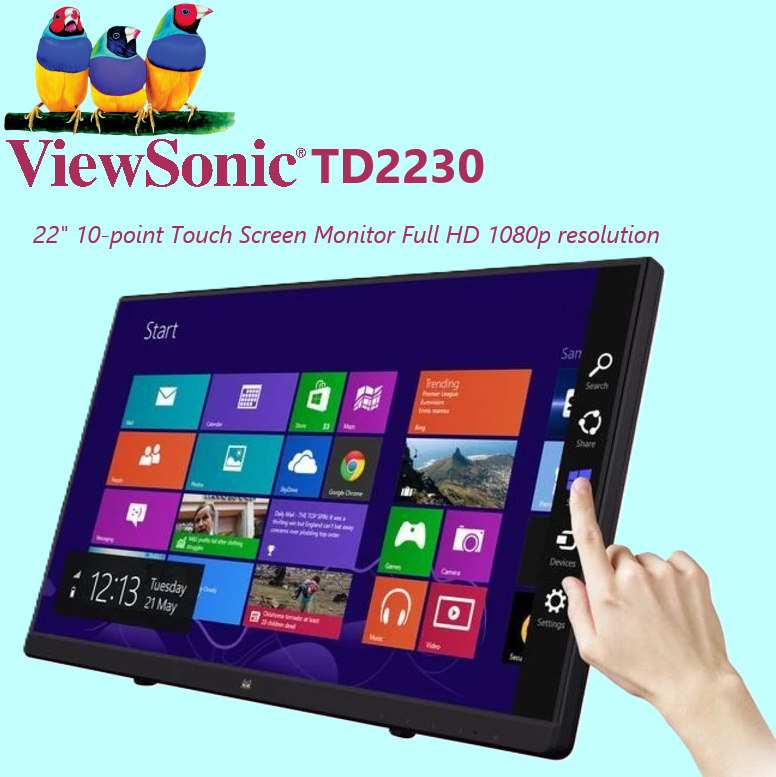

TD2230 22 inch FHD Touch Screen Monitor

Expert Features

• 22″ 10-Point Touch Screen Monitor: Enjoy responsive and intuitive touch with a frameless bezel design.
• Full HD 1080p Resolution: Crisp, clear visuals for work, gaming, and entertainment.
• 10-Point Projected Capacitive Touch: Recognizes up to 10 points of contact for multi-user interactivity.
• SuperClear IPS Technology: Vivid colors and wide-angle viewing from any vantage point.

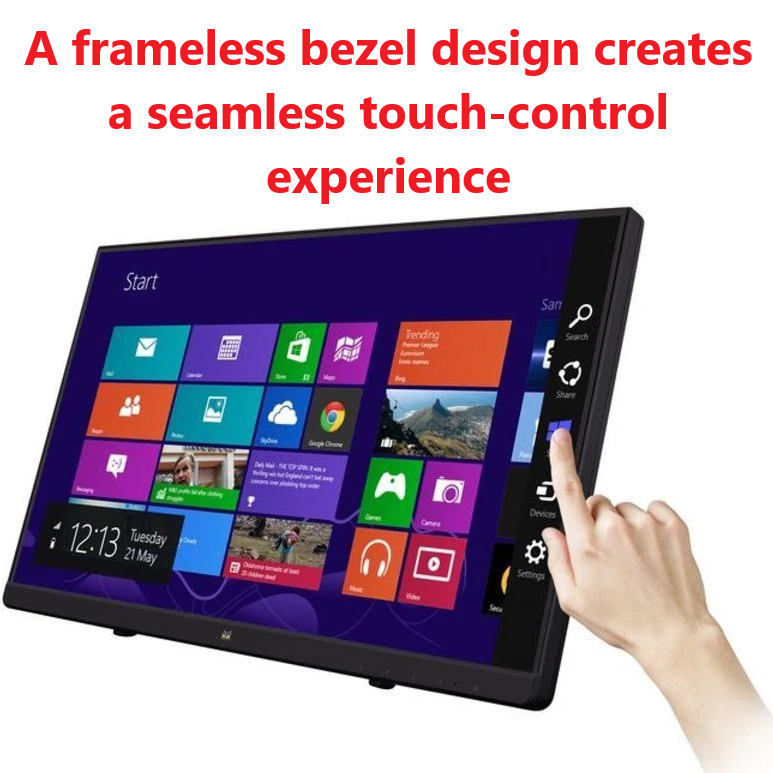

• Frameless Bezel: Seamless edge-to-edge glass for effortless touch control.

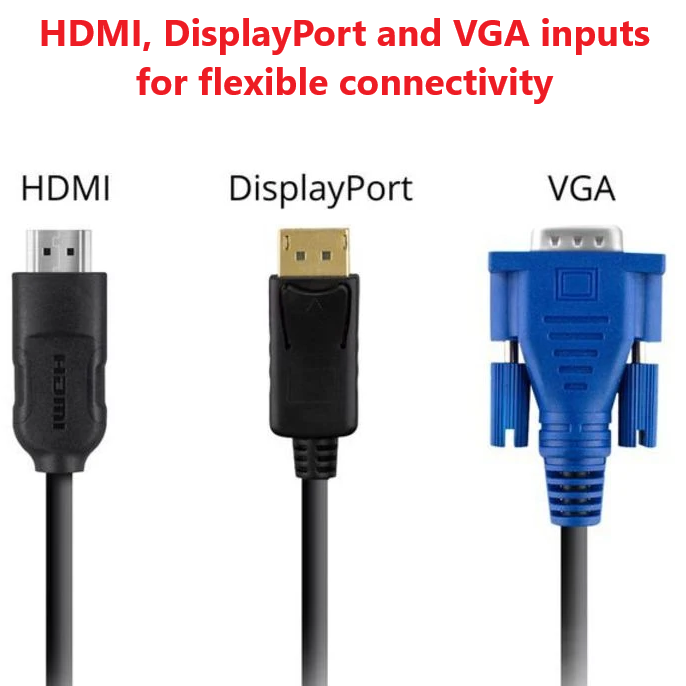

• HDMI, DisplayPort, VGA Inputs & USB Ports: Flexible connectivity options for various devices.
• Dual Integrated Speakers: Built-in stereo sound for an immersive experience.
• Durable, Scratch-Resistant Screen: 7H hardness protective glass for increased durability.
• Cross-Platform Compatibility: Works with Windows 10/11, certain Android, and Linux versions.

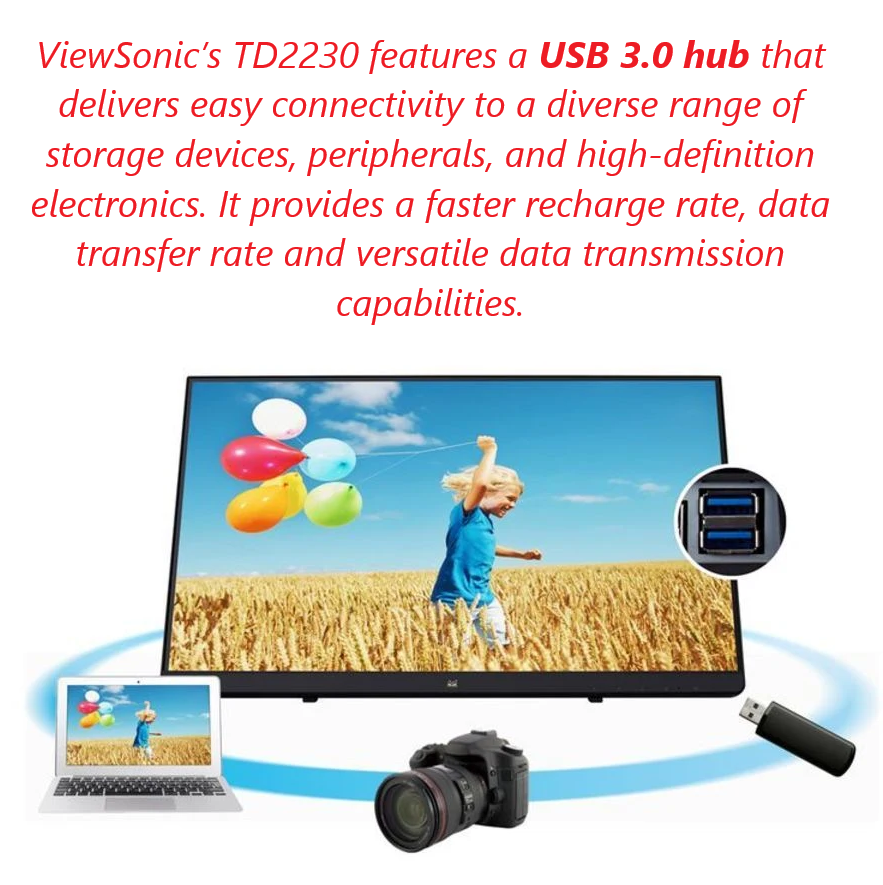

• USB 3.0 Port: High-speed connectivity for peripherals and storage devices.

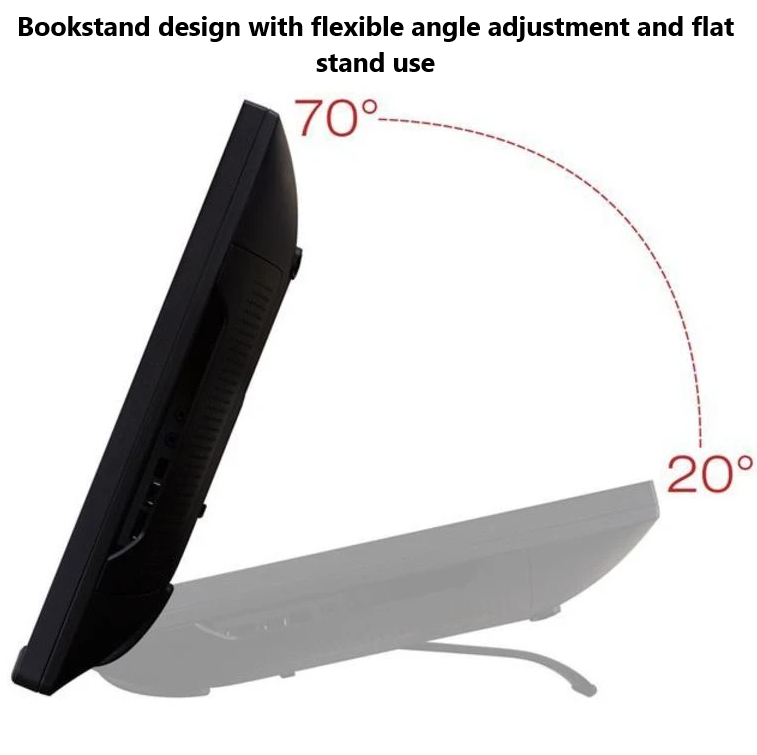

• Adjustable Bookstand Design: Tilt from 20 to 70 degrees or lay flat.
• Flicker-Free & Blue Light Filter: Enhanced viewing comfort and reduced eye strain.
• ViewMode Presets: Optimized settings for Game, Movie, Web, Text, and Mono.
• Certified Environmental Sustainability: ENERGY STAR and EPEAT-certified for reduced energy costs.

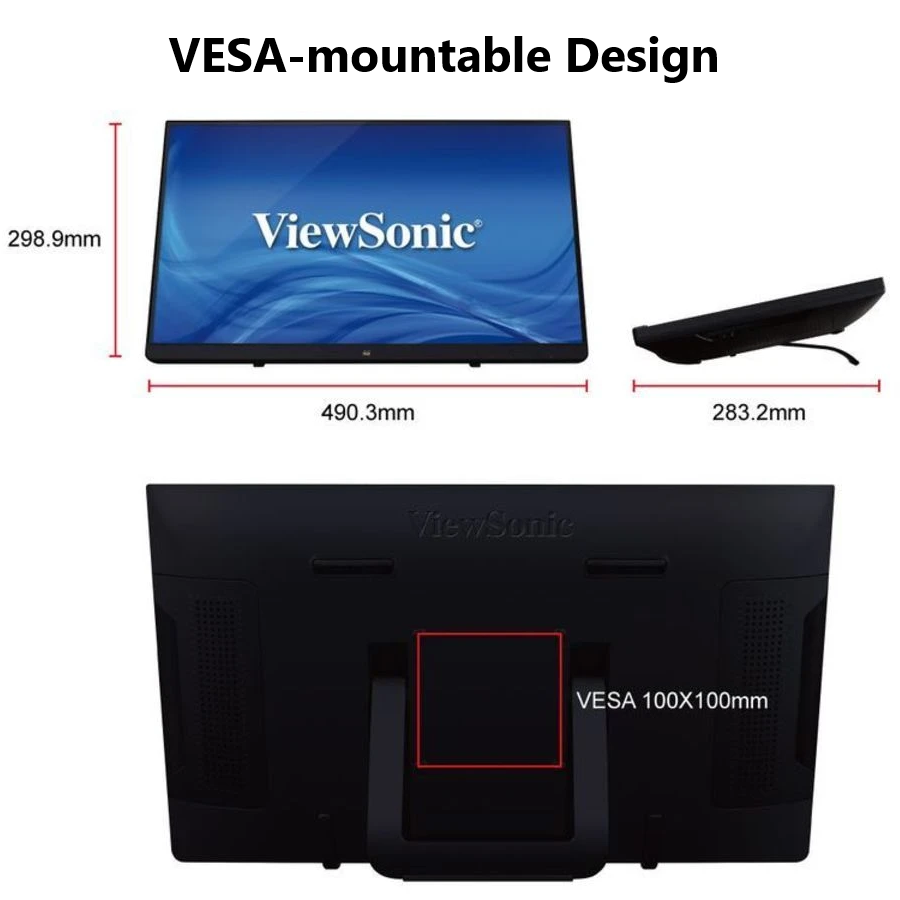

• VESA-Mountable: Easy wall or monitor stand mounting with 100 x 100mm VESA compatibility.

Expert Specs

Display

• Display Size (in.): 22
• Viewable Area (in.): 21.5
• Panel Type: IPS Technology
• Resolution: 1920 x 1080
• Resolution Type: FHD (Full HD)
• Static Contrast Ratio: 1,000:1 (typ)
• Dynamic Contrast Ratio: 50M:1
• Light Source: LED
• Brightness: 200 cd/m² (typ)
• Colors: 16.7M
• Color Space Support: 8 bit (6 bit + Hi-FRC)
• Aspect Ratio: 16:9
• Response Time (Typical GTG): 5ms
• Response Time (GTG w/OD): 5ms
• Viewing Angles: 178º horizontal, 178º vertical
• Backlight Life (Hours): 30000 Hrs (Min)
• Curvature: Flat
• Refresh Rate (Hz): 60
• Low Blue Light: Software solution
• Flicker-Free: Yes
• Color Gamut: NTSC: 77% size (Typ)
• sRGB: 108% size (Typ)
• Pixel Size: 0.248 mm (H) x 0.248 mm (V)
• Touch Screen: Projected Capacitive, 10-point multi-touch
• Surface Treatment: Glossy, Hard Coating (7H)
• Cover Glass Thickness: 0.7mm

Compatibility

• PC Resolution (max): 1920×1080
• Mac® Resolution (max): 1920×1080
• PC Operating System: Windows 7/8/8.1/10/11 certified; macOS tested
• Mac® Resolution (min): 1920×1080

Connector

• VGA: 1
• USB 3.2 Type A Down Stream: 2
• USB 3.2 Type B Up Stream: 1
• 3.5mm Audio In: 1
• 3.5mm Audio Out: 1
• HDMI 1.4: 1
• DisplayPort: 1
• Power in: DC Socket (Center Positive)

Audio

• Internal Speakers: 3Watts x2

Power

• Eco Mode (Conserve): 16 w/ ES 7.0; 19 w/o ES 7.0W
• Eco Mode (optimized): 18 w/ ES 7.0; 22 w/o ES 7.0W
• Consumption (typical): 20 w/ ES 7.0; 25 w/o ES 7.0W
• Consumption (max): 25 w/ ES 7.0; 28 w/o ES 7.0W
• Voltage: AC 100-240V
• Stand-by: 0.5W
• Power Supply: External Power Adaptor

Additional Hardware

• Kensington Lock Slot: 1

Controls

• Physical Controls: 1, 2, Up, Down, Power
• On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall

Wall Mount

• VESA Compatible: 100 x 100 mm

Input Signal

• Frequency Horizontal: RGB Analog: 24 ~ 82KHz, HDMI (v1.4): 15 ~ 82KHz, DisplayPort (v1.2): 15 ~ 82KHz
• Frequency Vertical: RGB Analog: 50 ~ 76Hz, HDMI (v1.4): 50 ~ 76Hz, DisplayPort (v1.2): 50 ~ 76Hz

Video Input

• Digital Sync: TMDS – HDMI (v1.4), PCI-E – DisplayPort (v1.2)
• Analog Sync: Separate/Composite/SOG – RGB Analog

Ergonomics

• Tilt (Forward/Back): 20º / 70º
• Weight (metric)Net (kg): 3.6
• Net Without Stand (kg): 3.6
• Gross (kg): 4.7
• Dimensions (metric) (wxhxd)Packaging (mm): 550 x 371 x 114
• Physical (mm): 490 x 299 x 47
• Physical Without Stand (mm): 490 x 299 x 47

PACKAGE CONTENTS:

• TD2230 x1
• 3-pin Mickey Mouse Plug (IEC C5) x1
• HDMI Cable (v1.4; Male-Male) x1
• USB A/B Cable (v3.2; Male-Male) x1
• Audio Cable (Male-Male) x1, AC/DC Adapter x1
• Quick Start Guide x1
