SKU: AN750W-WHITE

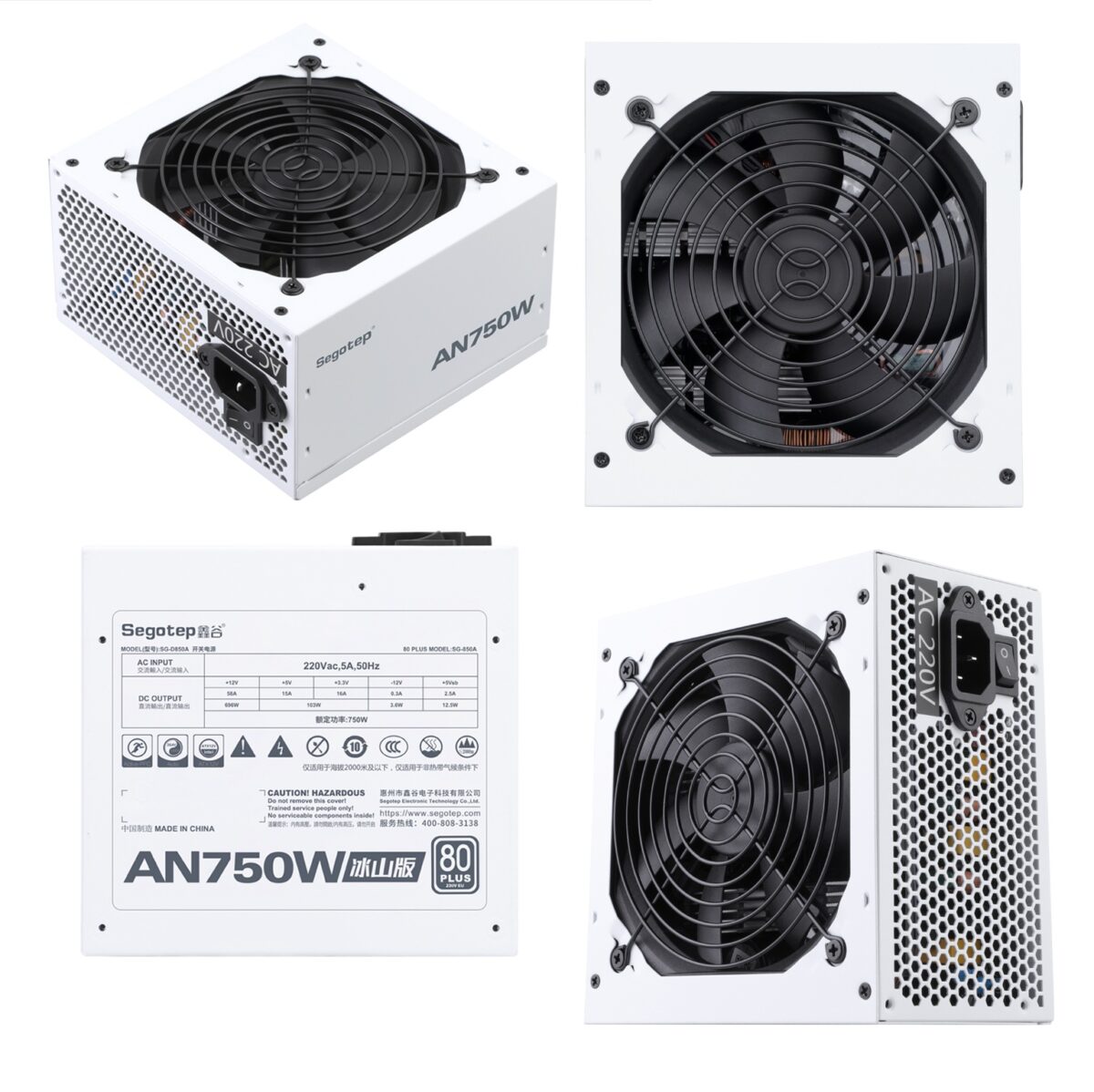

Segotep AN750W White Iceberg Edition 750W 80 PLUS PSU With 87.47% Efficiency, Active PFC, 120mm Hydraulic Bearing Fan, Flat White Cables & Smart Temp Control

$ 54.00

Description

đź§  Expert Features

  • Arctic Power, Frosty Style: The Segotep AN750W White Iceberg Edition brings a chill aesthetic with its snow-white housing and matching flat cables—perfect for all-white PC builds and clean back-cable management.
  • Certified Efficiency: With a half-load conversion efficiency of 87.47% under 230V, this PSU surpasses 80 PLUS Bronze standards, saving energy and running cooler under pressure.
  • Built With Smart Tech: Featuring Active PFC + Two-Transistor Forward design and Chengx/Teapo 105°C, 420V capacitors, it ensures rock-solid voltage stability and long-term durability.
  • Industrial-Grade Reliability: Each unit undergoes Chroma electrical performance testing, ATE full-function testing, and aging at 45°C under full load for 45 minutes—because power supplies should earn their wattage.
  • Smart Cooling System: Equipped with a 120mm hydraulic bearing fan and Al Cooler intelligent temperature control, it adapts cooling speed automatically for whisper-quiet operation and extended component life.
  • Full Power Factor: With a ≥0.9 power factor and <1W idle consumption, the AN750W keeps your power clean, efficient, and eco-conscious.
  • Intelligent Manufacturing: Produced under MES system supervision with 70% automation, AOI double-checking, and real-time quality monitoring—every unit meets strict factory standards.
  • Cable Clarity: White flat cables make routing and organization effortless, with generous lengths for full-tower builds.
  • Built For Gamers And Builders: Handles high-performance GPUs and CPUs with dual 8-pin CPU connectors, dual 6+2-pin PCIe, and stable 696W +12V output for smooth gaming and rendering sessions.
  • Safe, Certified, Reliable: CCC-certified with protection against overload, overcurrent, short-circuit, and over-voltage. Segotep’s power plant is ready for any gaming arena or workstation setup.

⚙️ Expert Specs

CategoryDetails
BrandSegotep
ModelAN750W White Iceberg Edition
Rated Power750W
Efficiency Certification80 PLUS (87.47% @ 50% load, 230V)
Power Factor Correction (PFC)Active PFC (≥0.9 full load)
Idle Power Consumption<1W
Main CapacitorsChengx/Teapo 105°C / 420V high-end capacitors
Cooling Fan120mm hydraulic bearing fan with aluminum cooler
Smart Temperature ControlYes
+12V Output Power696W
Cable TypeFlat white cables (supports full-tower back cable management)

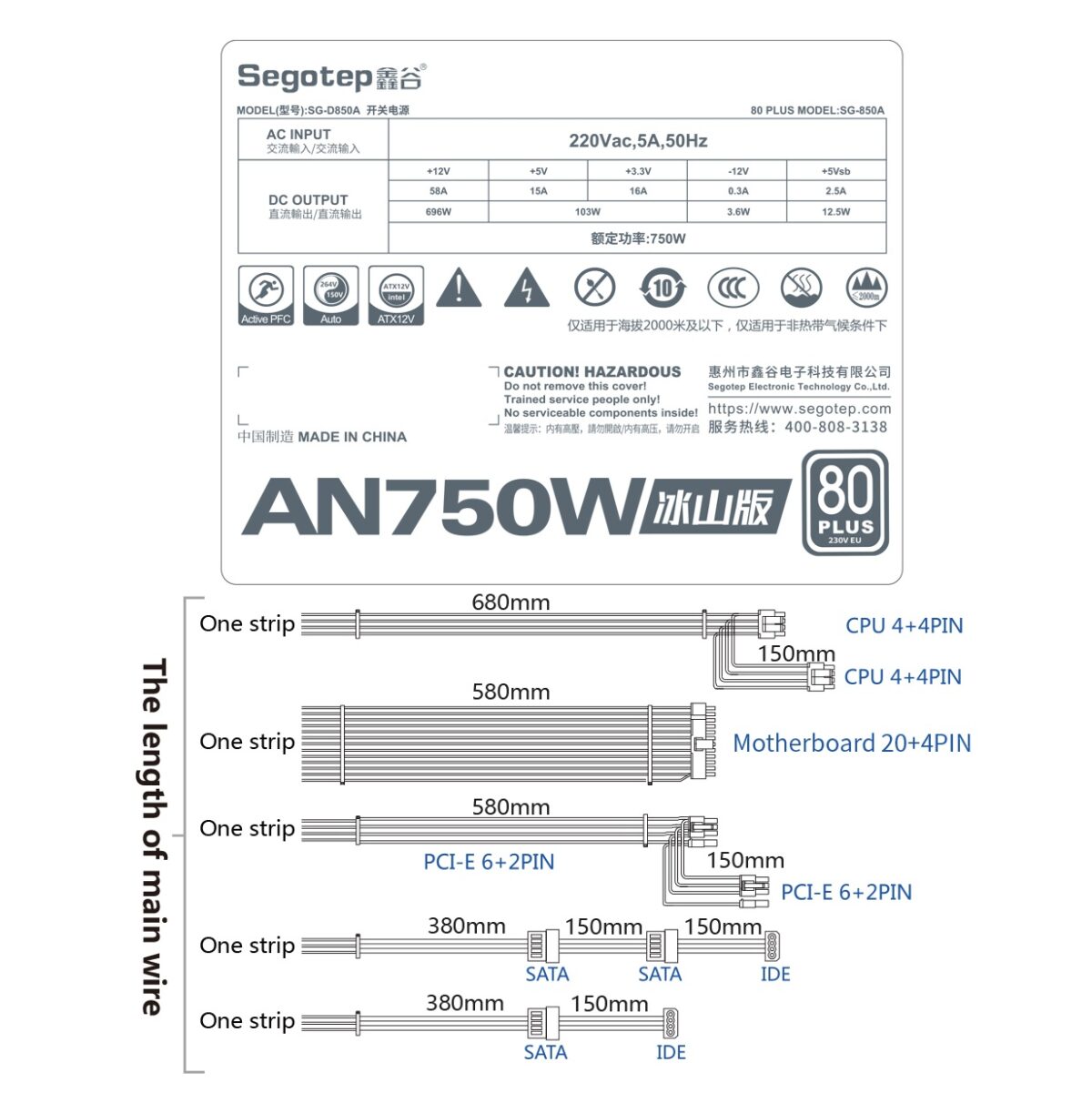

Cable LengthsMotherboard 20+4PIN – 580mm / CPU 4+4PIN – 580mm & 680mm / PCI-E 6+2PIN – 580mm / SATA – 380mm+150mm / IDE – 150mm
Motherboard Connector24(20+4) PIN Ă—1
CPU Power Connectors8(4+4) PIN Ă—2
PCI-E Connectors8(6+2) PIN Ă—2
SATA Connectors3
D-Type (Molex) Connectors2
Input Voltage220V AC, 5A, 50Hz
Safety CertificationCCC
Operating TemperatureTested up to 45°C under full load
Testing Standards100% Chroma electrical test, ATE test, AOI inspection, MES process control
Build Automation>70% automated manufacturing process
Dimensions (L x W x H)150 Ă— 140 Ă— 85 mm
Weight1.6 kg
ColorWhite
WarrantyManufacturer limited 1 year warranty
