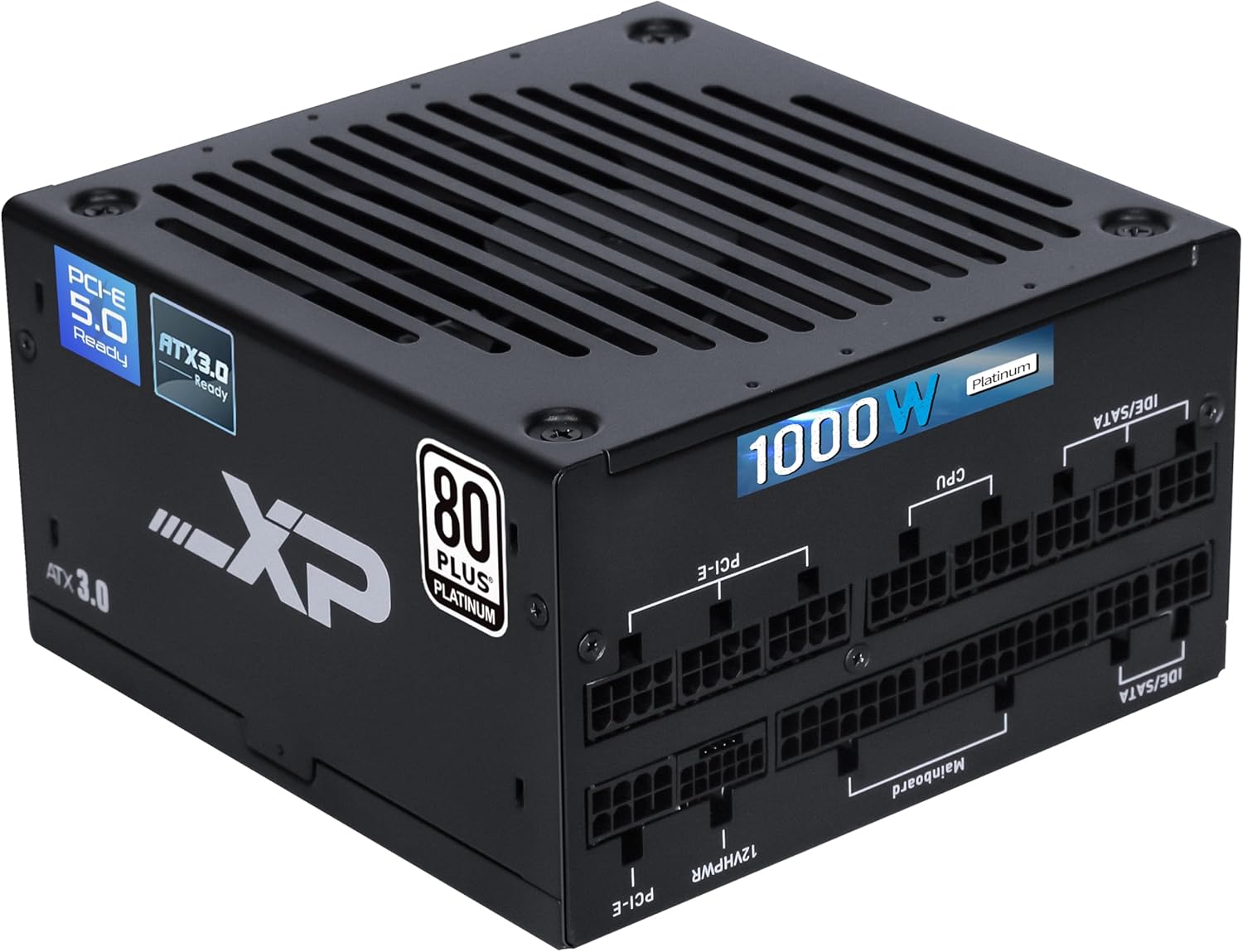

SAMA XP1000 1000W ATX 3.0 Power Supply With 80 Plus Platinum Efficiency PCIe 5.0 12VHPWR Fully Modular Design ECO 140mm Fan And RTX 4090 Support

Expert Features

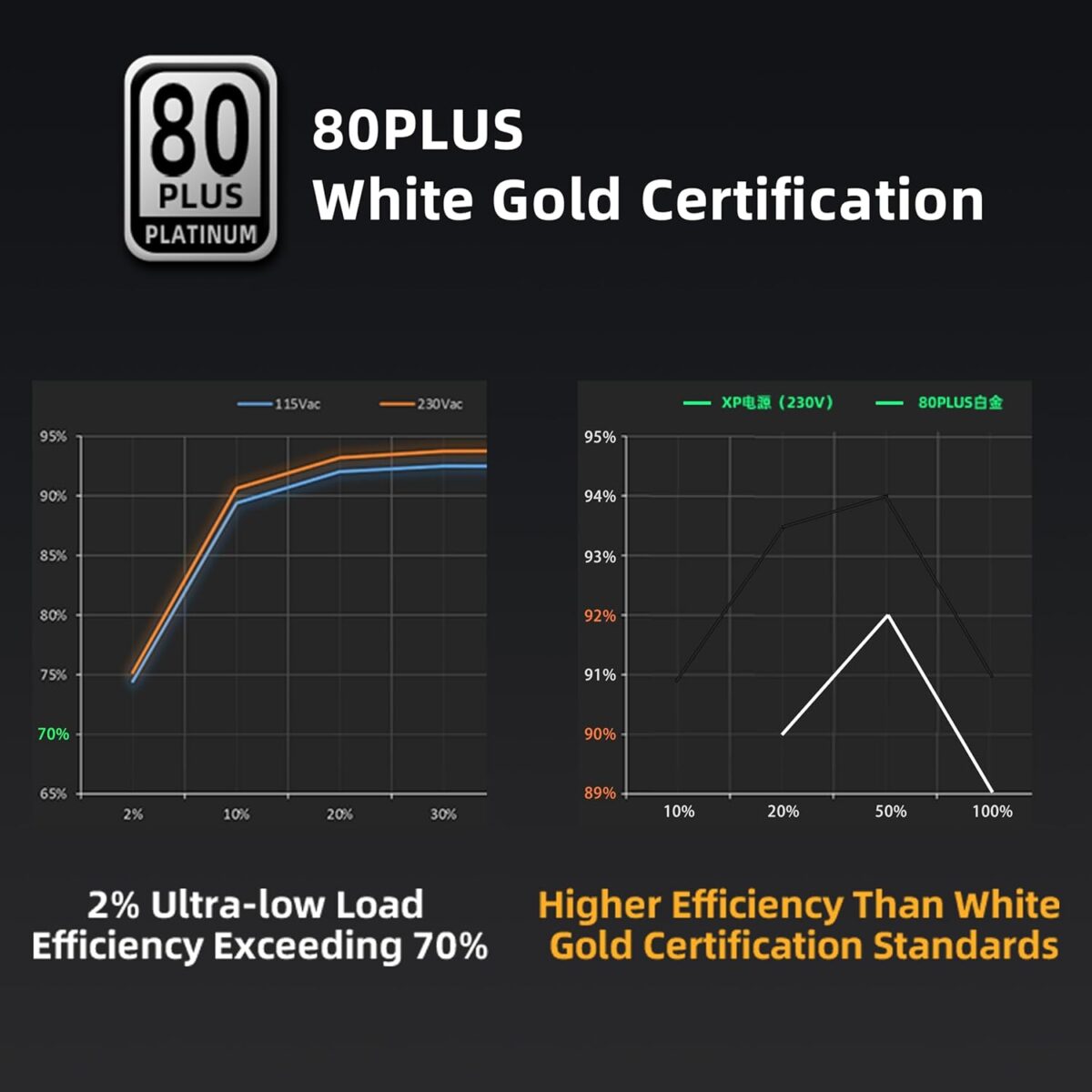

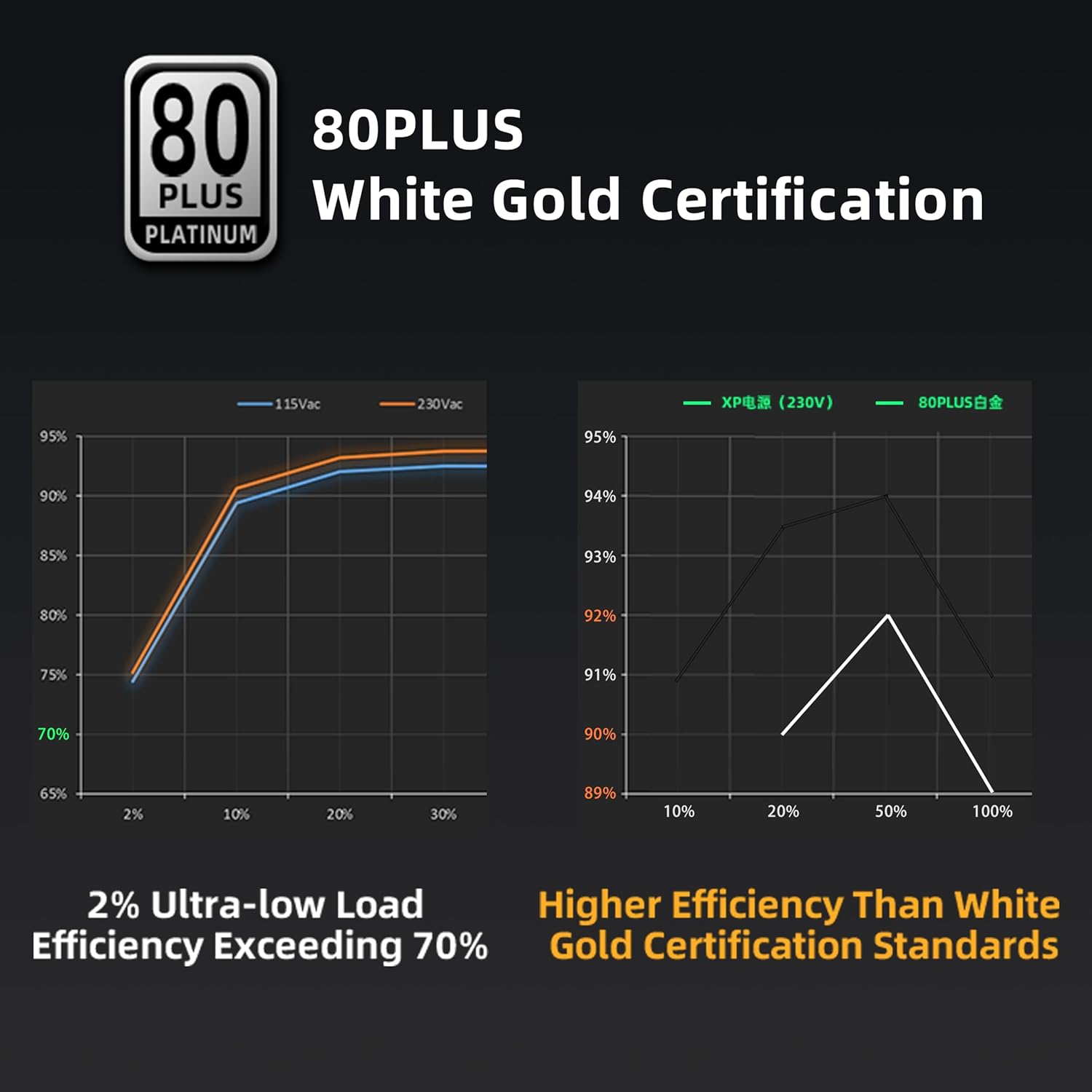

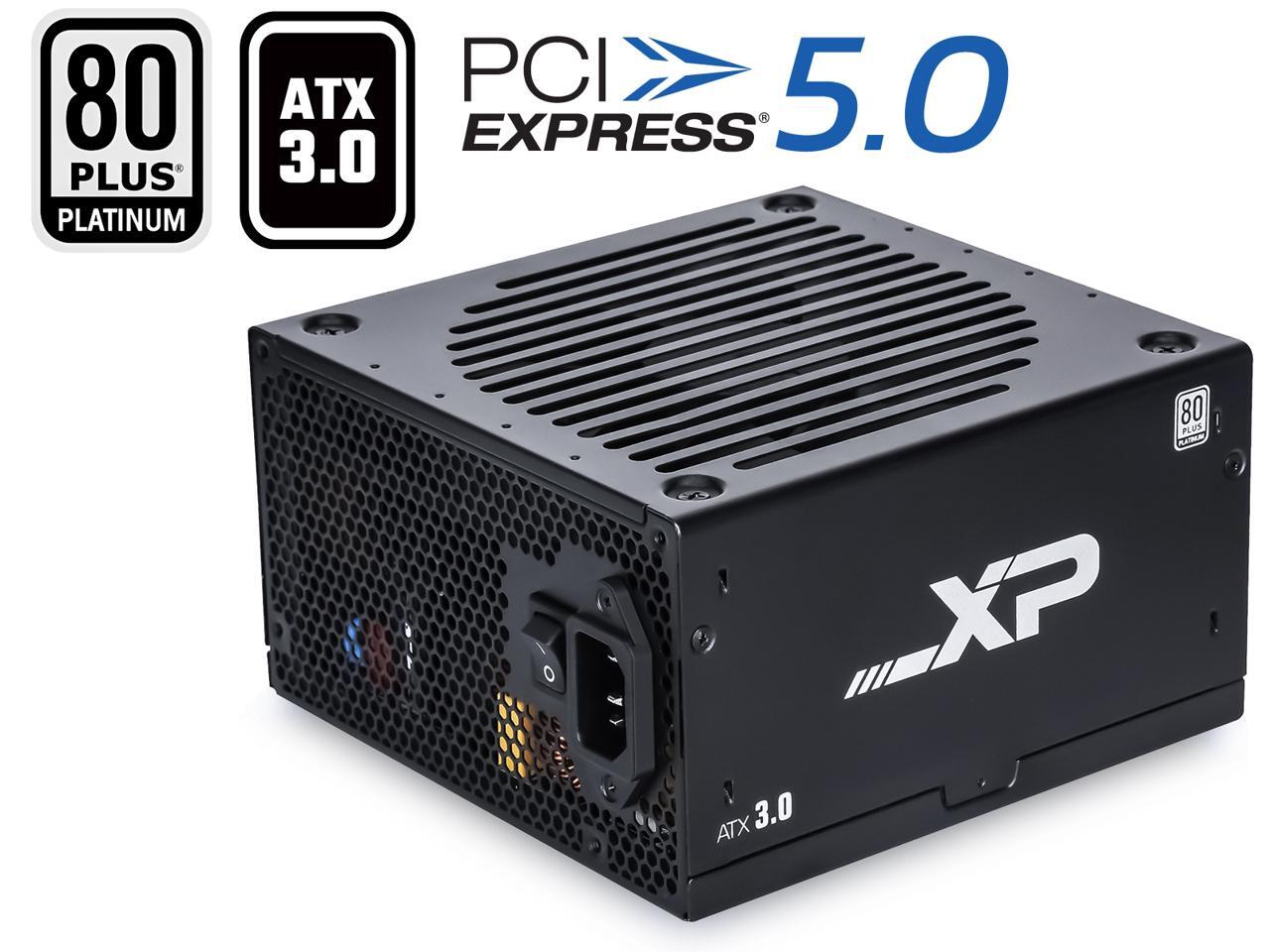

• 1000W 80 PLUS Platinum Efficiency For High-End Gaming Systems
  The SAMA XP1000 delivers outstanding power efficiency with 80 PLUS Platinum certification, offering lower heat output and reduced energy waste compared to lower efficiency standards—ideal for performance-focused and power-hungry builds.

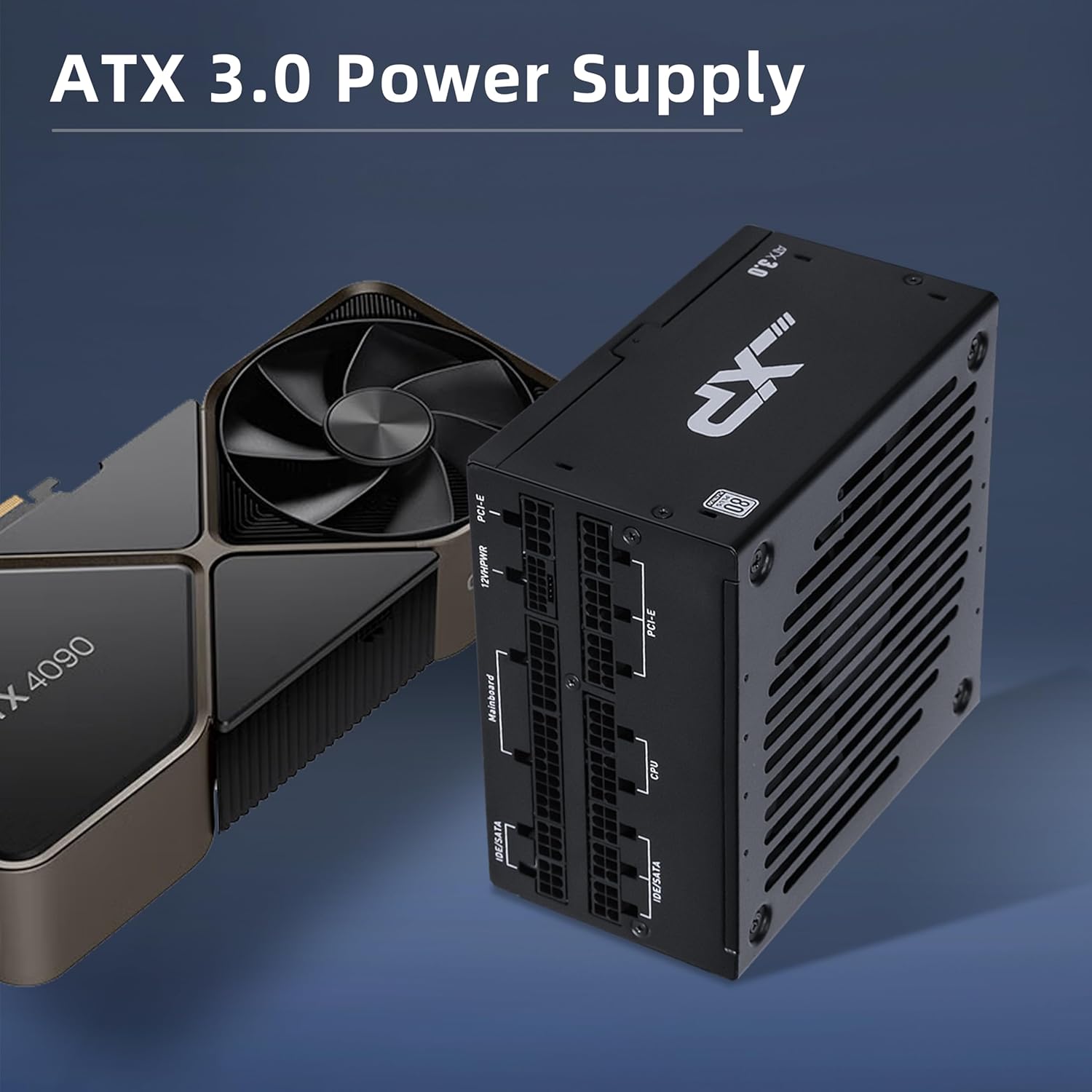

• ATX 3.0 And PCIe 5.0 Ready For Next-Gen GPUs
  Fully compliant with the ATX 3.0 standard and PCIe 5.0, this PSU is designed to support modern high-draw graphics cards, including RTX 3090 Ti, 4070 Ti, 4080, and 4090, ensuring stable and direct power delivery.

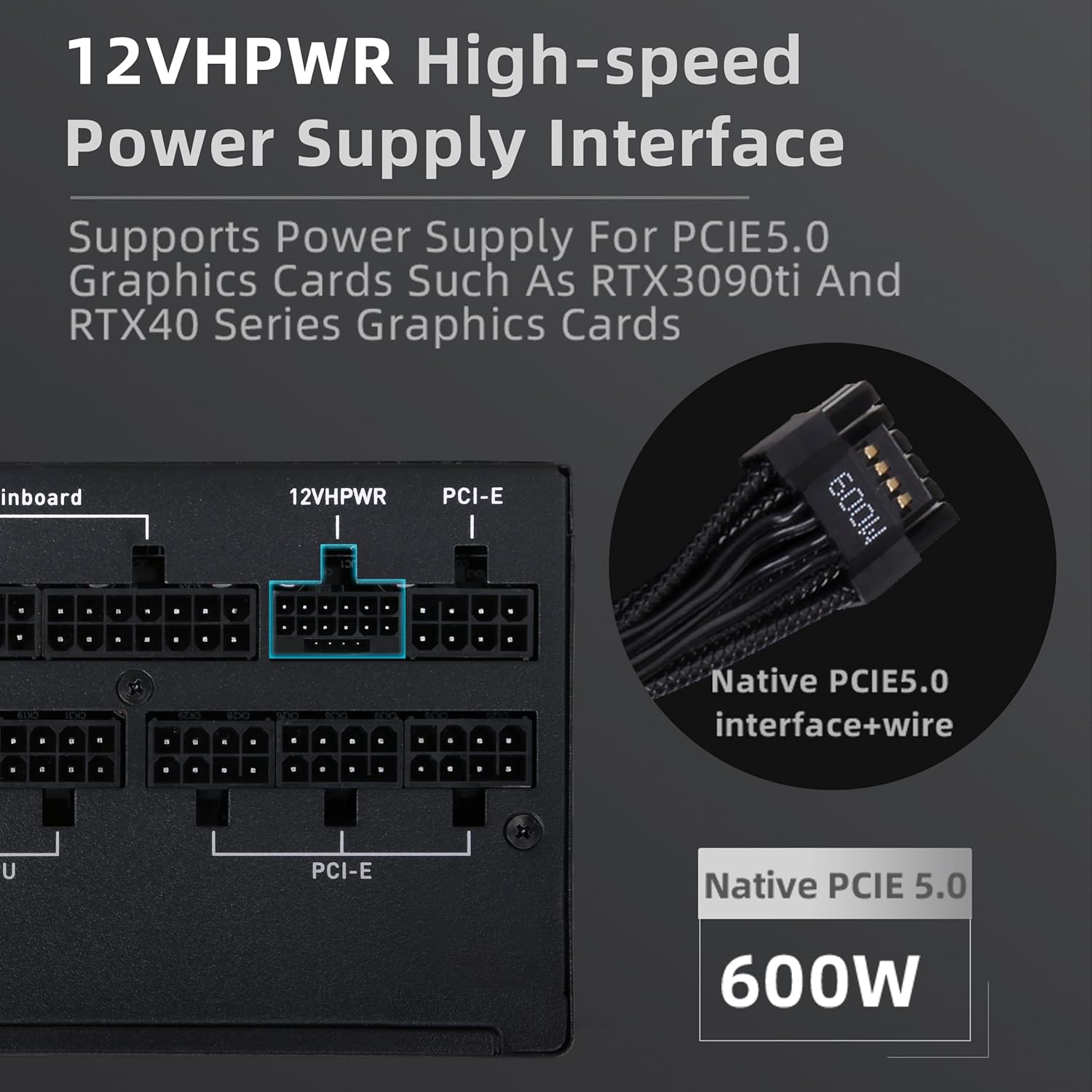

• 12VHPWR Interface For Direct GPU Power
  Equipped with a 12VHPWR connector, the XP1000 provides clean, reliable power to next-generation GPUs without adapters, improving stability under heavy gaming or rendering loads.

• 50°C Reliability Tested For Thermal Stability
  Each unit undergoes a strict 50°C reliability test, ensuring dependable operation in high-temperature environments and sustained performance during extended gaming sessions.

• 140mm Intelligent ECO Silent Fan With FDB Bearing
  The 14cm ECO fan uses Fluid Dynamic Bearing (FDB) technology and intelligently adjusts fan speed based on system load and temperature, delivering effective cooling with reduced noise levels.

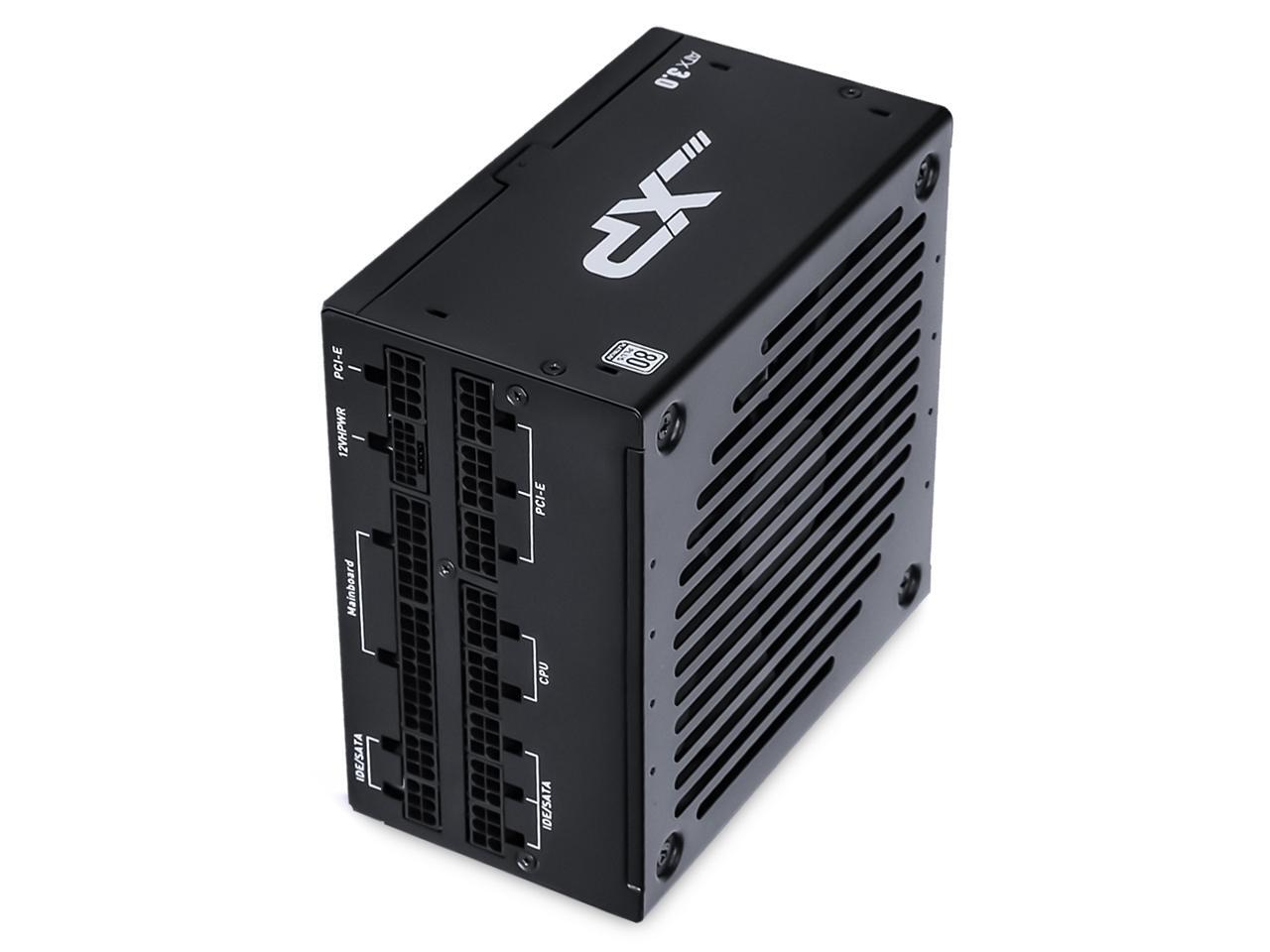

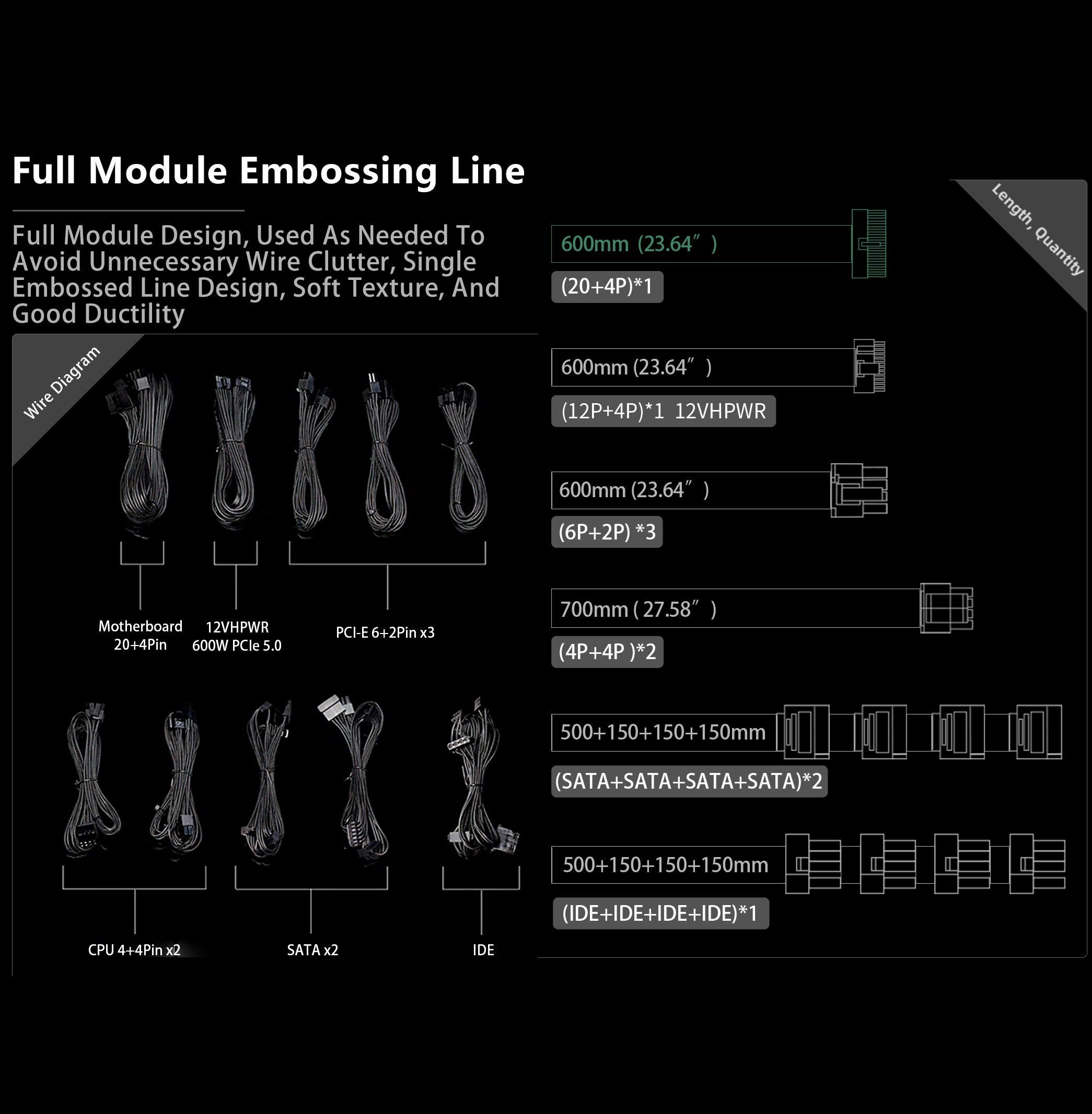

• Fully Modular Design For Clean Cable Management
  A fully modular layout allows you to connect only the cables you need, reducing clutter and improving airflow. Embossed cables offer flexibility and easier routing inside modern cases.

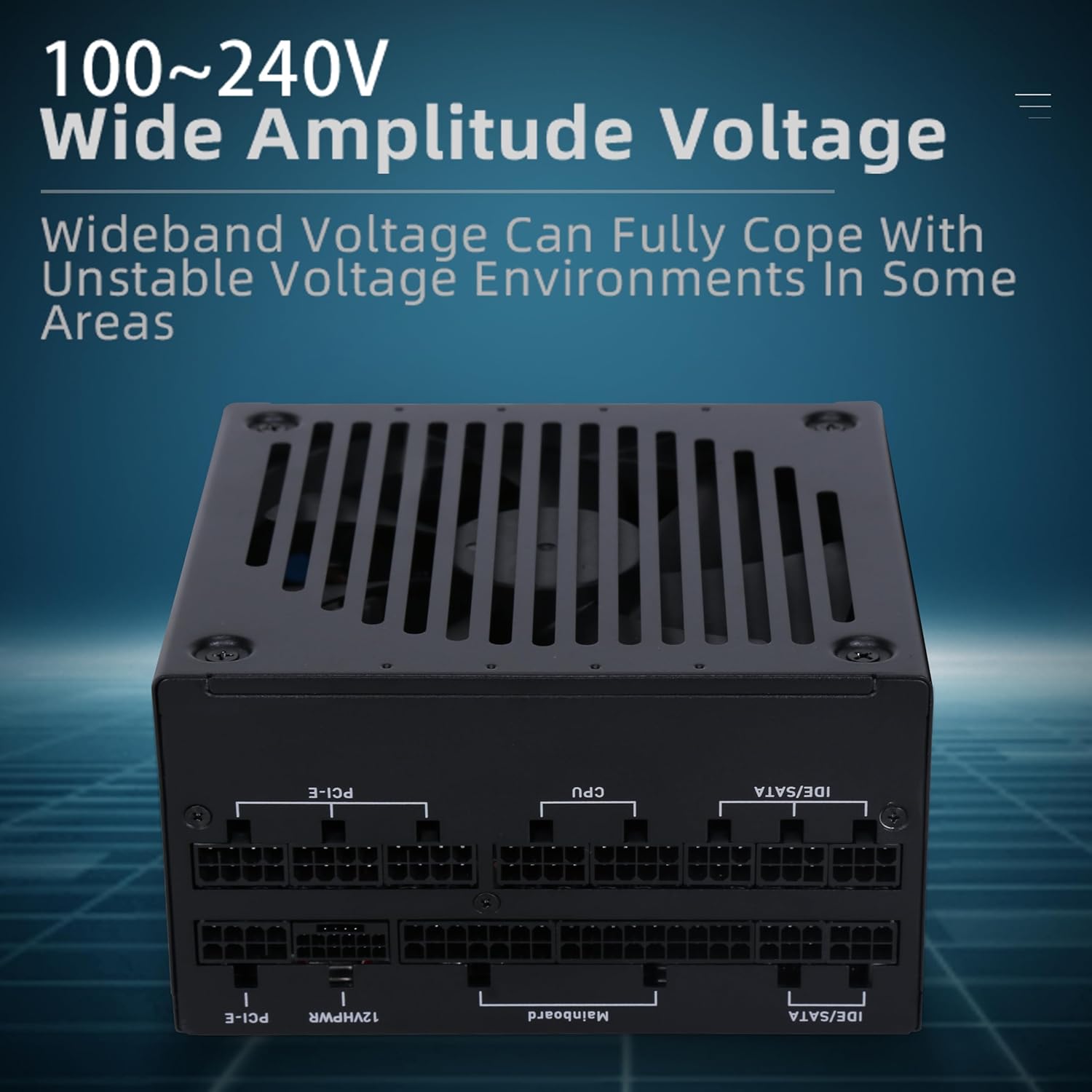

• Wide Voltage Support And Premium Build Standards
  Supports 100–240V full-range input, making it suitable for global power environments while maintaining consistent performance.

• Comprehensive Power Protection Suite
  Built-in protections include OVP, OCP, OPP, OTP, UVP, and SCP, safeguarding your components from electrical irregularities.

Expert Specs

Category	Specification
Brand	SAMA
Series	XP Series
Model	XP1000
Power Rating	1000W
PSU Type	ATX 12V
ATX Standard	ATX 3.0
PCIe Standard	PCIe 5.0
Efficiency Certification	80 PLUS Platinum
Input Voltage	100 – 240 V
Modular	Fully Modular
Main Connector	20+4 Pin
CPU Connectors	2 × 8 Pin (4+4) EPS
PCIe Connectors	4 × 6+2 Pin
Legacy PCIe	2 × 6 Pin
SATA Power Connectors	5
GPU Support	RTX 3090 Ti / 4070 Ti / 4080 / 4090
Fan Quantity	1
Fan Size	140 mm
Fan Type	ECO Intelligent Fan
Fan Bearing	FDB
Max PSU Length	140 mm
Protections	OVP / OCP / OPP / OTP / UVP / SCP
Color	Black

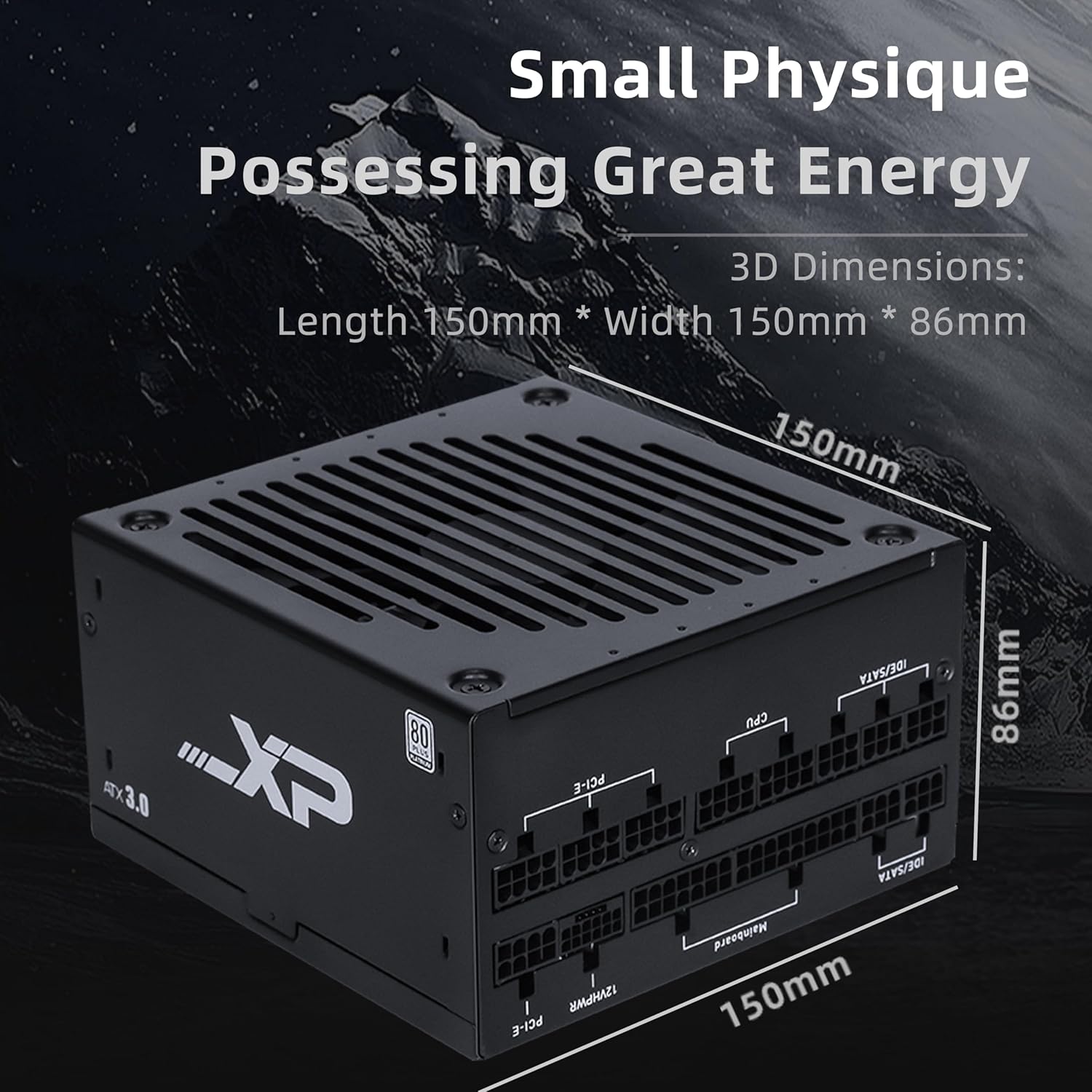

Dimensions	H 3.39″ × W 5.91″ × D 5.91″
