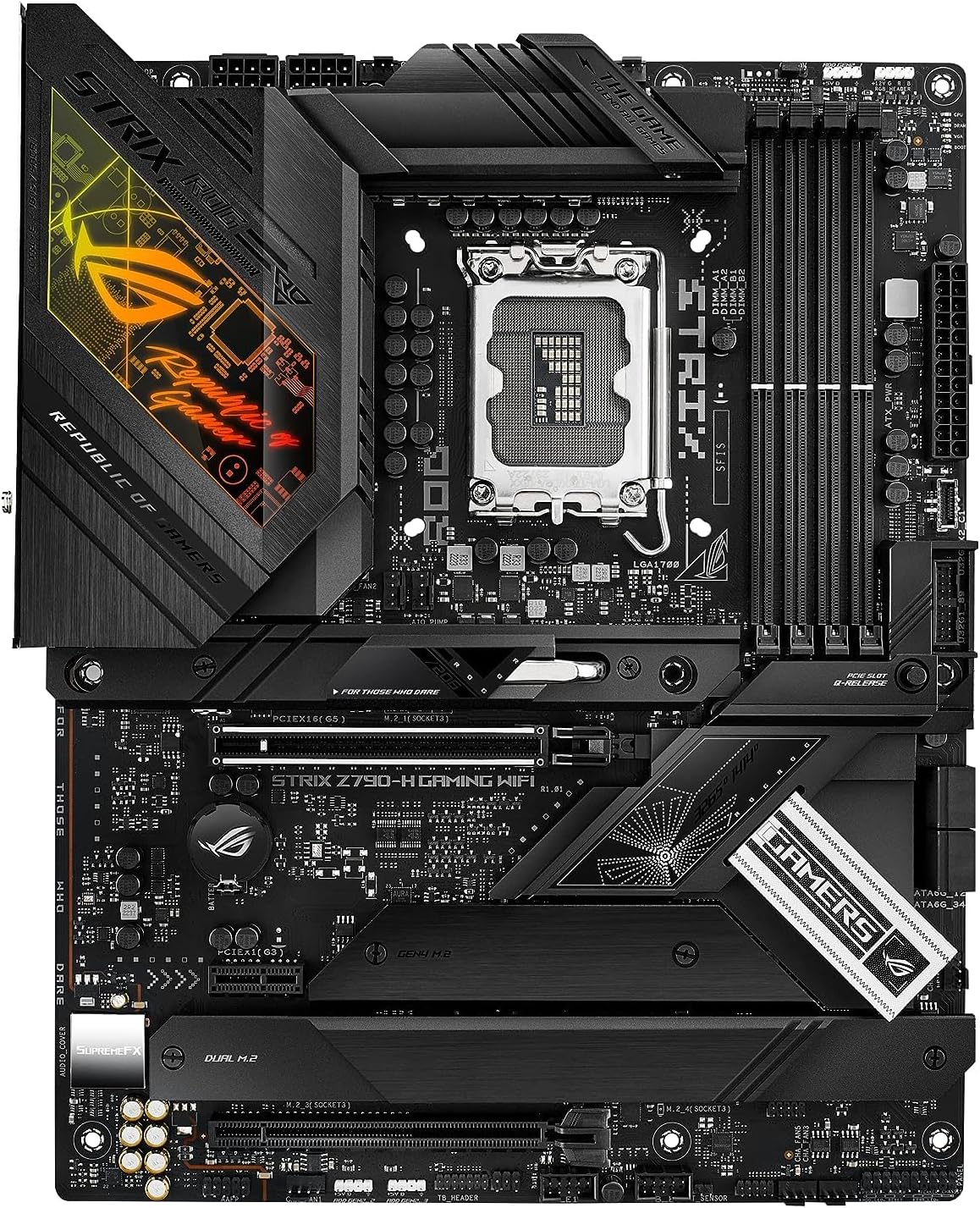

ROG STRIX Z790-H Gaming WiFi Motherboard DDR5

ASUS ROG STRIX Z790-H Gaming WiFi  LGA 1700 Intel14th &13th&12th Gen ATX gaming motherboard (DDR5 up to 7800 MT/s, PCIe 5.0 x16 SafeSlot with Q-Release, 4xPCIe 4.0 M.2 slots ,USB 3.2 Gen 2×2 Type-C, AI Motherboard) – OPEN BOX

SKU: ASUS-STRIX-Z790-H-W Categories: ,

ROG STRIX Z790-H Gaming WiFi Motherboard DDR5

Expert Features

  • BIOS update may be required when used with some 14th generation Intel Core processors, visit ASUS support website for more information
  • Intel LGA 1700 socket: Ready for 14th &13th&12th Gen Intel Core, and 12th Gen Intel Core, Pentium Gold, and Celeron processors
  • Robust Power Solution: 16 + 1 power stages rated for 80A, dual ProCool II power connectors, high-quality alloy chokes, and durable capacitors are all leveraged to support the latest multi-core processors
  • Ample M.2 Support: Four PCIe 4.0 M.2 slots all with heatsinks, and the topmost one also sports a Combo-sink extension and backplate for additional cooling
  • Abundant Connectivity: USB 3.2 Gen 2×2 Type-C rear I/O port and additional front-panel connector, seven USB 3.2 Gen 2 and Gen 1 ports, PCIe 5.0 x16 SafeSlot, HDMI 2.1, and DisplayPort 1.4
  • High-Performance Networking: On-board WiFi 6E (802.11ax) and Intel 2.5Gb Ethernet with ASUS LANGuard
  • Intelligent Control: AI Overclocking

Expert Specs

Model

BrandASUS
SeriesROG
ModelROG STRIX Z790-H GAMING WIFI
Part Number90MB1E10-M0AAY0

Supported CPU

CPU Socket TypeLGA 1700
CPU TypeIntel® Socket LGA1700 for 14th &13th&12th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipsets

ChipsetIntel Z790

Memory

Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 : 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/

** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.

Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory FeatureSupports Intel Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Expansion Slots

PCI Express 5.0 x16Intel® 14th &13th&12th Gen Processors*
1 x PCIe 5.0 x16 slot

* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).

** To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

PCI Express 4.0 x161 x PCI Express 4.0 x16
PCI Express x11 x PCI Express 3.0 x1

Storage Devices

SATA 6Gb/s4 x SATA 6Gb/s
M.2Intel® 14th &13th&12th Gen Processors

  • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

Intel® Z790 Chipset

  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
  • M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA mode)

4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

SATA RAID0/1/5/10

Onboard Audio

Audio ChipsetROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback
Audio Features
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover
Audio Channels7.1 Channels

Onboard LAN

Max LAN Speed2.5Gbps
Wireless LANWi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
* WiFi 6E 6GHz regulatory may vary between countries.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
BluetoothBluetooth v5.3

Rear Panel Ports

Back I/O Ports
  • 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
  • 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C)
  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x Wi-Fi Module
  • 1 x Intel 2.5Gb Ethernet port
  • 5 x Gold-plated audio jacks
  • 1 x Optical S/PDIF out port
  • 1 x BIOS FlashBack button
  • 1 x Clear CMOS button

Internal I/O Connectors

Onboard USB1 x USB 3.2 Gen 2×2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors
  • Fan and Cooling related
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 5 x 4-pin Chassis Fan headers
  • Storage related
  • 4 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x AURA RGB header
  • 1 x CPU Over Voltage jumper
  • 1 x Front Panel Audio header (AAFP)
  • 1 x 20-3 pin System Panel header with Chassis intrude function
  • 1 x Thermal Sensor header
  • 1 x Thunderbolt header

Physical Spec

Form FactorATX
Dimensions (W x L)12.0″ x 9.6″
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector

Windows Compatibility

Windows 11Supported

Features

FeaturesExtreme Engine Digi+
– 5K Black Metallic Capacitors
ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– BIOS FlashBack button
– BIOS FlashBack LED
– Clear CMOS button
– CPU Socket lever protector
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM
Aura Sync
– Aura RGB header
– Addressable Gen 2 headers

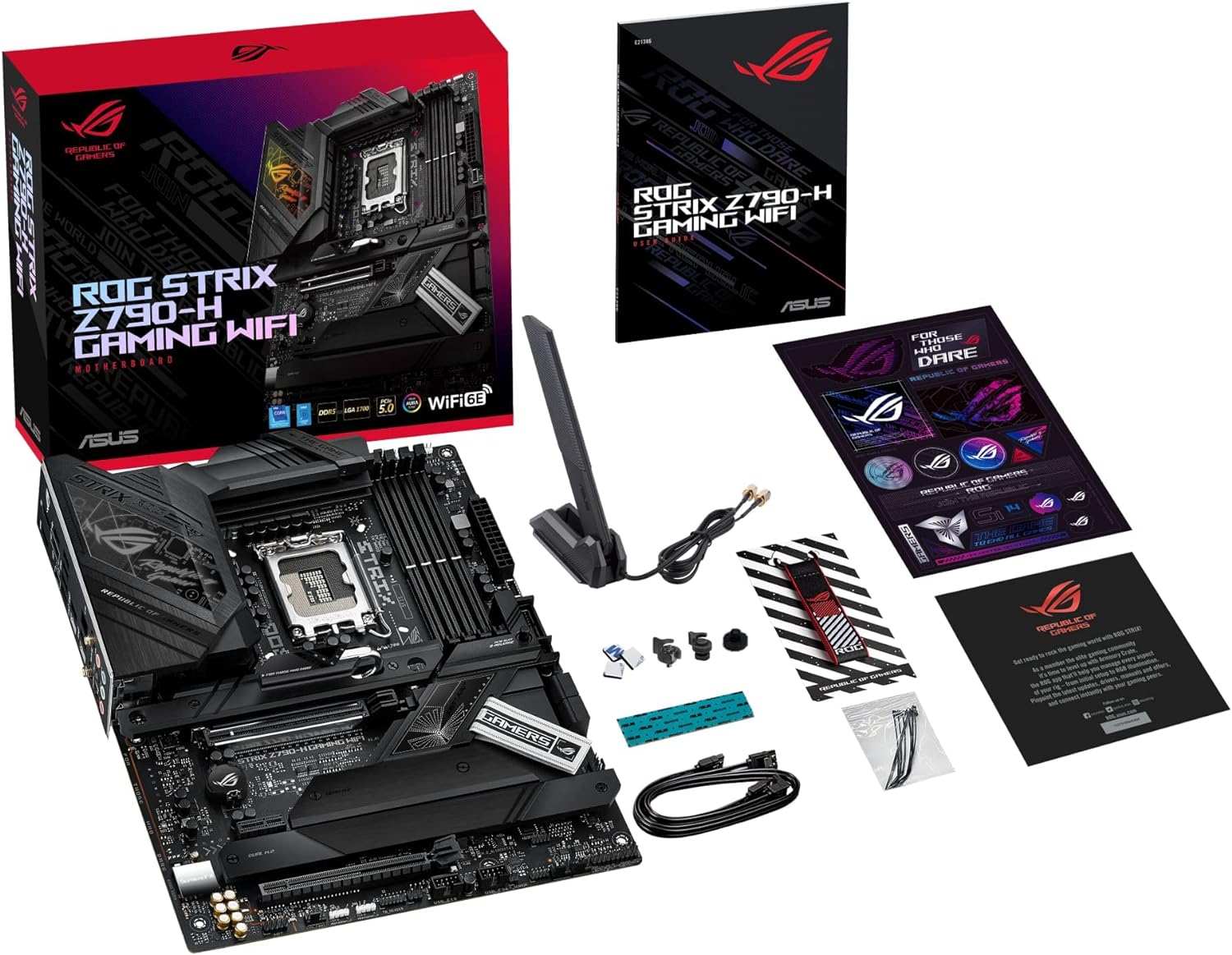

Packaging

Package ContentsCables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties package
1 x M.2 backplate Q-Latch package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
2 x M.2 Rubber Packages
1 x M.2 backplate Rubber Package
Documentation
1 x User guide

Description

ASUS-STRIX-Z790-H-W

ROG STRIX Z790-H Gaming WiFi Motherboard DDR5

ASUS ROG STRIX Z790-H Gaming WiFi  LGA 1700 Intel14th &13th&12th Gen ATX gaming motherboard (DDR5 up to 7800 MT/s, PCIe 5.0 x16 SafeSlot with Q-Release, 4xPCIe 4.0 M.2 slots ,USB 3.2 Gen 2×2 Type-C, AI Motherboard)

ROG STRIX Z790-H Gaming WiFi Motherboard DDR5 ROG STRIX Z790-H Gaming WiFi Motherboard DDR5  ROG STRIX Z790-H Gaming WiFi Motherboard DDR5 ROG STRIX Z790-H Gaming WiFi Motherboard DDR5 ROG STRIX Z790-H Gaming WiFi Motherboard DDR5 ROG STRIX Z790-H Gaming WiFi Motherboard DDR5 ROG STRIX Z790-H Gaming WiFi Motherboard DDR5ROG STRIX Z790-H Gaming WiFi Motherboard DDR5ROG STRIX Z790-H Gaming WiFi Motherboard DDR5ROG STRIX Z790-H Gaming WiFi Motherboard DDR5





ASUS ROG STRIX Z790-H GAMING WIFI MOTHERBOARD *OPENBOX*
