SKU: R-PXA00P-FC0B-EU

DeepCool PX1000P ATX 3.0 Power Supply 1000W 80 Plus and Cybenetics Platinum Certified ; 1 x 12VHPWR + 2 x EPS + 5 x PCI-e ports ; 3x Total GPU Power & 2x Total System Power for 0.1 ms ; with 105C Resistant Copper-core PCI-e Gen 5.0 12VHPWR Cable | BLACK

$ 212.00 ---ONLY---

OUT OF STOCK

OUT OF STOCK

Description

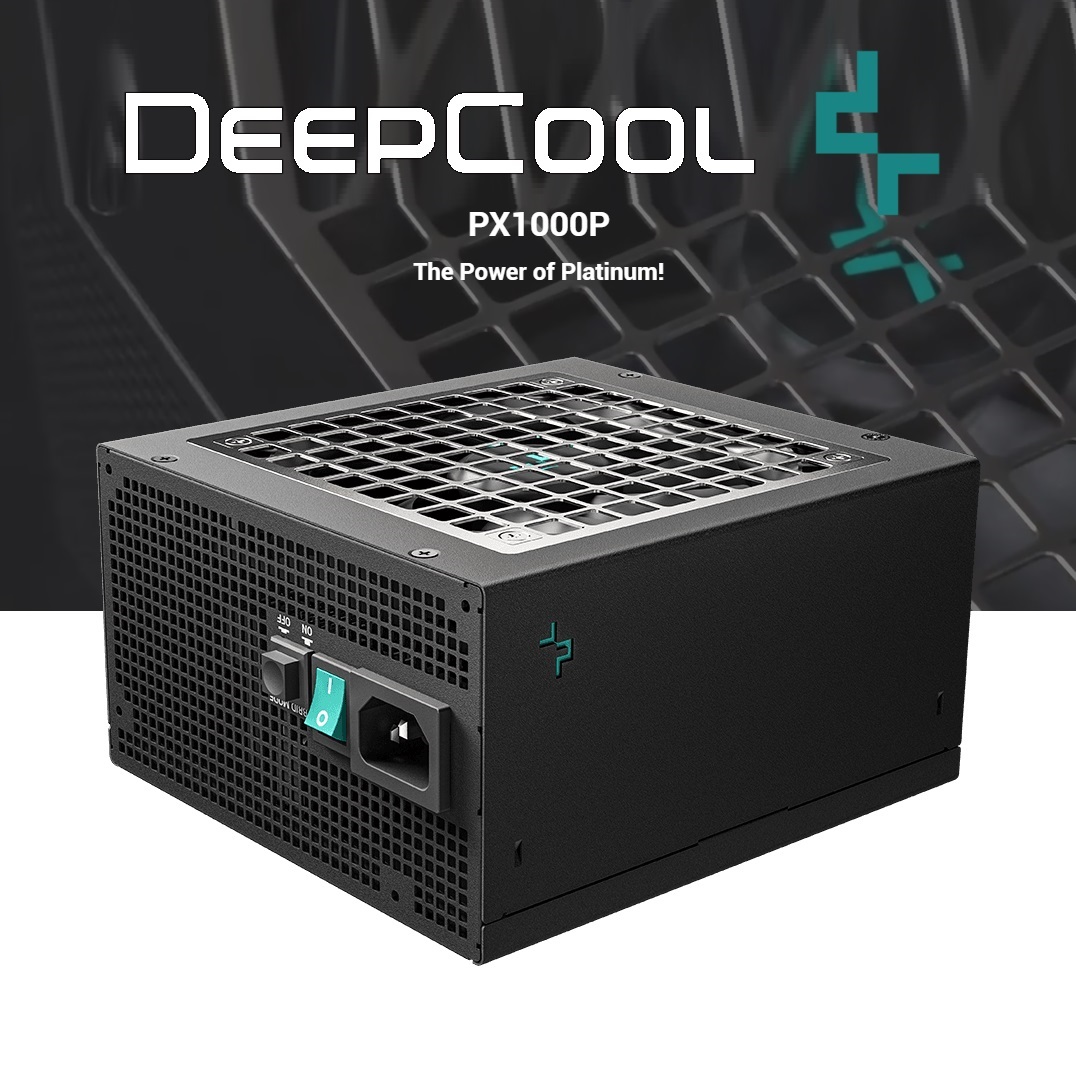

PX1000P 1000W PSU 80 Plus Cybenetics Platinum

PX1000P Power Supply – The Power of Platinum!

  • Get ready to unleash the power with the DeepCool PX1000P, a freshly designed power supply that’s got all the juice you need to meet the latest Intel ATX 3.0 standard! Check out these epic features:

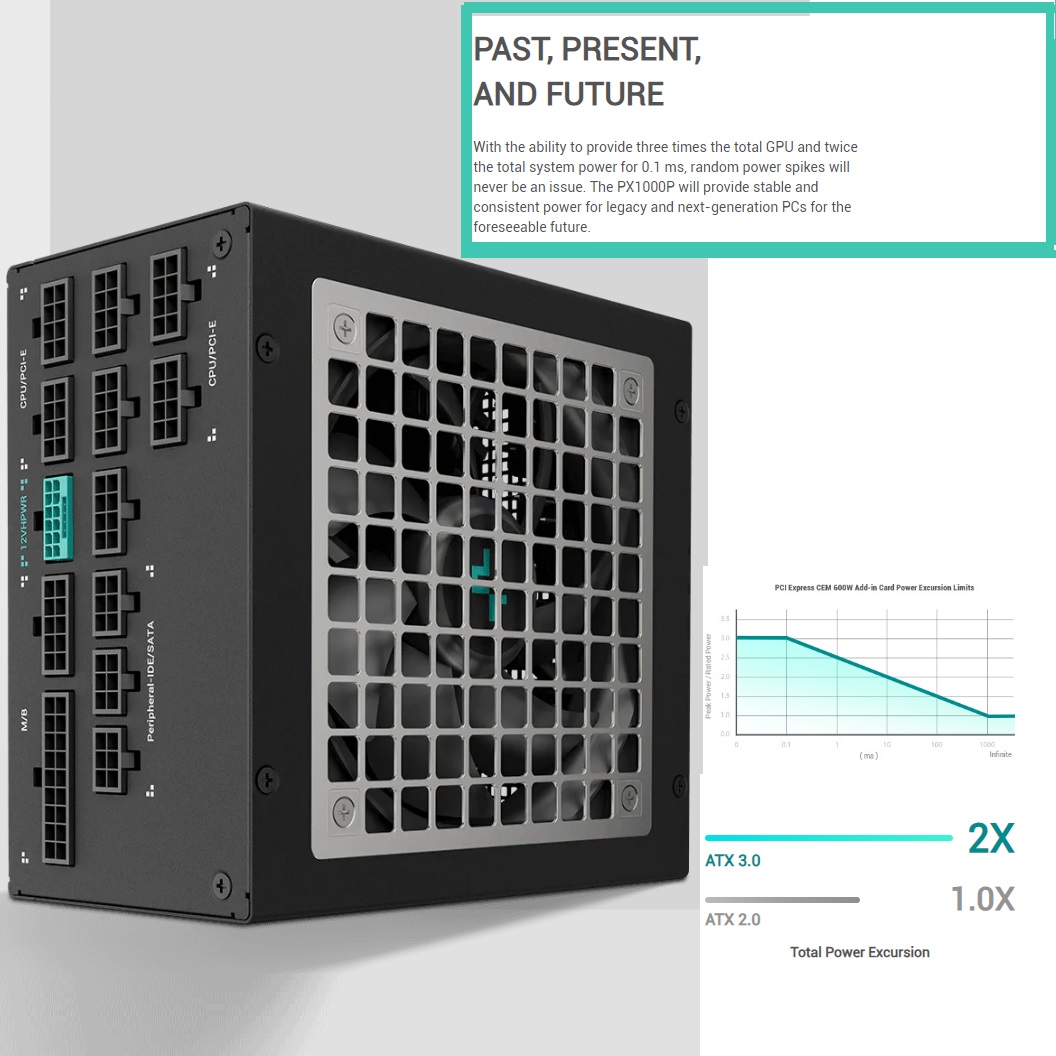

  • Past, Present, and Future Power: Provides 3x total GPU power & 2x total system power for 0.1 ms—bye-bye random power spikes!
  • Platinum Efficiency: 80 Plus and Cybenetics Platinum certified for top-notch power efficiency under typical loads.

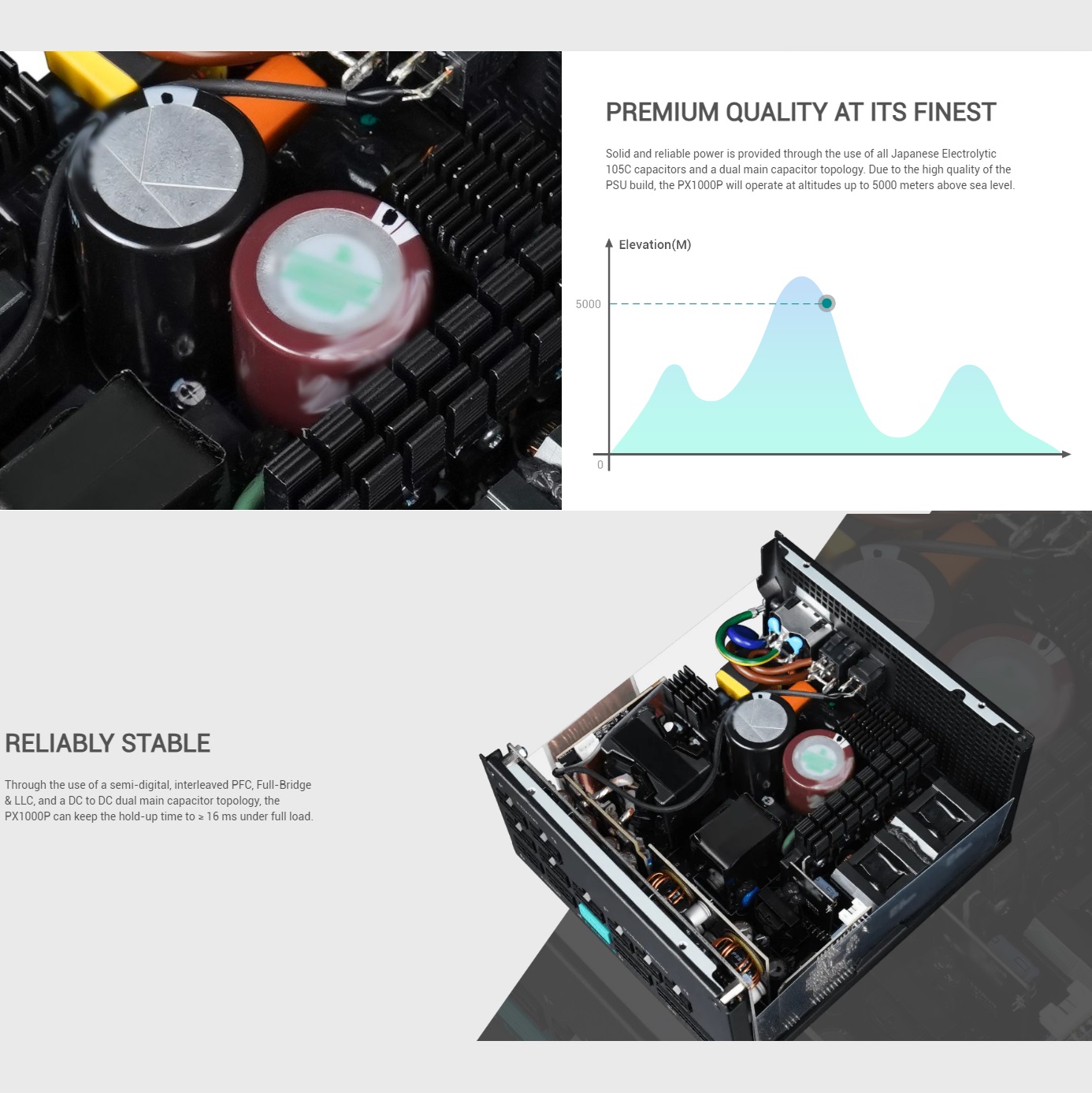

  • Premium Quality Build: Crafted with all Japanese Electrolytic 105C capacitors & a dual main capacitor topology. Can operate at altitudes up to 5000 meters—no mountain too high for this beast!
  • Reliably Stable: Features a semi-digital, interleaved PFC, Full-Bridge & LLC, and a DC to DC dual main capacitor topology for hold-up times ≥ 16 ms under full load.

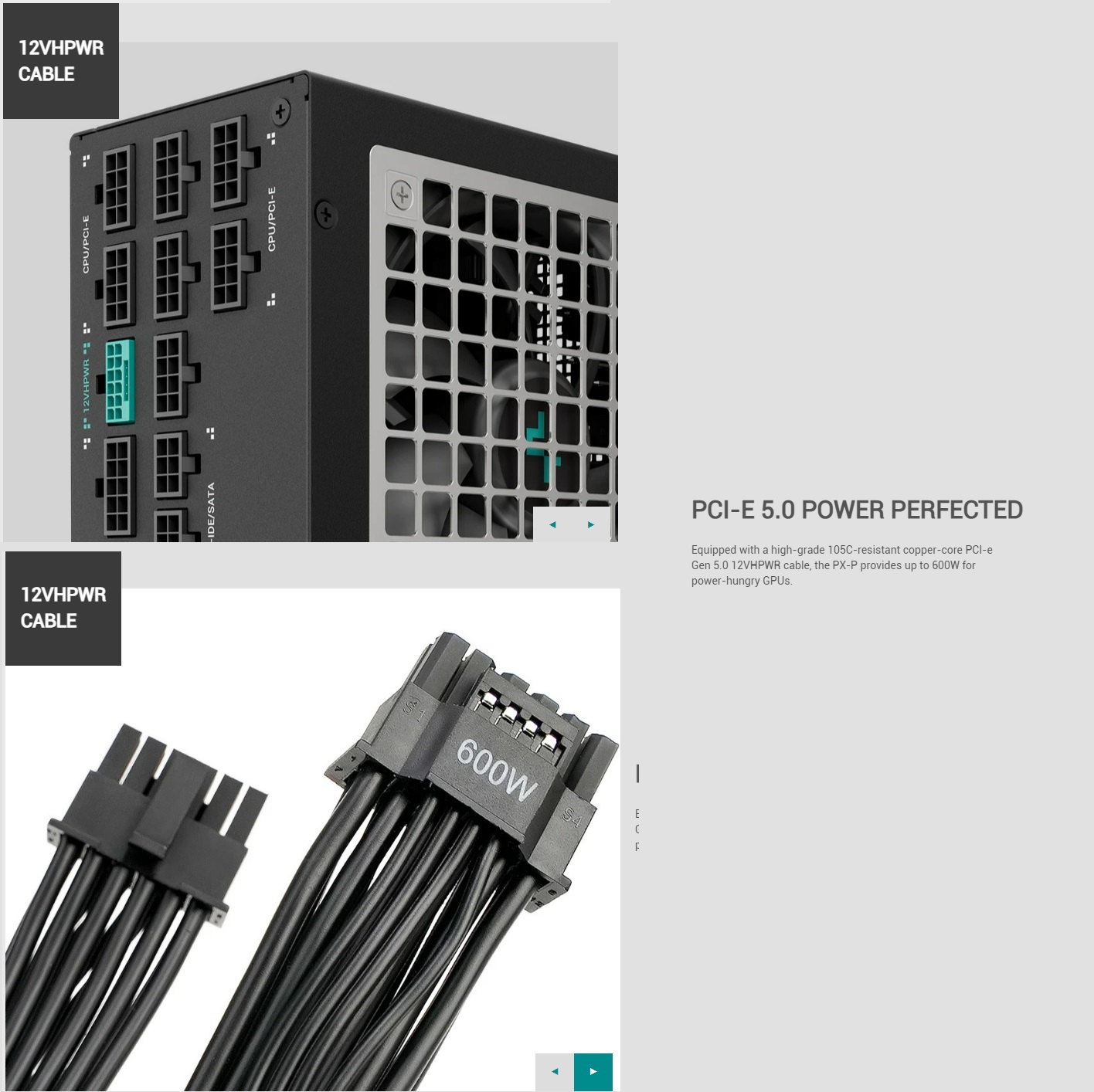

  • PCI-E 5.0 Power Perfected: Comes with a high-grade 105C-resistant copper-core PCI-e Gen 5.0 12VHPWR cable, delivering up to 600W for those power-hungry GPUs.

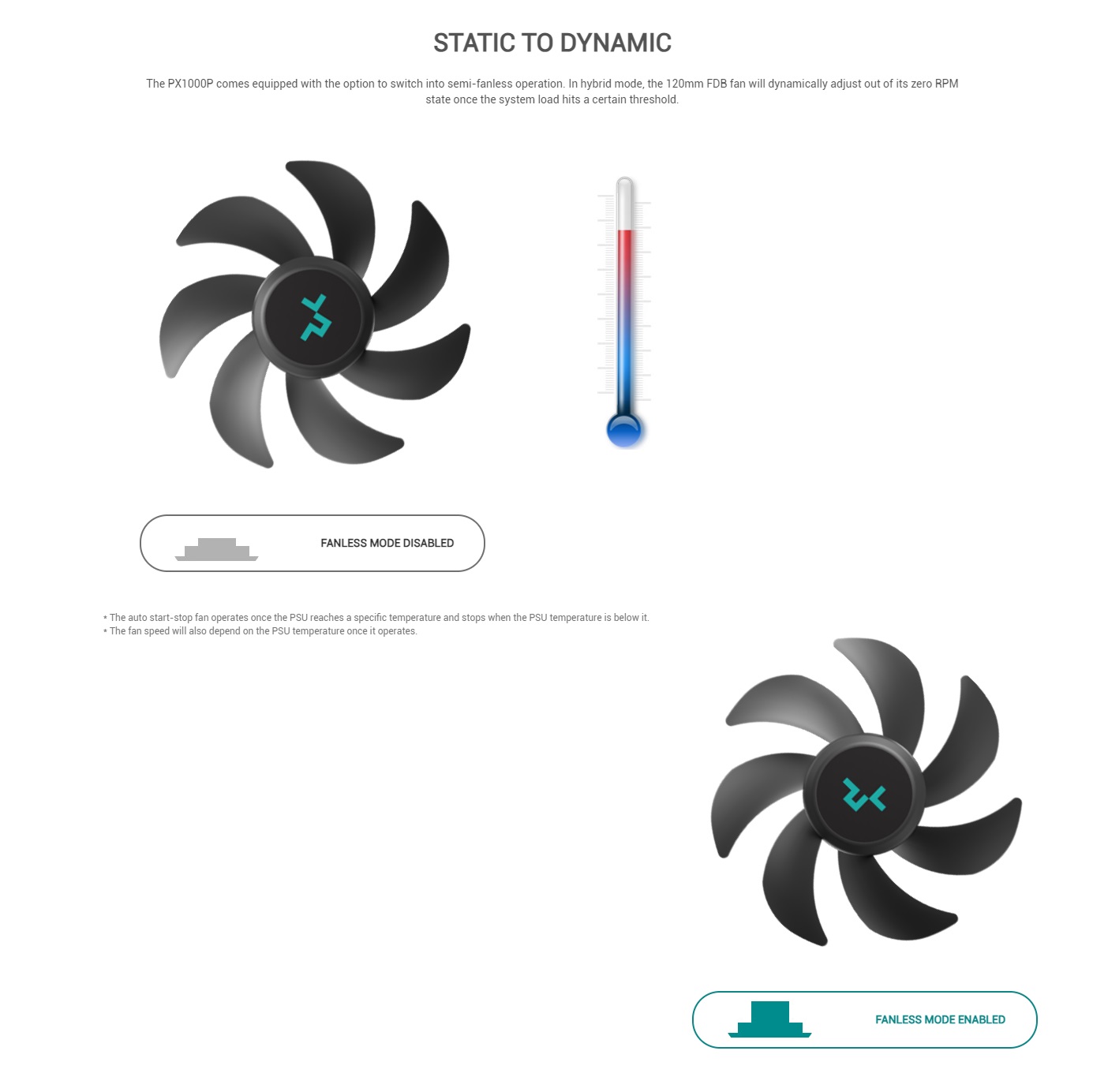

  • Fanless Mode Option: Switch to semi-fanless operation! The 120mm FDB fan will kick into gear once the system load hits a specific point. Fan speed adjusts based on PSU temperature once it’s in action!

High-Powered Ports:

  • 1 x 12VHPWR
  • 2 x EPS
  • 5 x PCI-e ports

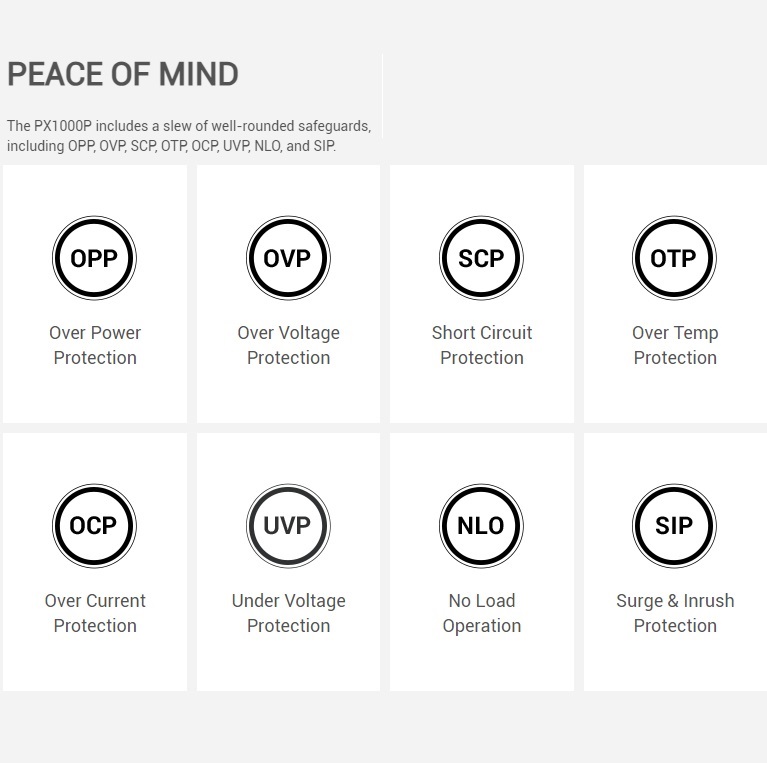

Peace of Mind with Safety Features:

  • OPP (Over Power Protection)
  • OVP (Over Voltage Protection)
  • SCP (Short Circuit Protection)
  • OTP (Over Temp Protection)
  • OCP (Over Current Protection)
  • UVP (Under Voltage Protection)
  • NLO (No Load Operation)
  • SIP (Surge & Inrush Protection)

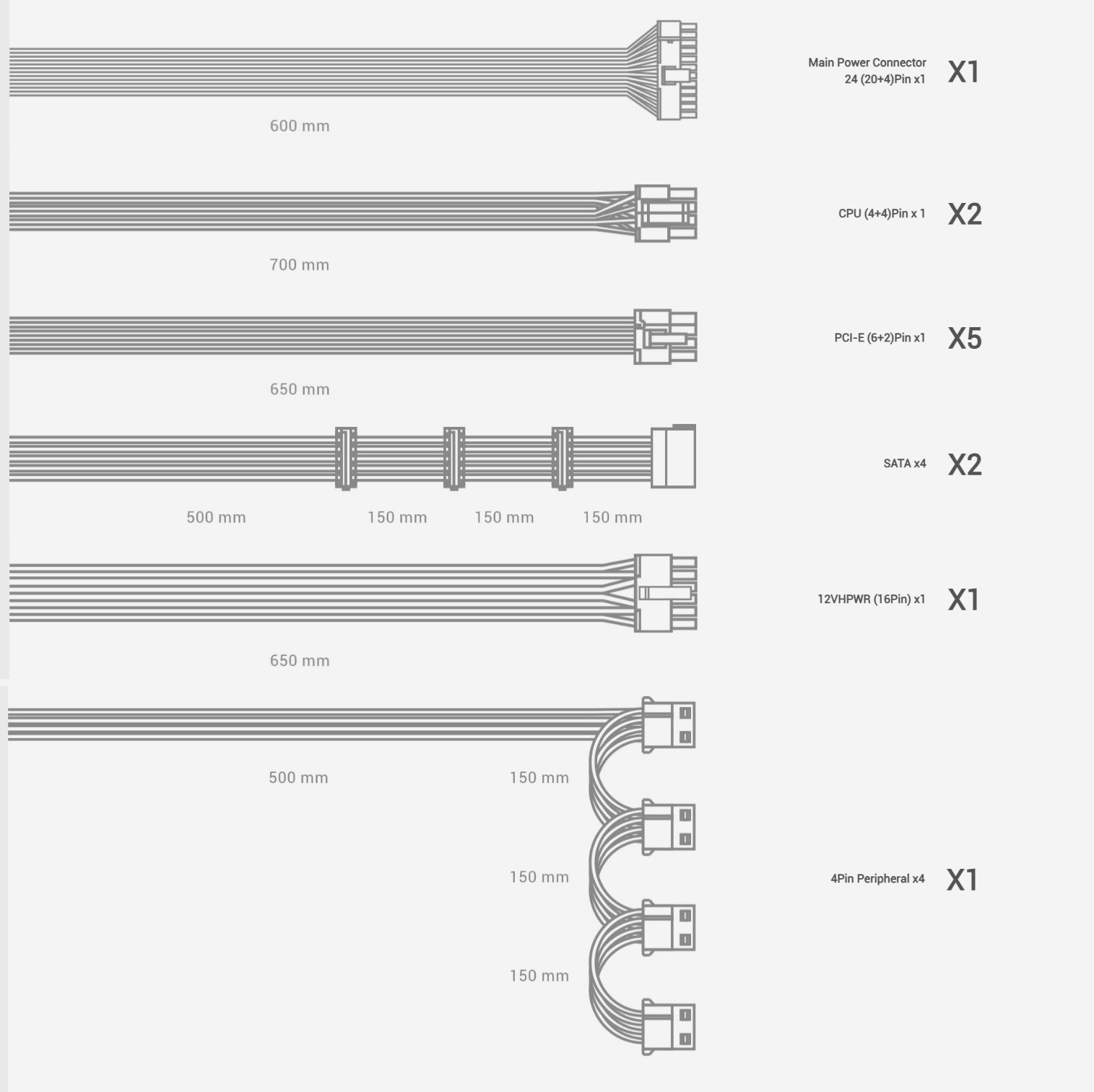

Connector Options:

  • 1 x Main Power Connector (24 (20+4)Pin)
  • 2 x CPU (4+4)Pin
  • 5 x PCI-E (6+2)Pin
  • 2 x SATA
  • 1 x 12VHPWR (16Pin)
  • 1 x 4Pin Peripheral

Get ready to power your gaming rig with the PX1000P—where efficiency meets hardcore performance! 🎮⚡️

Expert Specs

Type ATX12V V3.0
Product Dimensions 150×160×86mm (W x L x H)
Efficiency certification 80Plus Platinum/Cybenetics_Platinum
Fan Size 120mm
Fan Bearing FDB (Fluid Dynamic Bearing)
Topology Interleaved PFC, Full-Bridge & LLC + DC to DC
Capacitors Full Japan Electrolytic Capacitors
Power Good Signal 100-150ms
Hold Up Time ≥16ms
Efficiency ≥92% Under Typical Load(50% Loading)
Protection OPP/OVP/SCP/OTP/OCP/UVP/NLO/SIP
Operation Temperature 0 – 50℃
Regulatory CE/FCC/CCC/TUV-RH/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA/BIS/;
Erp Regulation ErP 2014
Environment Protection WEEE/RoHS/Triman/P65
MTBF 100,000 Hours
EAN 6933412717218
P/N R-PXA00P-FC0B-UK
