SKU: VCG509032TFXXPB1-O

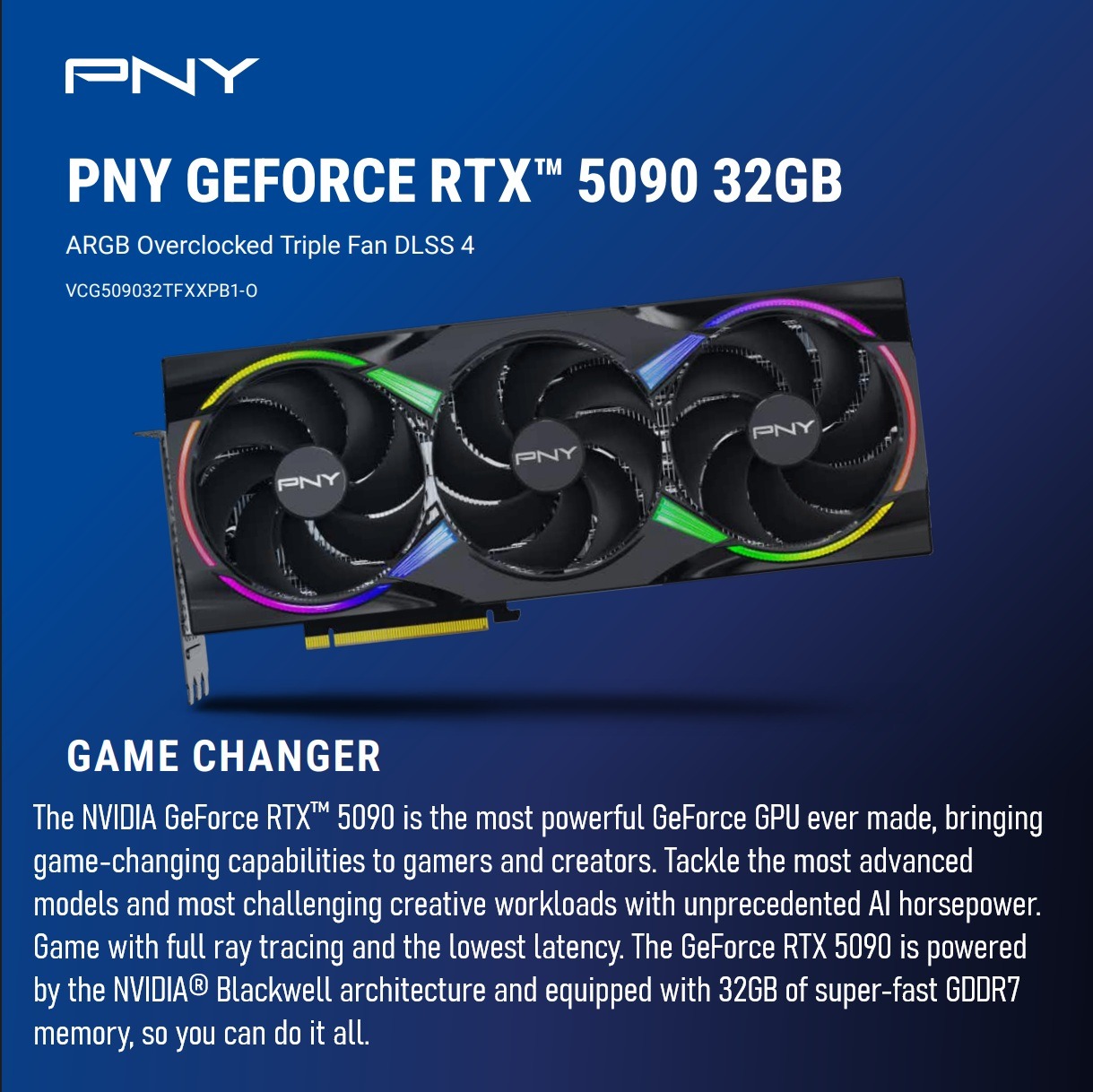

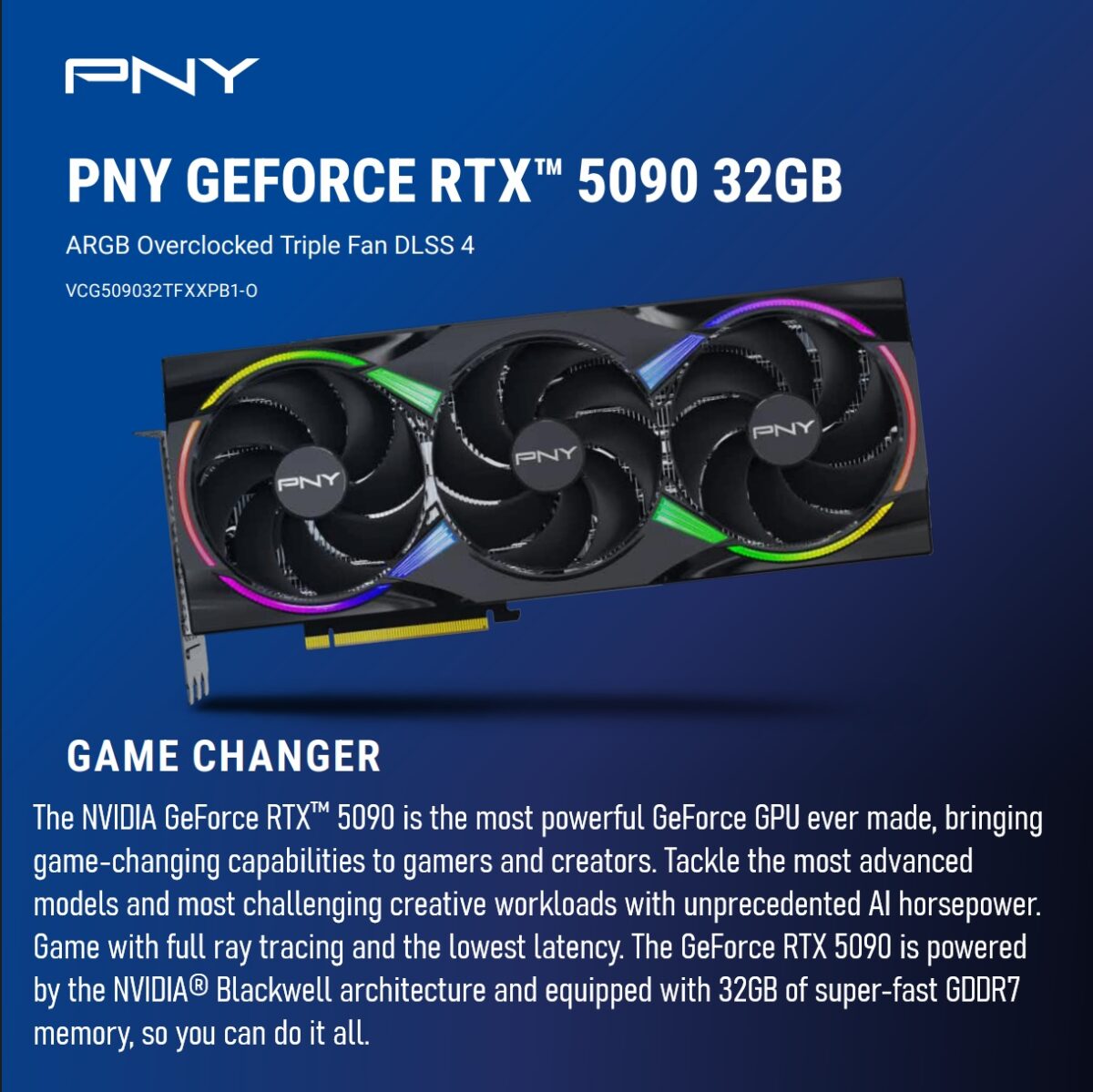

PNY GeForce RTX 5090 OC 32GB GDDR7 EPIC-X  ARGB  Triple Fan 512-bit GPU , Blackwell Architecture , 21,760 CUDA® Cores, 2625 MHz Boost Speed, 4K at 480Hz or 8K at 165Hz with DSC Resolution | BLACK ~ VCG509032TFXXPB1-O

Description

🎮 Expert Features

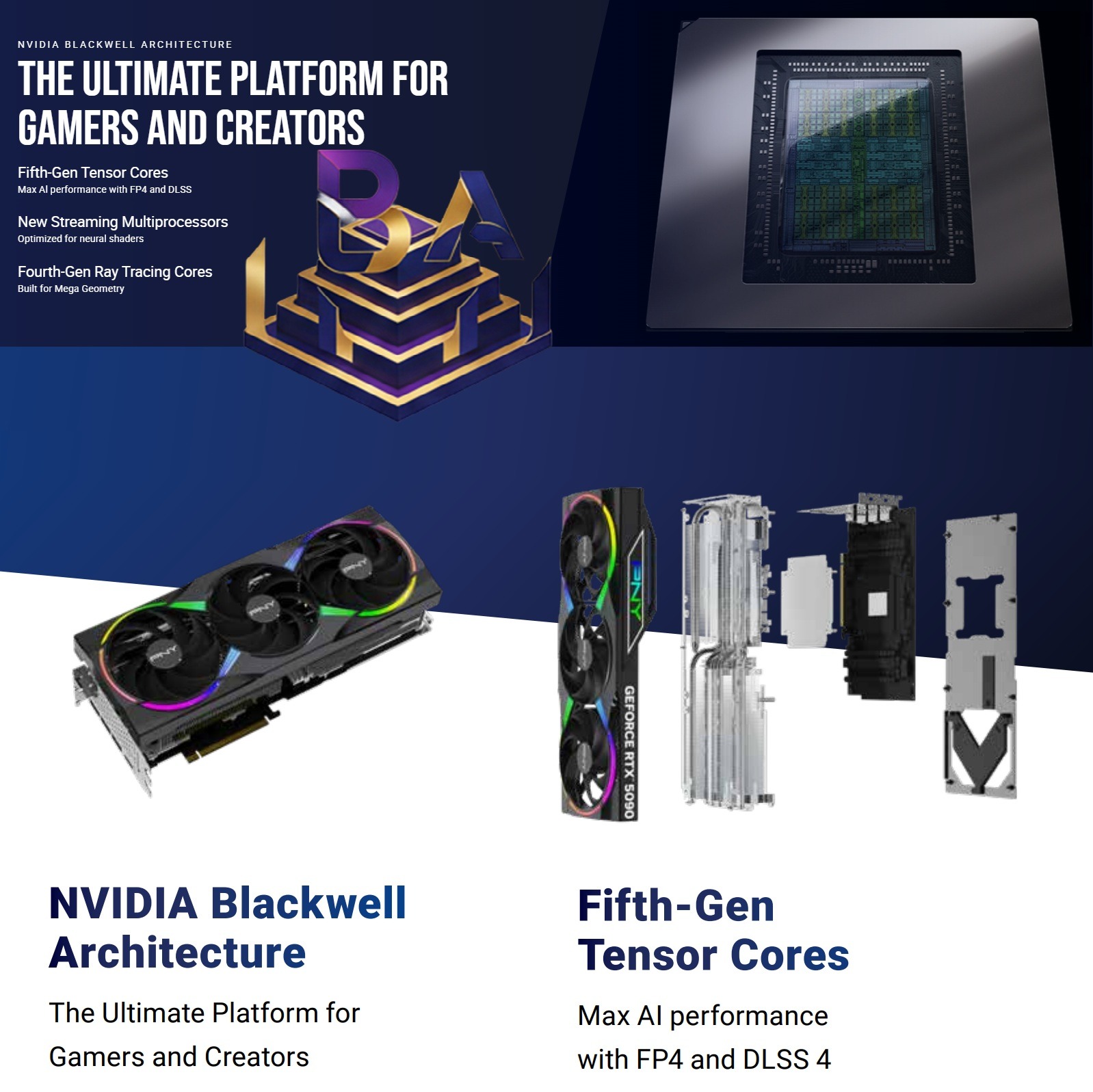

  • NVIDIA® Blackwell Architecture : Powered by NVIDIA’s most advanced GPU architecture, delivering unprecedented performance for gaming, ray tracing, and AI-accelerated creative workloads.
  • 32GB Ultra-Fast GDDR7 Memory : Massive 32GB memory capacity operating at 28 Gbps on a 512-bit interface, delivering an extreme 1792 GB/s of memory bandwidth for the most demanding applications.
  • 21,760 CUDA® Cores : An elite-class core count designed to handle ultra-high-resolution gaming, advanced ray tracing, and heavy parallel compute workloads.
  • Factory Overclocked Boost Performance : Tuned by PNY with a boost clock reaching up to 2625 MHz for maximum out-of-box performance.
  • Fifth-Generation Tensor Cores : Optimized for FP4 precision and DLSS 4, delivering massive AI throughput for next-generation rendering and creative acceleration.
  • Fourth-Generation Ray Tracing Cores : Built for mega geometry and full ray tracing workloads, enabling ultra-realistic lighting, reflections, and shadows.
  • DLSS 4 Support : AI-powered performance scaling that boosts frame rates while preserving image quality in supported titles.
  • Triple Fan Cooling System : Three high-performance fans work in unison to distribute and dissipate heat efficiently across the GPU surface during sustained workloads.

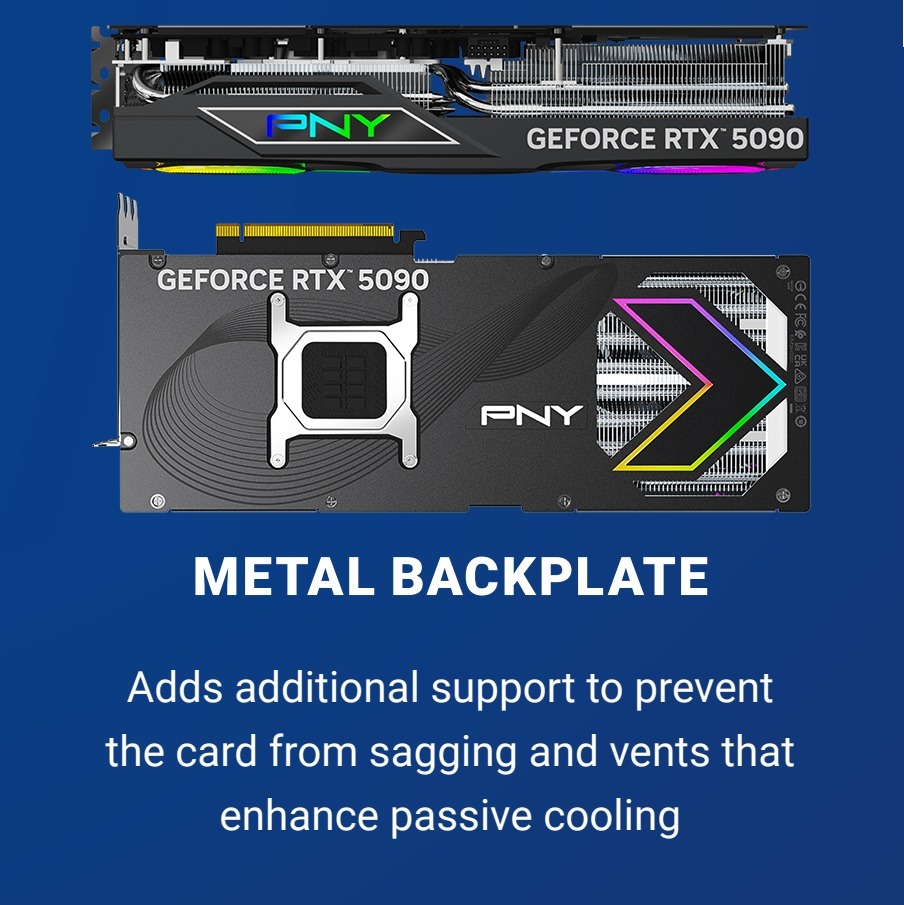

  • Metal Backplate With Venting : Reinforced metal backplate adds structural rigidity to prevent GPU sag while improving passive heat dissipation.
  • ARGB Lighting With VelocityX™ Control : Integrated ARGB lighting fully customizable via PNY VelocityX™ software for performance tuning and RGB control.
  • Next-Generation Display Connectivity : Equipped with three DisplayPort 2.1b outputs and one HDMI 2.1b port for advanced multi-monitor and high-refresh-rate setups.
  • PCI Express 5.0 x16 Interface : Full-bandwidth PCIe 5.0 connection ensures maximum data throughput on modern platforms.
  • High-Power Delivery Design : Uses a 16-pin power connector (16-pin to four 8-pin adapter) to support its 600W TDP.

🧠 Expert Specs

SpecificationDetails
BrandPNY
ModelGeForce RTX™ 5090 ARGB Overclocked Triple Fan
Part NumberVCG509032TFXXPB1-O
UPC751492794204
ArchitectureNVIDIA Blackwell
CUDA® Cores21,760
Boost ClockUp To 2625 MHz
Memory Size32GB
Memory TypeGDDR7
Memory Speed28 Gbps
Memory Interface512-bit
Memory Bandwidth1792 GB/s
Ray Tracing Cores4th Generation
Tensor Cores5th Generation
DLSS SupportDLSS 4
Outputs3× DisplayPort 2.1b, 1× HDMI 2.1b
Maximum DisplaysUp To 4
Max Resolution4K @ 480Hz or 8K @ 165Hz (DSC)
Bus InterfacePCI Express 5.0 x16
Power Connector16-Pin (16-Pin to 4× 8-Pin Adapter)
TDP600 W
NVLinkNot Supported
CoolingTriple Fan
BackplateMetal Backplate
Slot Size3.5 Slot
Card Dimensions12.94 × 5.42 × 2.8 inches
