SKU: VCG5060T16DFXPB1-O

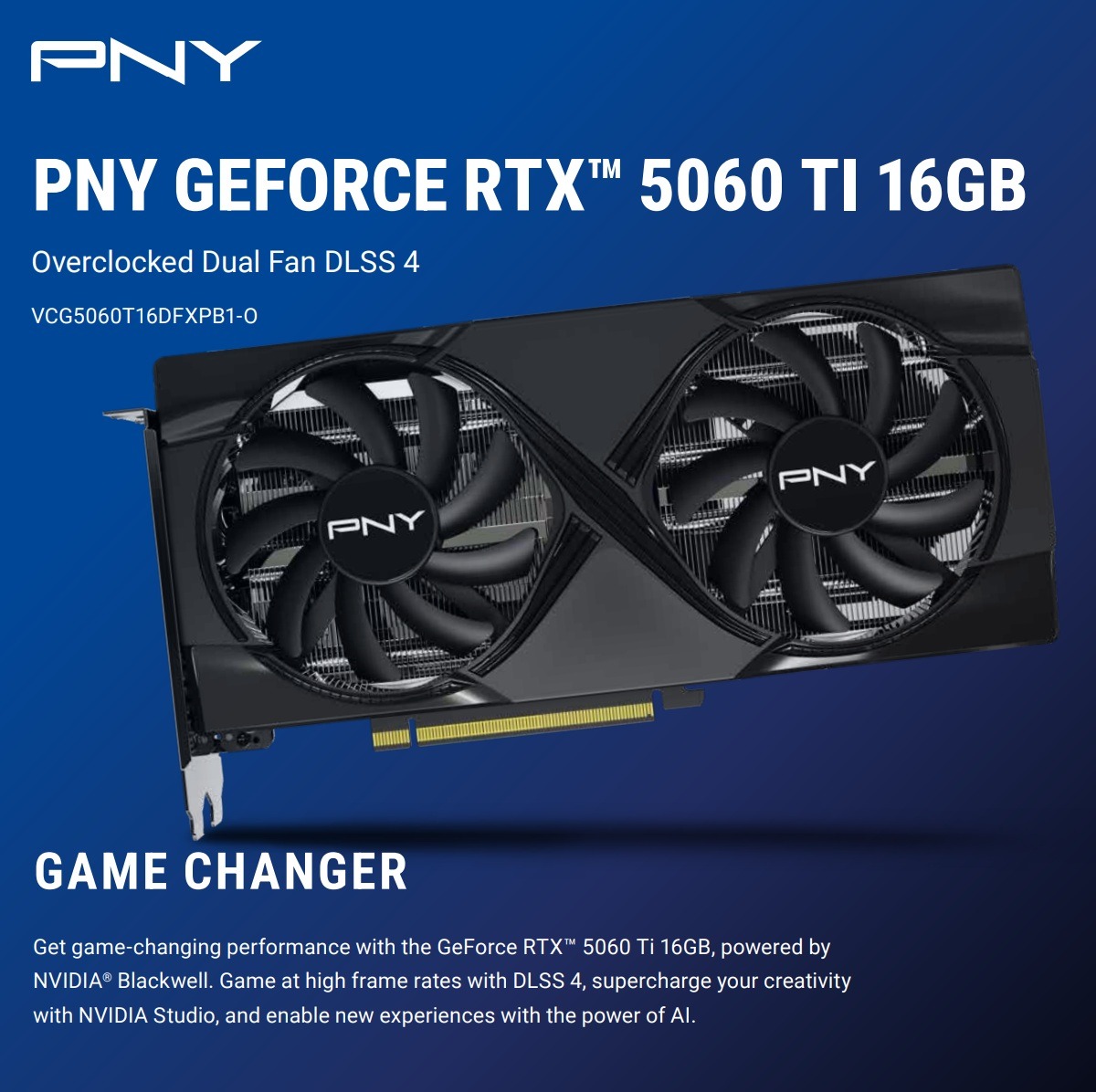

PNY GeForce RTX 5060 Ti 16GB GDDR7 OC Dual Fan GPU With NVIDIA Blackwell, DLSS 4, PCIe 5.0, 4608 CUDA® Cores, 2692 MHz Boost,  4K 480Hz / 8K 165Hz Support , STEALTH MODE

$ 504.00 ---ONLY---

Description

Expert Features

  • NVIDIA Blackwell Architecture : Next-generation GPU platform delivering game-changing performance for gamers, creators, and AI-accelerated workloads.
  • Overclocked Performance Profile : Factory overclock pushes higher clock and boost speeds for increased frame rates and smoother gameplay.
  • DLSS 4 Technology : AI-powered upscaling using fifth-generation Tensor Cores for higher performance and improved image quality.

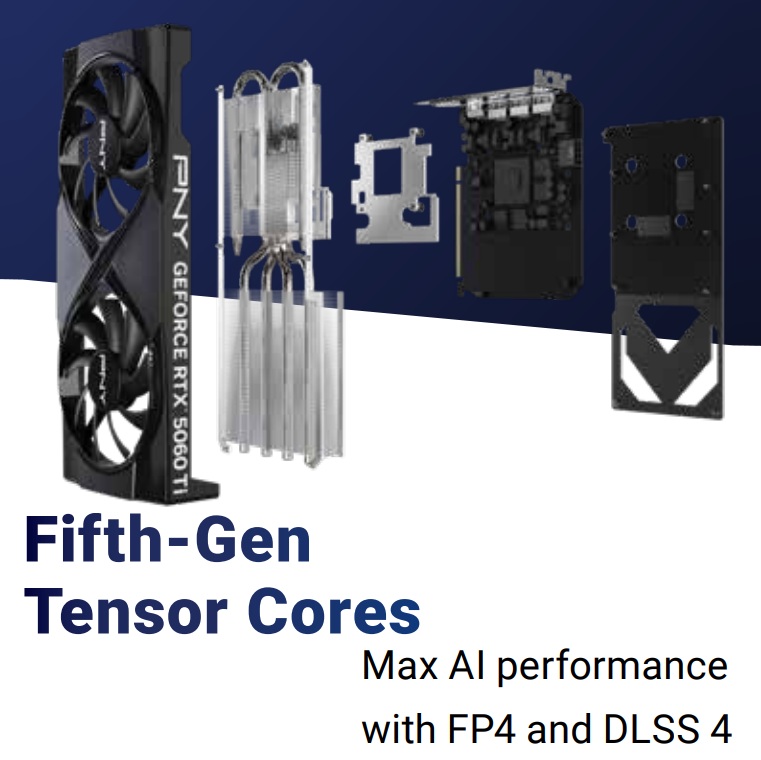

  • Fifth-Generation Tensor Cores : Designed to maximize AI performance with FP4 precision and DLSS 4 acceleration.

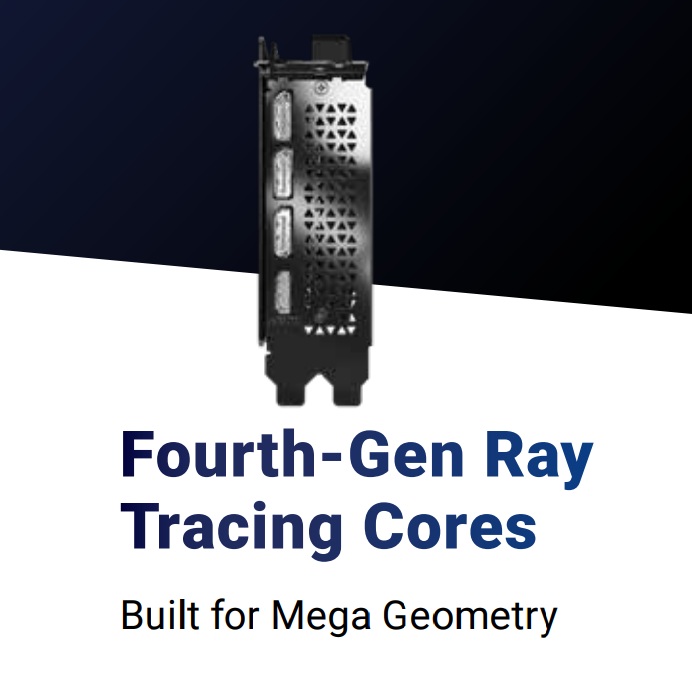

  • Fourth-Generation Ray Tracing Cores : Built for advanced ray tracing and mega geometry, enabling realistic lighting and reflections.

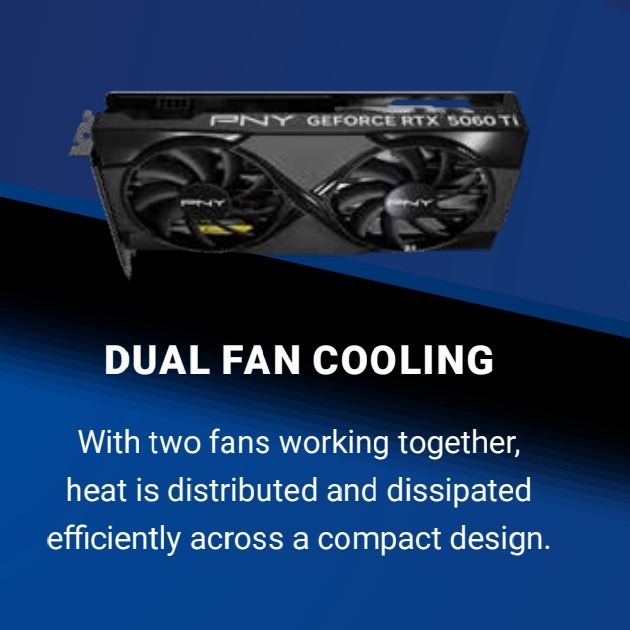

  • Dual Fan Cooling System : Two fans work in tandem to efficiently dissipate heat while maintaining a compact dual-slot design.
  • Metal Backplate Reinforcement : Strengthens the card structure to prevent sagging while improving passive cooling through ventilation.
  • 16GB GDDR7 High-Speed Memory : Large, next-gen video memory capacity optimized for modern games, creative workflows, and high-resolution textures.
  • Ultra-High Display Support : Supports 4K at 480Hz or 8K at 165Hz with DSC for extreme refresh rates and clarity.
  • PCI-Express 5.0 x8 Interface : Next-generation bus ensures high bandwidth communication with modern motherboards.
  • Multi-Display Capability : Supports up to four simultaneous displays for immersive gaming or productivity setups.

Expert Specs

SpecificationDetails
GPU ModelPNY GeForce RTX™ 5060 Ti
SKUVCG5060T16DFXPB1-O
ArchitectureNVIDIA Blackwell
CUDA® Cores4608
Base Clock2407 MHz
Boost Clock2692 MHz
Memory Size16GB
Memory TypeGDDR7
Memory Speed28 Gbps
Memory Interface128-bit
Memory Bandwidth448 GB/s
Total Graphics Power (TDP)180W
Power Connector1 × 8-Pin
Recommended PSU600W
Bus InterfacePCI-Express 5.0 x8
Outputs3 × DisplayPort 2.1b (UHBR20), 1 × HDMI 2.1b
Maximum Displays4
Maximum Resolution4K 480Hz or 8K 165Hz with DSC
CoolingDual Fan
BackplateMetal
Card Dimensions9.65″ × 4.72″ × 1.57″ (245 × 120 × 39.9 mm), 2-Slot
Box Dimensions12.68″ × 7.05″ × 2.76″ (322 × 179 × 70 mm)
NVLinkNot Supported
Operating SystemsWindows 11 64-bit, Windows 10 64-bit, Linux 64-bit
UPC751492795072
