SKU: VCG50608DFXPB1-O

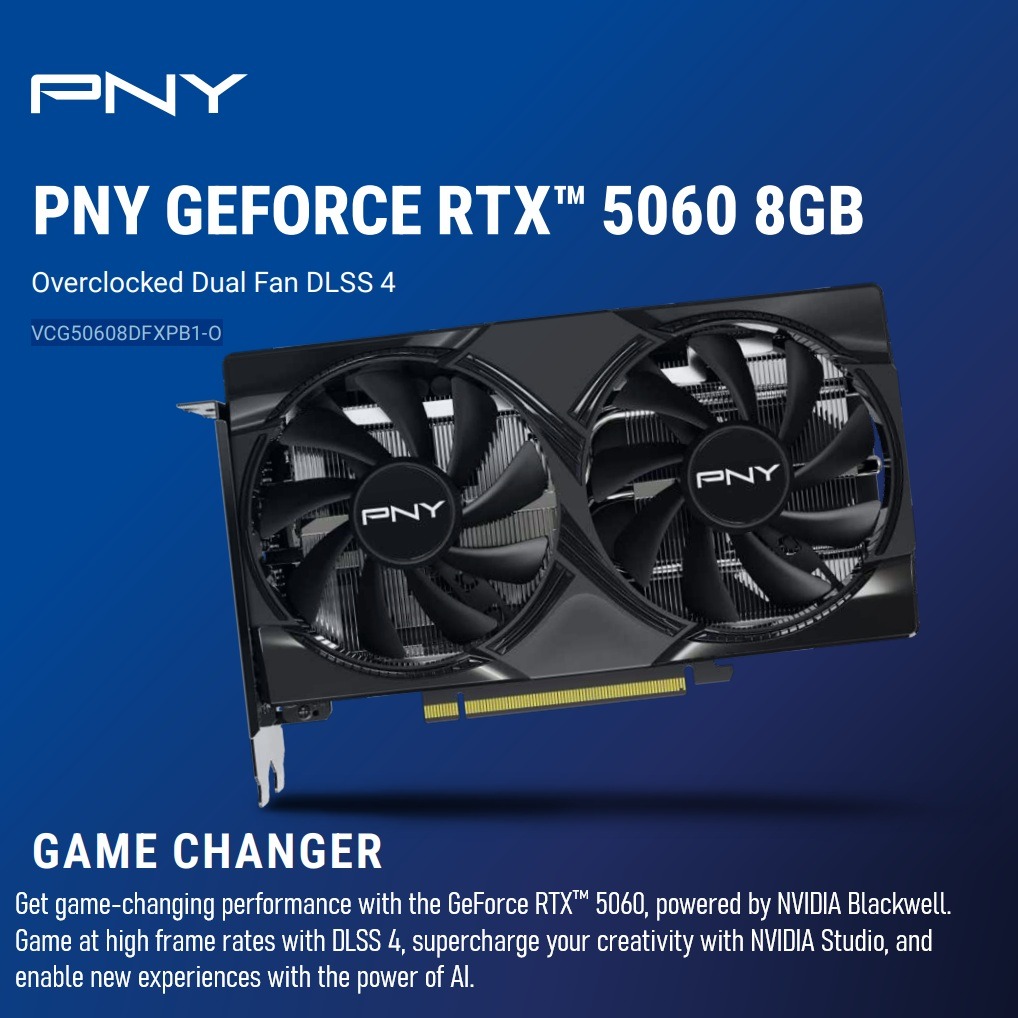

PNY GeForce RTX 5060 OC 8GB GDDR7  Dual Fan Graphics Card – NVIDIA Blackwell Architecture, DLSS 4, PCIe 5.0, 3840 CUDA® Cores , 2535MHz Boost Clock , And Compact Dual-Slot Design | STEALTH BLACK ~ VCG50608DFXPB1-O

Description

🎮 Expert Features

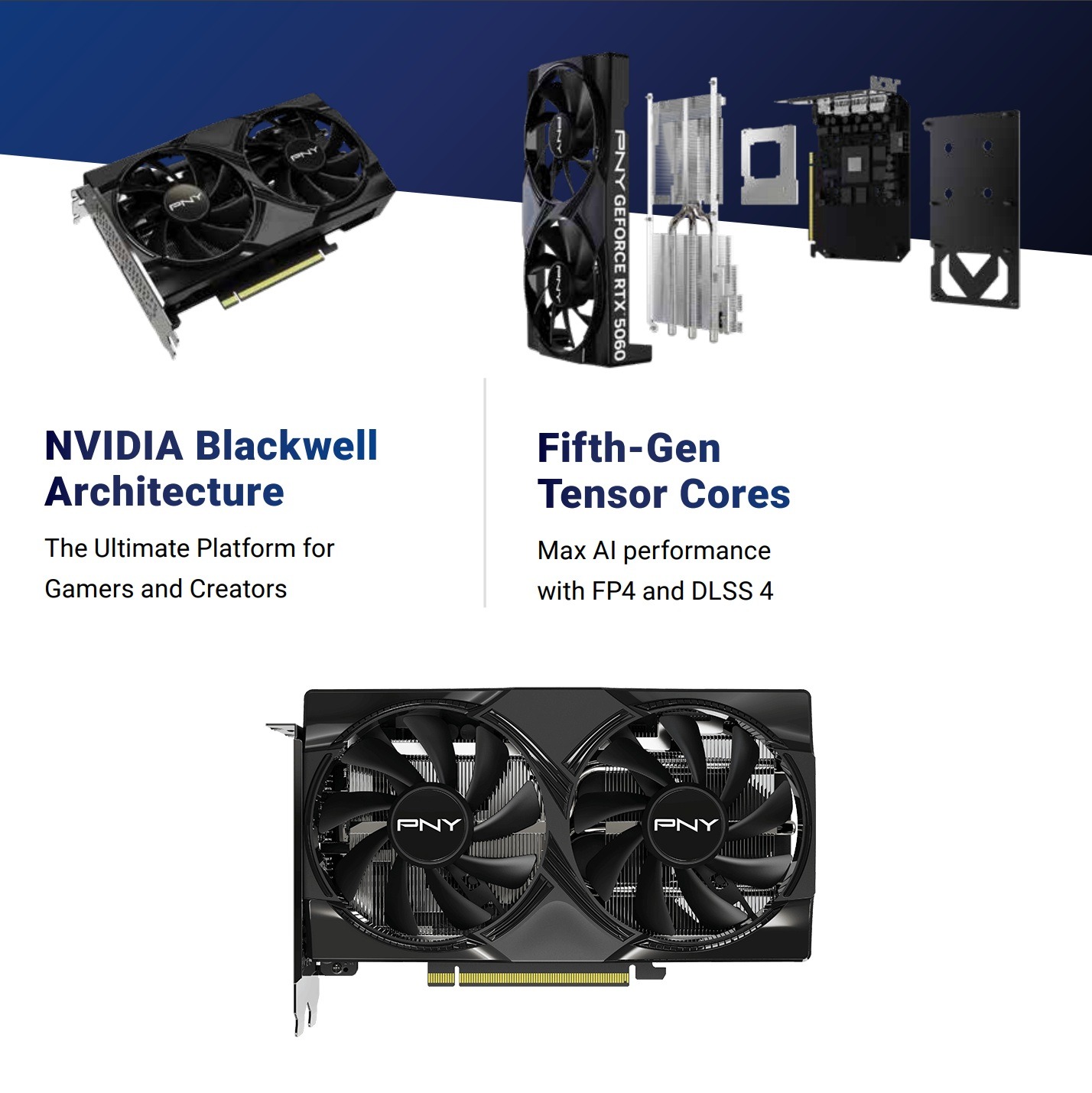

  • NVIDIA® Blackwell Architecture : Built on NVIDIA’s latest Blackwell platform, delivering next-generation gaming, ray tracing, and AI acceleration for gamers and creators alike.
  • 8GB GDDR7 High-Speed Memory : Equipped with ultra-fast GDDR7 memory running at 28 Gbps on a 128-bit interface, providing 448 GB/s of memory bandwidth for modern games and creative workloads.
  • Factory Overclocked Performance : Pre-tuned by PNY with a boost clock reaching up to 2535 MHz, delivering higher out-of-the-box performance without manual tweaking.
  • 3840 CUDA® Cores : A dense core configuration designed to handle high frame rates, advanced shading, and parallel workloads efficiently.
  • Fifth-Generation Tensor Cores : Optimized for AI workloads with FP4 precision and DLSS 4 support, enabling enhanced performance and image quality through AI upscaling.
  • Fourth-Generation Ray Tracing Cores : Designed for advanced ray tracing and mega-geometry workloads, delivering more realistic lighting, reflections, and shadows.
  • DLSS 4 Technology : Uses AI-driven rendering to boost frame rates while maintaining visual fidelity in supported titles.

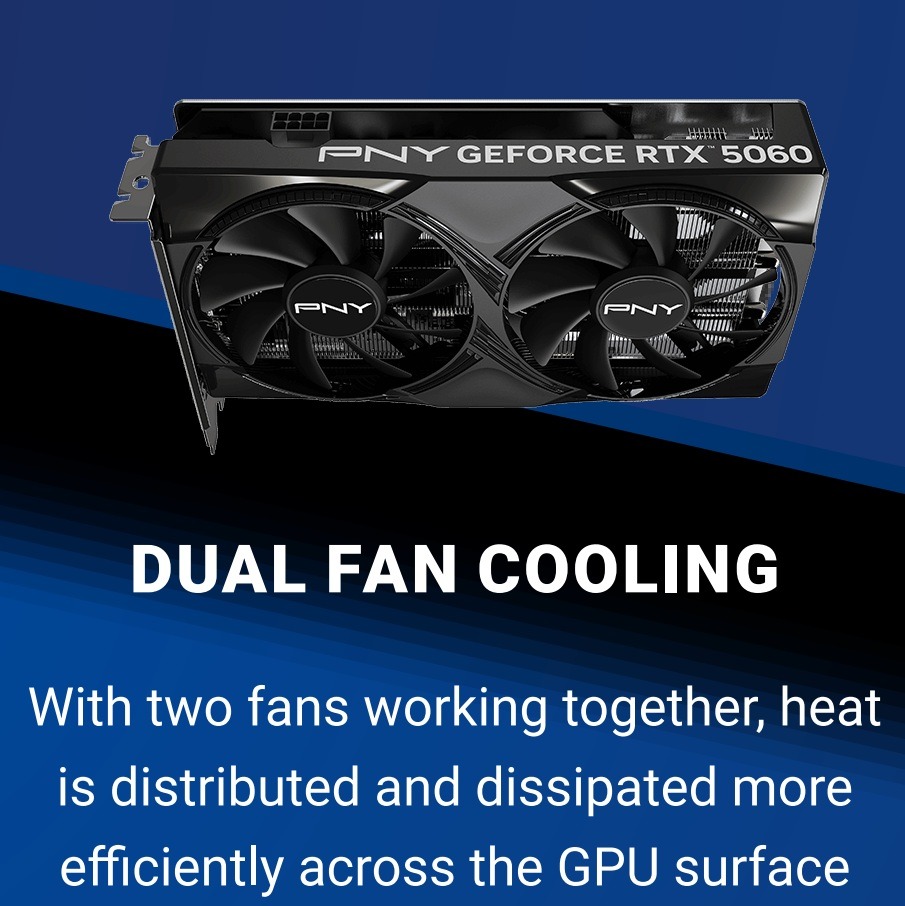

  • Dual Fan Cooling System : Two active fans work together to distribute and dissipate heat efficiently across the GPU surface for stable performance under load.

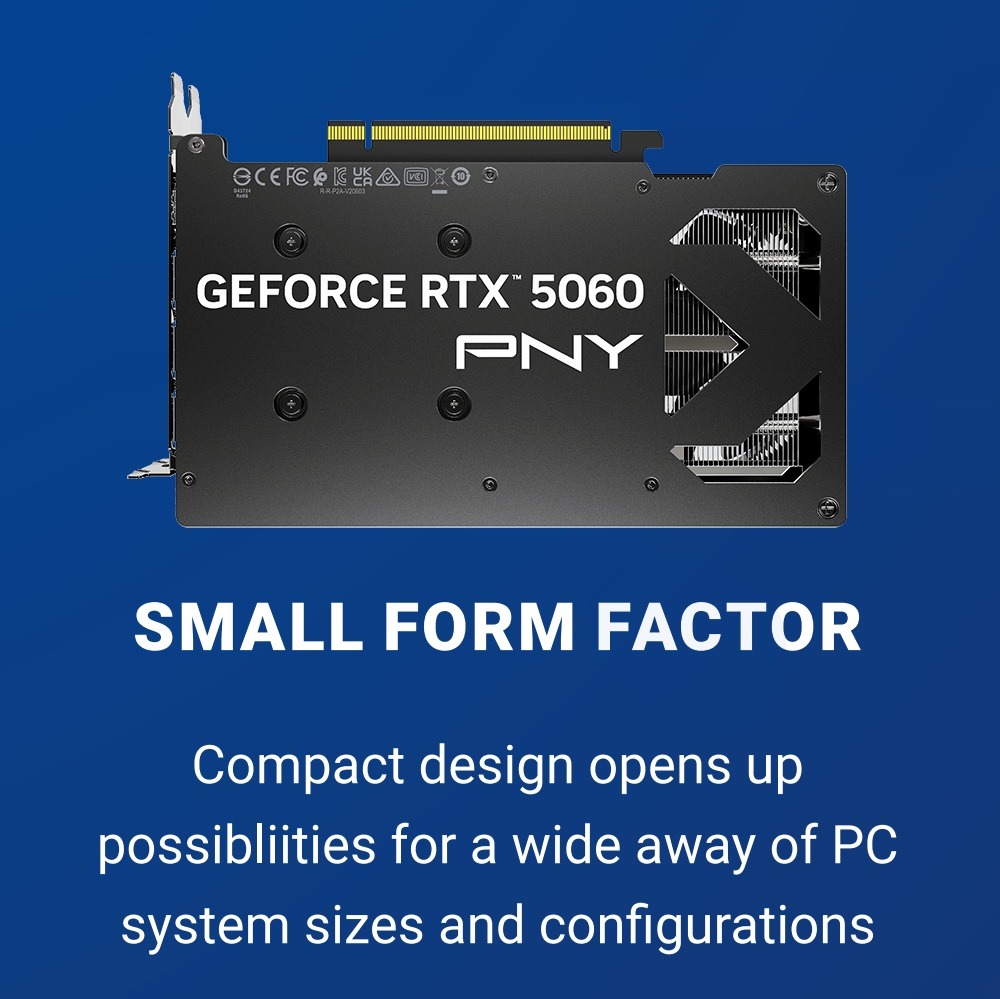

  • Compact Small Form Factor Design : Dual-slot layout with a 280mm length enables compatibility with a wide range of PC cases and system builds.

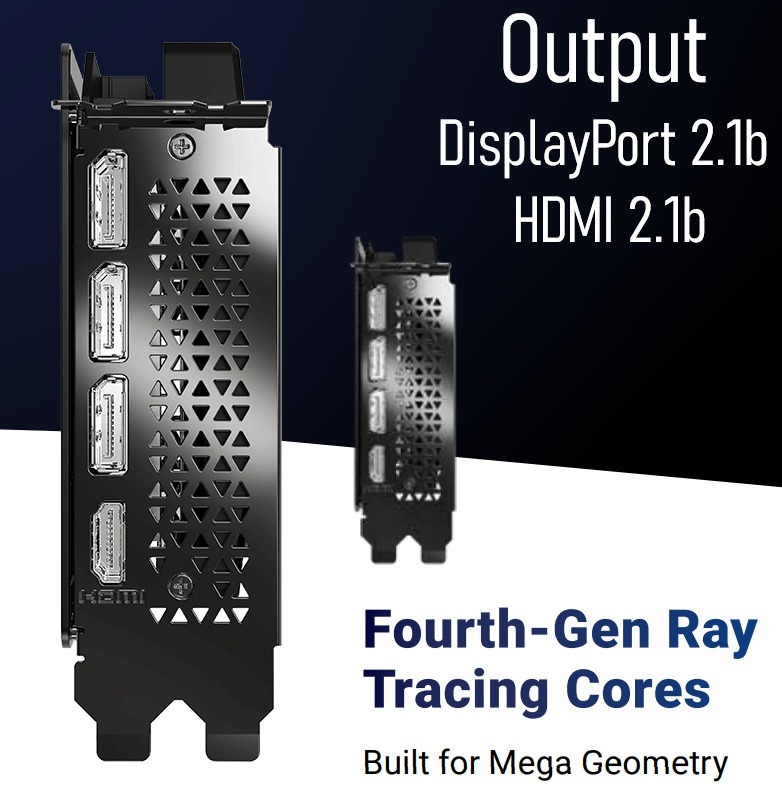

  • Next-Gen Display Connectivity : Features three DisplayPort 2.1b outputs and one HDMI 2.1b port, supporting advanced multi-display setups.
  • PCI Express 5.0 x8 Interface : Ensures high-bandwidth communication with modern motherboards.
  • Single 8-Pin Power Connector : Simplified power delivery with a rated TDP of 145W.

🧠 Expert Specs

SpecificationDetails
BrandPNY
ModelGeForce RTX™ 5060 Overclocked Dual Fan
SKU / Part NumberVCG50608DFXPB1-O
UPC751492797076
ArchitectureNVIDIA Blackwell
CUDA® Cores3840
Base Clock2280 MHz
Boost ClockUp To 2535 MHz
Memory Size8GB
Memory TypeGDDR7
Memory Speed28 Gbps
Memory Interface128-bit
Memory Bandwidth448 GB/s
Ray Tracing Cores4th Generation
Tensor Cores5th Generation
DLSS SupportDLSS 4
Outputs3× DisplayPort 2.1b, 1× HDMI 2.1b
Maximum DisplaysUp To 4
Max Resolution4K @ 480Hz or 8K @ 165Hz (DSC)
Bus InterfacePCI Express 5.0 x8
Power Connector1× 8-Pin
TDP145 W
NVLinkNot Supported
CoolingDual Fan
Card Dimensions280 × 120 × 40 mm
Slot Size2-Slot
Box Dimensions382 × 179 × 70 mm
