PN650M PCIe 5 650W Power Supply 80 Plus Gold

PN650M Power Supply – Power Up Your Game!

Introducing the DeepCool PN650M, your go-to power supply that’s ready to take on the latest Intel ATX 3.1 and PCIe 5.1 standards! Check out these electrifying features:

• High-Powered Connectivity: 1 x 12V-2×6 + 5 x EPS/PCIe ports

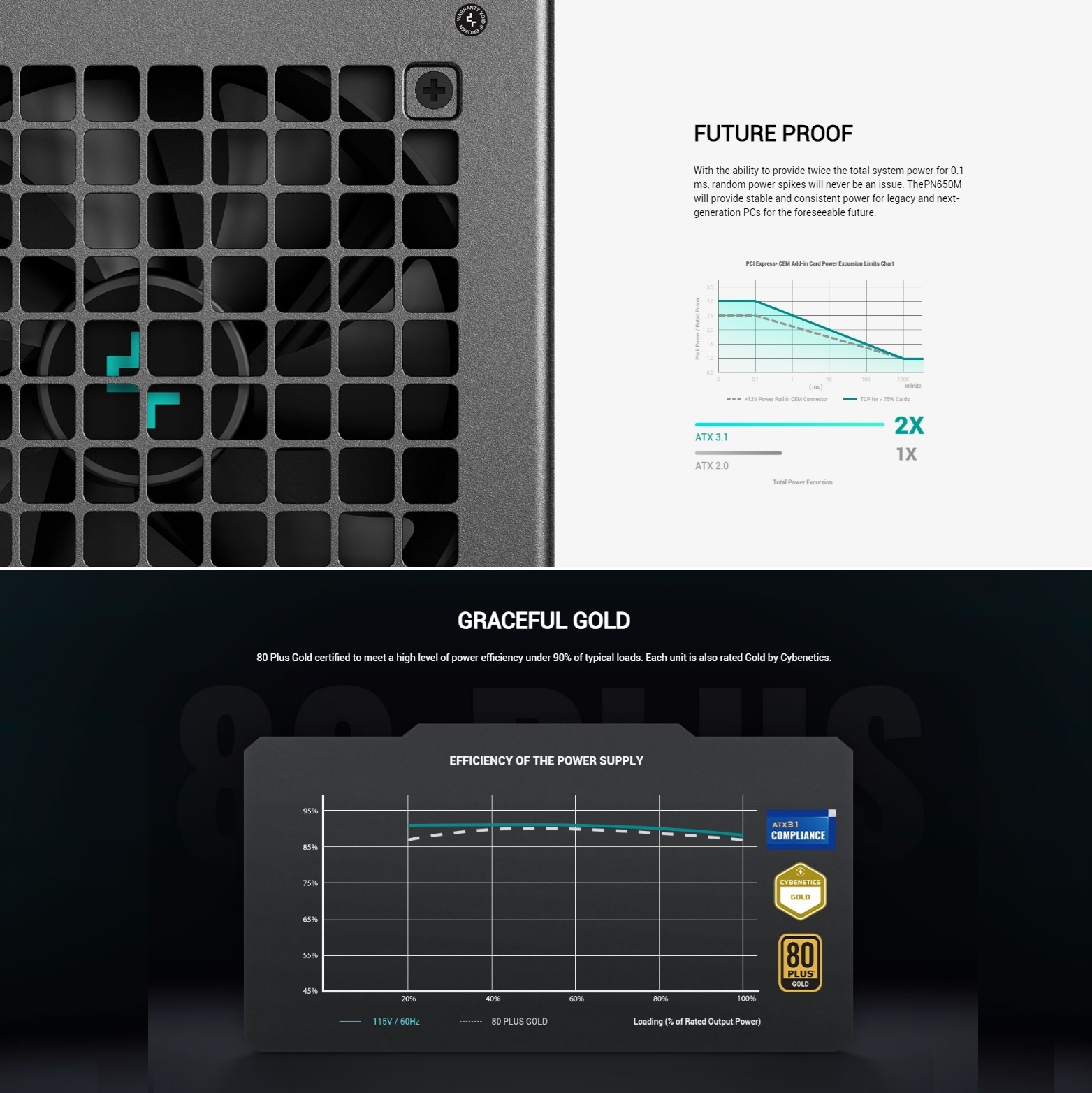

• Future Proofing: Provides 2x total system power for 0.1 ms—no more worries about random power spikes!
• Gold Standard Efficiency: 80 Plus Gold certified for amazing efficiency under 80% of typical loads. Also rated Gold by Cybenetics for added peace of mind.
• Reliable Power: Features a main Japanese electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology for hold-up times of ≥ 16 ms under high loads (80%).
• PCI-E 5.1 Ready:  Comes with a high-grade 105C-resistant 16AWG copper-core 12V-2×6 cable, providing up to 450W for today’s powerful GPUs.

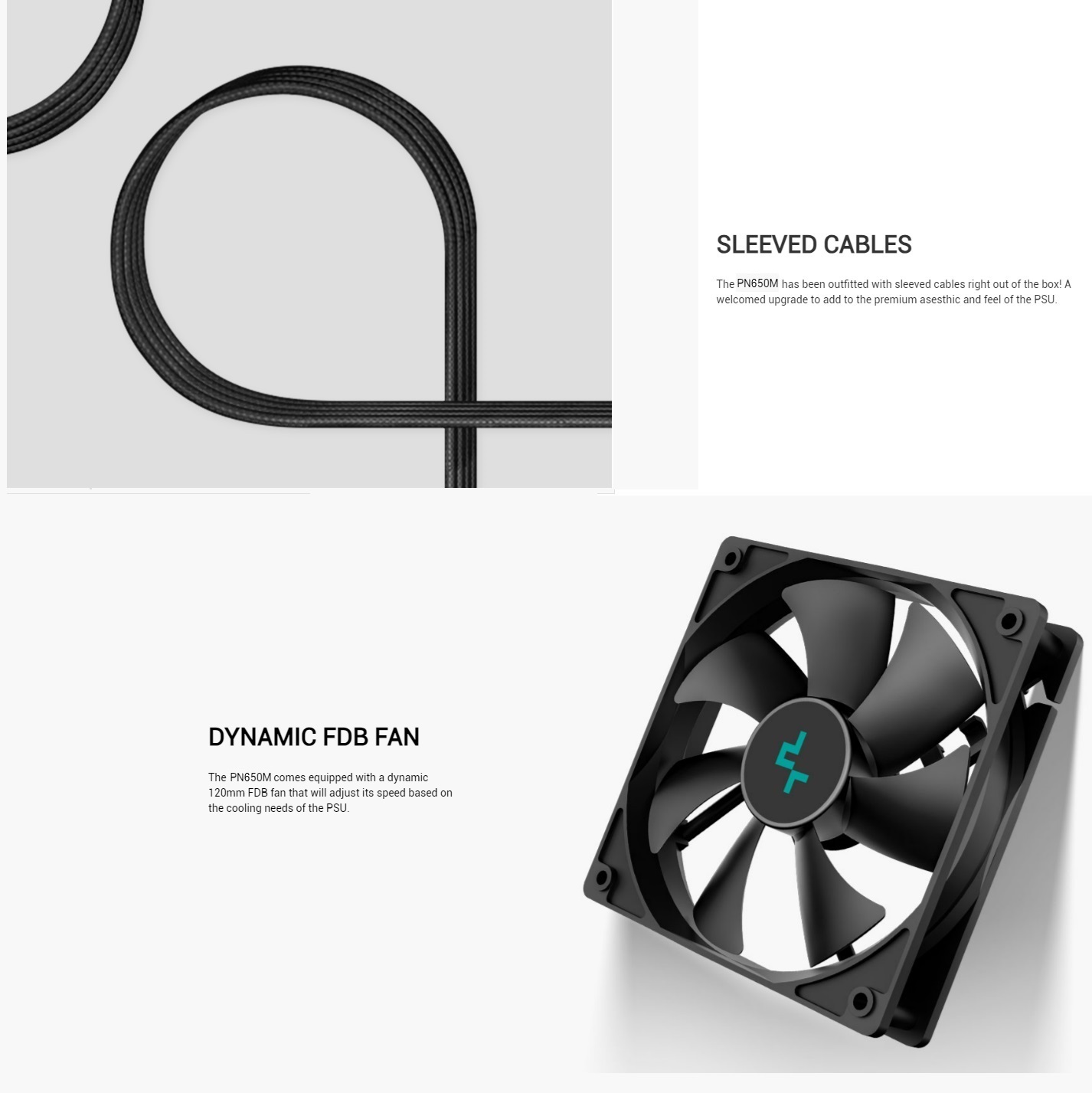

• Stylish Sleeved Cables: Outfitted with sleek sleeved cables straight out of the box for that premium aesthetic and feel.
• Dynamic Cooling: Equipped with a 120mm dynamic FDB fan that adjusts its speed based on the PSU’s cooling needs—keeping things chill!
• Altitude Tested: Built tough, the PN650M can operate at altitudes up to 5000 meters—perfect for gamers at any elevation!

Safety First: Packed with a range of safeguards, including:

• OPP (Over Power Protection)
• OVP (Over Voltage Protection)
• SCP (Short Circuit Protection)
• OTP (Over Temp Protection)
• OCP (Over Current Protection)
• UVP (Under Voltage Protection)
• NLO (No Load Operation)
• SIP (Surge & Inrush Protection)

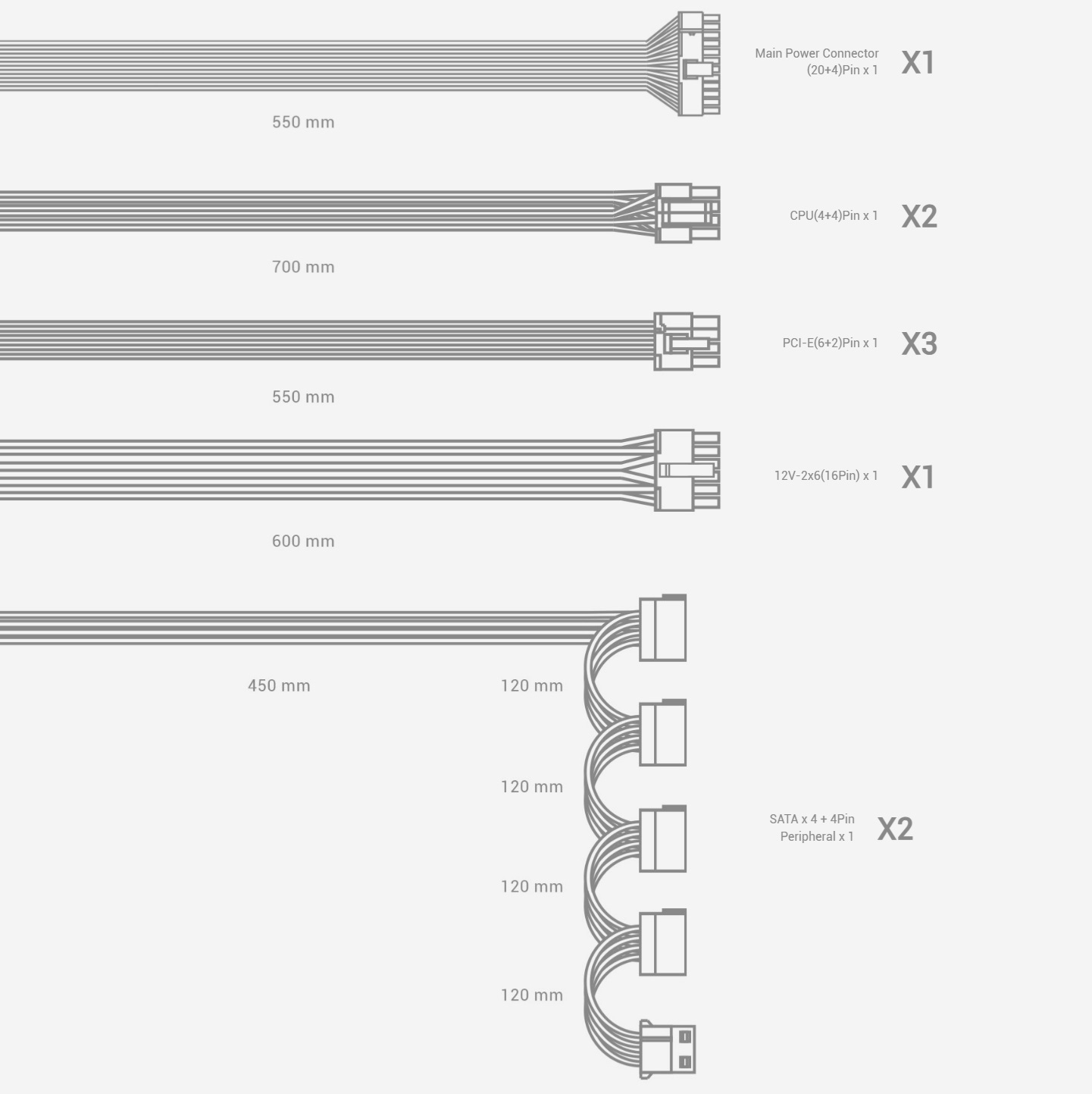

Connector Options:

• 1 x Main Power Connector (20+4)Pin
• 2 x CPU (4+4)Pin
• 3 x PCI-E (6+2)Pin
• 1 x 12V-2×6 (16Pin)
• 2 x SATA + 1 x 4Pin Peripheral

Get ready to power your gaming adventures with the PN650M—where reliability meets gamer-style performance! 🎮⚡️
