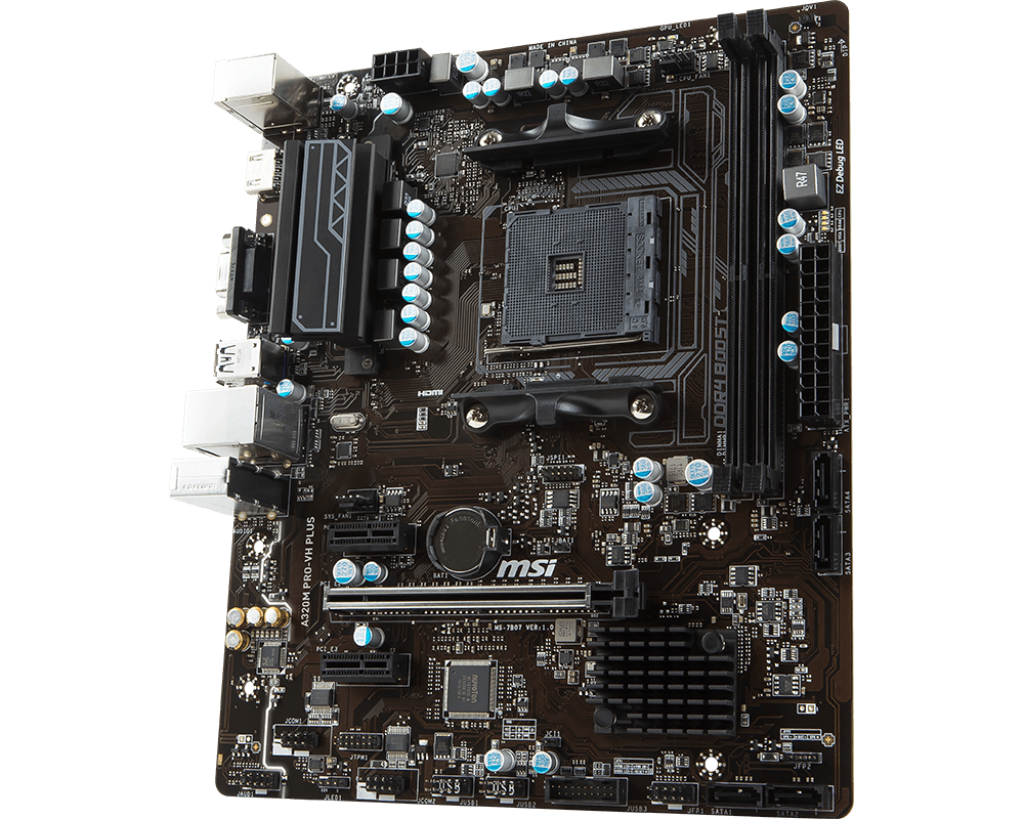

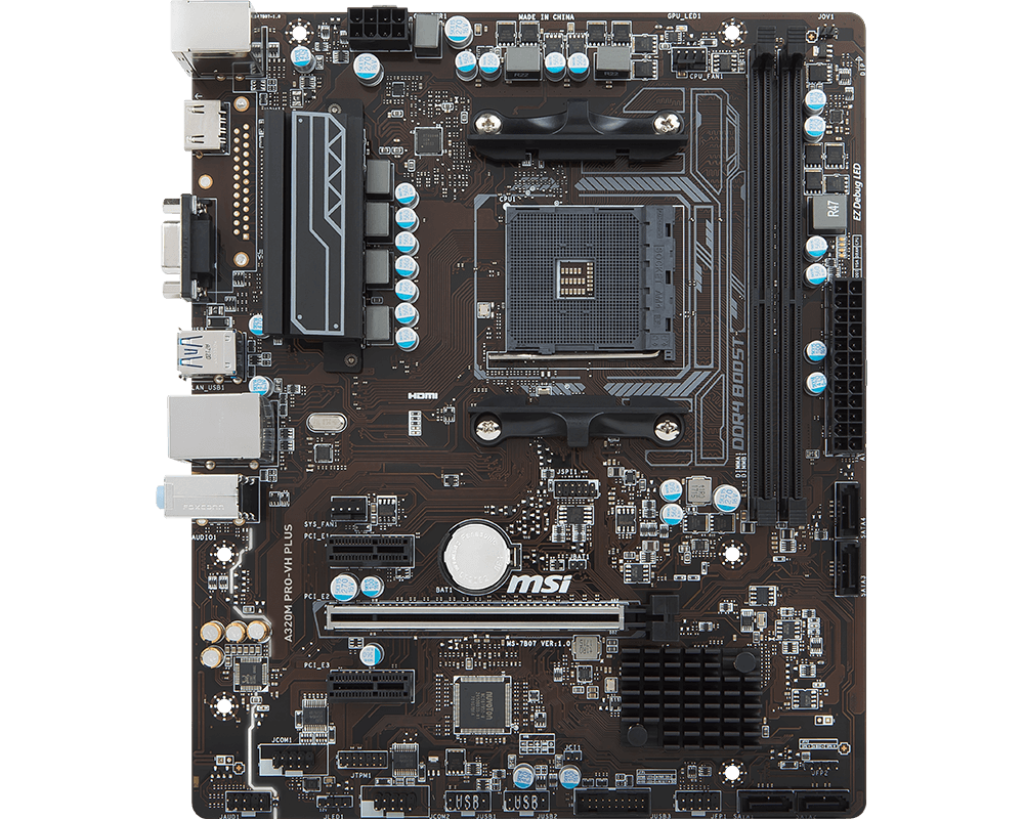

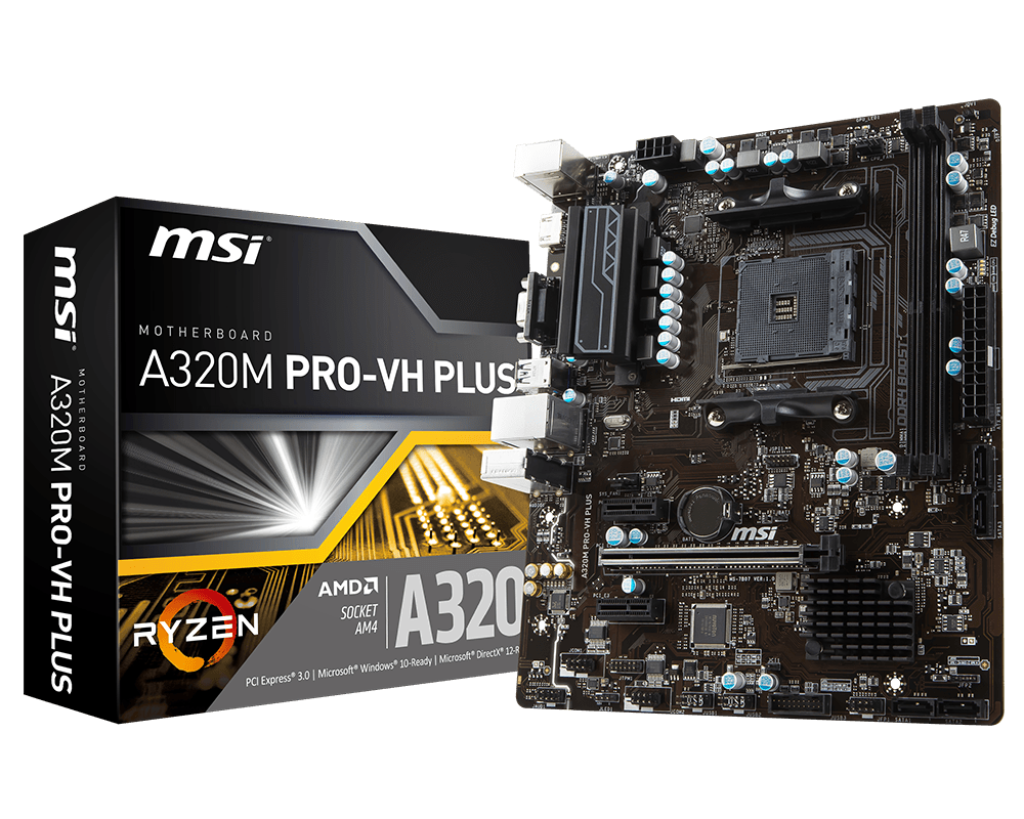

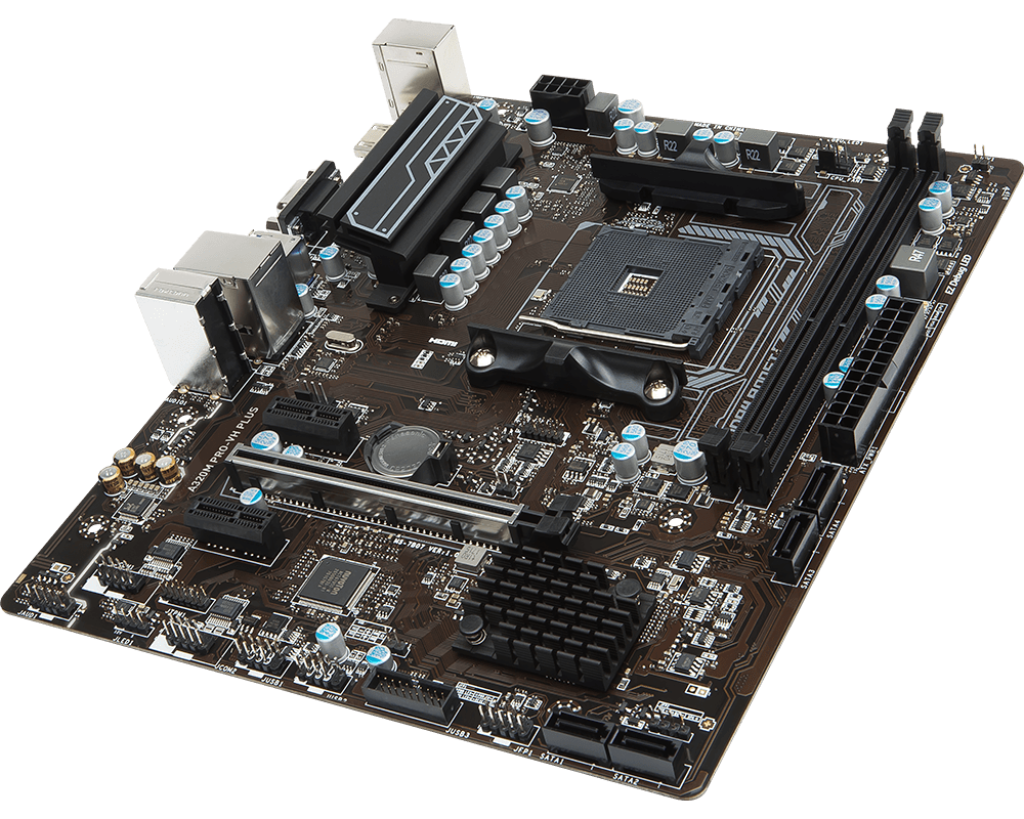

MSI ProSeries AMD Ryzen A320M PRO-VH PLUS DDR4 VR Ready HDMI USB 3 micro-ATX Motherboard , Dual DDR4, USB 3.1 Gen1, HDMI, VGA, Realtek ALC887 Audio, PCI-E Gen3, SATA 6Gb/s, Windows 10/7 Support (A320M Model)

VH PLUS A320M AMD DDR4 micro-ATX Motherboard

Expert Specs

• Socket: AM4
• Chipset: AMD® A320 Chipset
• Memory Channel: Dual
• DIMM Slots: 2
• Max Memory (GB): 32 GB
• Memory Specifications:
  • Supports DDR4 1866/2133/2400/2667/2933(OC)/3200(OC) MHz*
  • Supports ECC UDIMM (non-ECC mode)
  • Supports non-ECC UDIMM
  • *Note: A-series / Athlon™ X4 processors support up to DDR4 2400 MHz
• PCI-E x16: 1
  • Supports x16 speed with Ryzen Series Processors
  • Supports x8 speed with AMD® Ryzen™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors
  • Supports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors
• PCI-E Gen: Gen3
• PCI-E x1: 2
• SATAIII: 4 x SATA 6Gb/s
• RAID: 0/1/10
• TPM (header): 1
• USB 3.1 ports (Front): 2 x USB 3.1 Gen1 (SuperSpeed USB)
• USB 3.1 ports (Rear): 4 x USB 3.1 Gen1 (SuperSpeed USB)
• USB 2.0 ports (Front): 4 x USB 2.0 (High-speed USB)
• USB 2.0 ports (Rear): 2 x USB 2.0 (High-speed USB)
• Serial ports (Front): 2
• Audio ports (Rear):
  • Realtek® ALC887 Codec
  • 7.1-Channel High Definition Audio
• VGA: 1 x VGA port (supports a maximum resolution of 2048×1280@60Hz or 1920×1200@60Hz)
• HDMI: 1 x HDMI port (supports a maximum resolution of 4096×2160@24Hz)
  • *Note: Onboard graphics are supported only when using AMD® Ryzen™ with Radeon™ Vega Graphics, Athlon™ with Radeon™ Vega Graphics, or A-series Processors
• DirectX: DirectX 12
• CPU Support:
  • Supports AMD® Ryzen 1st and 2nd Generation
  • Ryzen™ with Radeon™ Vega Graphics
  • Athlon™ with Radeon™ Vega Graphics
  • A-series / Athlon™ X4 Processors for Socket AM4
  • *Note: CPU support depends on the specific processor installed
• Form Factor: M-ATX (9.6 in. x 8.1 in. / 24.4 cm x 20.6 cm)
• Mounting Holes: 6
• Storage:
  • AMD® A320 Chipset
  • 4 x SATA 6Gb/s ports
  • Supports RAID 0, RAID 1, and RAID 10
• LAN: 1 x Realtek® 8111H Gigabit LAN controller
• Internal I/O Connectors:
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin system fan connector
  • 1 x Front panel audio connector
  • 2 x Front panel connectors
  • 1 x TPM module connector
  • 1 x Chassis Intrusion connector
  • 2 x Serial port connectors
  • 1 x Clear CMOS jumper

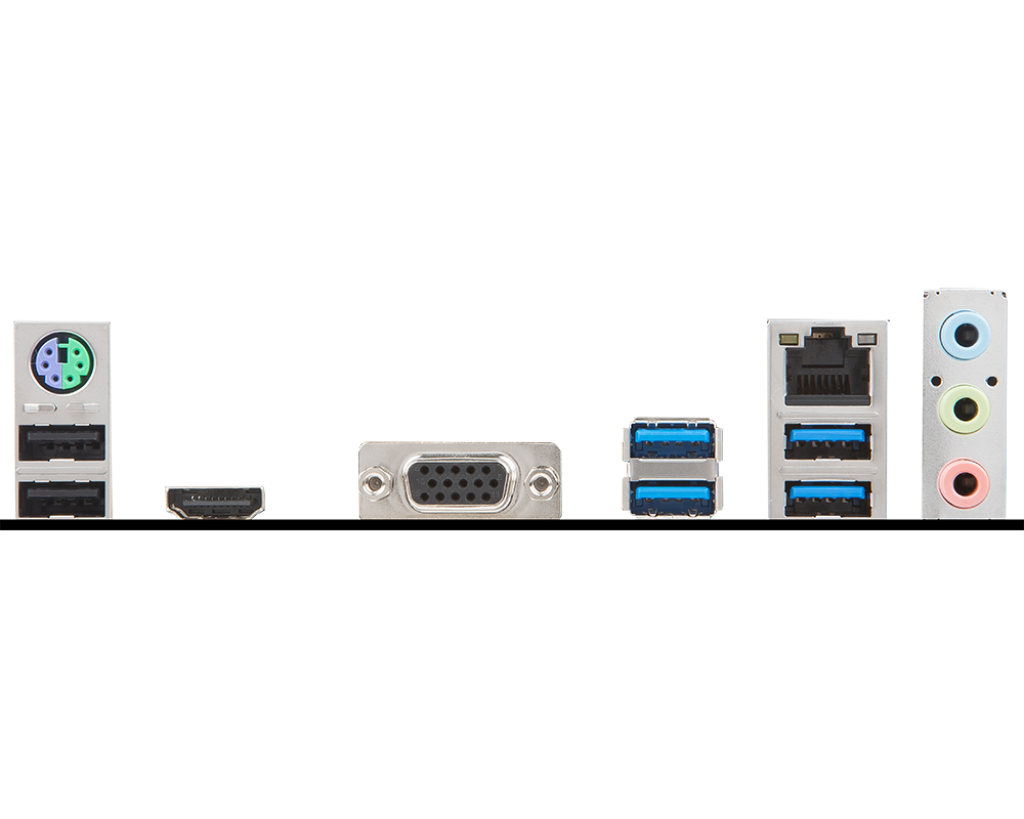

• Back Panel I/O Ports:
  • 1 x PS/2 keyboard/mouse combo port
  • 2 x USB 2.0 Type-A ports
  • 1 x HDMI™ port
  • 1 x VGA port
  • 1 x LAN (RJ45) port
  • 4 x USB 3.1 Gen1 Type-A ports
  • 3 x Audio jacks
• Dimensions: 9.6 in. x 8.1 in. (24.4 cm x 20.6 cm)
• Operating System:
  • Supports Windows® 10 64-bit
  • Supports Windows® 7 64-bit* (*Requires installation of AMD Pinnacle Ridge & Summit Ridge CPUs to support Windows® 7 64-bit)
