KEY SPECS

• Motherboard Support:Mini-ITX, Micro-ATX, ATX
• Enclosure Type:Mid-Tower
• Case Material:SGCC Steel, Ultra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only)

DIMENSIONS

• Height:505mm (With Feet)
• Width:230mm
• Depth:480mm
• Weight:11.36 kg

COMPATIBILITY & CLEARANCE

• Max CPU Cooler Clearance:Up to 185mm
• Max GPU Clearance:Up to 400mm
• Front Radiator Clearance:60mm
• Top Radiator Clearance:30mm
• Cable Management:18-22mm

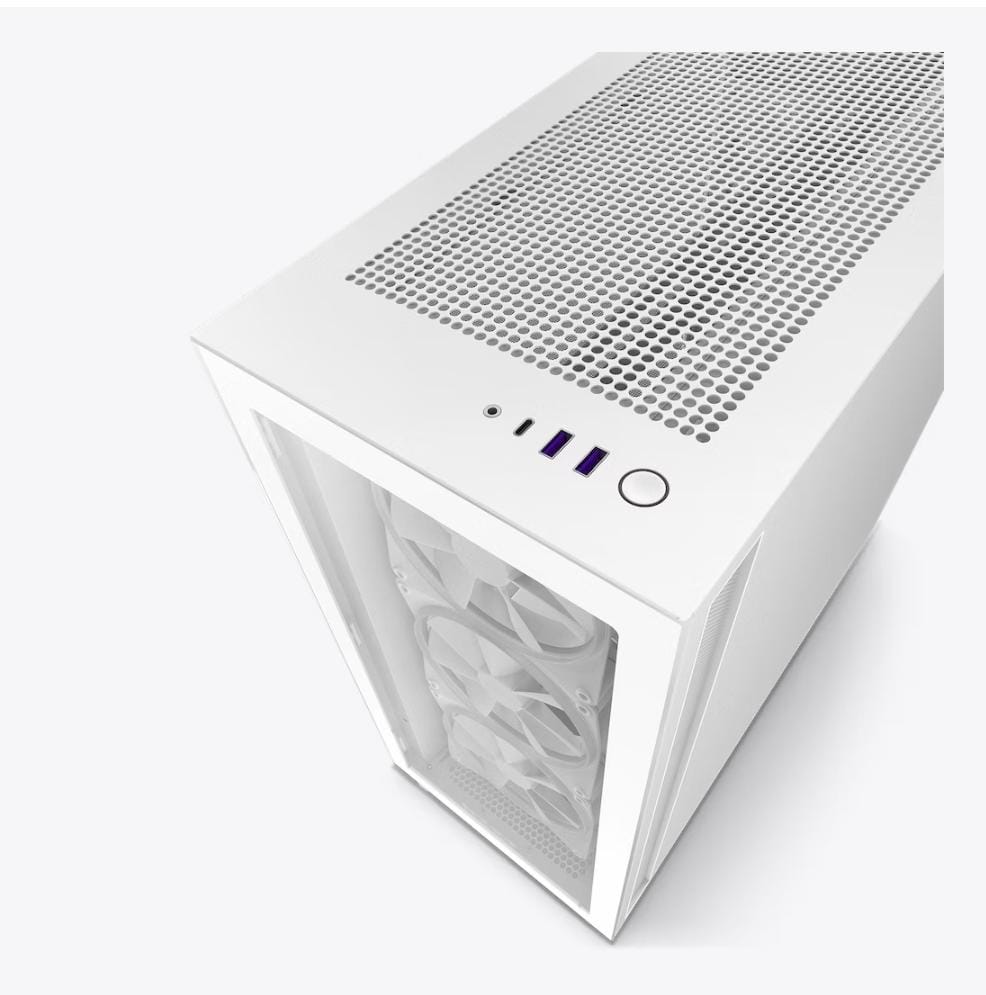

FRONT I/O PORTS

• USB 3.2 Gen 1 Type-A:2
• USB 3.2 Gen 2 Type-C:1
• Headset Audio Jack:1

RGB AND FAN CONTROLLER

• Fan Channels:3
• NZXT RGB Connector:6 (Support up to 120 LEDs)

EXPANSION SLOTS

• Standard:7
• Vertical:0

DRIVE BAYS

• 2.5″:4+2
• 3.5″:2

FAN SUPPORT

• Front:3 x 120mm / 3 x 140mm
• Top:3 x 120mm / 2 x 140mm
• Rear:1 x 120mm / 1 x 140mm
• Filters:All Air Intakes

RADIATOR SUPPORT

• Front:Up to 360mm with Push/Pull
• Top:Up to 360mm
• Rear:Up to 140mm

FAN SPECS

• Model:F140Q (Case Version)
• Speed:1200 ± 240RPM
• Airflow:99.56 CFM
• Static Pressure:1.14 mm-H2O
• Noise:24.18 dBA
• Fan Connector:3-pin

FAN SPECS

• Model:F140 RGB
• Speed:500 – 1800 RPM
• Airflow:24.85 – 89.48 CFM
• Static Pressure:0.94 – 3.39 mm-H2O
• Noise:20 – 32.5 dBA
• Fan Connector:4-pin
