SKU: CC-H52FW-R1

NZXT H5 Flow RGB 2024 Edition White ATX Mid-Tower Case, 1x F360 RGB Core & 1x F120Q Fan, Supports 360mm Radiator, Mesh Panels, Compatible With ATX/mATX/ITX | CC-H52FW-R1

Name: NZXT H5 Flow RGB 2024 Edition White ATX Mid-Tower Case, 1x F360 RGB Core & 1x F120Q Fan, Supports 360mm Radiator, Mesh Panels, Compatible With ATX/mATX/ITX | CC-H52FW-R1 | Expert-Zone
SKU: CC-H52FW-R1
Price: 123.00 USD
Availability: InStock

$ 123.00

Compare

Description

🧠 Expert Features

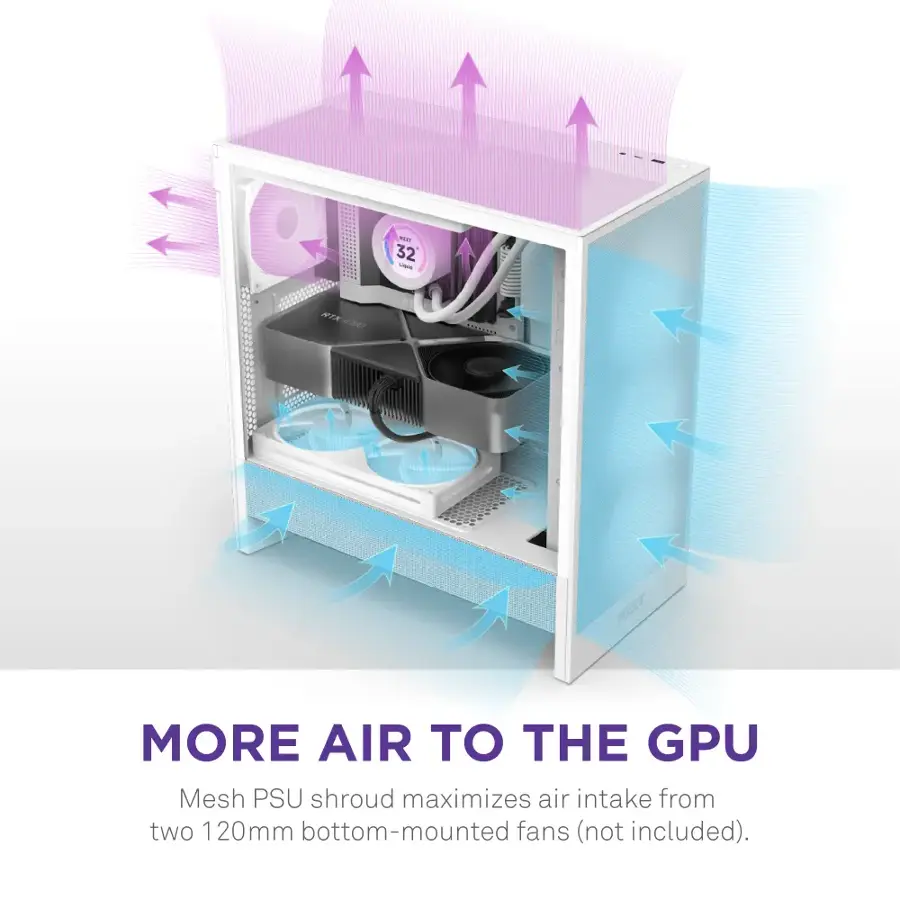

Enhanced GPU Cooling with Mesh Shroud: Perforated PSU shroud pulls extra cool air from bottom-mounted 120mm fans (not included) to support high-power GPUs.

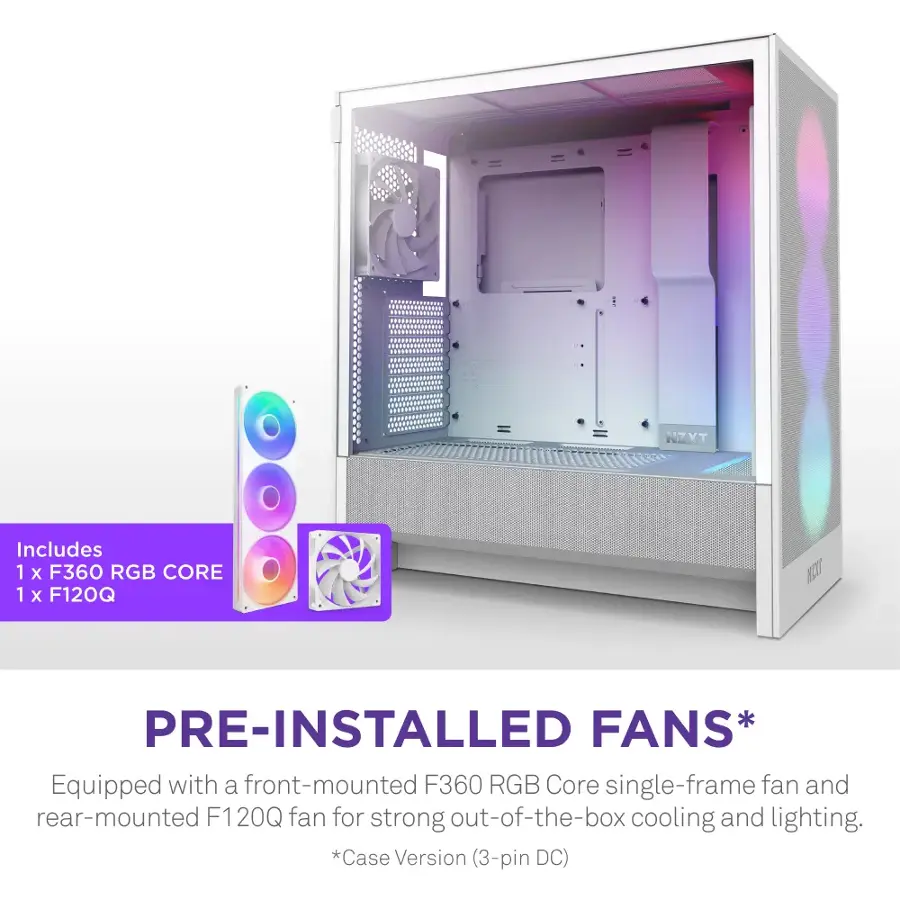

Ready-to-Glow RGB Fans: Includes pre-installed F360 RGB Core (Front) and F120Q (Rear) fans for vibrant out-of-the-box cooling and lighting.

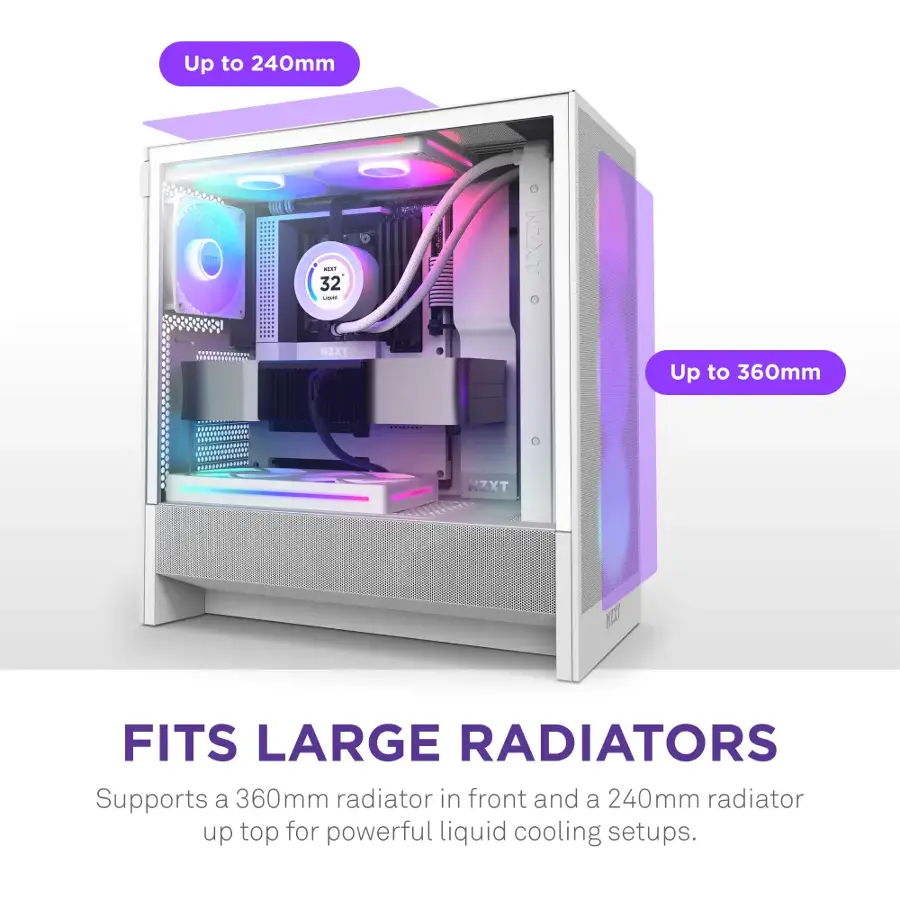

Radiator-Ready Design: Accommodates a 360mm front radiator and up to 240mm up top (or 280mm with low-profile memory modules).

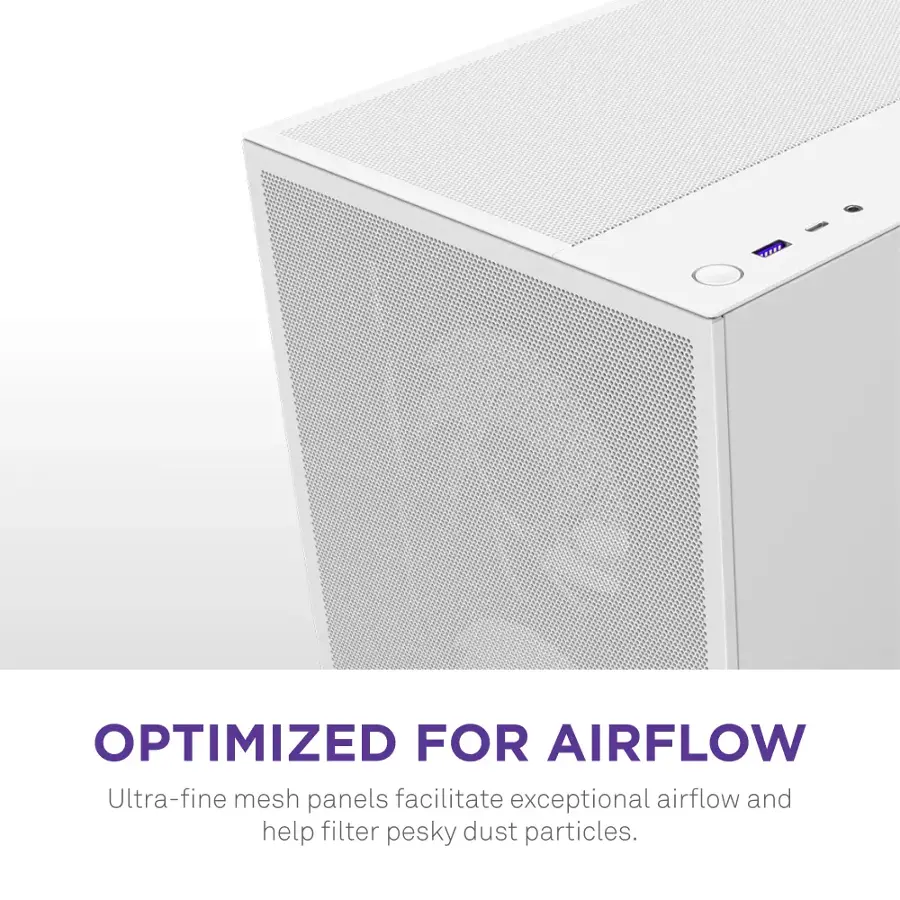

Ultra-Fine Mesh Panels: Mesh on the top, front, and PSU shroud maximizes airflow while filtering dust to keep components clean and cool.

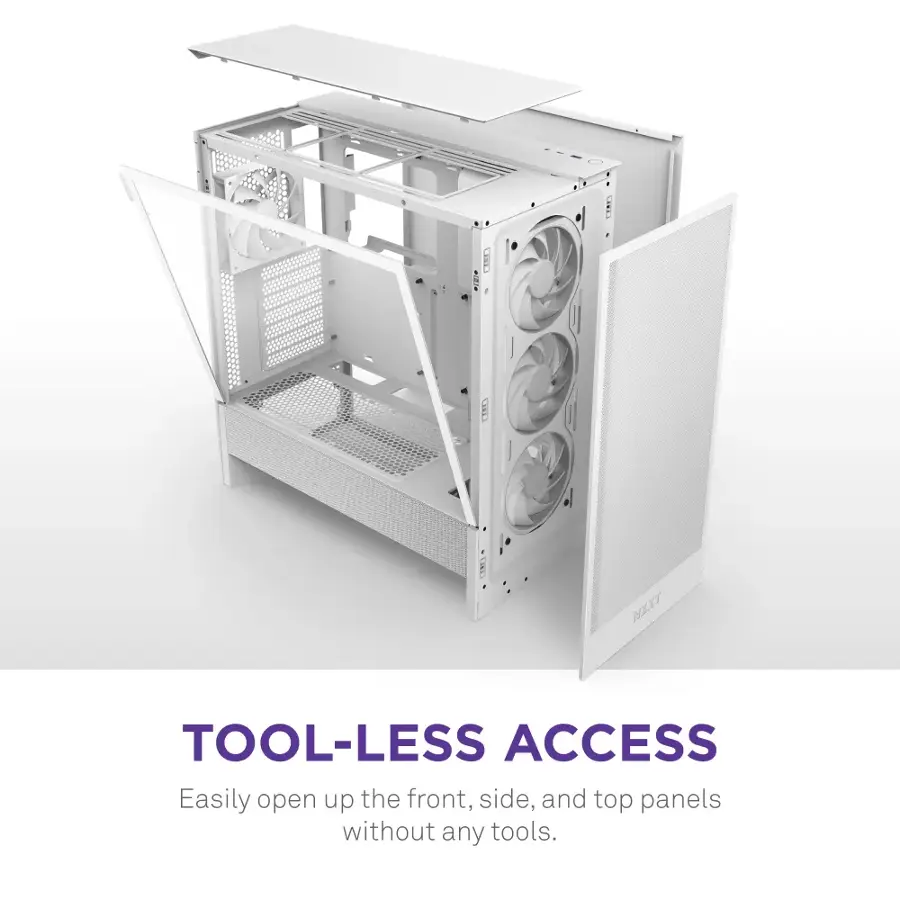

Tool-Less Panel Access: Front, side, and top panels can be removed easily without any tools—great for fast upgrades and cleaning.

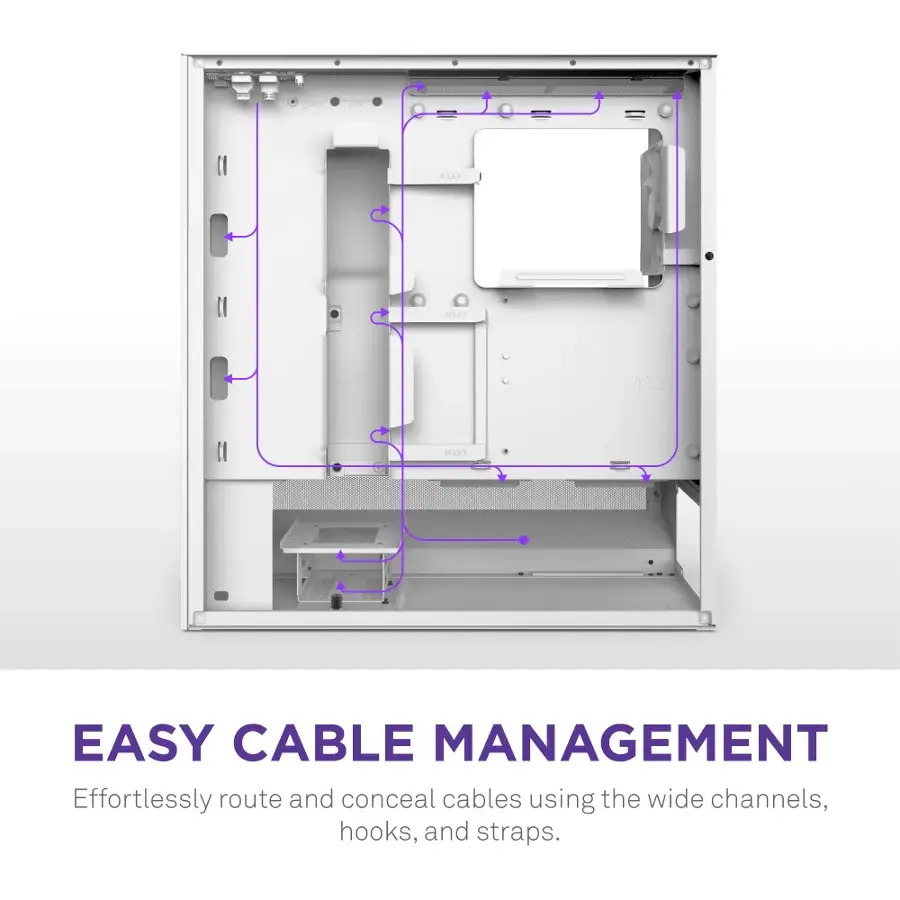

Optimized Cable Management: Wide channels, integrated straps, and hooks offer seamless cable routing behind the motherboard tray.
Spacious Interior in Compact Size: Despite its smaller footprint, the H5 Flow RGB supports GPUs up to 410mm and CPU coolers up to 170mm.
Modern Front I/O: Includes USB 3.2 Gen 2×2 Type-C, USB 3.2 Type-A, and a combo audio jack on the top panel for easy access.

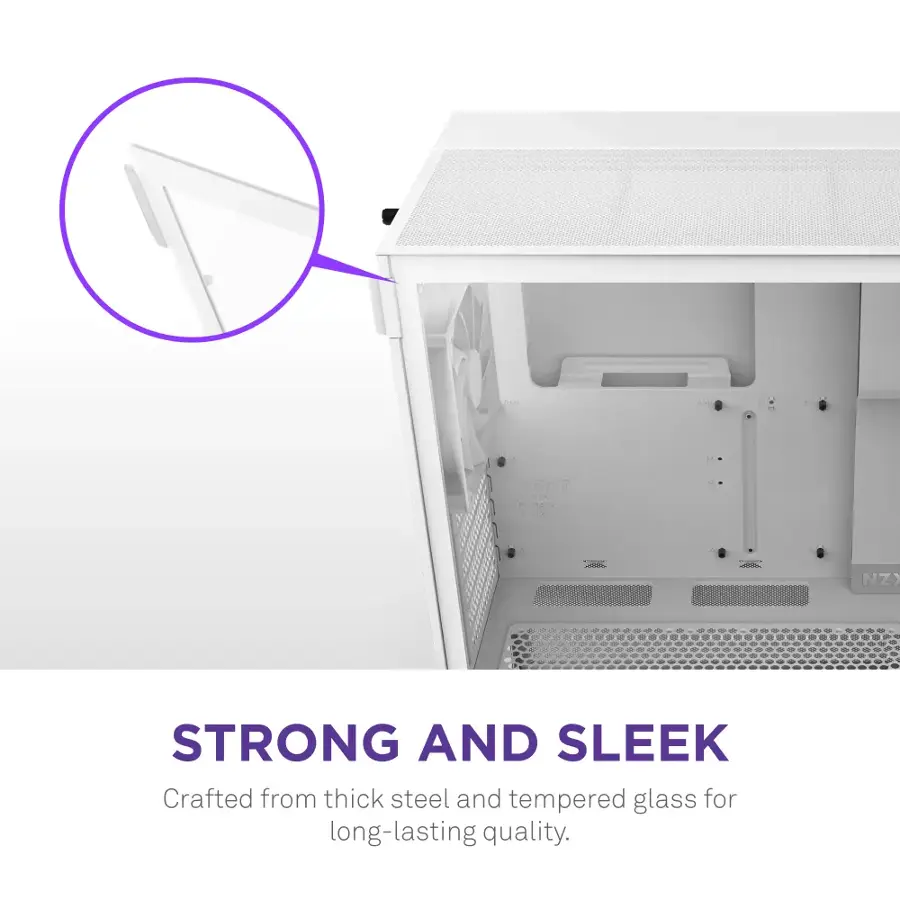

Durable & Aesthetic Build: Built from SGCC steel with dark tinted tempered glass for a clean, modern look in white.
Built to Game, Built to Show: Perfect for gaming, streaming, or RGB-themed builds with strong airflow and bold aesthetics.

📊 Expert Specs

Feature	Specification
Model Number	CC-H52FW-R1
Case Type	Mid-Tower
Material	SGCC Steel, Ultra-Clear Tempered Glass (White)
Motherboard Support	ATX, mATX, Mini-ITX, E-ATX (up to 277mm wide)

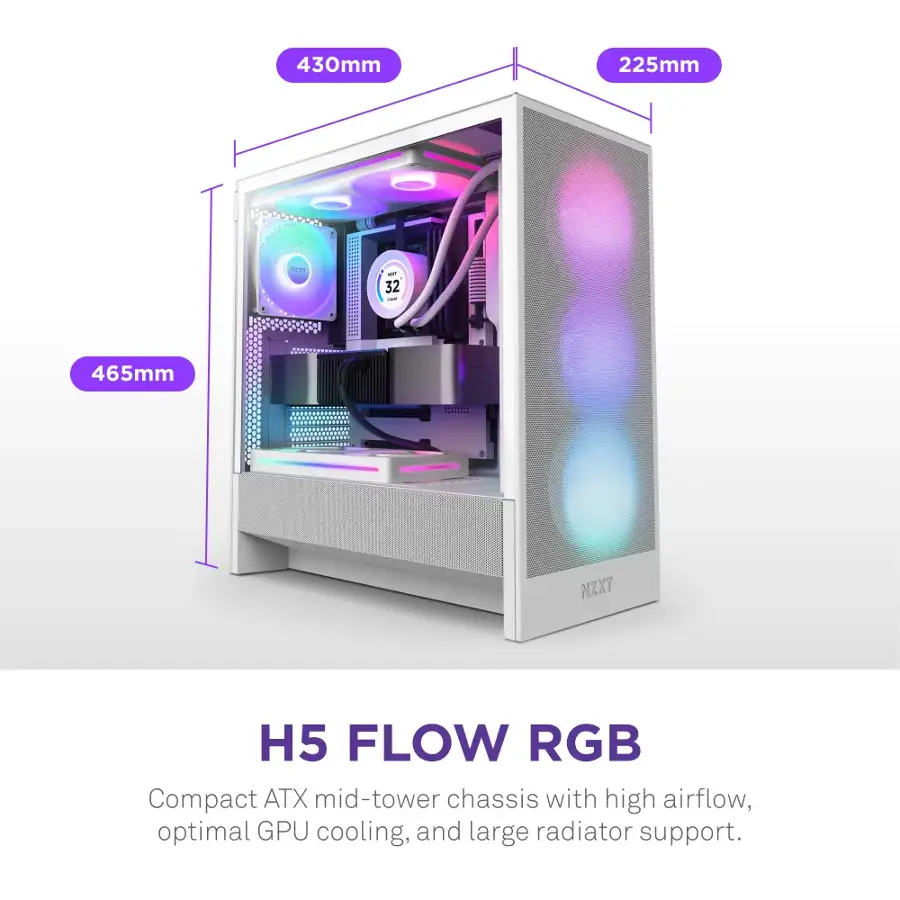

Dimensions (H x W x D)	465 x 225 x 430 mm (18.31 x 8.86 x 16.93 in)
Weight	7.63 kg (16.82 lb)
Expansion Slots	7 Standard
Drive Bays	2 x 2.5″, 1 x 3.5″
GPU Clearance	Up to 410 mm
CPU Cooler Clearance	Up to 170 mm
PSU Clearance	Up to 200 mm
Cable Management Depth	Up to 28.7 mm
Front Fan Support	3 x 120mm / 2 x 140mm (1 x F360 RGB Core pre-installed)
Top Fan Support	2 x 120mm / 2 x 140mm
Bottom Fan Support	2 x 120mm
Rear Fan Support	1 x 120mm (1 x F120Q pre-installed)
Front Radiator Support	Up to 360mm
Top Radiator Support	Up to 240mm (280mm w/ low-profile RAM)
I/O Ports	1 x USB 3.2 Gen 2×2 Type-C, 1 x USB 3.2 Type-A, Audio Jack
Included Fans	1 x F360 RGB Core (Front), 1 x F120Q (Rear)
Fan Type (Case Version)	3-pin DC (Both fans)
Fan Specs – F360 RGB	1700±200 RPM, 50.1 CFM, 23.3 dBA, 1.27 mm-H₂O
Fan Specs – F120Q	1350±150 RPM, 60.2 CFM, 24.1 dBA, 1.05 mm-H₂O
