SW-NETIS-8PORT

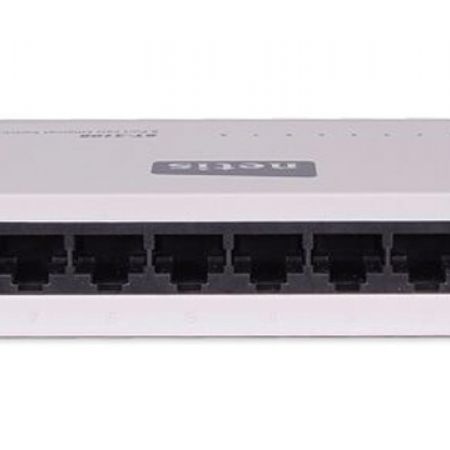

NETIS SWITCH 8 PORT 10/100MBPS ST-3108

Product Description

Eight (8) 10/100Mbps RJ45 ports, Auto-Negotiation & Auto MDI/ MDIX

IEEE 802.3x flow control for Full Duplex mode and back pressure for Half Duplex mode

1.6Gbps switching fabric capacity/backplane bandwidth

Green Ethernet technology for effective power saving

LED indicators for simple diagnostics and management

Plug and play, no configuration required

Compact plastic case, desktop design for home and office use

Interface: 8* 10/100M TX ports

LED: PWR, 1-8

Cabling Type 10Base-T:UTP Cat.3 or up, 100Base-TX:UTP Cat.5 or up

Standard: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX,IEEE802.3ab 1000Base-T

Access Method: CSMA/CD

Transmission Method: Store and Forward

Data Transmission Rate: 10/100Mbps(Half-duplex), 20/200Mbps(Full-duplex)

MAC Address Table: 1K

Operating Temperature: 0-40C

Storage Temperature: -40, 70C

Operating Humidity: 10%-90%RH non-condensing

Storage Humidity: 5%-90%RH non-condensing

Input: 100-240V 0.2A 50/60HZ

Output:DC 9V/500mA
