MSI Z790 GAMING PLUS WIFI Motherboard, ATX – Supports Intel 14th, 13th & 12th Gen Core Processors, LGA 1700 – DDR5 Memory Boost 7200+MHz/OC, 1 x PCIe 5.0 x16, 4 x M.2 Gen4, 2.5G LAN, Wi-Fi 6E

$ 277.00 ---ONLY---

OUT OF STOCK

OUT OF STOCK

Add to compare

Description

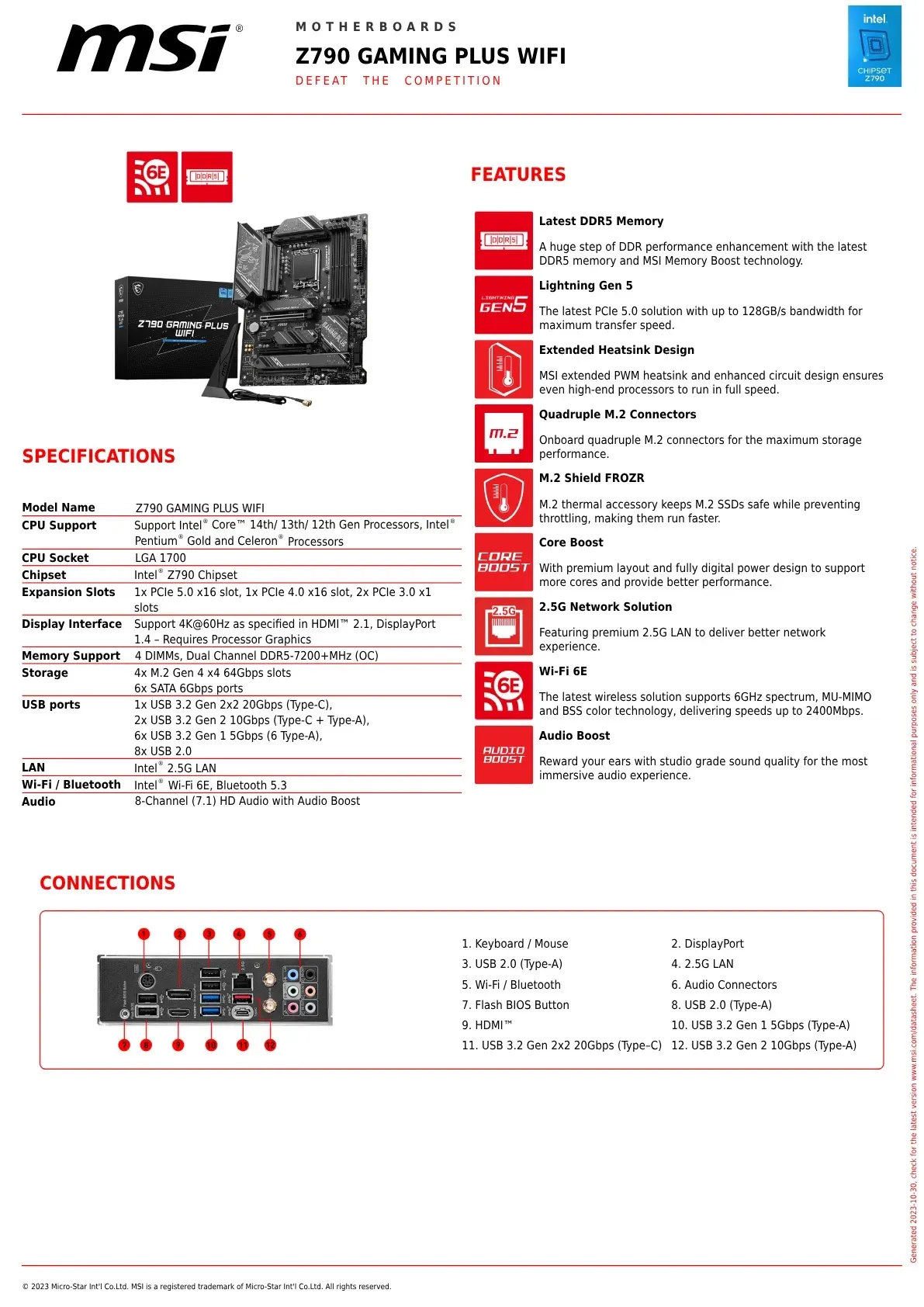

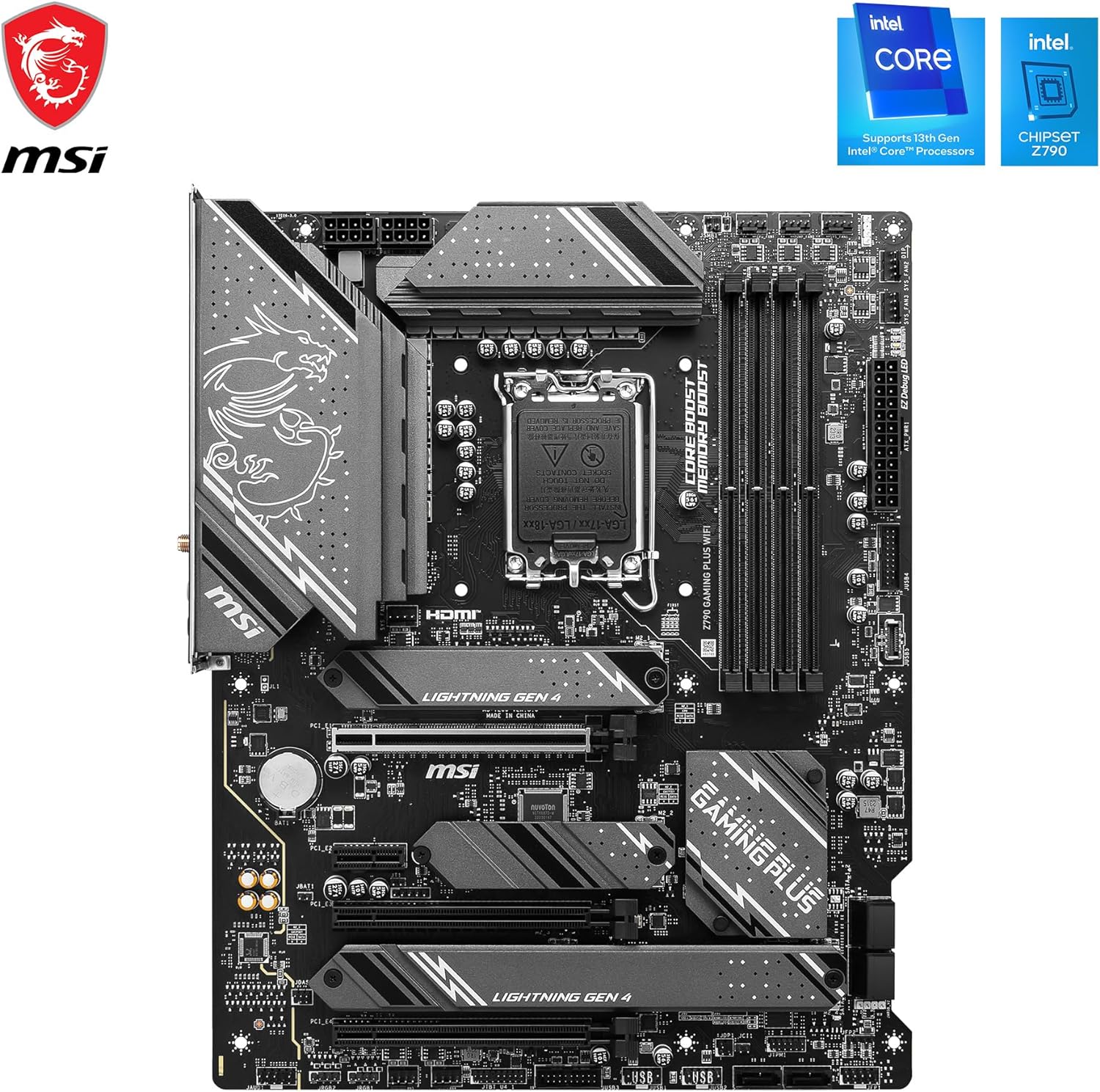

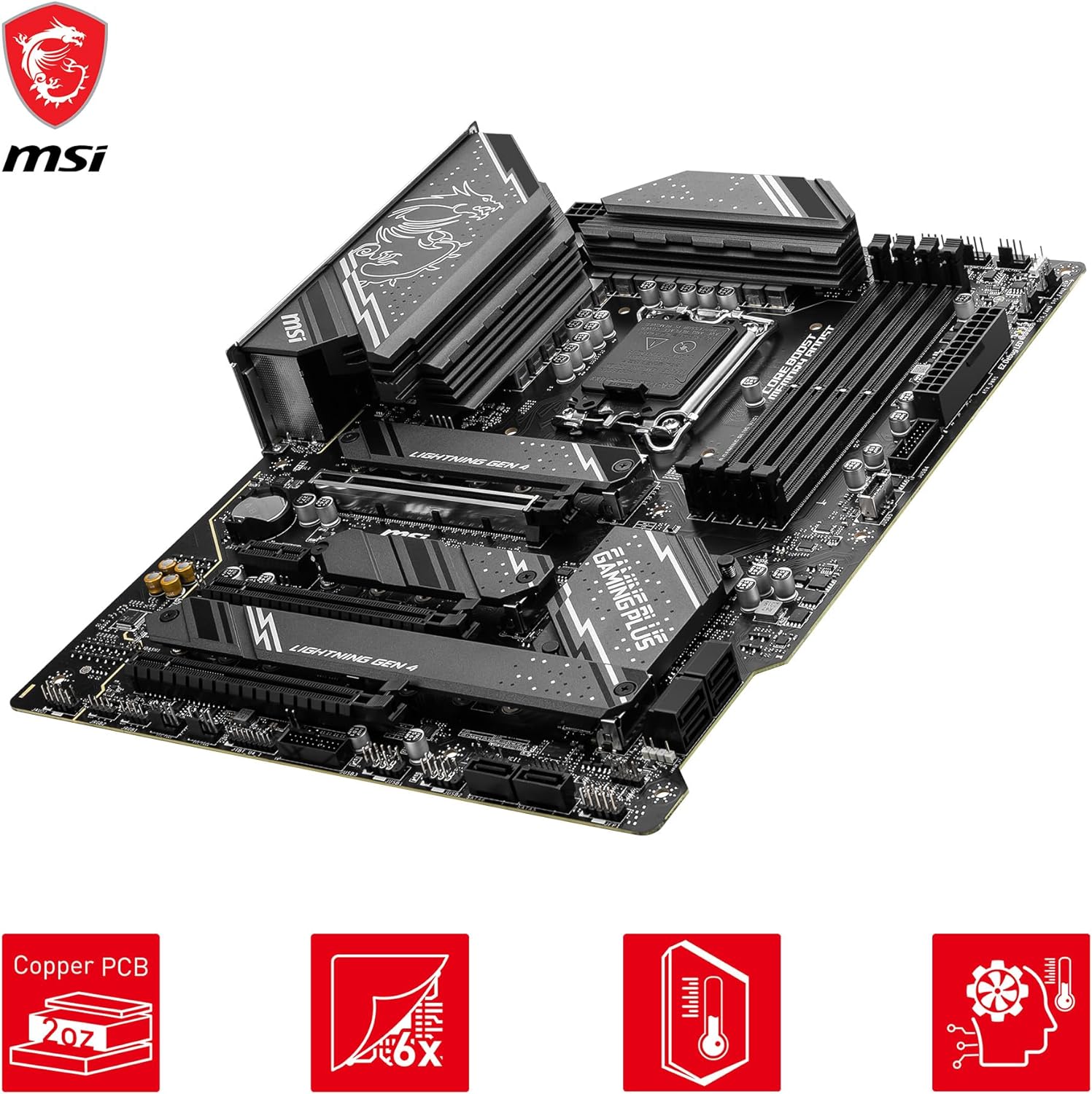

MSI Z790 GAMING PLUS WIFI Motherboard

EXPERT FEATURES

  • Supports 12th/ 13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket

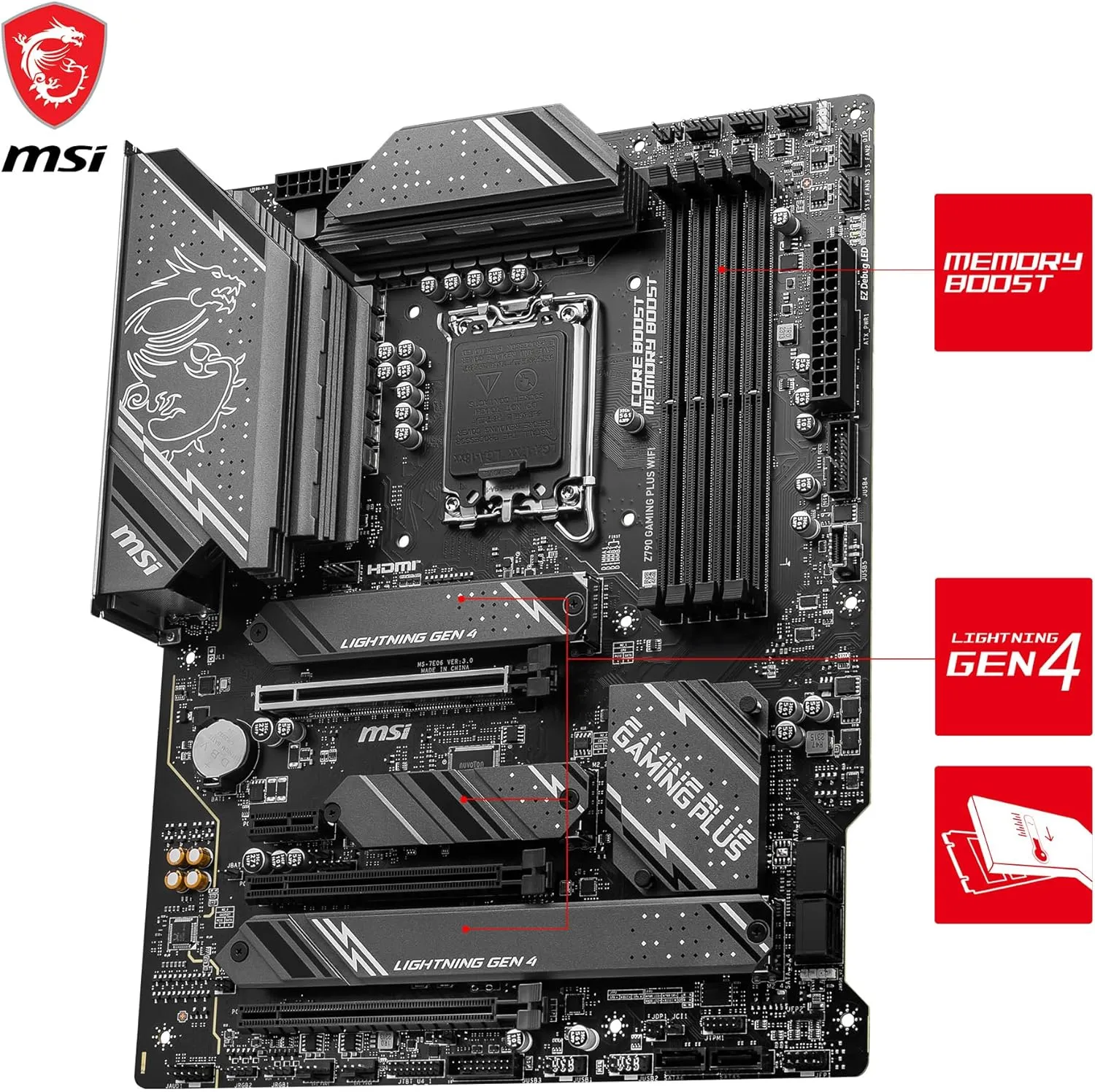

  • Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory

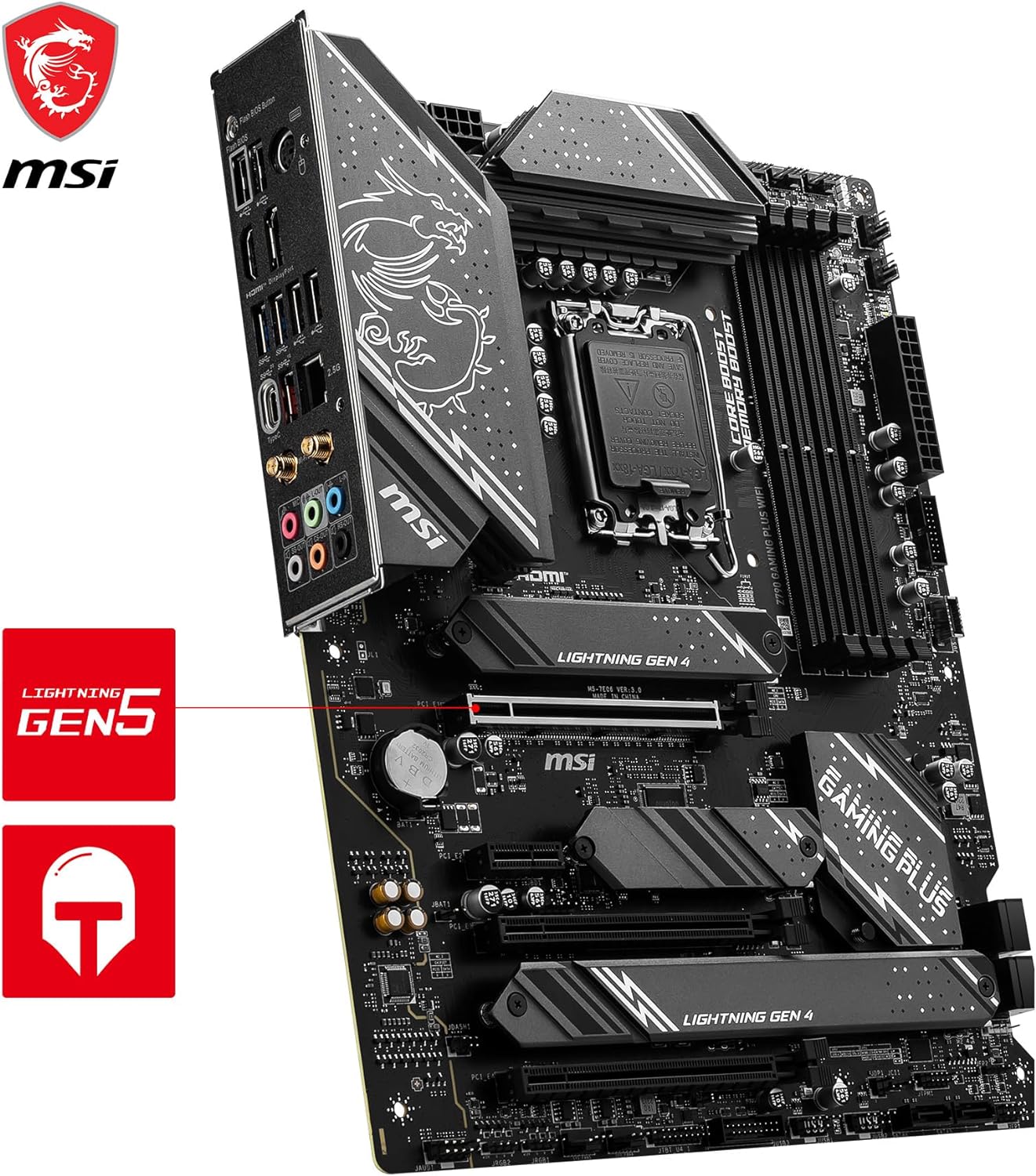

  • Lightning Gen 5:The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
  • Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
  • Quadruple M.2 Connectors: Onboard quadruple M.2 connectors for the maximum storage performance.
  • M.2 Shield FROZR:M.2 thermal accessory keeps M.2 SSDs safe while preventing throttling, making them run faster.
  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
  • 2.5G Network Solution: Featuring premium 2.5G LAN to deliver better network experience.
  • BIOS update may be required when used with some 14th generation Intel Core processors, visit MSI support website for more information

EXPERT FEATURES

Model
Brand MSI
Model Z790 GAMING PLUS WIFI
Supported CPU
CPU Socket Type  LGA 1700
CPU Type Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold
Chipsets
Chipset  Intel Z790
Memory
Number of Memory Slots 4x288pin (DDR5)
Memory Standard DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)
Maximum Memory Supported 192GB
Channel Supported  Dual Channel
Memory Feature Max. overclocking frequency:
– 1DPC 1R Max speed up to 7200+ MHz
– 1DPC 2R Max speed up to 6600+ MHz
– 2DPC 1R Max speed up to 6400+ MHz
– 2DPC 2R Max speed up to 5600+ MHzSupports Intel XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Expansion Slots
PCI Express 5.0 x16 PCI_E1 slot (From CPU) Supports up to PCIe 5.0 x16
PCI Express 4.0 x16 PCI_E3 supports up to PCIe 4.0 x4
PCI Express 3.0 x16 PCI_E4 supports up to PCIe 3.0 x1
PCI Express x1 PCI_E2 supports up to PCIe 3.0 x1
Storage Devices
SATA 6Gb/s  6 x SATA 6Gb/s
M.2 2 x M.2 (Support PCIe 4.0 x4 & SATA) / 2 x M.2 (Support PCIe 4.0 x4)
SATA RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Onboard Audio
Audio Chipset  Realtek ALC897
Audio Channels  7.1-Channel High Definition Audio
Onboard LAN
Max LAN Speed 2.5Gbps
Wireless LAN Intel Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Bluetooth Bluetooth 5.3
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

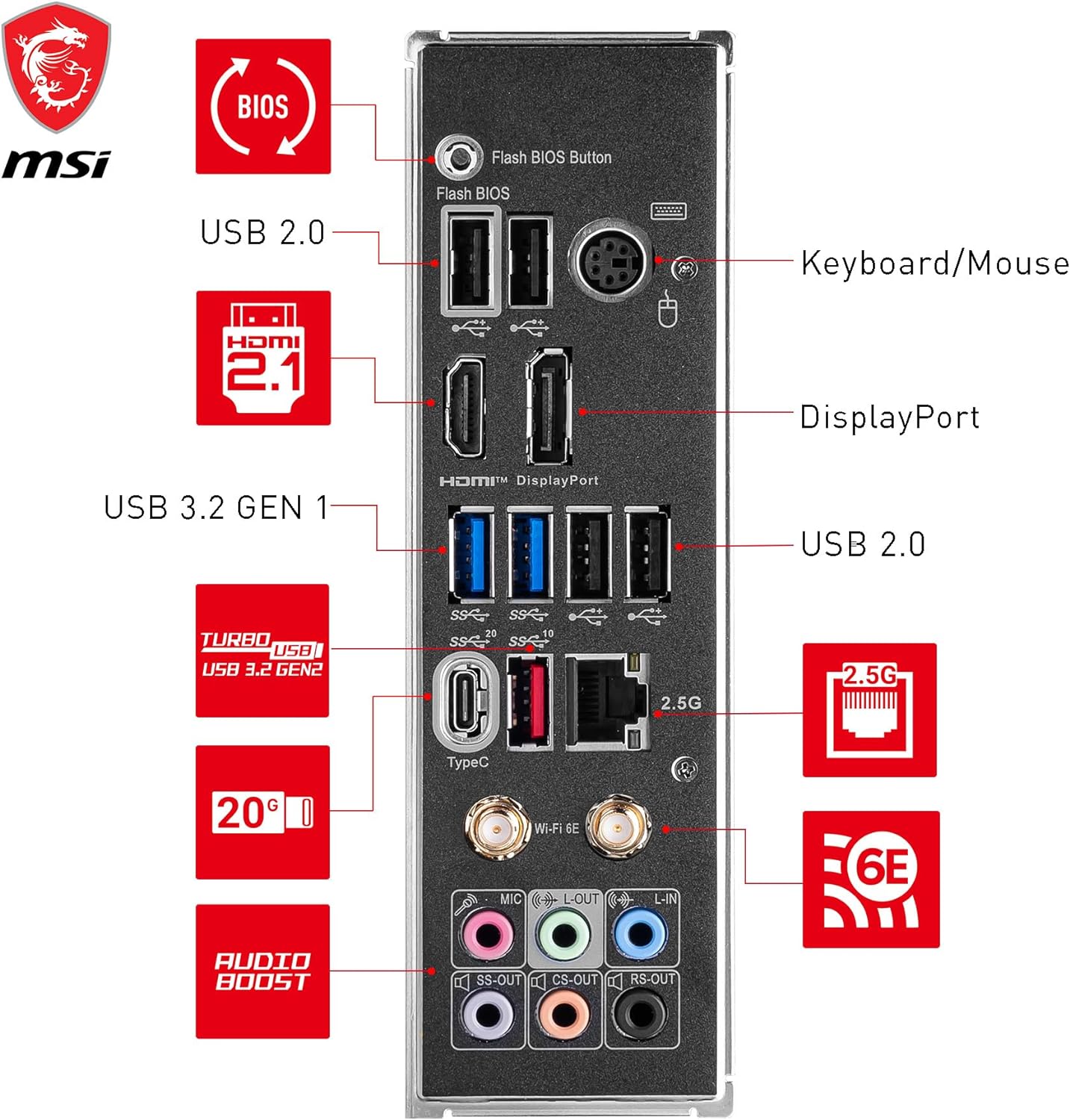

Rear Panel Ports
Back I/O Ports 1 x Keyboard / Mouse
1 x DisplayPort
3 x USB 2.0
1 x 2.5G LAN Port
1 x Wi-Fi / Bluetooth Antenna
6 x Audio Connectors
1 x Flash BIOS Button
1 x HDMI 2.1 Port
2 x USB 3.2 Gen 1 5Gbps Type-A
1 x USB 3.2 Gen 2×2 20Gbps Type-C
1 x USB 3.2 Gen 2 10Gbps Type-A
Internal I/O Connectors
Onboard USB 4 x USB 2.0 ports
4 x USB 3.2 Gen1 Type A ports
1 x USB 3.2 Gen2 Type C ports
Other Connectors 1 x CPU Fan
1 x Pump Fan
6 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x Tuning Controller connector (JDASH)
2 x Addressable V2 RGB LED connector (JARGB_V2)
2 x RGB LED connector (JRGB)
1 x TPM pin header (Support TPM 2.0)
1 x USB4 card connector (JTBT_U4_1, supports RTD3)
Physical Spec
Form Factor ATX
LED Lighting 4 x EZ Debug LED
Dimensions (W x L) 12.0″ x 9.6″
Power Pin 1 x Power Connector (ATX_PWR)
2 x Power Connector (CPU_PWR)
Windows Compatibility
Windows 11 Supported
