SKU: MSI-6600-XT-OCV1-U

MSI Radeon RX 6600 XT MECH 2X 8G OCV1 | 8GB GDDR6 | 2602 MHz Boost | Torx Fan 3.0 | Dual-Fan Cooling | Backplate | PCIe 4.0 | 4 Display Outputs | USED

OUT OF STOCK

Description

Expert Features

  • Torx Fan 3.0 Technology
    Dual fan design featuring dispersion fan blades for focused airflow and improved thermal performance.
  • Zero Frozr Technology
    Smart fan control that stops the fans in low-load situations to reduce noise.

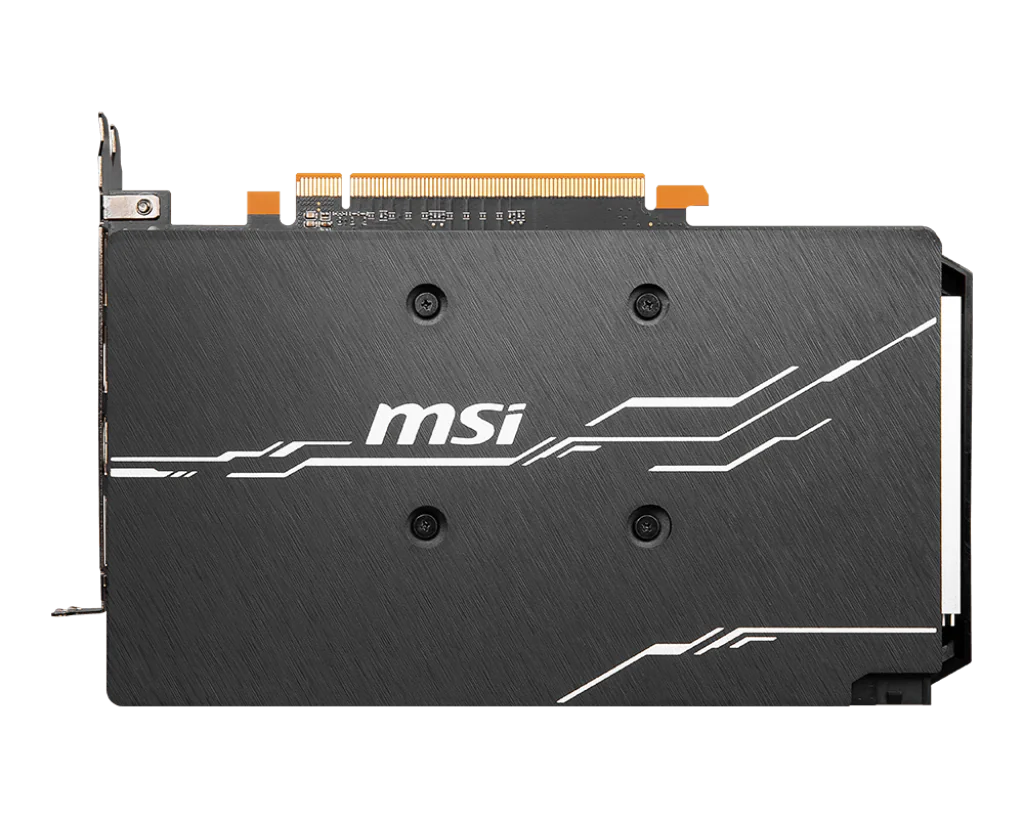

  • Sturdy Backplate
    Reinforces the card physically and adds an extra layer of protection and rigidity, all while enhancing aesthetics.
  • Custom PCB Design
    A tailored PCB layout that boosts power delivery and reliability, perfect for demanding performance sessions.
  • Thermal Padding
    Strategically placed pads ensure effective heat transfer from all critical components.
  • Built-in Fuses
    Added protection against electrical damage for long-term reliability and peace of mind.
  • PCI Express® 4.0 Support
    High-bandwidth interface ensures the GPU delivers maximum performance on compatible motherboards.
  • High Resolution & VR Ready
    Supports resolutions up to 7680×4320 (8K) and is optimized for VR gaming environments.
  • MSI Afterburner Support
    Easily tweak core clocks, fan speeds, and monitor real-time GPU performance.
  • Designed for Gamers & Builders
    The MECH 2X’s industrial aesthetic and compact dimensions make it ideal for a wide range of PC builds.

Expert Specs

Specification Details
Model Name MSI Radeon™ RX 6600 XT MECH 2X 8G OCV1 (USED)
Graphics Engine AMD Radeon RX 6600 XT
Architecture AMD RDNA™ 2
Interface PCI Express® 4.0 x8
Core Clocks Boost: Up to 2602 MHz / Game: Up to 2413 MHz
Stream Processors 2048 Units
Memory 8GB GDDR6
Memory Speed 16 Gbps
Memory Interface 128-bit
Max Digital Resolution 7680 x 4320 (8K UHD)

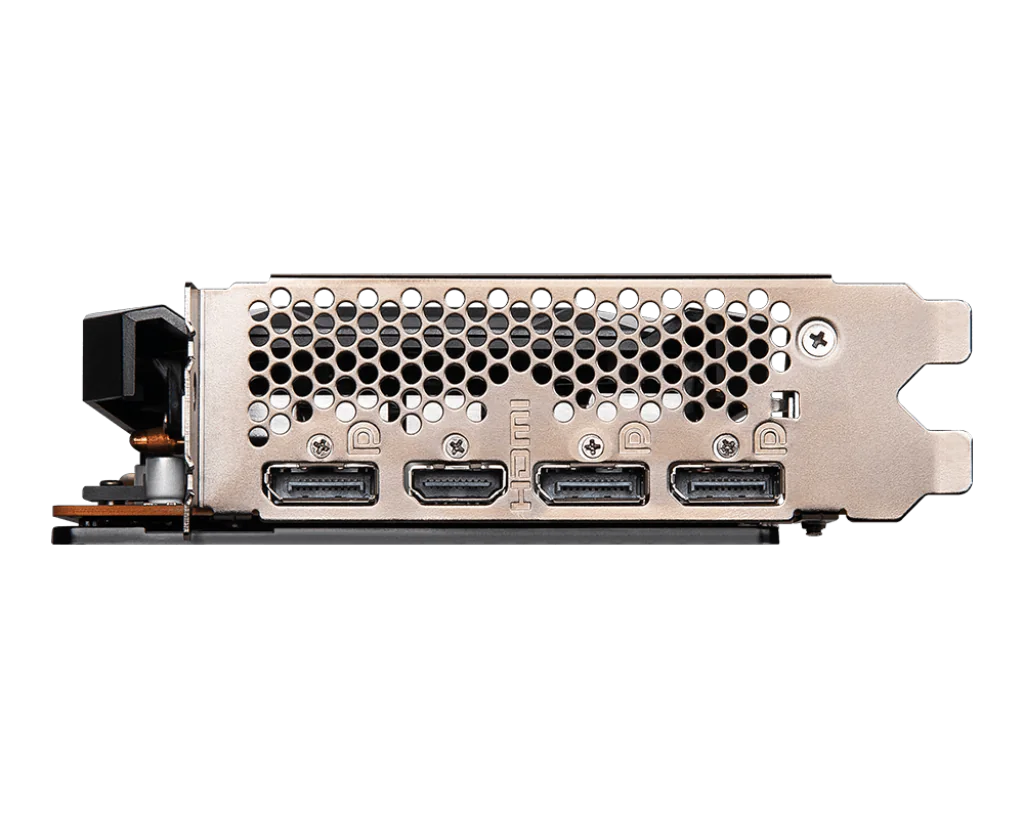

Outputs 3 x DisplayPort 1.4, 1 x HDMI 2.1 (Supports 4K@120Hz/8K@60Hz)
HDCP Support Yes
Max Displays Supported 4
DirectX® Support DirectX 12 Ultimate
OpenGL Support OpenGL 4.6
Multi-GPU Technology Yes
VR Ready Yes
Power Consumption 160W
Power Connector 1 x 8-pin
Recommended PSU 500W or greater
Card Dimensions 215 x 128 x 42 mm
Weight (Card/Package) 728g / 1077g
Software Utility MSI Afterburner
