SKU: 911-7E32-006

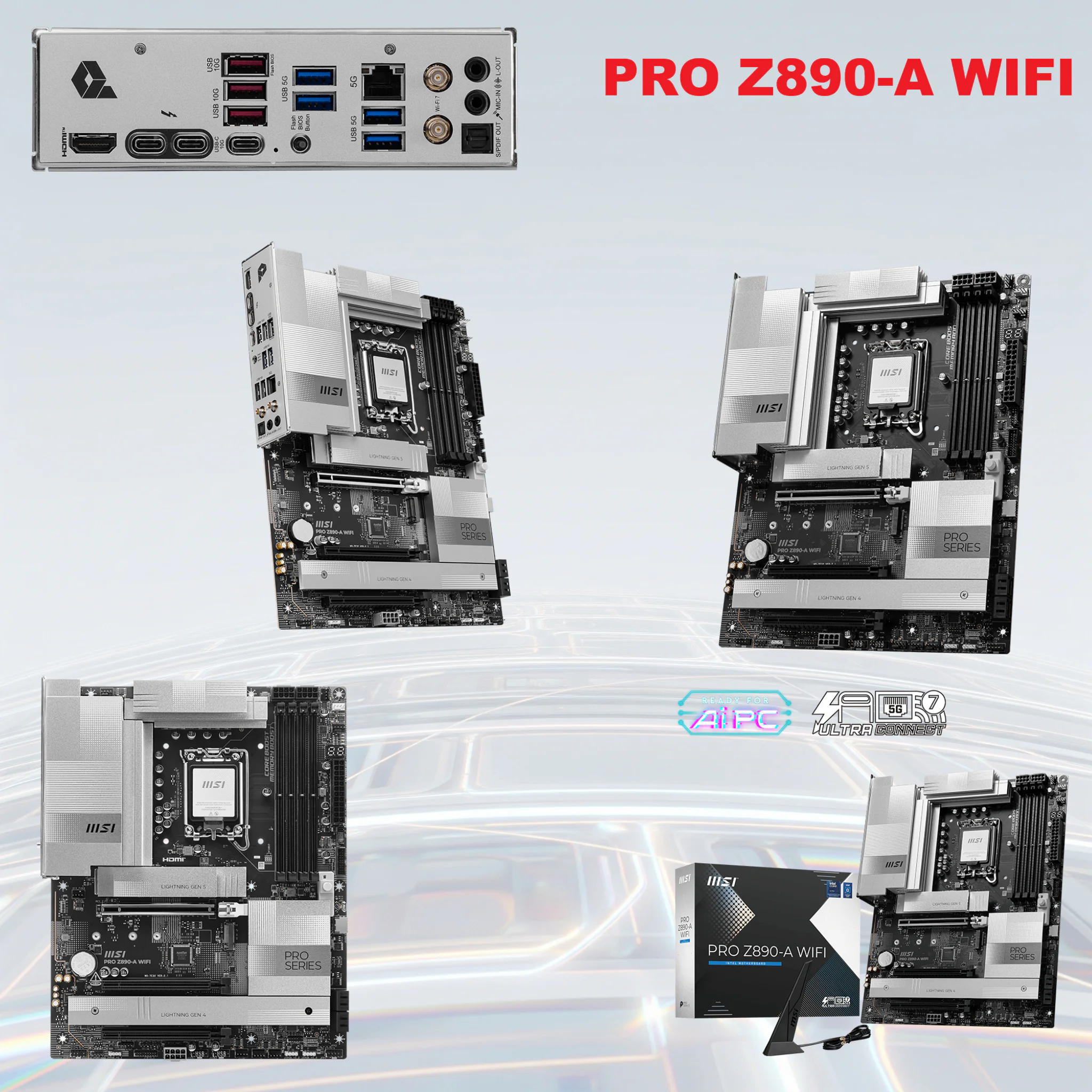

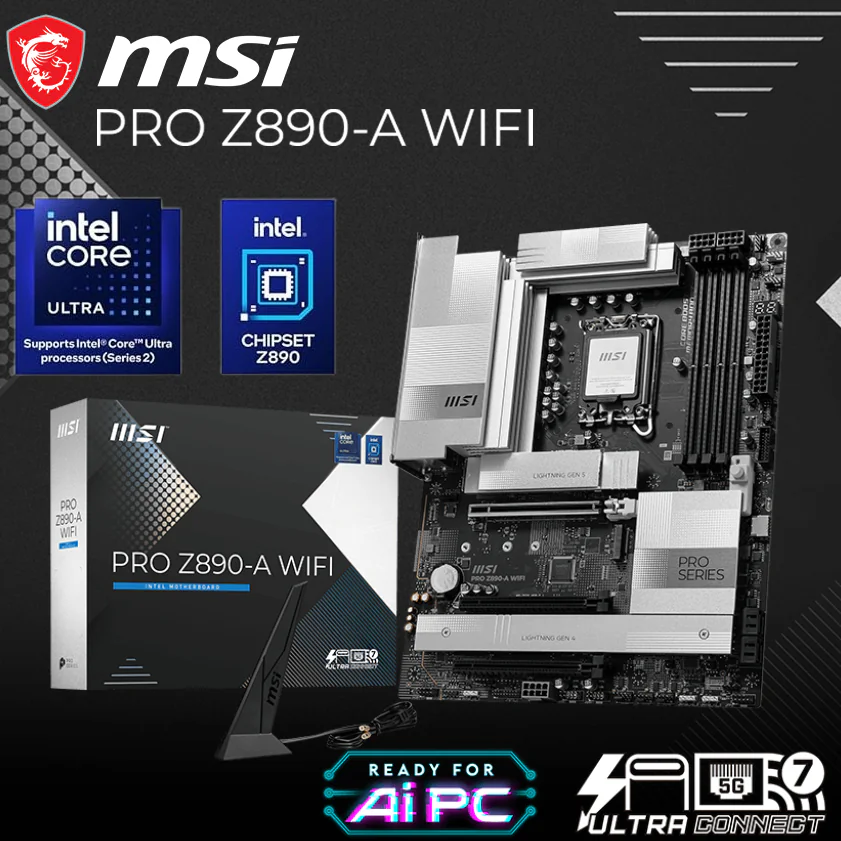

MSI Pro Z890-A WiFi ATX DDR5 Motherboard With Intel Z890 Chipset, Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 Socket, DDR5 9200+ MHz, PCIe 5.0, Wi-Fi 7, 5G LAN, Thunderbolt 4, AI Engine & EZ DIY Features

$ 325.00 ---ONLY---

OUT OF STOCK

OUT OF STOCK

Description

🛠️ Expert Features (Why This Board Is Basically a Spaceship in Disguise)

  • Intel® Core™ Ultra Ready – LGA 1851 socket built for the next-gen (Series 2) CPUs. Future-proof vibes only.

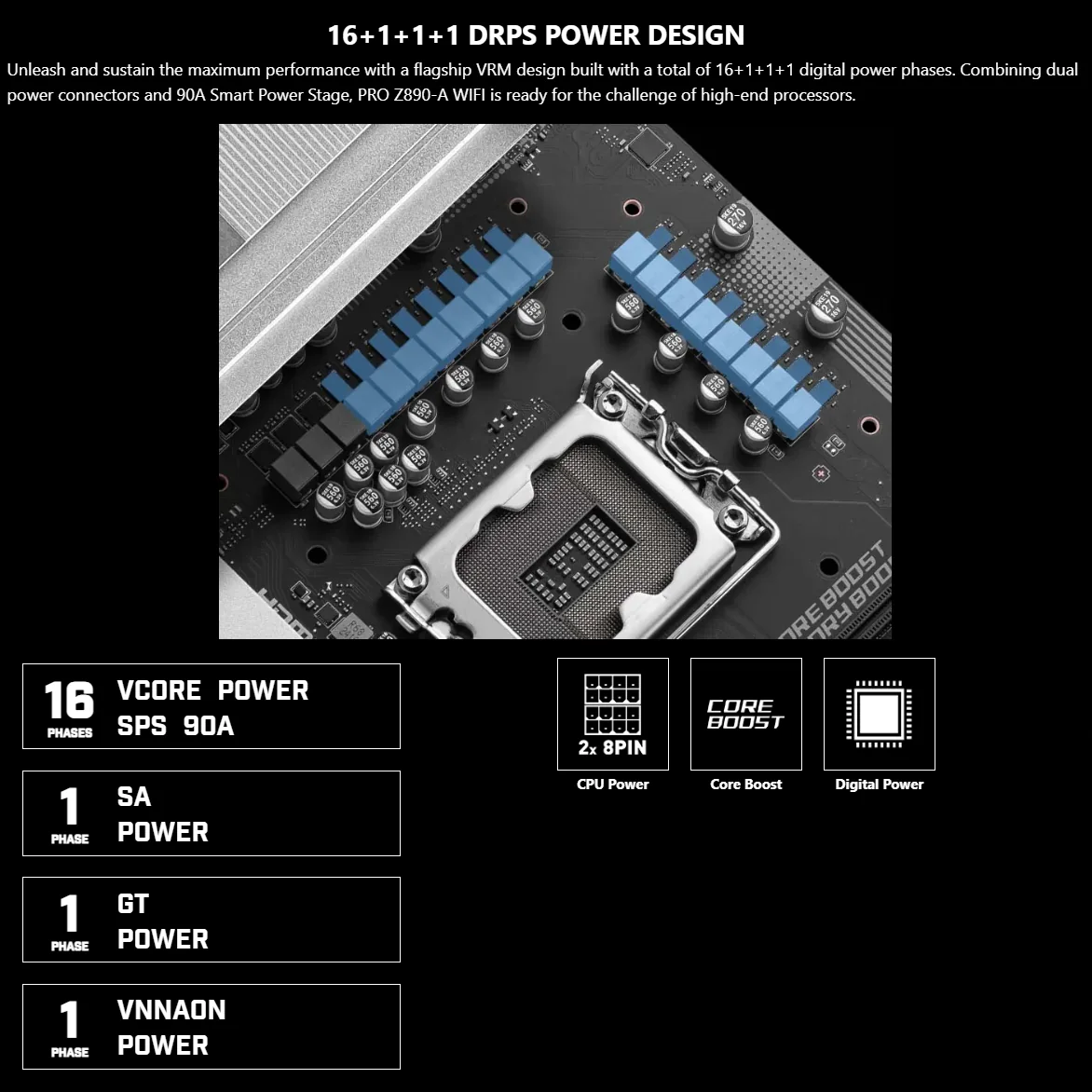

  • 16+1+1+1 Power Phases @ 90A SPS – Think of it as a power plant strapped to your processor, delivering stable juice for extreme multitasking and overclocking.

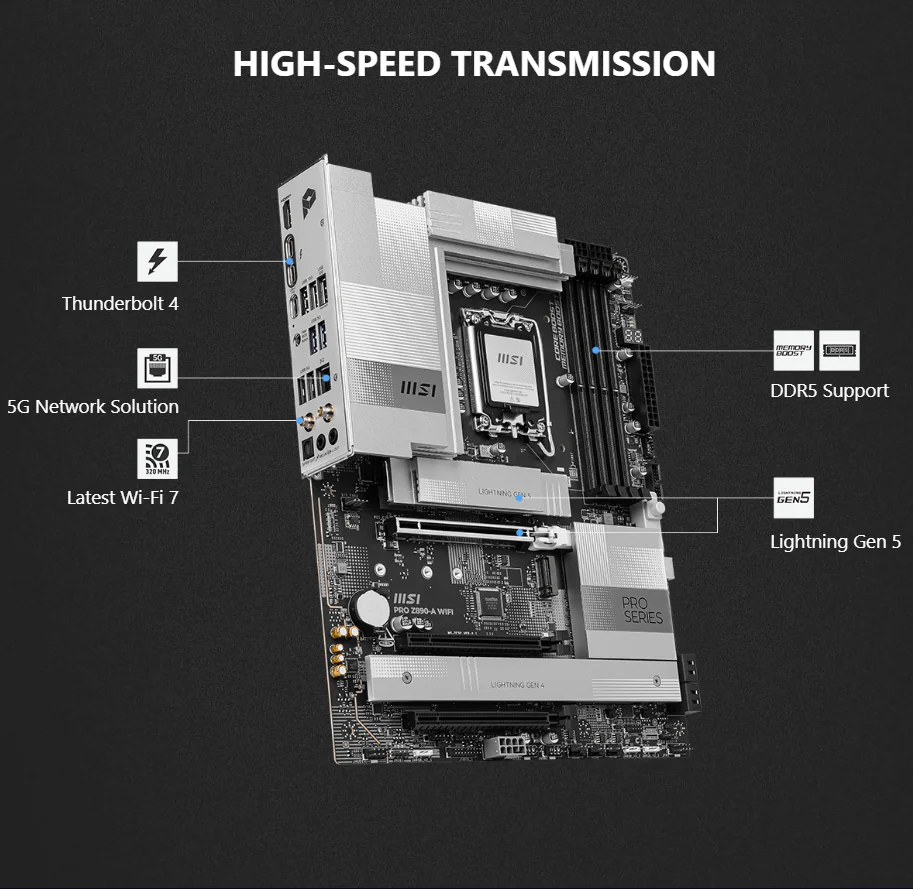

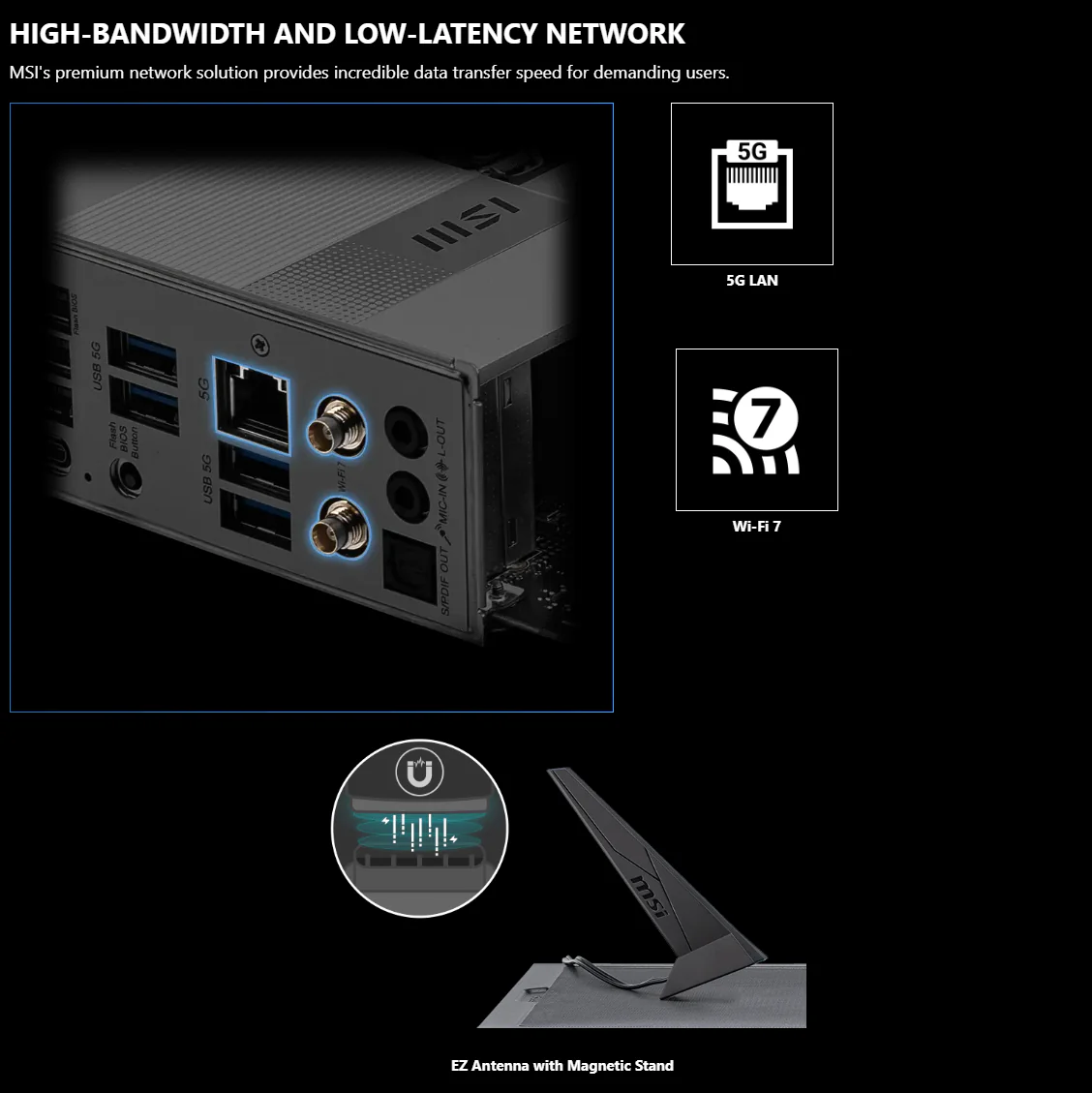

  • Wi-Fi 7 + 5G LAN – Wireless speeds that laugh in the face of buffering, with wired LAN that pushes past Gigabit like it’s 2005.
  • Thunderbolt 4 (And TB5 Ready) – Dual ports supporting daisy chains, 8K displays, 160 Gbps future-proof expansion, and even 27W charging. Basically, the mothership’s docking bay.
  • DDR5 Support up to 9200+ MHz (OC) – Warp-speed memory performance with XMP 3.0 and Memory Extension Mode for pushing modules to the limit.

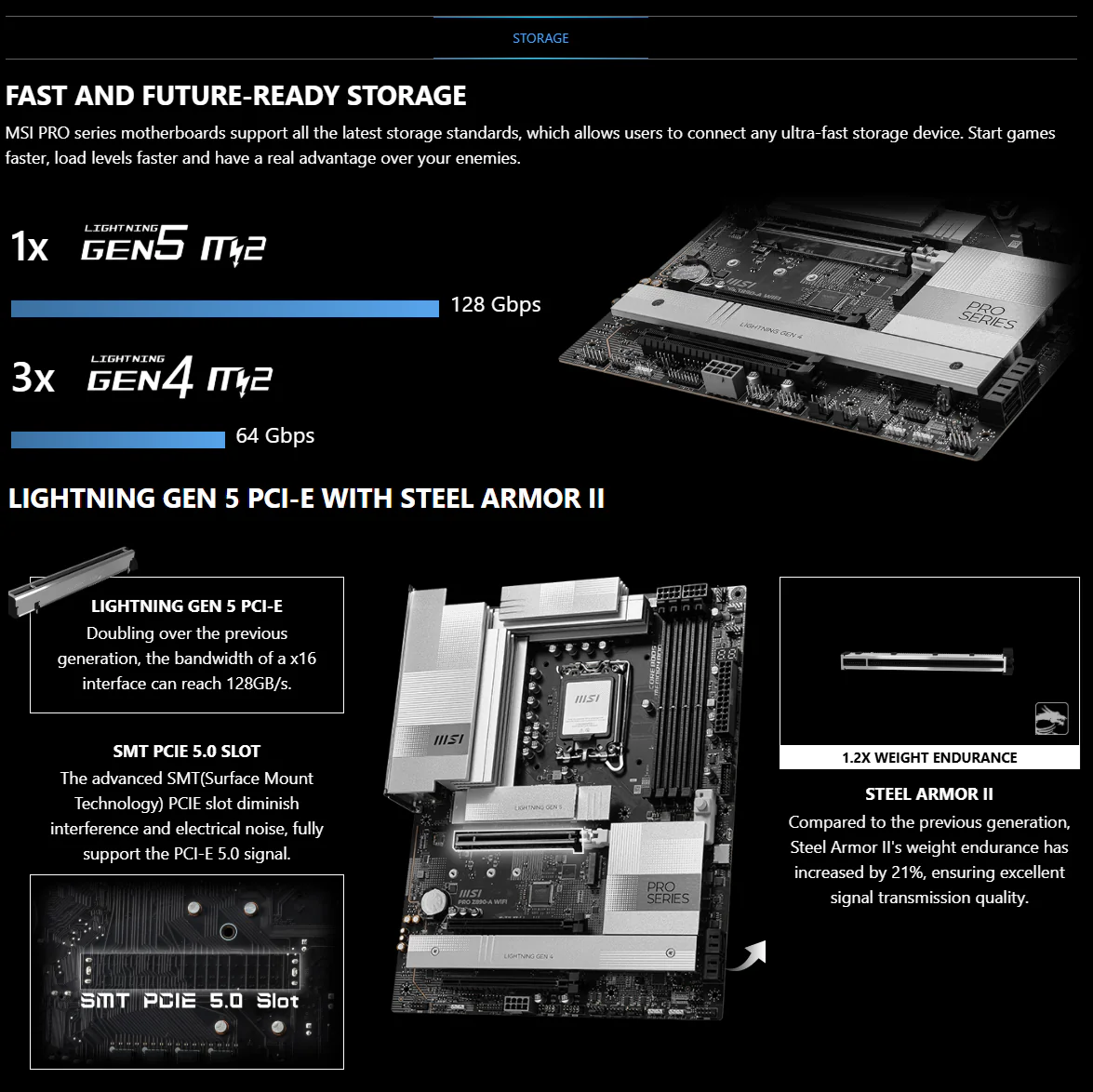

  • PCIe 5.0 x16 + M.2 Gen 5 – Next-gen GPUs and SSDs at full throttle. Your system bus will feel like a maglev train.

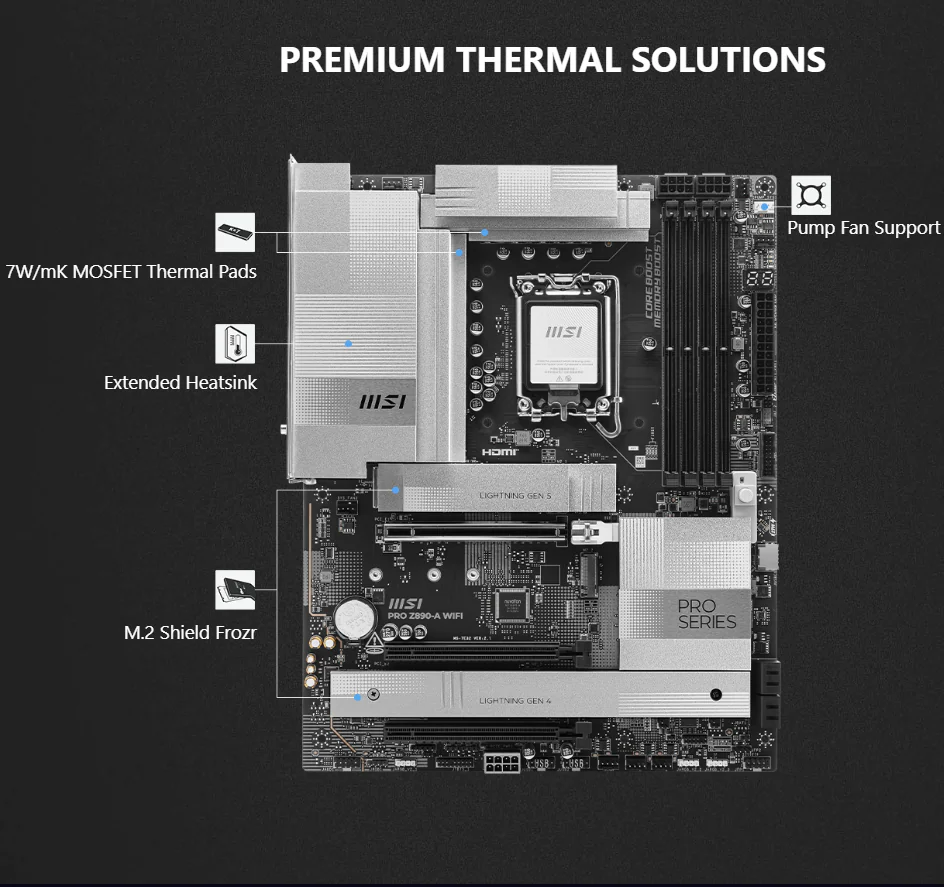

  • Frozr AI Cooling & Extended Heatsinks – Intelligent fan tuning plus thermal armor so your MOSFETs and SSDs don’t meltdown mid-battle.

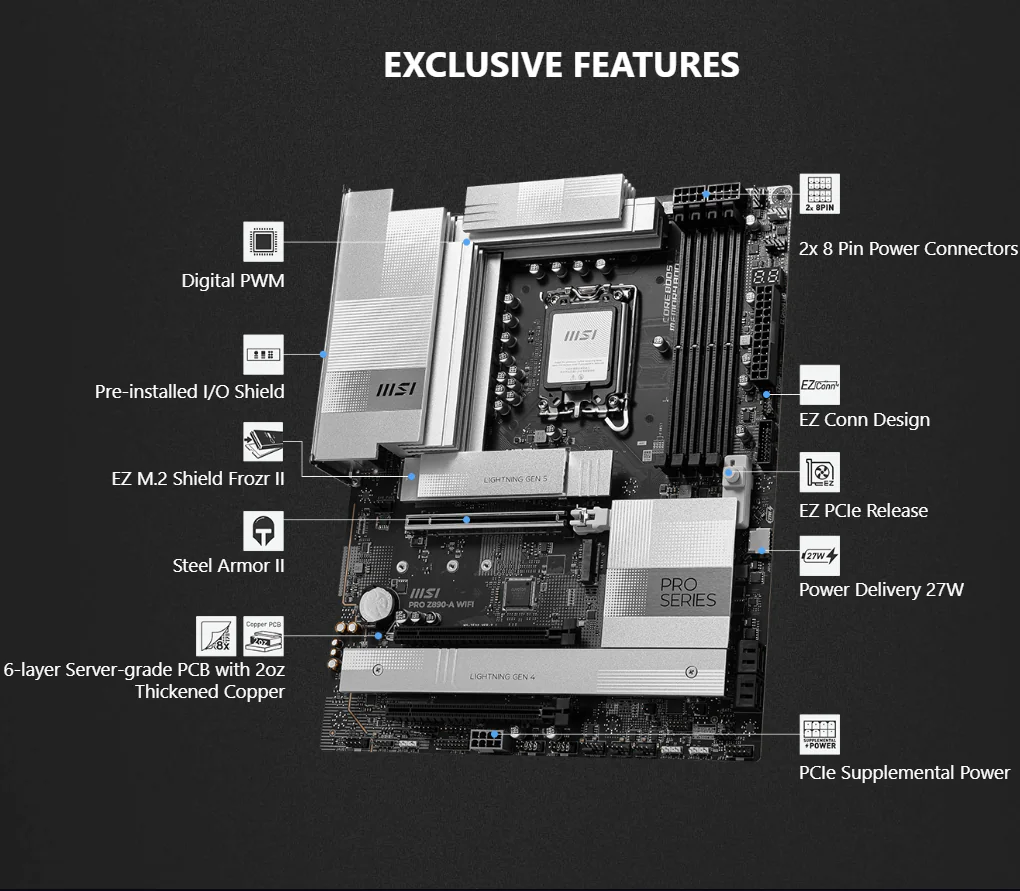

  • EZ DIY Toolkit – One-finger PCIe release, EZ Antenna (no twisty nonsense), EZ Debug LEDs, pre-installed I/O shield, and even EZ Conn headers for ARGB/fans/USB. Building feels like LEGO for adults.
  • AI Engine Suite – AI LAN Manager (bye lag spikes), AI Boost (extra NPU power), AI Cooling (autonomous fan adjustments). Your board is literally thinking for you.
  • Mystic Light RGB – Because a starship needs mood lighting. Millions of colors, synced with your build.

📊 Expert Specs (All the Juicy Numbers in One Place)

Category Details
Chipset Intel® Z890
CPU Support Intel® Core™ Ultra (Series 2), LGA 1851
Memory 4x DDR5 UDIMM, up to 256GB, 9200+ MHz (OC), XMP 3.0
Graphics Outputs 1x HDMI 2.1 (4K@120Hz), 2x Thunderbolt 4 Type-C (DP 2.1, up to 8K@60Hz)*
PCIe Slots 1x PCIe 5.0 x16, 2x PCIe 4.0 x4
Storage 4x M.2 (1x PCIe 5.0, 3x PCIe 4.0/SATA), 4x SATA 6Gb/s, RAID 0/1/5/10
Networking 5G LAN (Realtek 8126), Intel® Wi-Fi 7, Bluetooth 5.4
USB (Rear & Front) Rear: 3x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 4x USB 5Gbps, 2x Thunderbolt 4 (40Gbps)
Front: 4x USB 2.0, 2x USB 5Gbps, 1x USB 20Gbps Type-C (27W PD)
Audio Realtek ALC1220P, 7.1 HD Audio, S/PDIF Out, Audio Boost 4

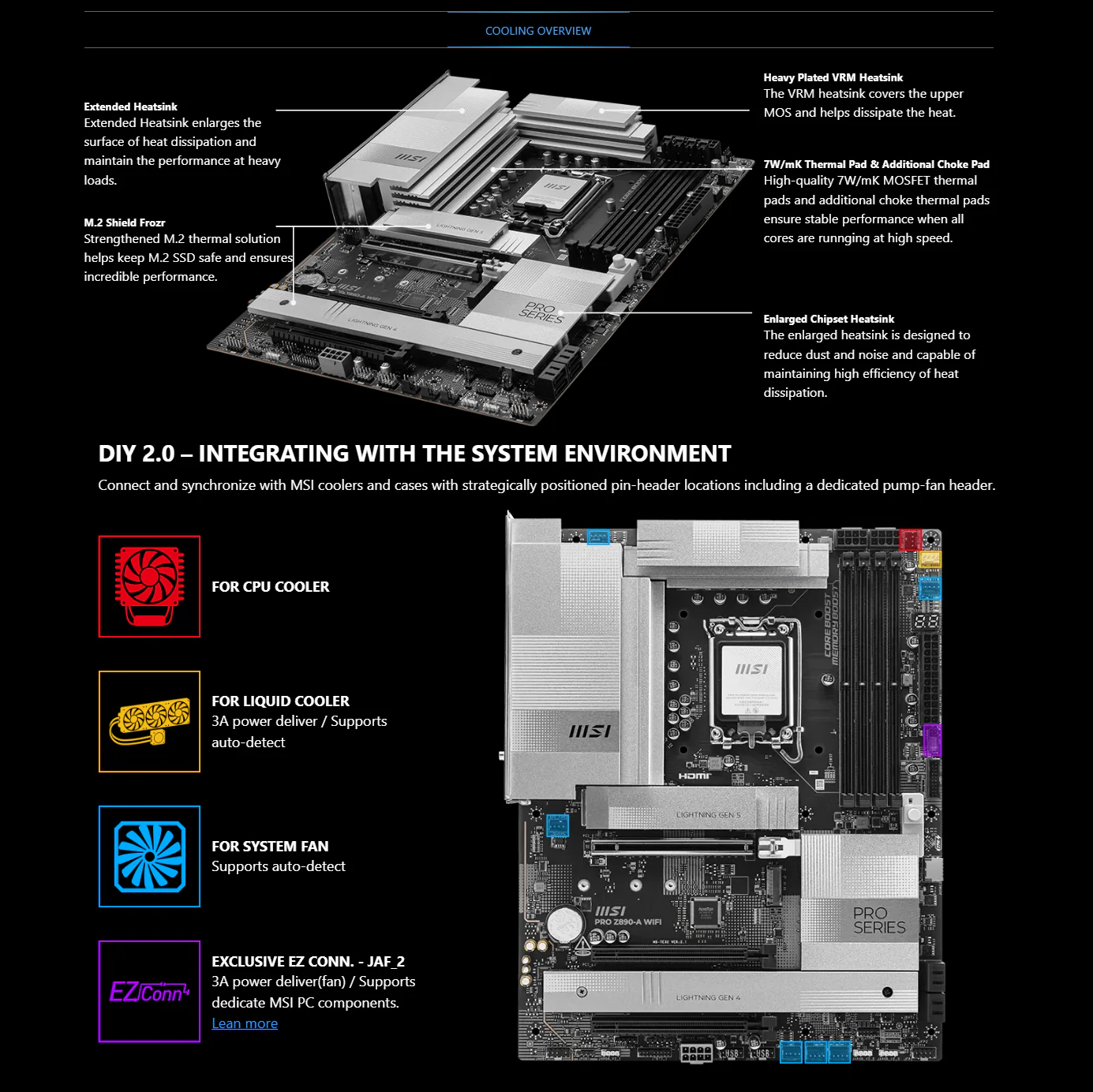

Cooling Extended heatsink, VRM heatsink, M.2 Shield Frozr II, 7W/mK thermal pads, Frozr AI Cooling
Form Factor ATX (243.84mm x 304.8mm)
OS Support Windows 11 (64-bit)
Special Features EZ Debug LED, EZ PCIe Release, AI Boost, Mystic Light RGB, Thunderbolt 5 Card Support
