MSI PRO A620M-E AM5 AMD A620 SATA 6Gb/s DDR5 mATX Motherboard AMD Ryzen™ 7000 Series Desktop Processors , PCIe 4.0 slot, Lightning Gen 4 x4 M.2 , Dual Channel DDR5 6800+MHz (OC)

$ 112.00 ---ONLY---
SKU: 911-7E28-009 Categories: ,

Expert Features

  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility

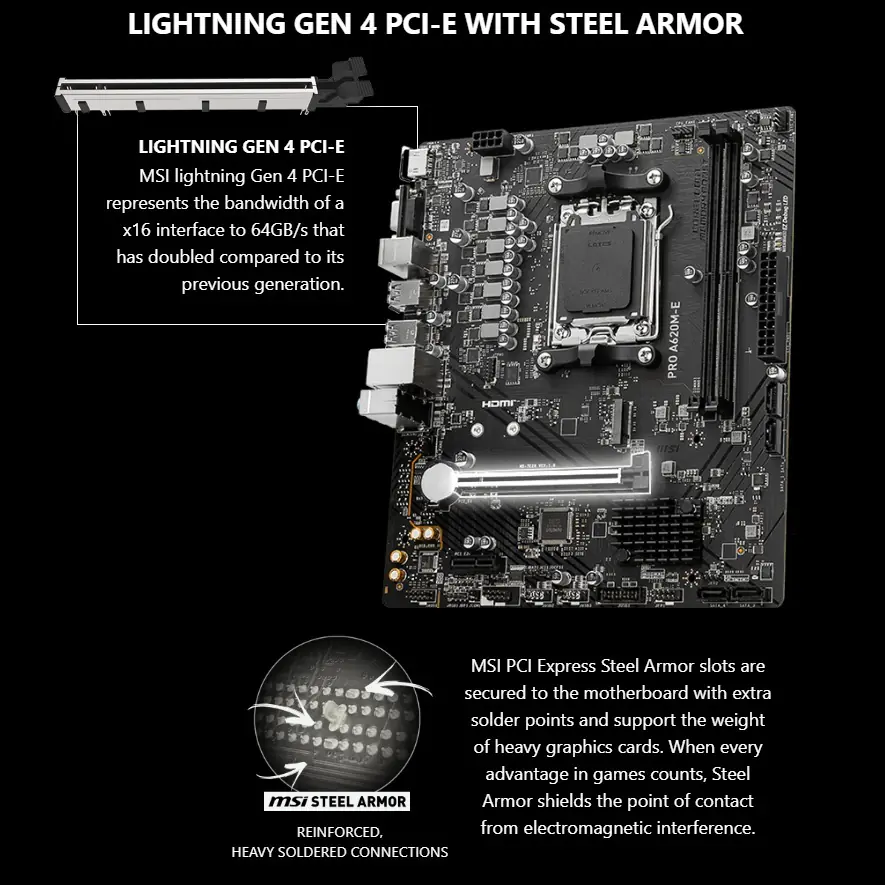

  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

Expert Specs

OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
Manufacturer Number PRO A620M-E
Product Condition New
CPU Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

  • AMD Ryzen™ 9000- BIOS update may be required
Chipset AMD® A620 Chipset
CPU Socket Socket AM5
Form Factor m-ATX
Memory 2 x DDR5 memory slots, support up to 96GB
Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

  • 1DPC 1R max speed 6000+ MHZ
  • 2DPC 1R max speed 6000+ MHZ

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO

LAN Realtek® RTL8111H Gigabit LAN
Wireless LAN
Bluetooth
Audio Realtek® ALC897 Codec

  • 7.1-Channel High Definition Audio
MULTI-GPU
STORAGE 1 x M.2 Gen4 x4 64Gbps slot
4 x SATA 6Gb/s ports
Onboard Graphics 1 x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz
1 x VGA Support maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

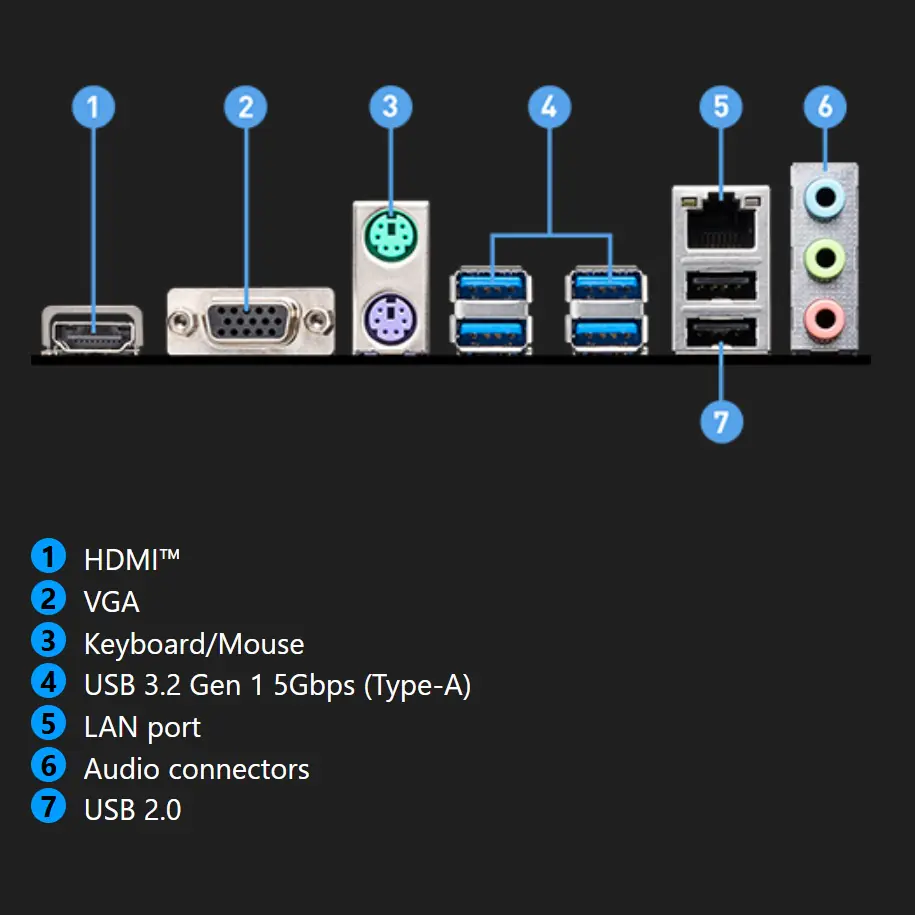

I/O (Rear) HDMI™
VGA
Keyboard/Mouse
USB 3.2 Gen 1 5Gbps (Type-A)
LAN port
Audio connectors
USB 2.0
Expansion Slots 1 x PCI-E x16 slot
1 x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
USB (Front) 2 x USB 3.2 Gen1 Type A
4 x USB 2.0
USB (Rear) 4 x USB 3.2 Gen1 Type A
2 x USB 2.0
Internal Connectors 1 x Power Connector(ATX_PWR)
1 x Power Connector(CPU_PWR)
1 x CPU Fan
2 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x Com Port (JCOM)
1 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
4 x USB 2.0 ports
2 x USB 3.2 Gen1 Type A ports
Dimensions 8.30″ x 9.60″

Description

911-7E28-009

MSI PRO A620M-E AM5 AMD DDR5 mATX Motherboard

MSI PRO A620M-E AM5 AMD A620 SATA 6Gb/s DDR5 mATX Motherboard AMD Ryzen™ 7000 Series Desktop Processors , PCIe 4.0 slot, Lightning Gen 4 x4 M.2 , Dual Channel DDR5 6800+MHz (OC)
