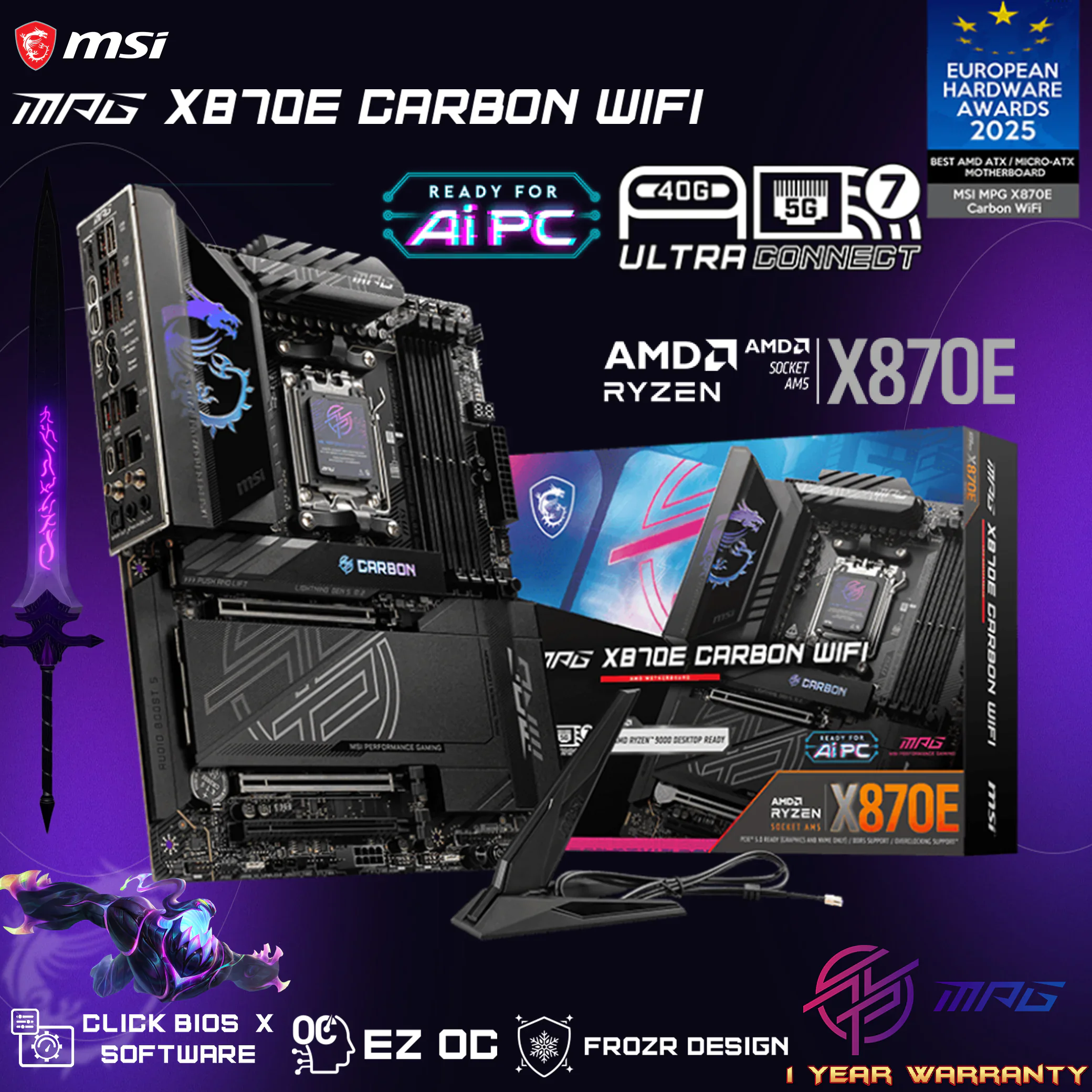

MSI MPG X870E CARBON WIFI ATX Motherboard –Supports AMD Ryzen 9000 / 8000 / 7000 Series , AM5, DDR5 8400+, 18+2+1 Power Stages, Wi-Fi 7, 5G LAN, PCIe 5.0, USB4 40Gbps, EZ DIY, Lightning Gen 5 M.2

Name: MSI MPG X870E CARBON WIFI ATX Motherboard –Supports AMD Ryzen 9000 / 8000 / 7000 Series , AM5, DDR5 8400+, 18+2+1 Power Stages, Wi-Fi 7, 5G LAN, PCIe 5.0, USB4 40Gbps, EZ DIY, Lightning Gen 5 M.2 | Expert-Zone
SKU: 911-7E49-014
Price: 520.00 USD
Availability: OutOfStock

Original price was: $ 528.00.Current price is: $ 520.00. ---ONLY---

OUT OF STOCK

Add to compare

Description

💡 Expert Features: Why It Dominates the X870E Class

Built for Ryzen 9000 & Beyond: Fully supports AMD Ryzen™ 9000/8000/7000 Series Desktop Processors with peak compatibility and overclocking headroom.

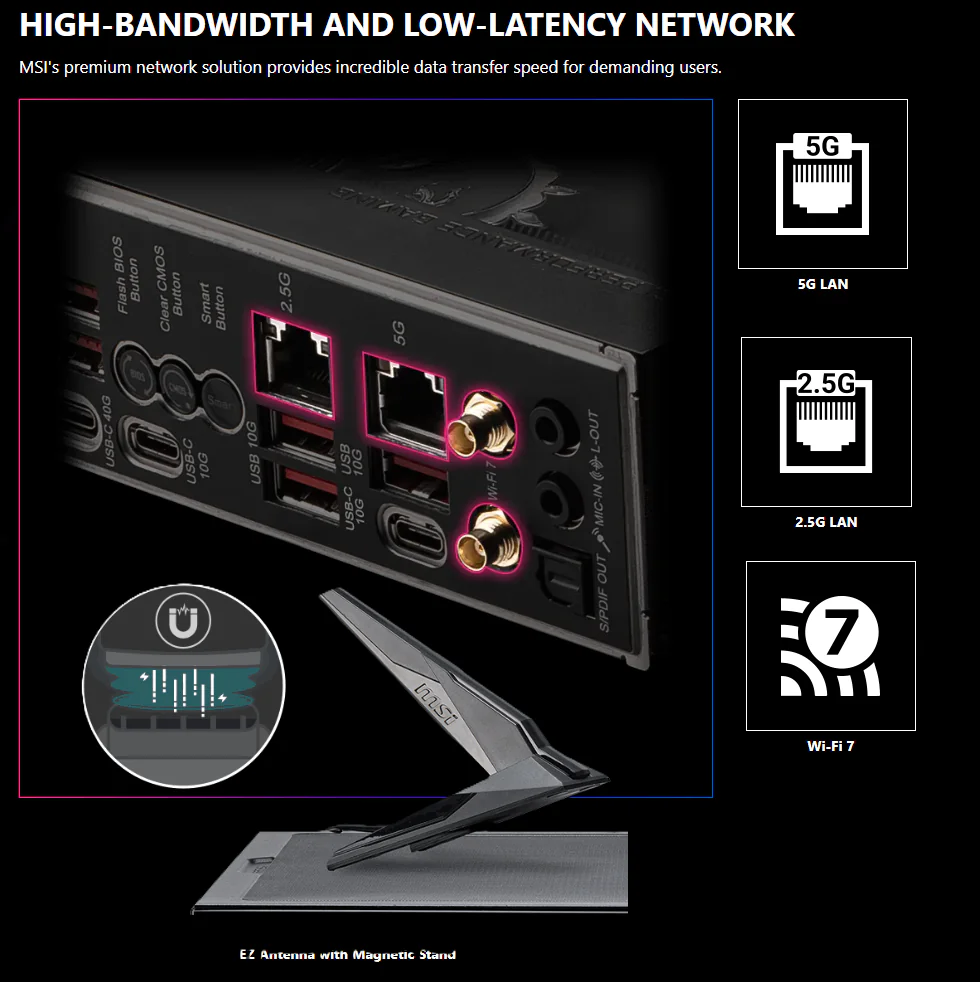

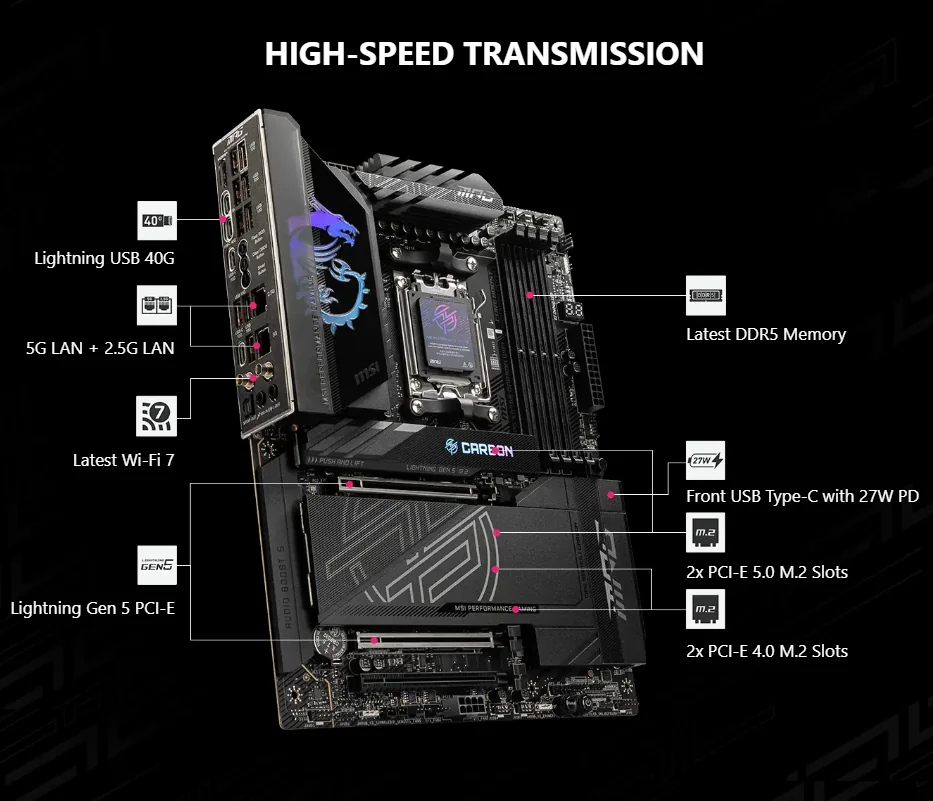

Next-Gen Connectivity: Equipped with blazing-fast 5G + 2.5G LAN, Wi-Fi 7 (802.11be), Bluetooth 5.4, USB4 (40Gbps), and Lightning Gen 5 PCIe and M.2 slots.

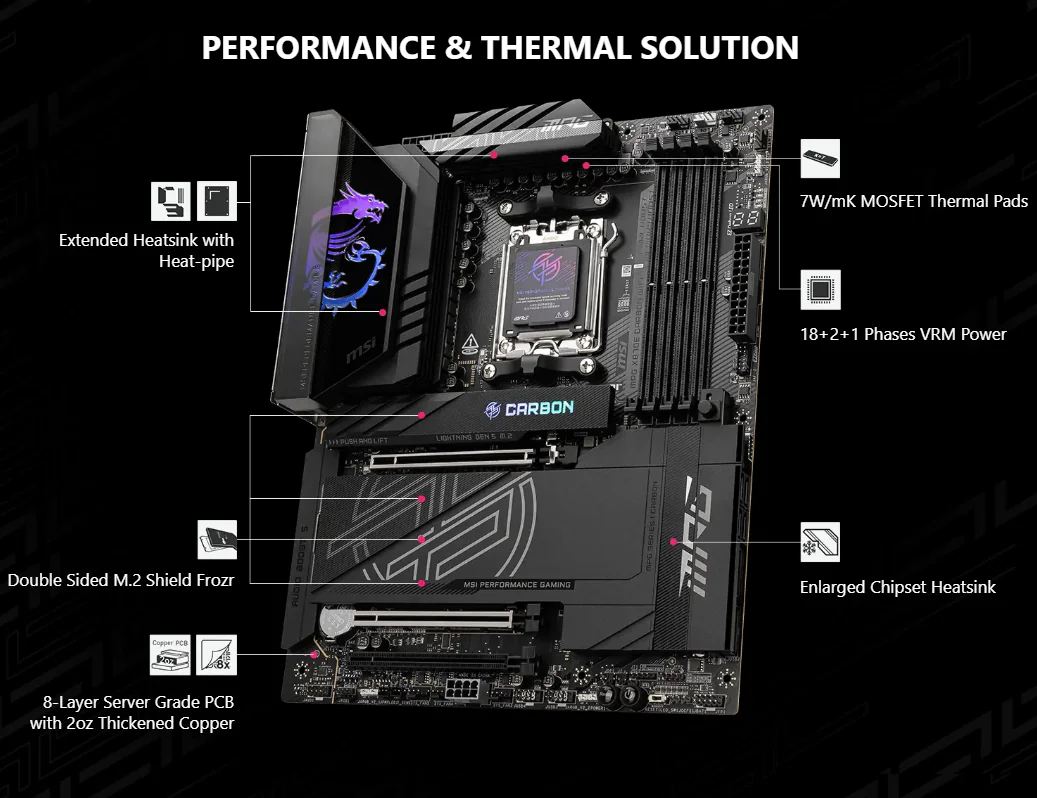

Premium 18+2+1 Power Phase: Duet Rail Power System with 110A SPS ensures elite-grade CPU power delivery, backed by 8-layer, 2oz copper PCB for ultra performance.
DDR5 8400+ MT/s OC Ready: Supports dual-channel DDR5 up to 256GB with EXPO/A-XMP profiles, SMT slot tech, Latency Killer, and Memory Boost.

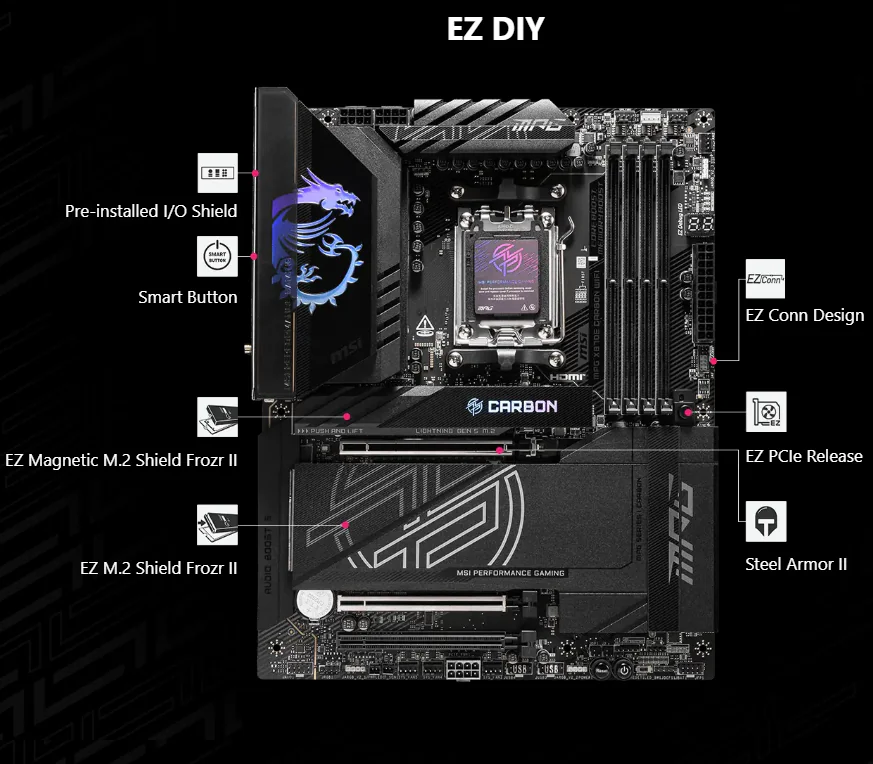

EZ DIY Revolution: Features include EZ PCIe Release, EZ M.2 Clip II, EZ Antenna, EZ Front Panel Cable, Pre-installed I/O Shield, and Digi-Debug LED.

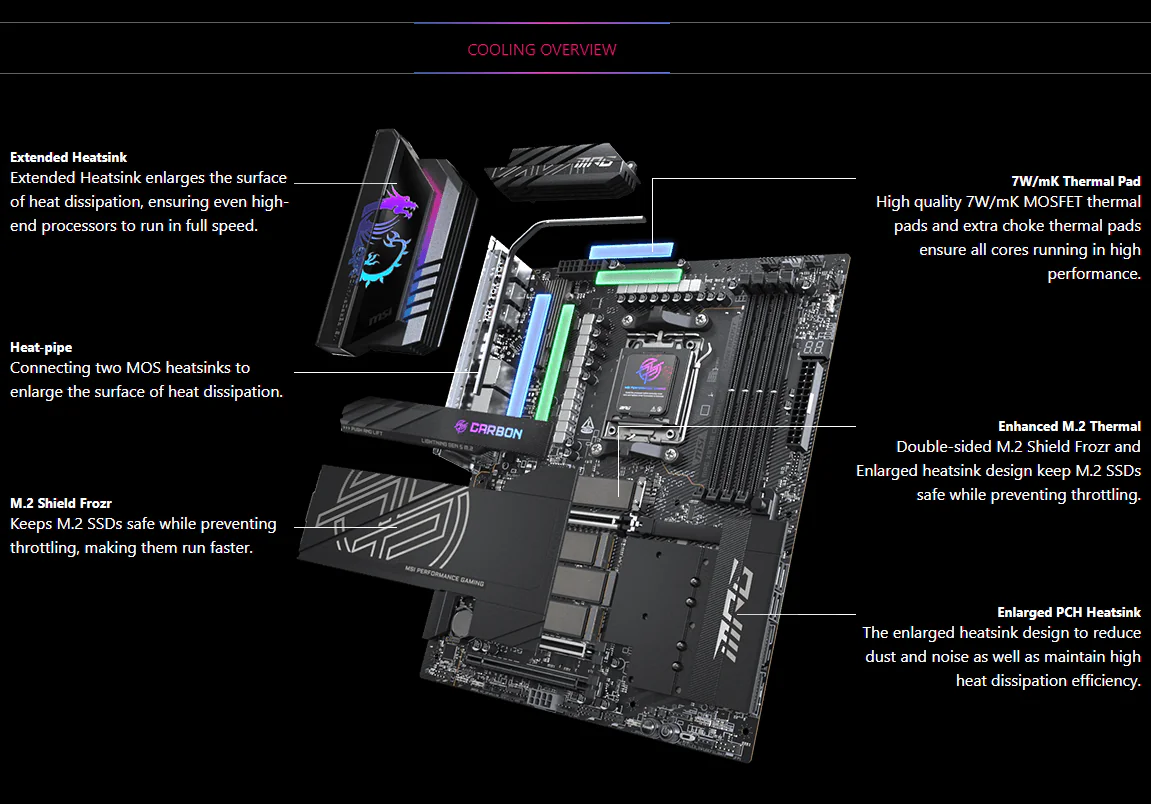

Frozr Guard Thermal Armor: Heat-piped VRMs, extended heatsinks, 7W/mK MOSFET pads, and double-sided M.2 Shield Frozr for sustained high performance.
AI-Powered Everything: MSI Center, AI Engine, AI LAN Manager, Frozr AI Cooling, and one-click AI Boost for CPU/NPU give it smart, reactive performance.
Robust Audio & Lighting: Audio Boost 5 delivers high-res 7.1-channel sound with isolated audio circuitry, while Mystic Light RGB sets your rig ablaze in color.
Solid Durability: Includes Steel Armor II PCIe slots, solid pin power connectors, TVS protection, ESD shielded zones, and anti-corrosive stainless steel I/O.
PCIe Supplemental Power: Dedicated GPU power stability for high-load GPUs—AI workloads or gaming-grade power excursions up to 2.5x.
AMD RAID & Overclocking Support: Full support for SATA/NVMe RAID arrays and BIOS-driven overclocking with Game Boost, XMP, and Memory Try It.

📊 Expert Specs

Category	Specification
CPU Support	AMD Ryzen™ 9000 / 8000 / 7000 Series
Chipset	AMD X870E
Socket	AM5
Form Factor	ATX (9.6″ x 12″)
Power Delivery	18+2+1 Duet Rail, Dual 8-pin CPU + PCIe 8-pin Power
Memory Support	4x DDR5 DIMMs, up to 256GB, 8400+ MT/s (OC), Dual-Channel, EXPO/A-XMP
Graphics Output	1x HDMI 2.1, 2x USB-C (DP 1.4 Alt Mode, 4K@60Hz, CPU-dependent)
Expansion Slots	3x PCIe x16 (2x Gen 5.0, 1x Gen 4.0), Steel Armor II
M.2 Storage	2x Gen 5.0 M.2 (CPU), 2x Gen 4.0 M.2 (Chipset), Shield Frozr on all
SATA	4x SATA 6Gb/s
Networking	1x 5G LAN + 1x 2.5G LAN (Realtek), Wi-Fi 7, BT 5.4
Audio	Realtek ALC4080, 7.1 HD Audio, 32-bit/384kHz playback, S/PDIF out
USB (Front)	4x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 20Gbps Type-C
USB (Rear)	9x USB 10Gbps Type-A, 2x USB 10Gbps Type-C, 2x USB4 40Gbps Type-C
Internal Headers	JAF_2 (EZ Conn), 5x Fan Headers, 3x ARGB, 1x RGB, Thermal Sensor, USB Headers
Cooling Design	Heatpipe-connected VRM sinks, Extended MOS Heatsinks, 7W/mK thermal pads
Software	Click BIOS X, MSI Center, AI Engine, Norton 360 Trial, AIDA64 Extreme Trial
Lighting	Mystic Light RGB, Mystic Light Extension
DIY Features	EZ PCIe Release, EZ Antenna, EZ Debug LED, Pre-installed I/O, Solid Pin Power
Audio Boost 5	Isolated Analogue Layout, Studio-grade Sound
RAID Support	RAID 0/1/10 (SATA & M.2 NVMe with Ryzen 9000/7000 CPUs)
Special Tech	AI Boost, Game Boost, Latency Killer, USB Super Charger+ (PD 27W)
