MSI MPG B760M Edge Ti WiFi DDR5 mATX Motherboard – Intel 14th/13th/12th Gen, PCIe 5.0, 3x M.2 Gen4, Wi-Fi 6E, 2.5G LAN, DDR5 7800+(OC), Mystic Light RGB, Core Boost Power Design | 1 YEAR WARRANTY

Original price was: $ 188.00.Current price is: $ 178.00.

Description

⚙️ Expert Features

  • White-Hot Power & Style: The MPG B760M EDGE TI WIFI doesn’t just perform—it glows. Built for white PC enthusiasts who want power wrapped in a sleek titanium armor aesthetic.

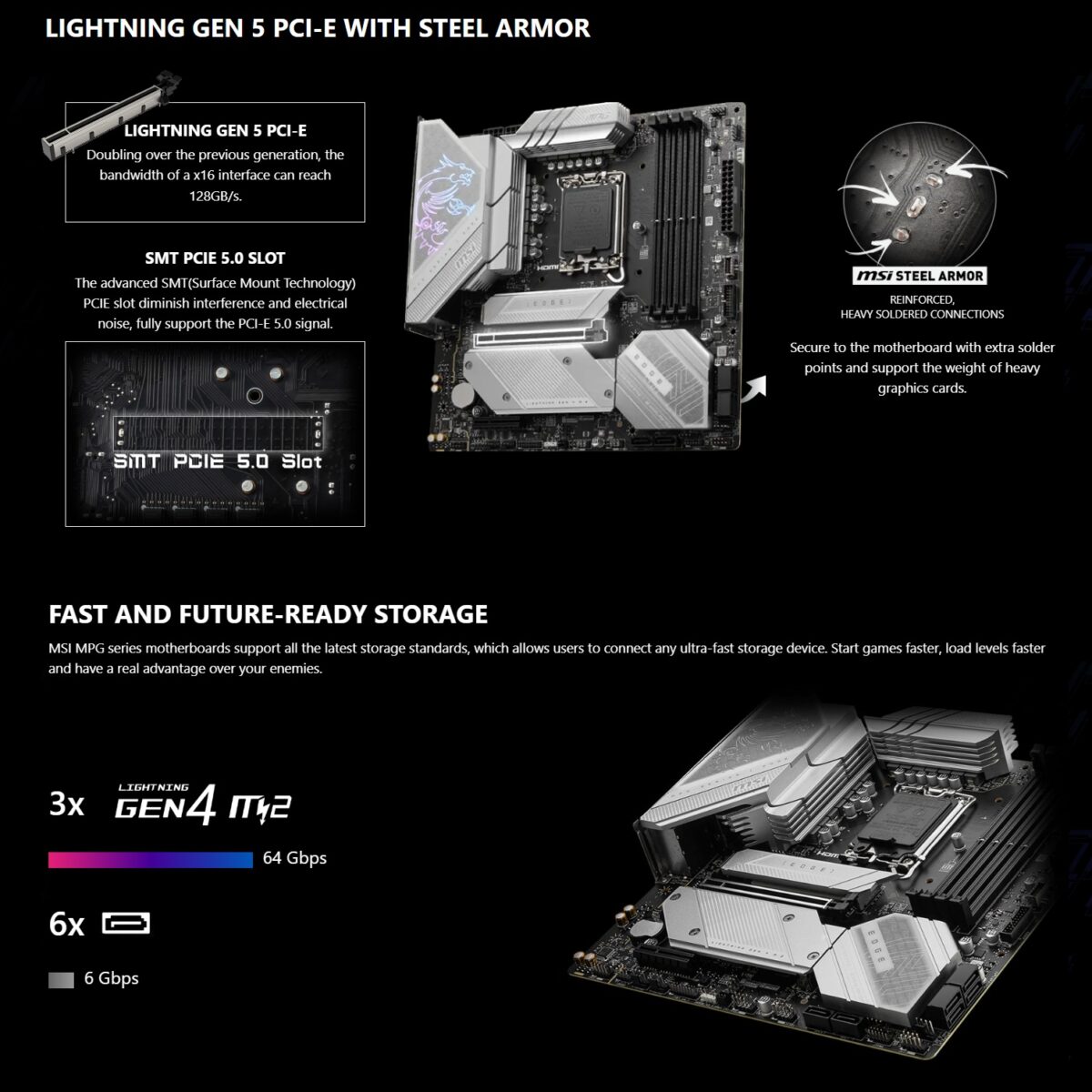

  • Future-Proof Performance: PCIe 5.0 x16 slot ready for the next-gen GPUs with 128GB/s bandwidth—because bottlenecks belong in the past.
  • DDR5 Memory Overdrive: Supports DDR5 up to 7800+(OC) MHz, powered by MSI’s exclusive Memory Boost and SMT slot for pure, stable, high-frequency performance.
  • Tool-Free SSD Upgrades: Meet MSI’s patented Screwless Magnetic M.2 Shield Frozr and EZ M.2 Clip—because who has time for tiny screws when you’re building a beast?

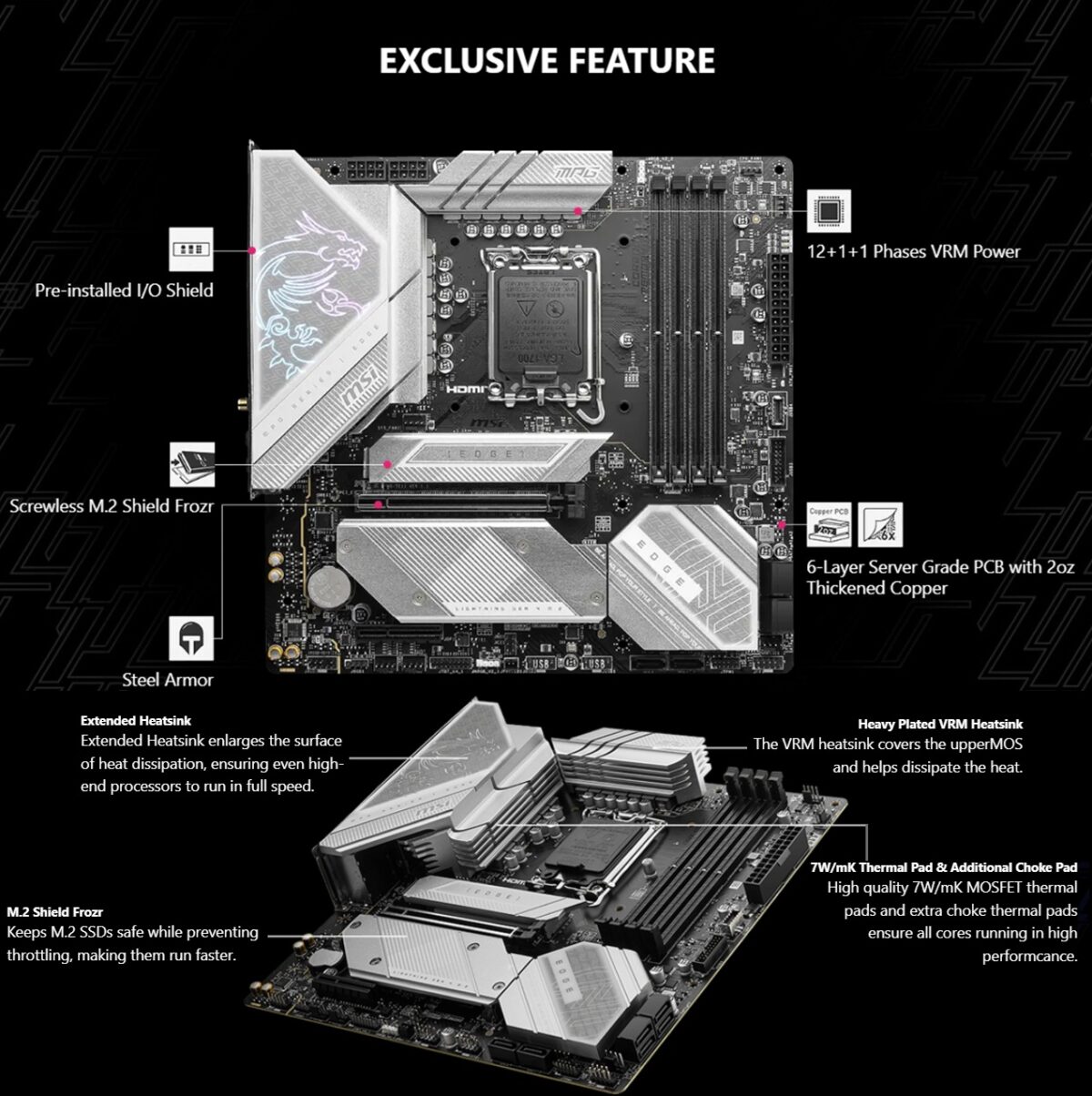

  • Cool Under Pressure: Extended heatsinks, 7W/mK thermal pads, and a VRM cooling fortress keep those 14th Gen CPUs running icy while you game fiery.
  • Built for Overclockers: 12+1+1 Duet Rail Power System with dual 8-pin connectors and 75A DrMOS keeps your cores juiced and stable.
  • Connectivity Conqueror: 2.5G LAN, Wi-Fi 6E, and Bluetooth 5.3 mean faster pings, lower lag, and wireless that actually behaves.
  • Future-Ready Storage: 3x M.2 Gen4 + 6x SATA 6Gbps ports ensure lightning-fast load times for games and creative projects.
  • Mystic Light Ready: Add some RGB sauce to your white build—sync it, tweak it, flex it.
  • Gamer Safety Suite: Overcurrent Protection, TVS, and solid-pin power connectors protect your gear while you chase high scores.

💾 Expert Specs

CategorySpecification
ChipsetIntel® B760
CPU SupportIntel® Core™ 14th / 13th / 12th Gen, Pentium® Gold, Celeron® (LGA1700)
Memory4× DDR5 UDIMM, Up to 256GB, Dual Channel
Memory SpeedUp to 7800+(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(JEDEC) / 5400(JEDEC) / 5200(JEDEC) / 5000(JEDEC) / 4800(JEDEC) MHz
Graphics Output1× HDMI™ 2.1 (4K@60Hz), 1× DisplayPort 1.4 (8K@60Hz)*
PCIe Slots1× PCIe 5.0 x16 (CPU), 1× PCIe 3.0 x4 (Chipset)
Storage3× M.2 (PCIe 4.0 x4 / SATA), 6× SATA 6Gb/s
RAID SupportRAID 0/1/5/10 (SATA)

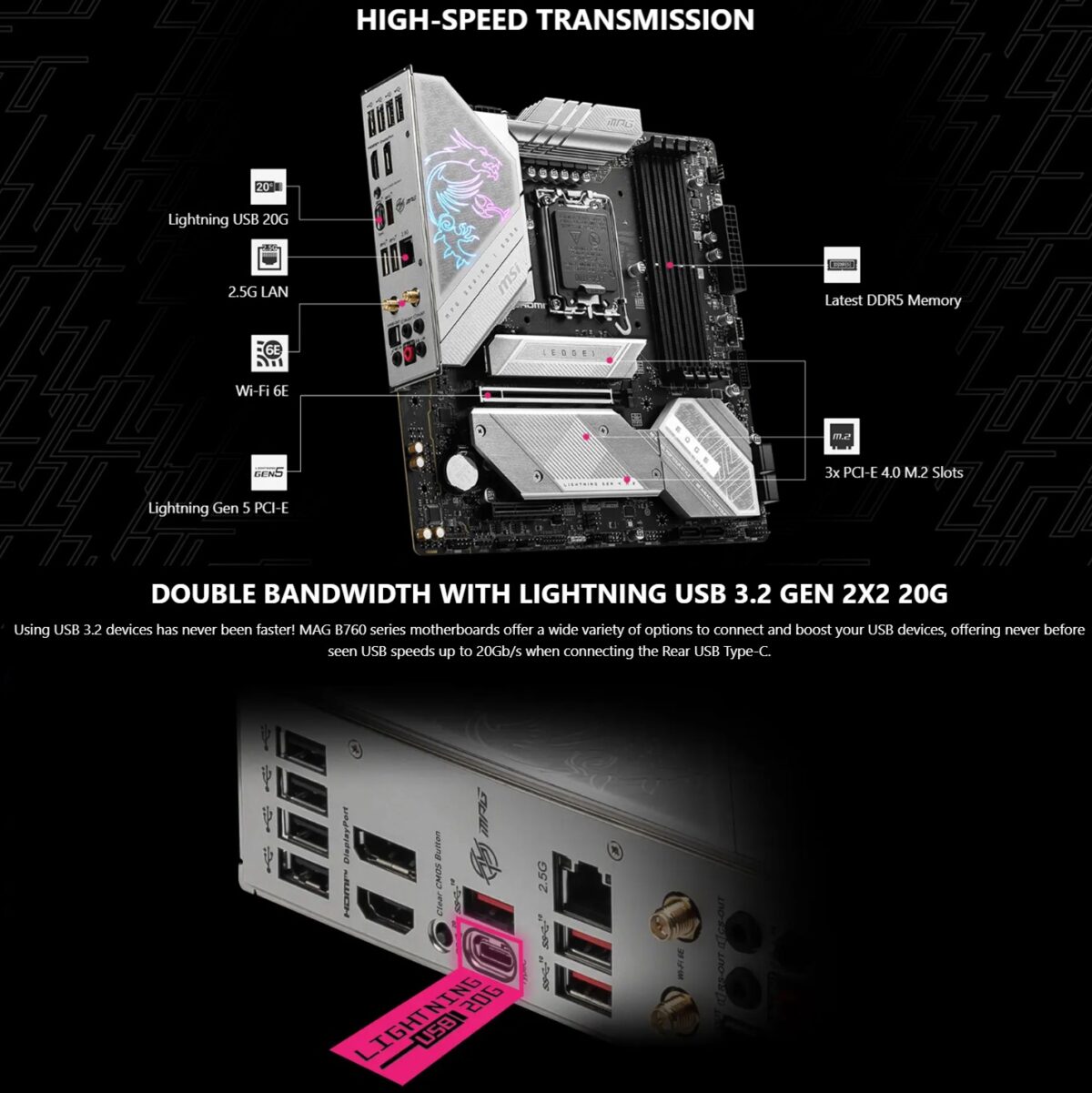

USB (Rear)4× USB 2.0, 3× USB 10Gbps Type-A, 1× USB 20Gbps Type-C
USB (Front)4× USB 2.0, 2× USB 5Gbps Type-A, 1× USB 10Gbps Type-C
LANRealtek® 2.5Gbps LAN
WirelessIntel® Wi-Fi 6E + Bluetooth® 5.3
AudioRealtek® ALC897, 7.1-Channel HD Audio, S/PDIF Out
Power Design12+1+1 Duet Rail Power System, Dual 8-pin CPU Power, 75A DrMOS
PCB Design6-Layer Server-Grade PCB, 2oz Copper
Cooling Support1× CPU Fan, 1× Pump Fan, 4× System Fans
RGB Headers2× JARGB_V2, 1× JRGB
Back Panel PortsHDMI™, DisplayPort, USB-C 20Gbps, USB-A 10Gbps, 2.5G LAN, Wi-Fi Antenna, S/PDIF, HD Audio, Clear CMOS
Form FactormATX – 243.84mm x 243.84mm
OS SupportWindows® 11 / 10 (64-bit)
