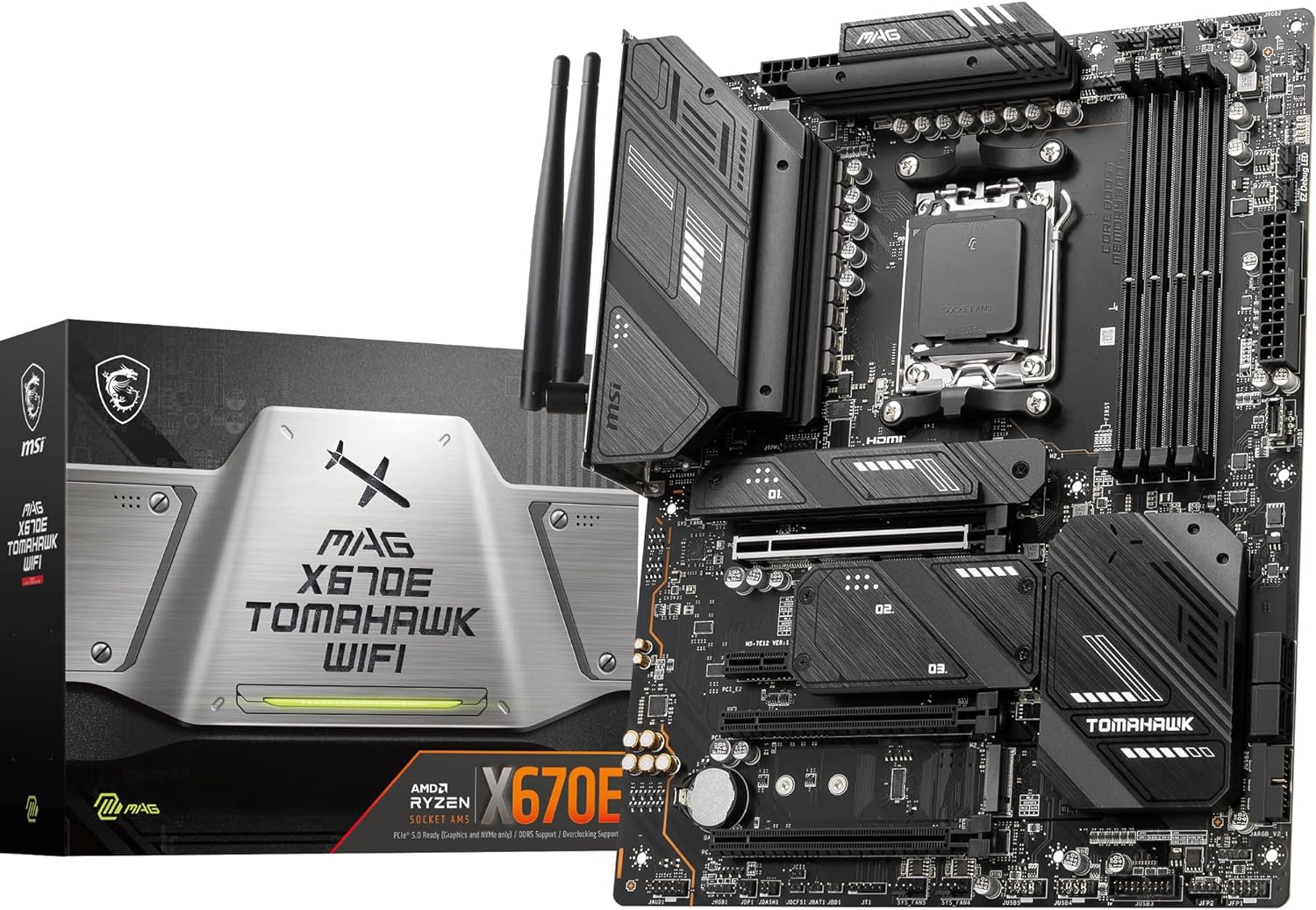

MSI MAG X670E TOMAHAWK WIFI DDR5 motherboard AMD X670 Socket AM5 ATX , 6600 MHz Memory Clock Speed , PCI-Express x16 Graphics Card Interface ,Extended Heatsink Extended VRM Heatsink
MSI MAG X670E TOMAHAWK WIFI motherboard AMD
Expert Features
- Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, up to 7800+(OC) MHz
- Enhanced Power Design: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen5 M.2, USB 3.2 Gen 2×2
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 8-layer PCB made by 2oz thickened copper and server grade level material
Expert Specs
Brand | MSI |
---|---|
Model | MAG X670E TOMAHAWK WIFI |
CPU Socket Type | AM5 |
---|---|
CPU Type | Ryzen 7000 Series |
Chipset | AMD X670E |
---|
Number of Memory Slots | 4x288pin (DDR5) |
---|---|
Memory Standard | Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: – 1DPC 1R Max speed up to 7800+ MHz – 1DPC 2R Max speed up to 6400+ MHz – 2DPC 1R Max speed up to 6400+ MHz – 2DPC 2R Max speed up to 5400+ MHz |
Maximum Memory Supported | 192GB |
Channel Supported | Dual Channel |
ECC Supported | Non-ECC |
Buffer Supported | Un-buffered |
Memory Feature | Supports AMD EXPO |
PCI Express 5.0 x16 | 3 x PCI-E x16 slot Supports x16/x4/x2
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
---|---|
PCI Express x1 | 1 x PCI-E x1 slot PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
SATA 6Gb/s | 4 x SATA 6Gb/s |
---|---|
M.2 | 4 x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 22110/2280 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices*PCI_E4 & M2_4 share the bandwidth. M2_4 will run at x2 speed when installing device in the PCI_E4 slot. |
SATA RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices |
Additional RAID Controller | Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices |
Audio Chipset | Realtek ALC1200 |
---|---|
Audio Channels | 7.1 Channels |
LAN Chipset | Realtek RTL8125BG |
---|---|
Max LAN Speed | 2.5Gbps |
Wireless LAN | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. |
Bluetooth | Bluetooth 5.3** ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
Back I/O Ports | 1 x DisplayPort 1 x USB 3.2 Gen 2 10Gbps (Type-A) 1 x USB 3.2 Gen 2 5Gbps (Type-A) 1 x 2.5G LAN 1 x Wi-Fi / Bluetooth 5 x Audio Connectors 1 x Flash BIOS Button 1 x HDMI 1 x USB 3.2 Gen 2 10Gbps (Type-C Display port) 1 x USB 3.2 Gen 2×2 20Gbps (Type-C)1 x S/PDIF-Out |
---|
Onboard USB |
|
---|---|
Other Connectors |
|
Form Factor | ATX |
---|---|
LED Lighting | 4 x EZ Debug LED |
Dimensions (W x L) | 12.0″ x 9.6″ |
Power Pin | 1 x Power Connector(ATX_PWR) 2 x Power Connector(CPU_PWR) |
Windows 11 | Supported |
---|
911-7E12-003
