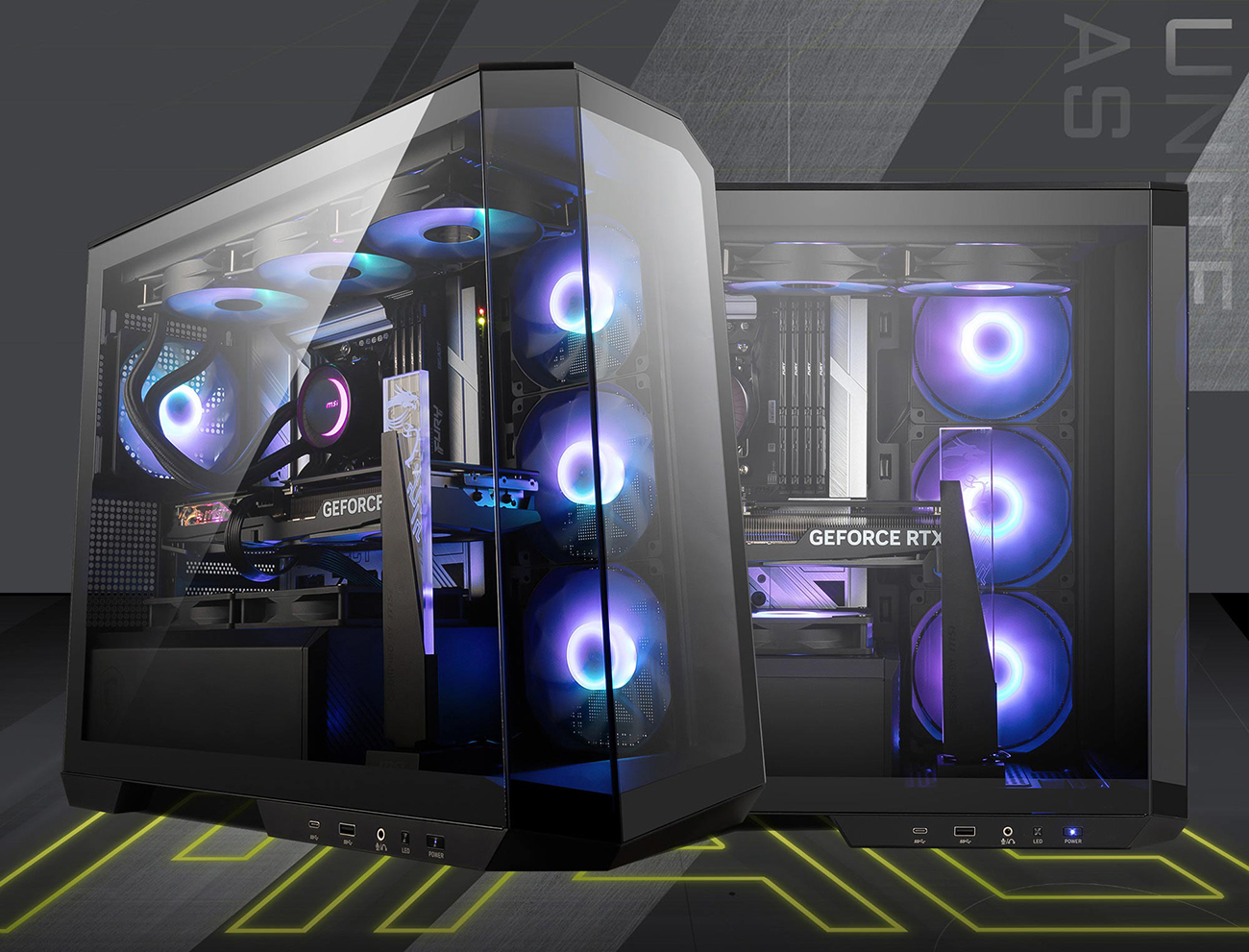

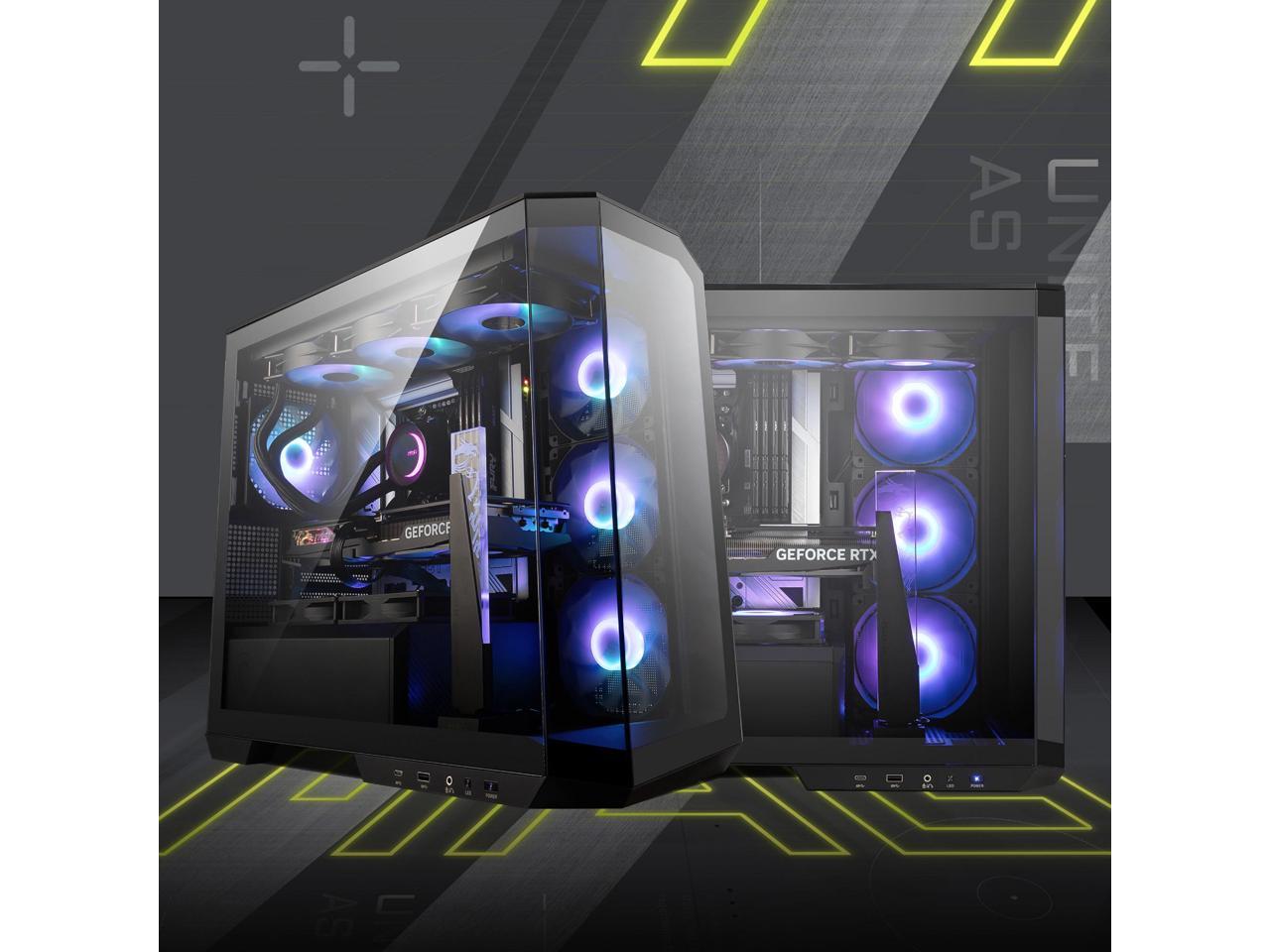

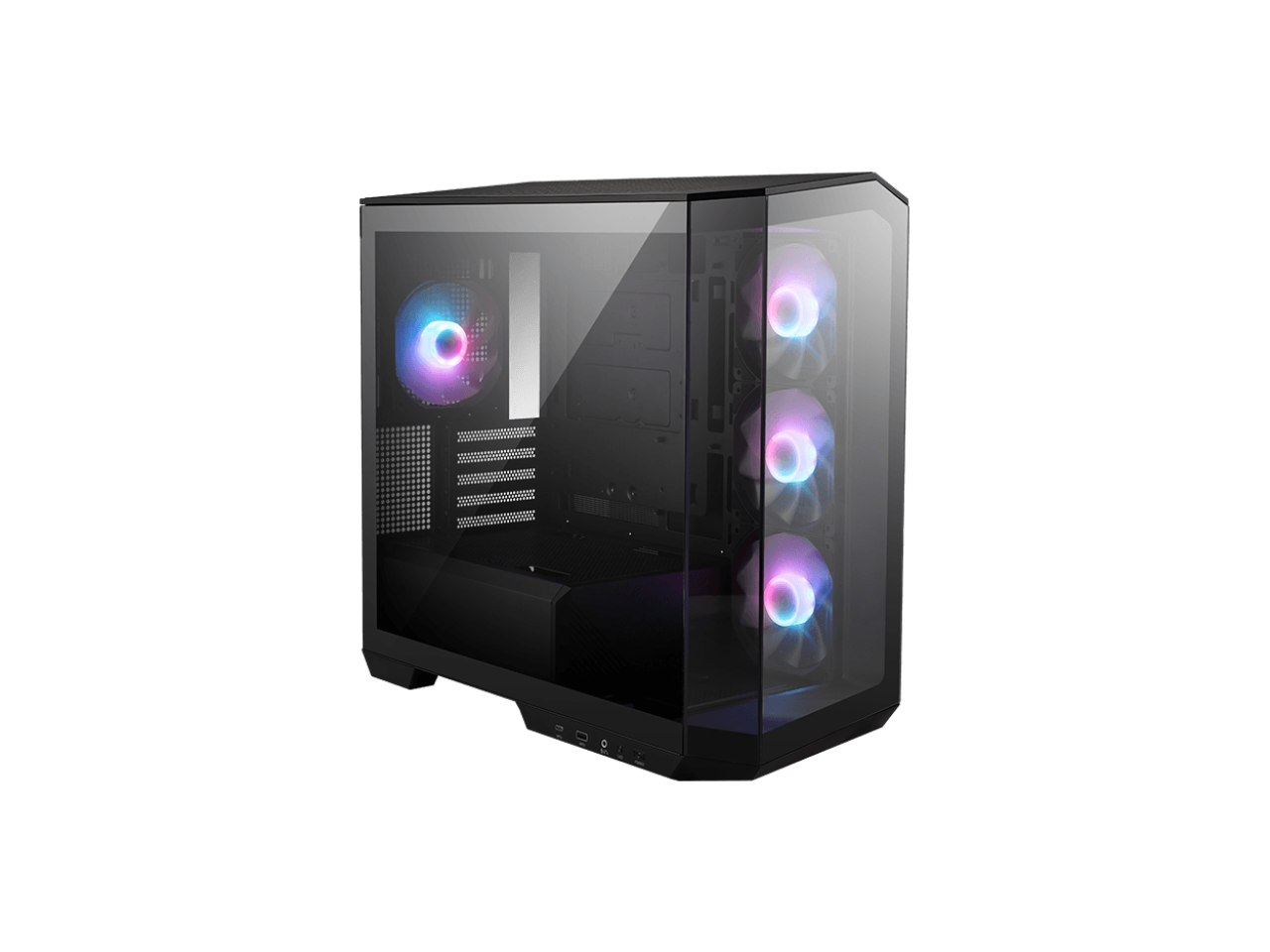

A New Turning Point
- The MAG PANO M100R PZ comes with a 270-degree tempered glass panel paired with a Back-connect motherboard compatible, adding to the aesthetically pleasing and cleanliness of your PC build while enhancing its overall aesthetics and organization.

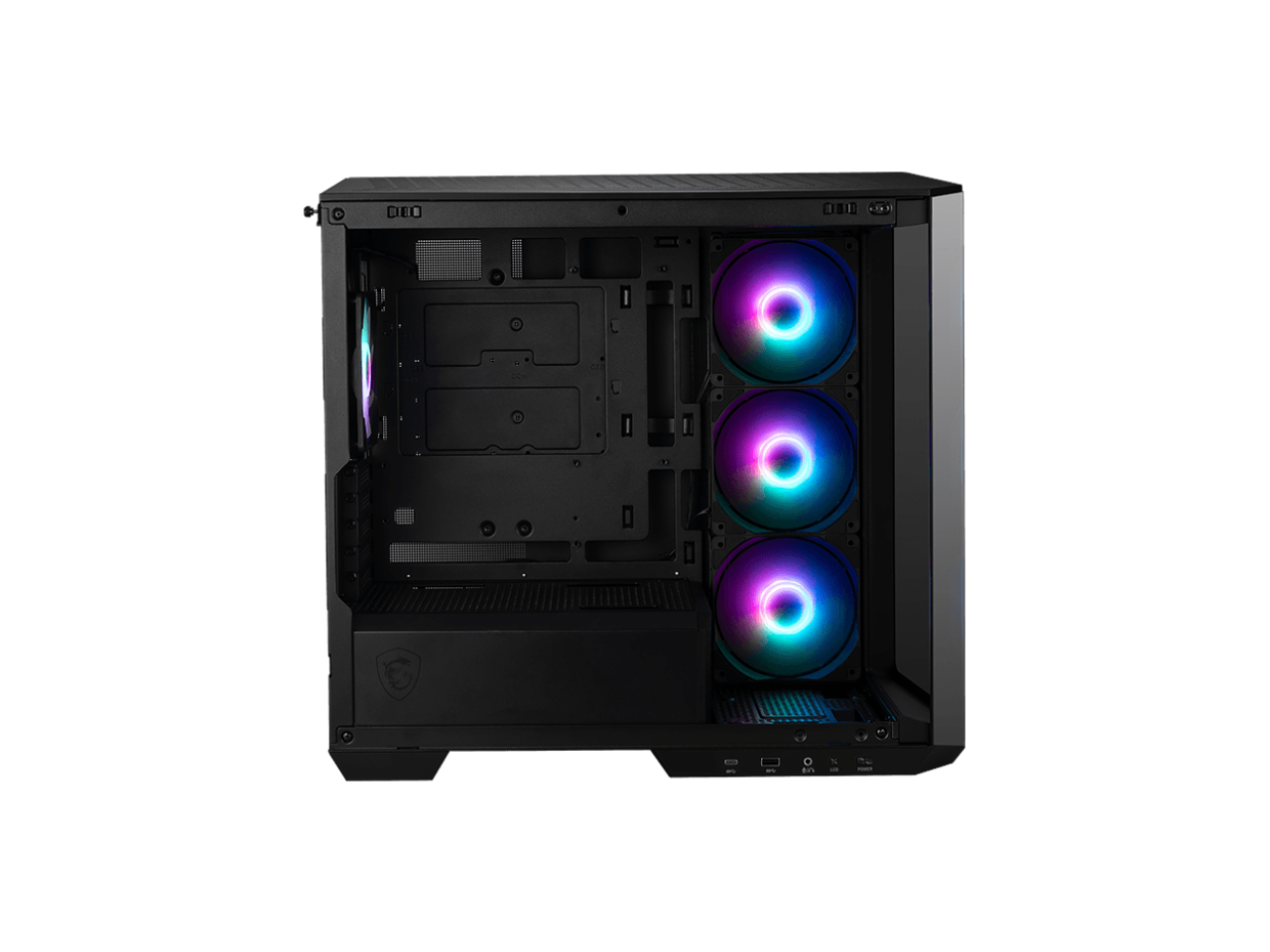

- MAG PANO M100R PZ offers spectacular ambient illumination with 3 x 120 mm Reverse-blade ARGB PWM intake fans and 1 x 120 mm ARGB PWM exhaust fan pre-installed.
/11-320-058/3.jpeg)
Organize Easily
- Supporting Back-connect motherboards not only simplifies the installation process but also makes cable management easier.
- Additionally, it prevents interfering with cables in front of the motherboard, keeping the interior of the case a lot cleaner.
- The Velcro straps help to tie the cables easily.
/11-320-058/4.jpeg)

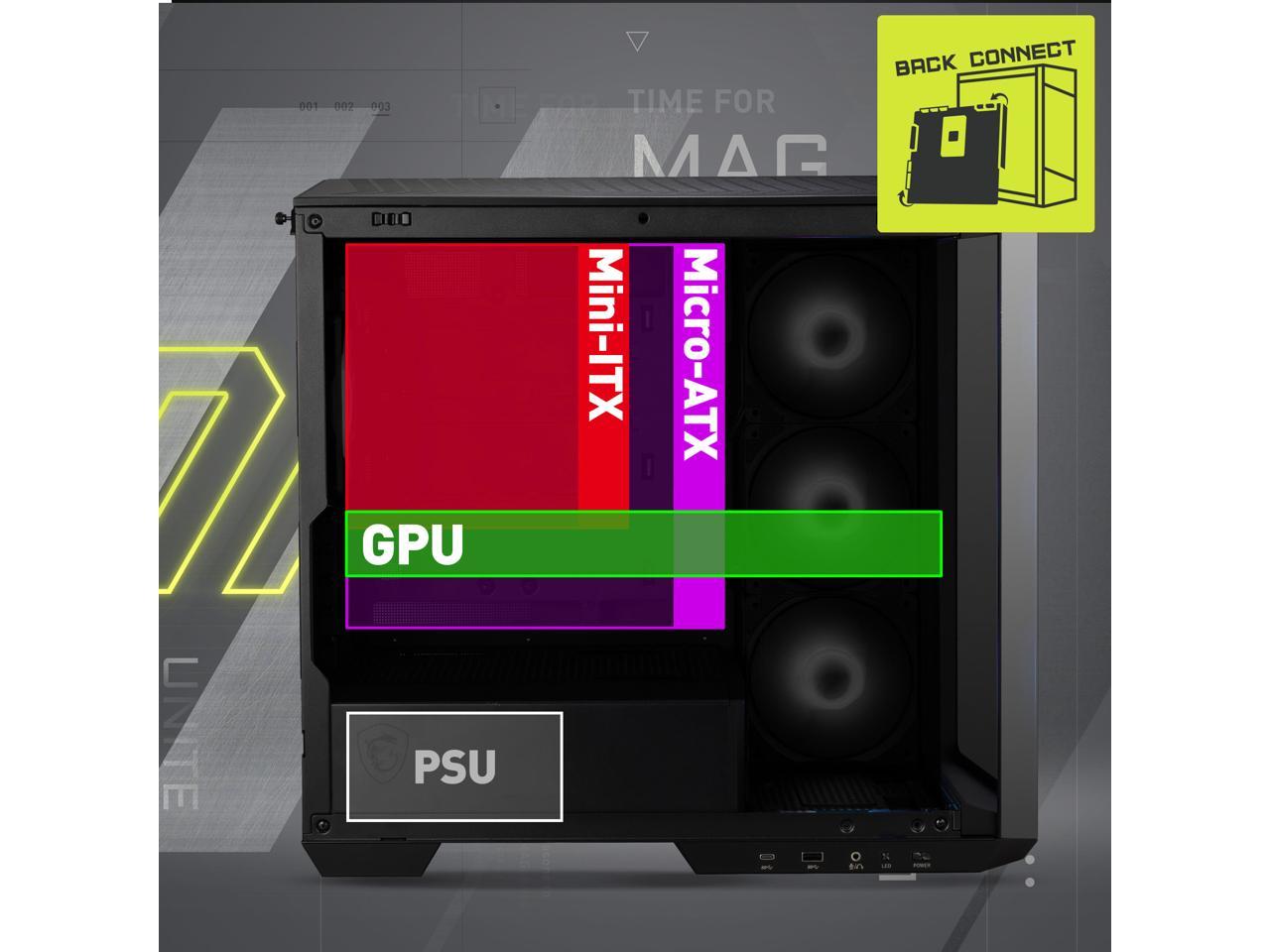

Extensive Compatibility
Motherboard support: Micro-ATX (Back-connect and regular motherboard compatible) and Mini-ITX (regular motherboard compatible).
Component clearances:
- CPU Cooler height: 175 mm
- GPU Length: 390 mm
- PSU Length: Up to 200 mm
Storage options:
- 1 x 2.5″ SSD
- 1 x 2.5″/3.5″ SSD combo bay
/11-320-058/5.jpeg)

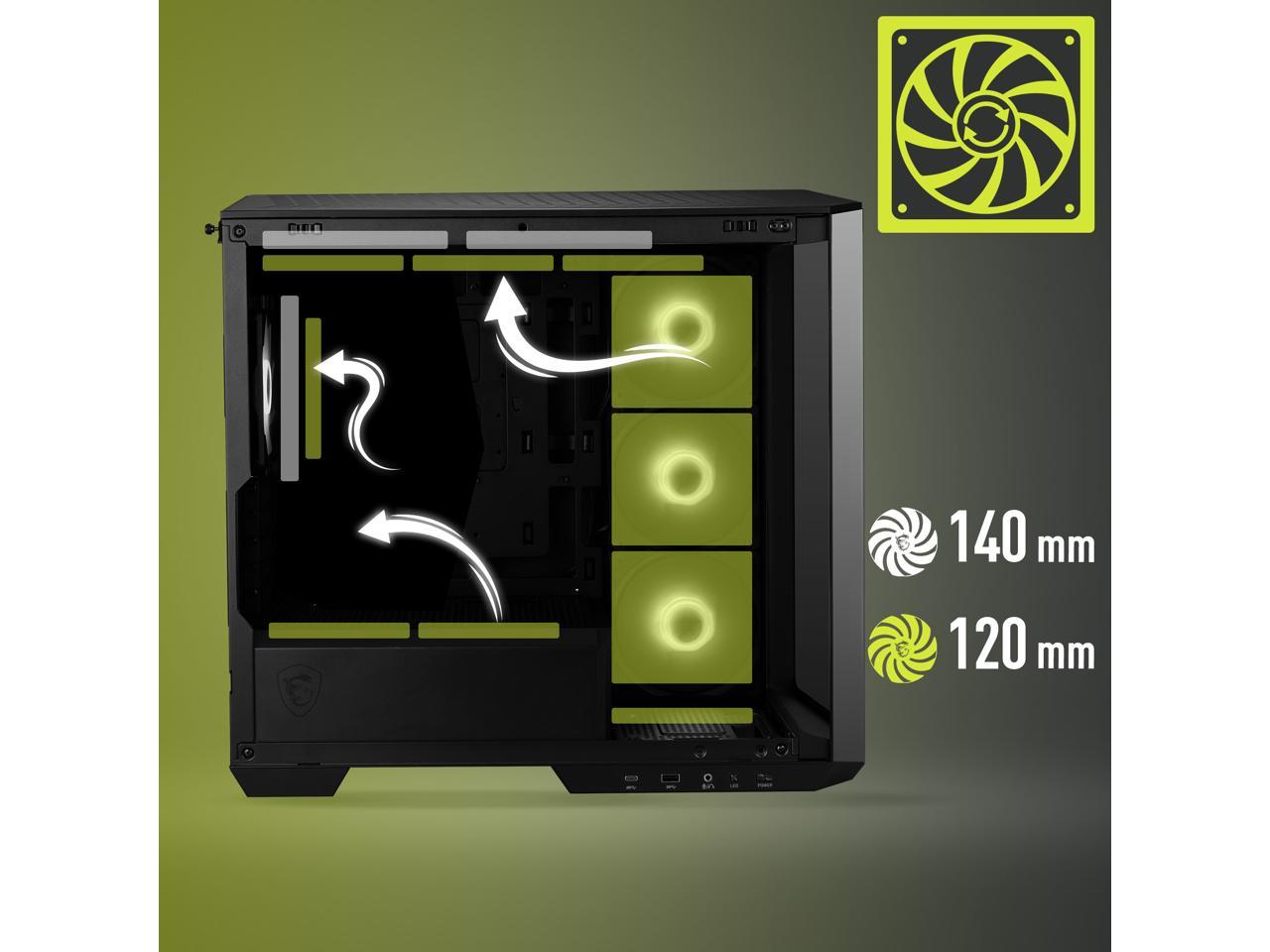

Extensive Cooling Support
The MAG PANO M100R PZ comes pre-installed with 3 x 120 mm Reverse-blade ARGB PWM fans and 1 x 120 mm ARGB PWM fan, other fan cooling options include:
- Top: 3 x 120/2 x 140 mm fans
- Rear: 1 x 120/140 mm fan
- PSU shroud: 2 x 120 mm fans
- Bottom: 1 x 120 mm fan
/11-320-058/6.jpeg)

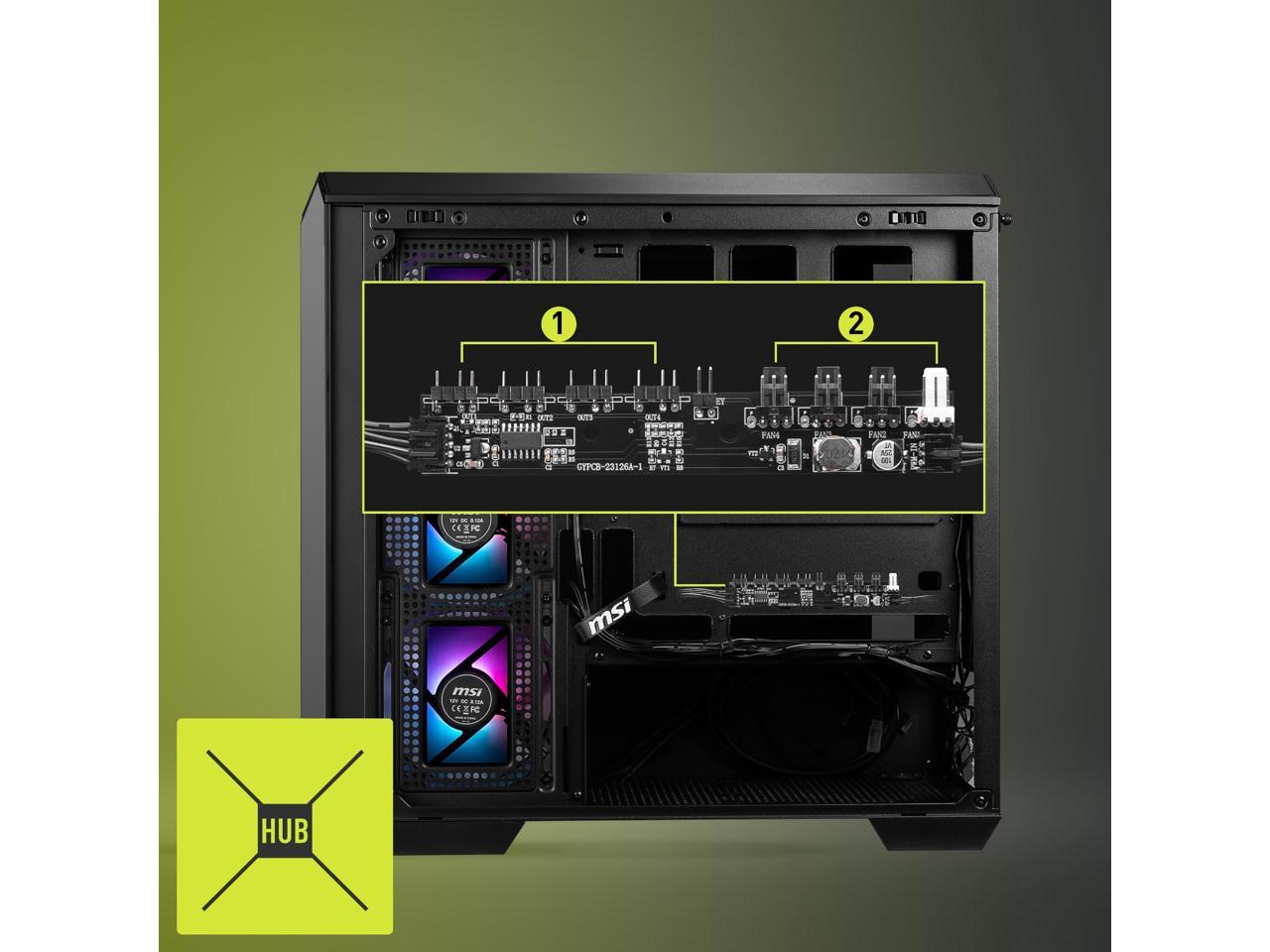

1-to-4 ARGB-PWM Control Board
The pre-installed 1-to-4 ARGB-PWM control board supports extra ARGB fan connections to the case. It supports intuitive control & lighting profiles through the LED switch button, and is also compatible with the Mystic Light utility via MSI motherboards.
1. 3-pin ARGB connector
2. 4-pin PWM connector
/11-320-058/7.jpeg)

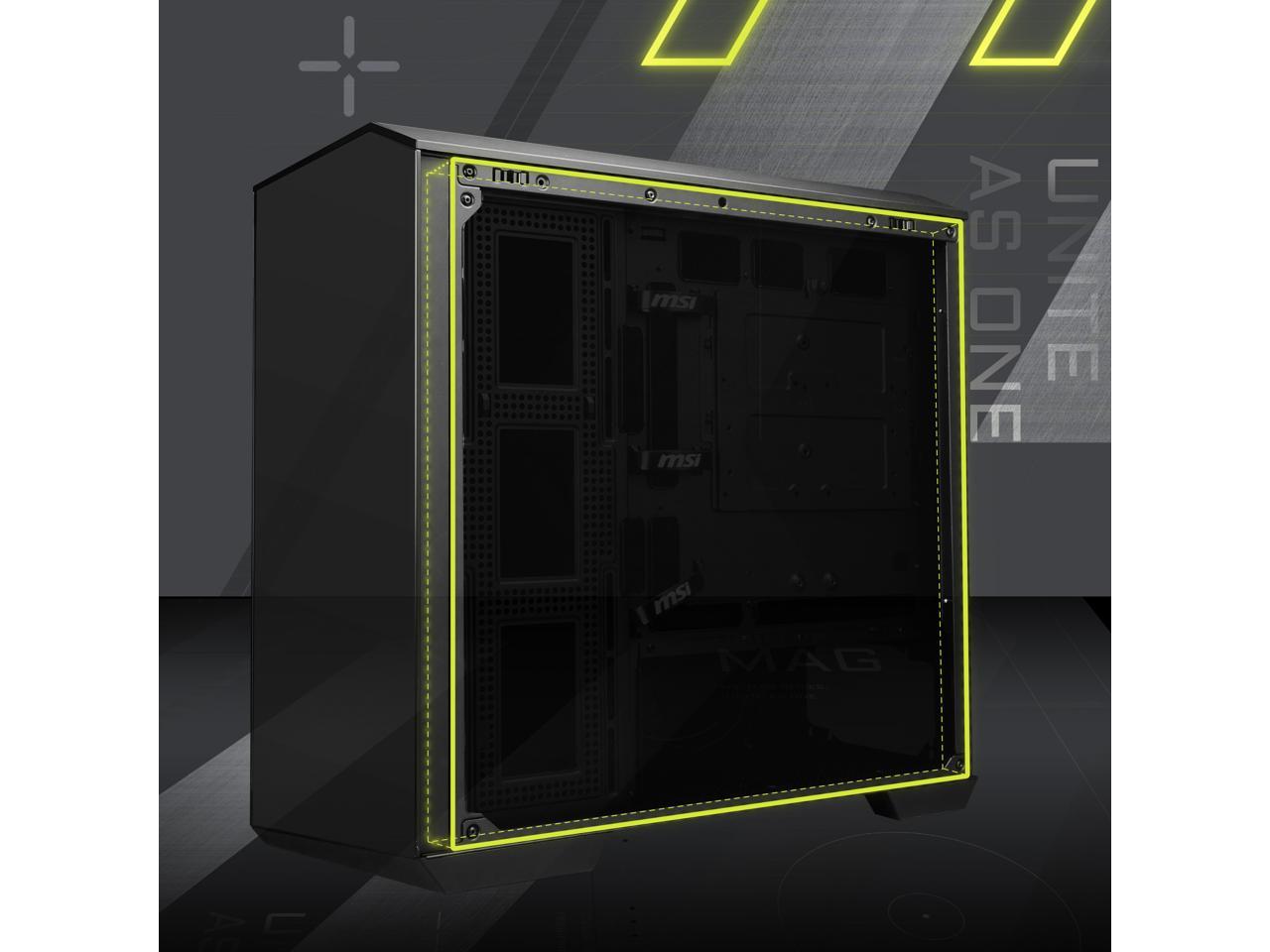

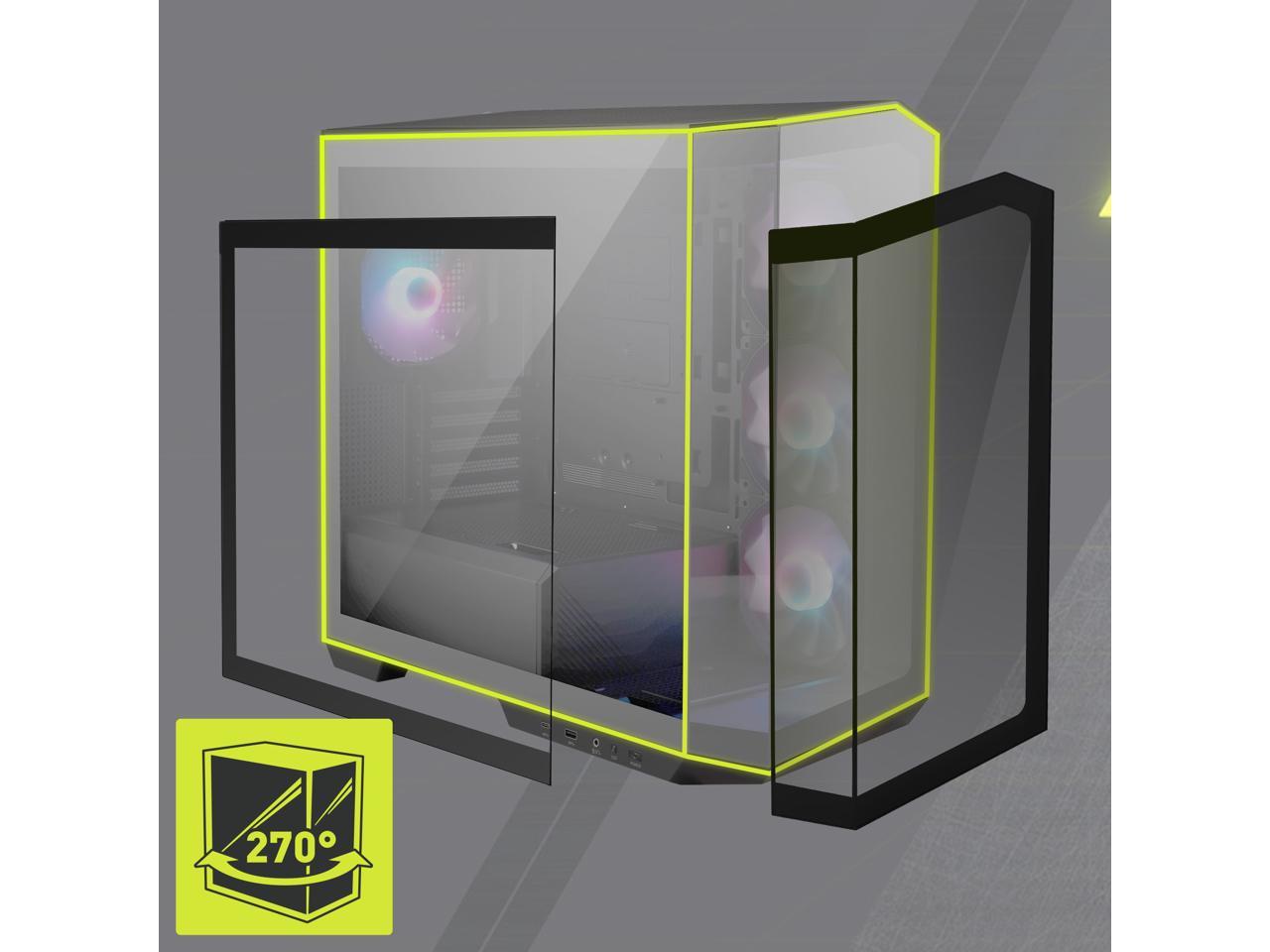

270-Degree Panoramic Display
- This case features a 270-degree reinforced glass design, providing a panoramic view of the interior without obstructive metal at the corners, ensuring a seamless showcase of internal components.
/11-320-058/8.jpeg)
Assemble for Cable Mangement
- 33 mm cable routing space & pre-installed cable Velcro strips for easy cable management.
/11-320-058/9.jpeg)

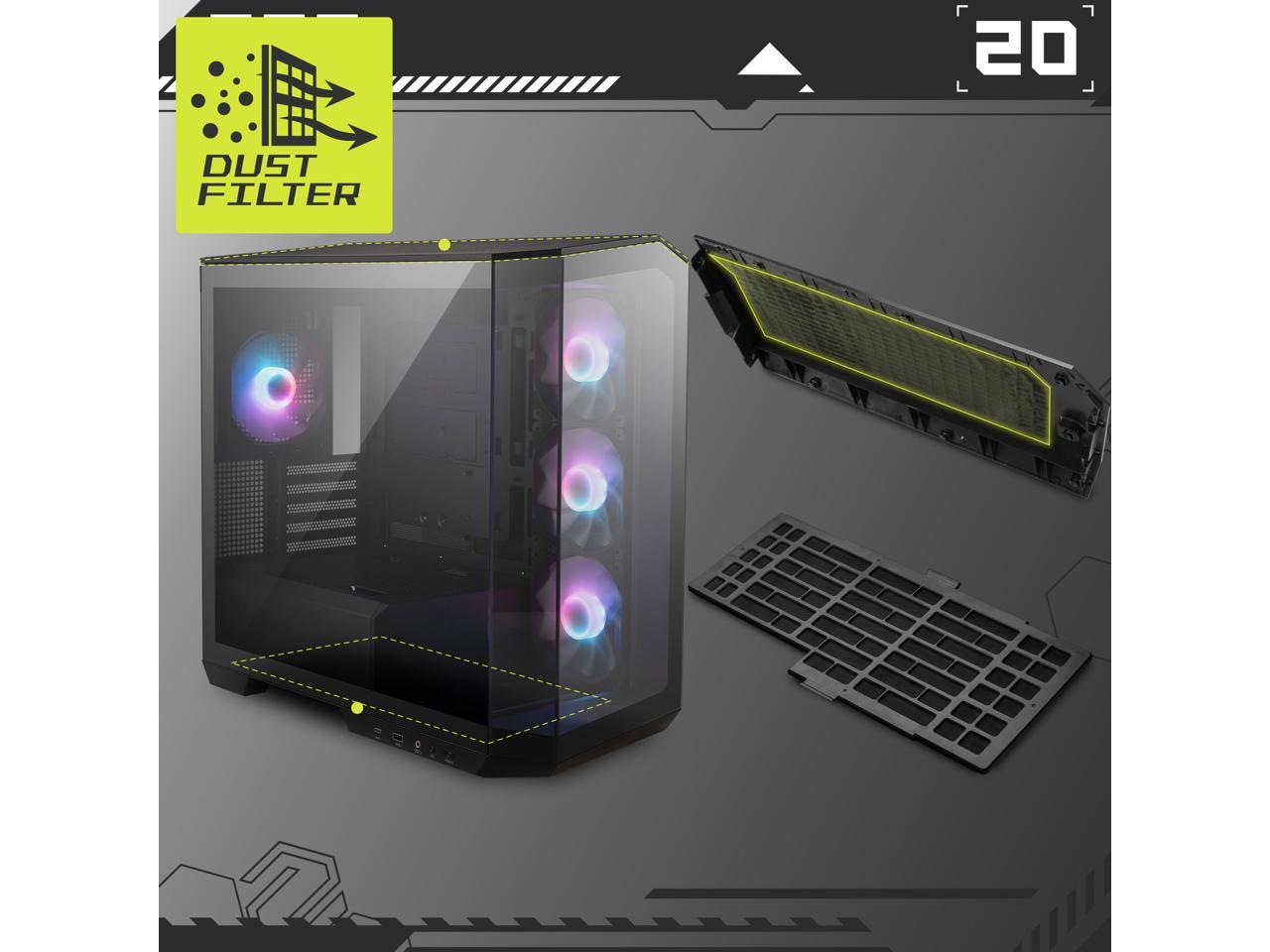

Multiple Inlets & Filters
The tool-free top removable design ensures effortless installation, while the bottom of this case features a magnetic dust filter for easy removal and cleaning.
/11-320-058/10.jpeg)

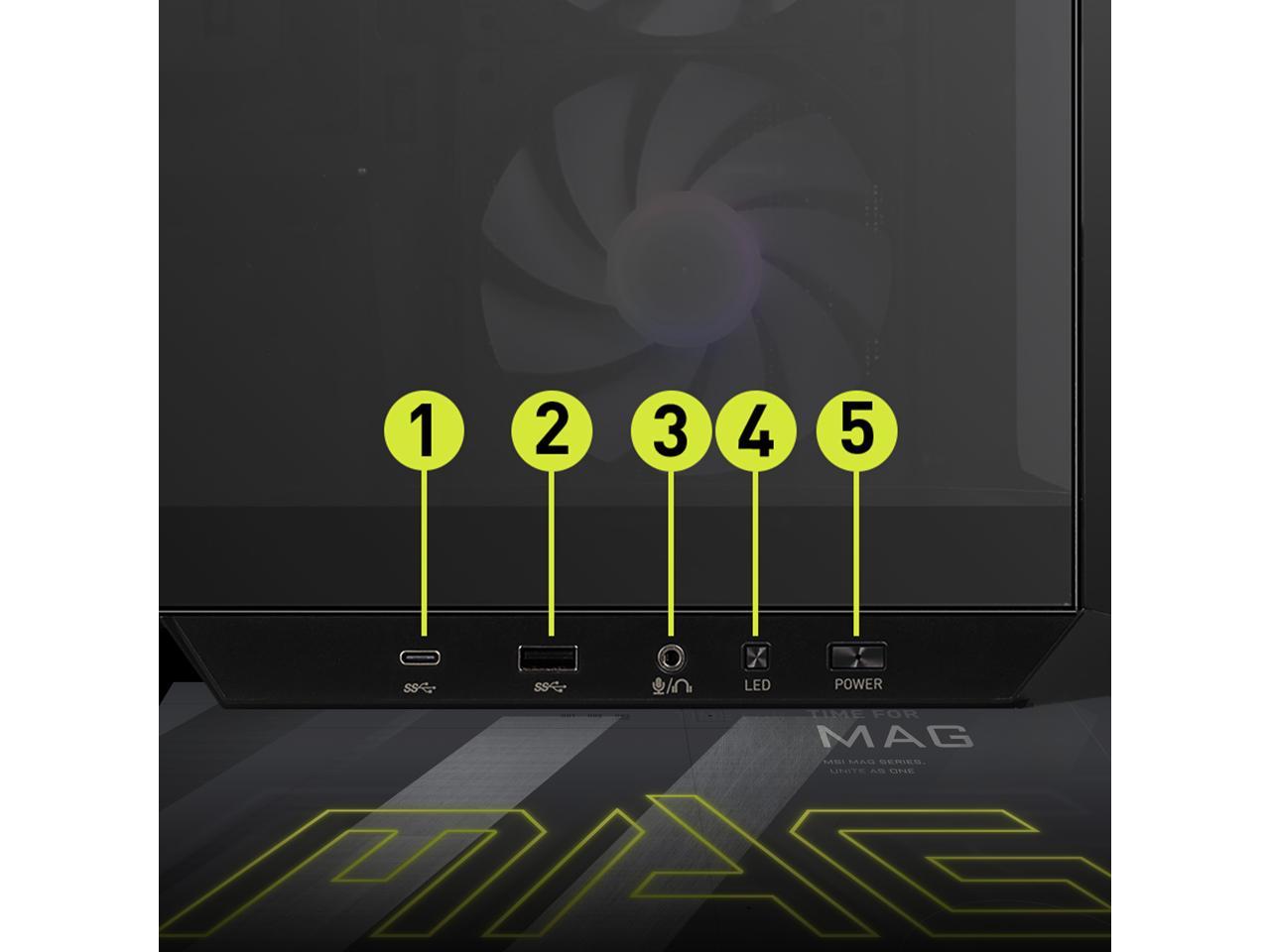

Side I/O Connectivity
The side I/O panel features a USB 3.2 Gen 2×2 Type-C port for high-speed 20Gbps data bridging to compatible motherboards.
1. 1 x USB 3.2 Gen 2×2 Type-C (20Gbps)
2. 1 x USB 3.2 Gen 1 Type-A (5Gbps)
3. Mic in / Audio out
4. LED Switch Button
5. Power Button
——————————————————————————————
Expert Specs
| MANUFACTURER NUMBER | MAG PANO M100R PZ |
|---|---|
| PRODUCT CONDITION | New |
| FORM FACTOR | Micro- ATX Tower |
| POWER SUPPLY | Standard ATX (PSU Not Included) |
| LED LIGHT | N/Y (ARGB) |
| I/O PORTS |
|
| DRIVER BAYS |
(up to 2 x 2.5” or 1 x 2.5”+ 1 x 3.5”) |
| CASE EXPANSION SLOTS | 5 |
| MAXIMUM GPU LENGTH |
|
| MAXIMUM CPU COOLER LENGTH | 175 mm / 6.9 inches |
|---|---|
| RADIATOR COMPATIBILITY | Top: 120 / 240 / 360 mm Front: NA Rear: 120 / 140 mm Side: NA Bottom: NA |
| SUPPORT MB FORM FACTOR | M-ATX (Back-connect supported) / ITX |
| PRE-INSTALL FAN | Side: 3 x 120 mm Rear: 1 x 120 mm |
| FAN SIZE | Top: 3 x 120 mm / 2 x 140 mm Front: NA Rear: 1 x 120 mm / 1 x 140 mm Side: 3 x 120 mm Bottom: 1 x 120 mm PSU Shroud: 2 x 120 mm |

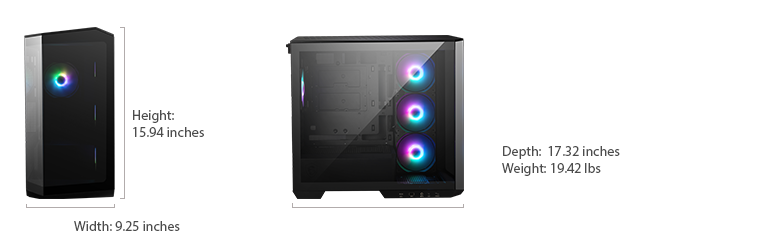

| DIMENSIONS | 17.32″ x 9.25″ x 15.94″ |
| WEIGHT | 19.42 lbs |
| MANUFACTURER WARRANTY | 1 Year |
306-7G24R22-809

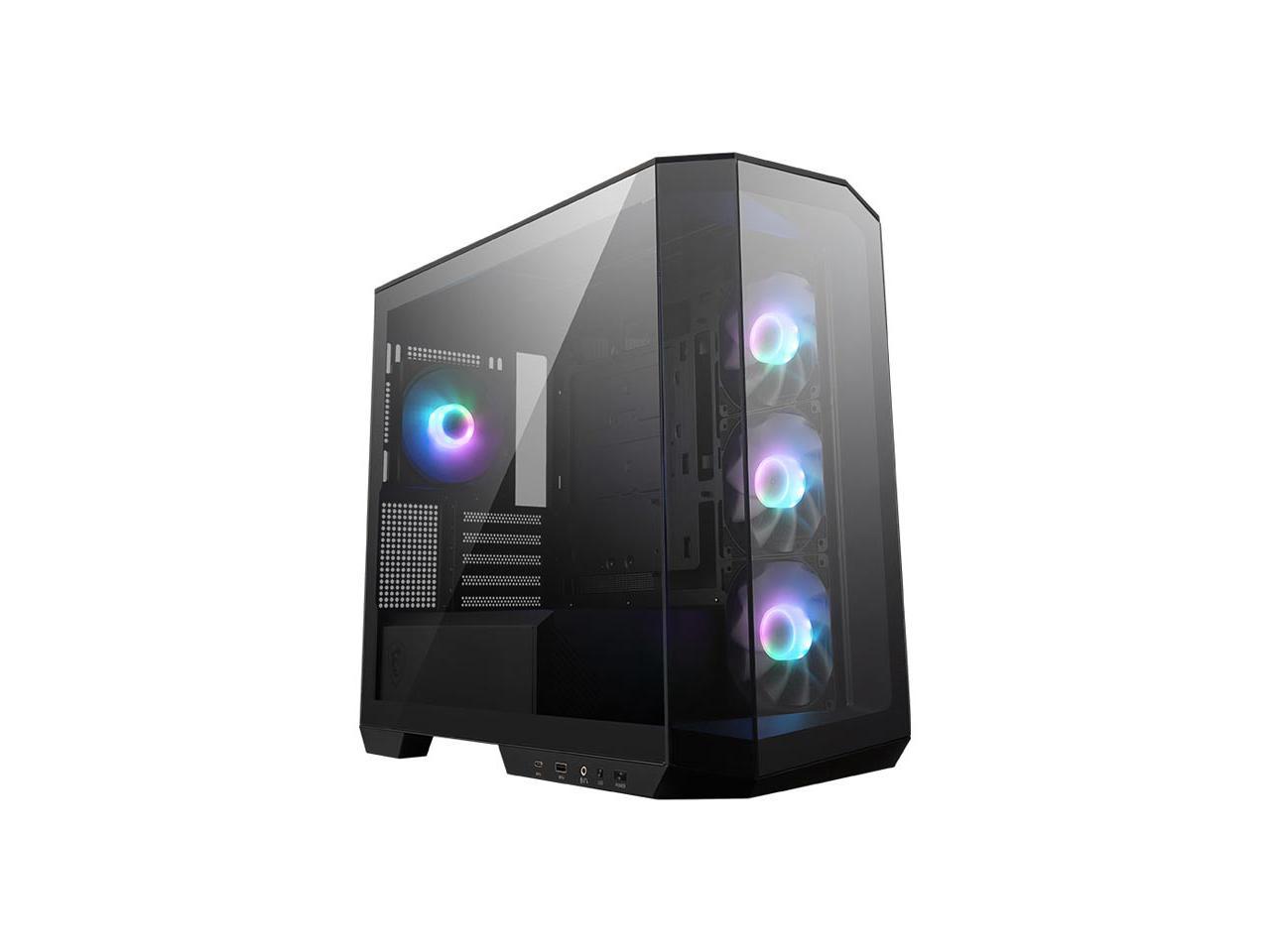

Black Micro ATX Gaming Case
MSI MAG PANO M100R PZ Black Micro ATX Gaming Case, Support Back-Connect Motherboard, 270-degree Panoramic Display – 44 x 23.5 x 40.45 cm
