MSI H510M PLUS V3 MOTHERBOARD , Supports up to10th Gen Intel ONLY, Micro-ATX 64GB 2933MHz DDR4 memory , Core Boost Technology, Memory Boost & Audio Boost , Armored PCIe Slot

$ 80.00 Original price was: $ 80.00.$ 72.00Current price is: $ 72.00. ---ONLY---
-10%
SKU: 911-7E05-005 Categories: ,

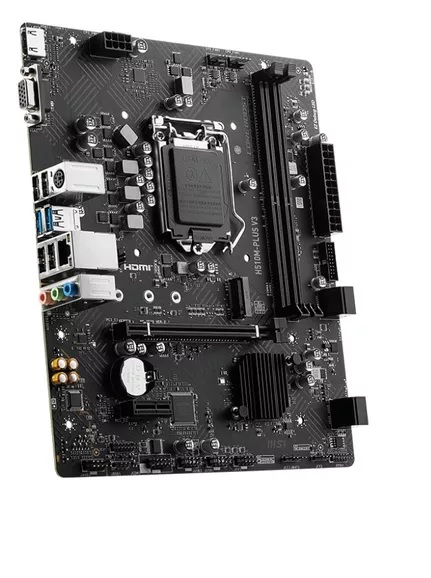

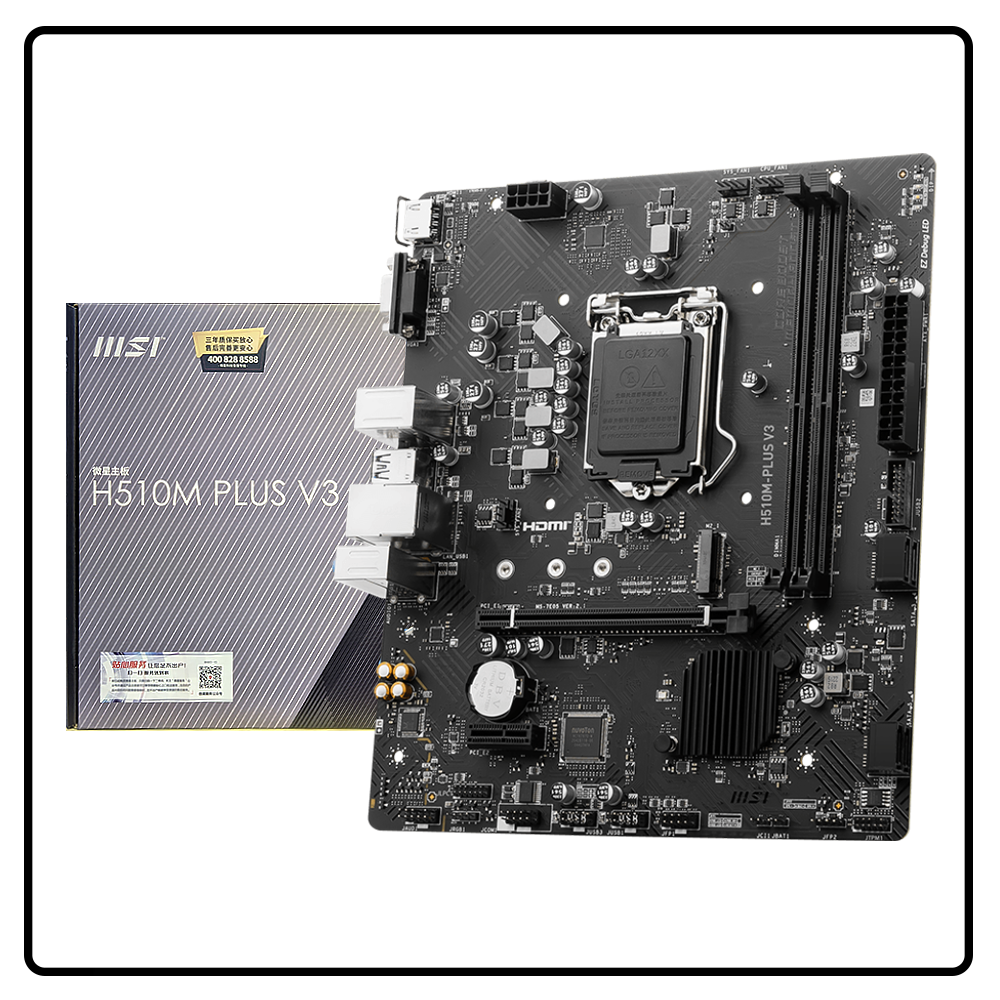

MSI H510M PLUS V3 Micro ATX MOTHERBOARD 10th Gen ONLY

EXPERT FEATURES

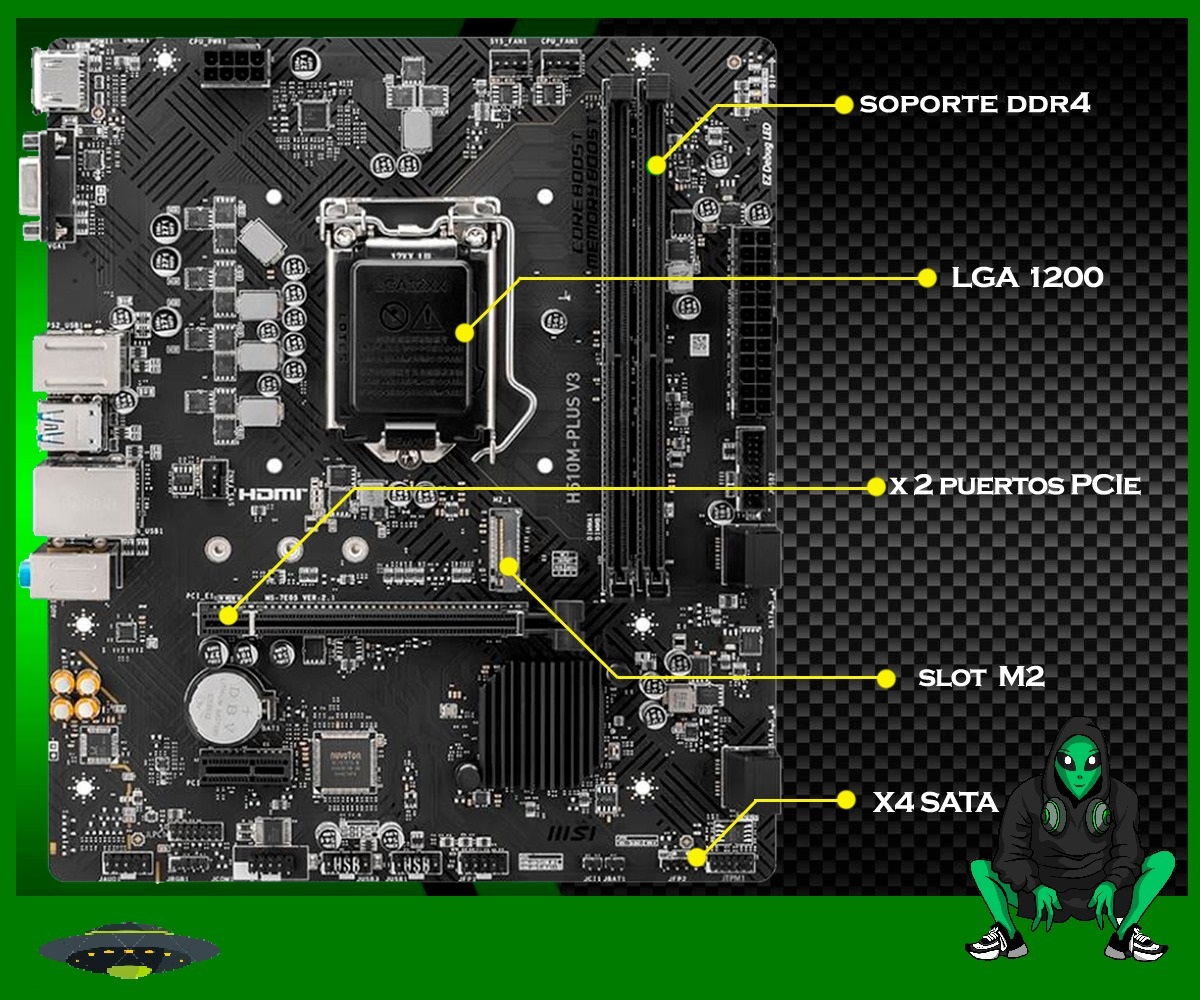

  •  Supports up to 10th Gen Intel Core ONLY  , Pentium® Gold and Celeron® memory using LGA 1200 socket
  • Supports DDR4 memory, maximum speed up to 2933(Max) MHz
  • Core Boost Technology: with premium chassis and digital power design that supports multiple cores and delivers better performance.
  • Memory Boost: advanced technology that delivers clean signals for ultimate performance and stability.
  • Audio Boost: Pamper your ears with studio-grade sound
  • Armored PCIe Slot: Protect VGA cards from curvature and electronic interference for better performance, stability and power.



MSI H510M PLUS

MSI H510M PLUS helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

EZ Debug LED

Easiest way to troubleshoot.

Memory Boost

Advanced technology to deliver pure data signals for the best performance, stability and compatibility.

Core Boost

With premium layout and fully digital power design to support more cores and provide better performance.



Expert Specifications

CHIPSET INTEL H470
CPU SUPPORT Supports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket
MEMORY 2x DDR4, Maximum Memory Capacity 64GB
Memory Support 2933/ 2666/ 2400/ 2133 MHz
Supports 1R 2133/ 2666/ 2933 MHz for Intel® Core™ i9/ Core™ i7 CPU
Supports 1R 2133/ 2666 MHz for Intel® Core™ i5/ Core™ i3/ Pentium® Gold and Celeron® CPU
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
ONBOARD GRAPHICS 1x HDMI™
Support HDMI™ 1.4, maximum resolution of 4K 30Hz*
1x D-Sub
Support VGA, maximum resolution of 2048×1536 50Hz, 1920×1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT 1x PCI-E x16 slot (Qty)
1x PCI-E x1 slot (Qty)
PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
STORAGE 1x M.2 (Qty)
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G (Qty)
USB 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
LAN Realtek® 8111H Gigabit LAN
AUDIO Realtek® ALC897 Codec
7.1-Channel High Definition Audio
INTERNAL I/O 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
LED FEATURE 4x EZ Debug LED

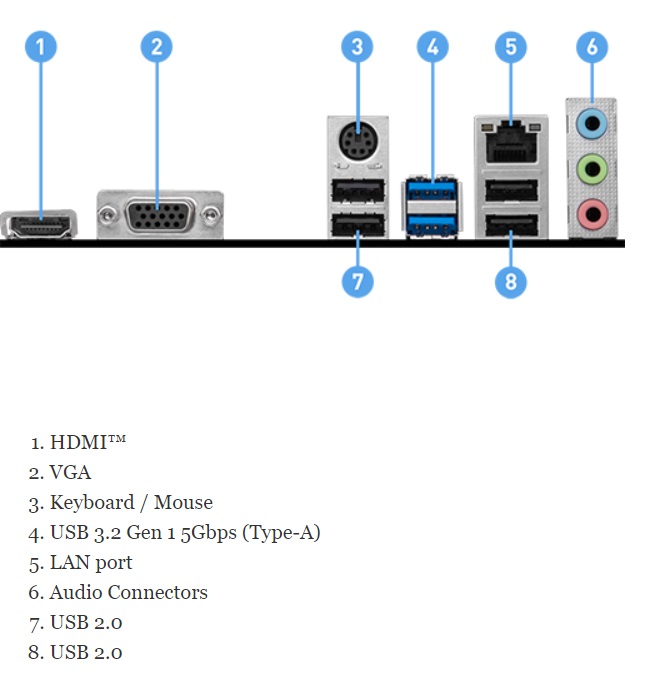

BACK PANEL PORTS

  1. HDMI™
  2. VGA
  3. Keyboard / Mouse
  4. USB 3.2 Gen 1 5Gbps (Type-A)
  5. LAN port
  6. Audio Connectors
  7. USB 2.0
  8. USB 2.0
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION (W × L) mATX
202mmx236mm



Description

911-7E05-005

MSI H510M PLUS V3 Micro ATX MOTHERBOARD 10th

MSI H510M PLUS V3 MOTHERBOARD , Supports 10th Gen Intel , Micro-ATX 64GB 2933MHz DDR4 memory , Core Boost Technology, Memory Boost & Audio Boost , Armored PCIe Slot


MSI H510M PLUS V3 Micro ATX MOTHERBOARD 10th MSI H510M PLUS V3 Micro ATX MOTHERBOARD 10th  MSI H510M PLUS V3 Micro ATX MOTHERBOARD 10th MSI H510M PLUS V3 Micro ATX MOTHERBOARD 10th MSI H510M PLUS V3 Micro ATX MOTHERBOARD 10th
