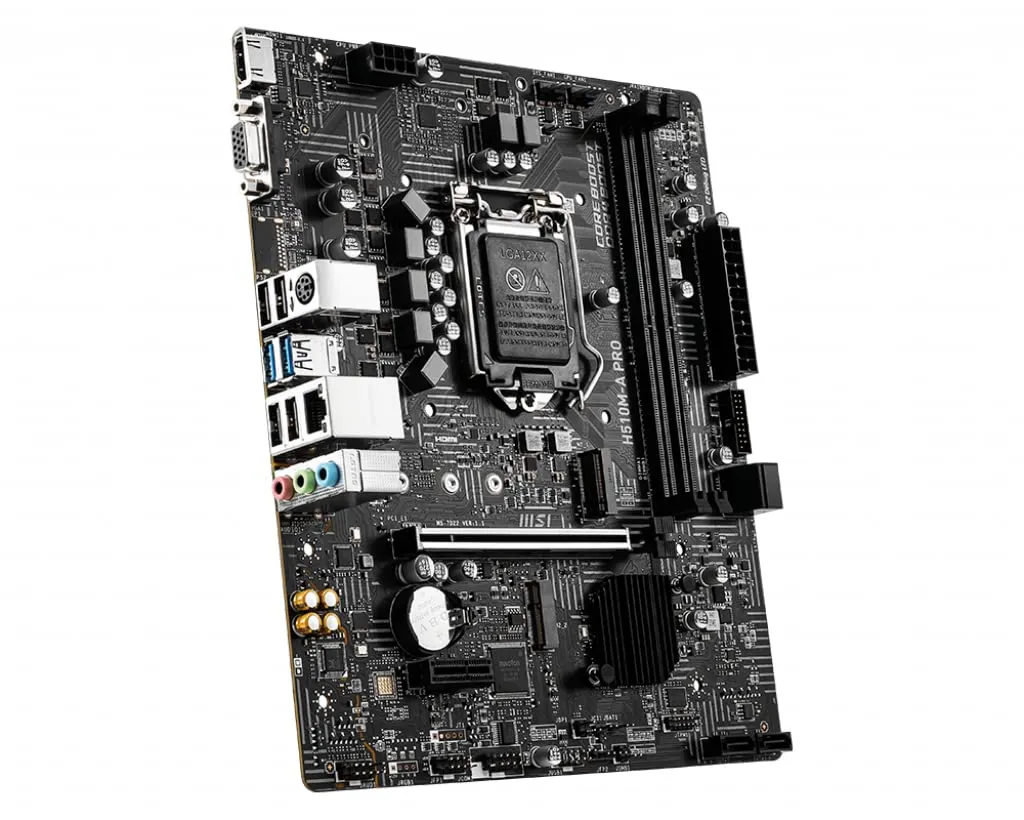

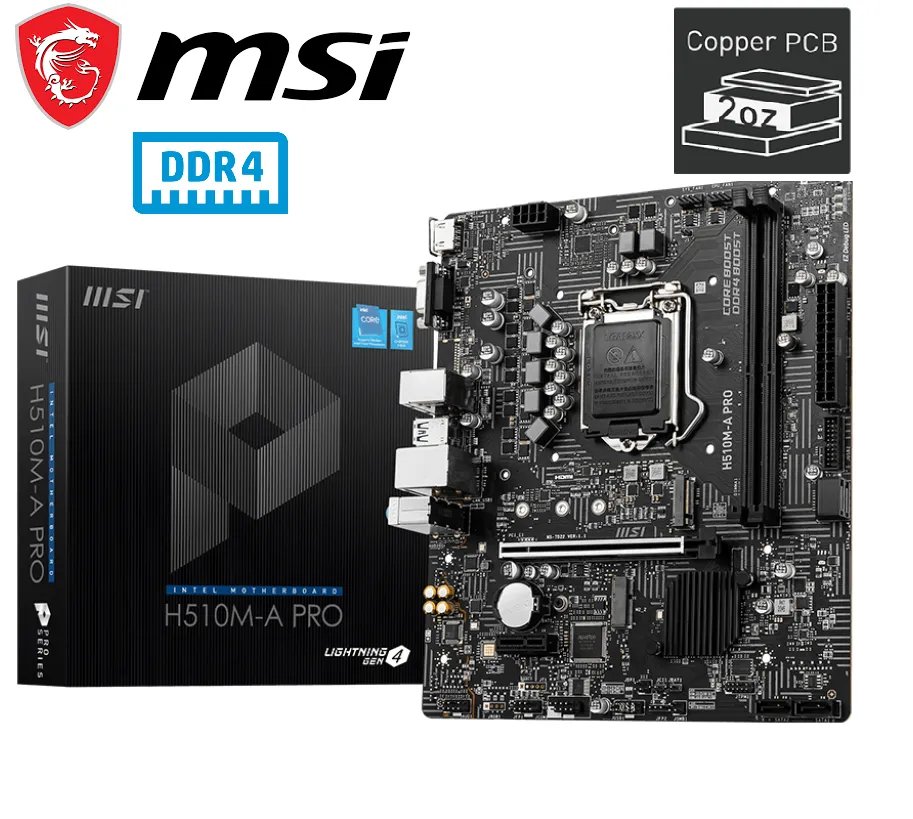

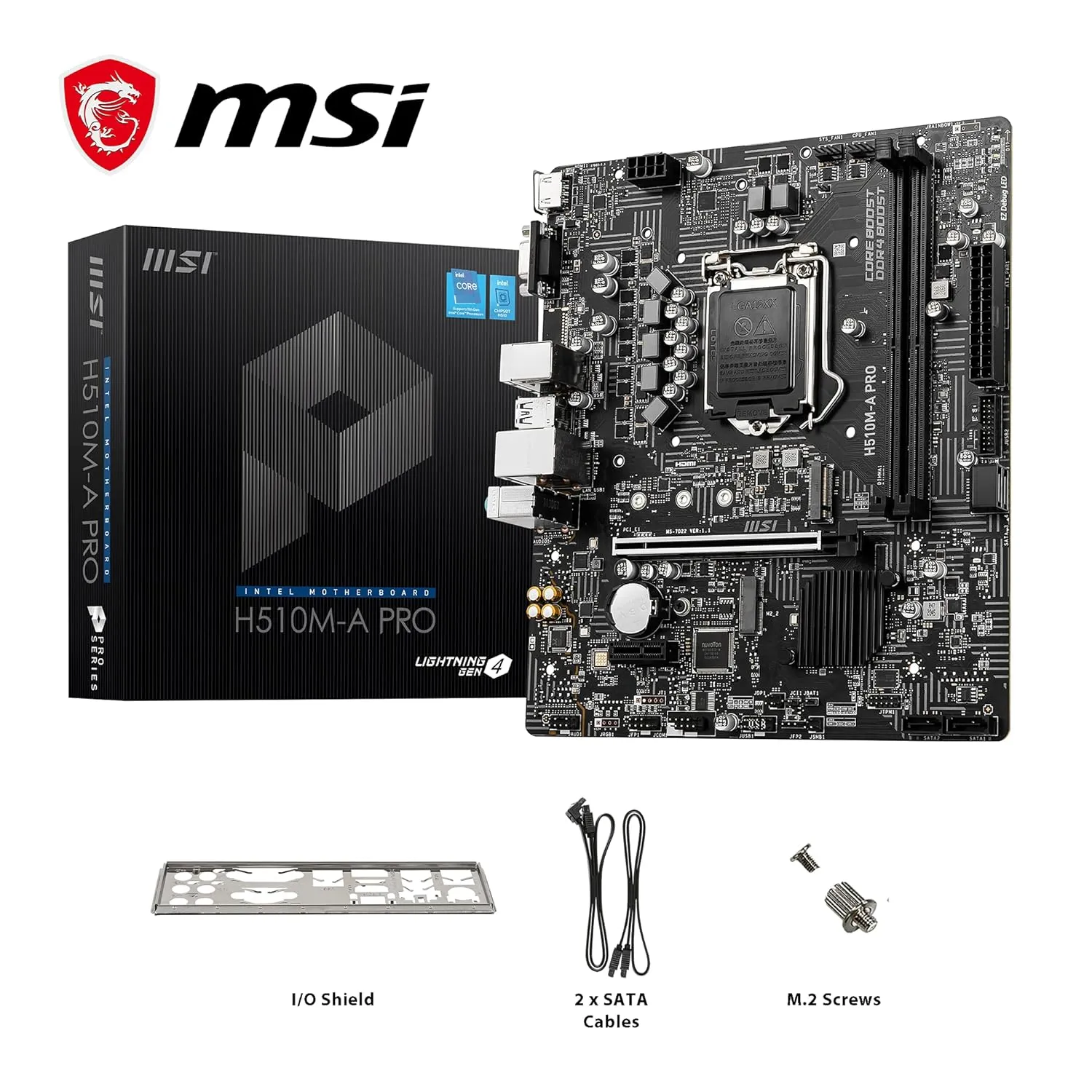

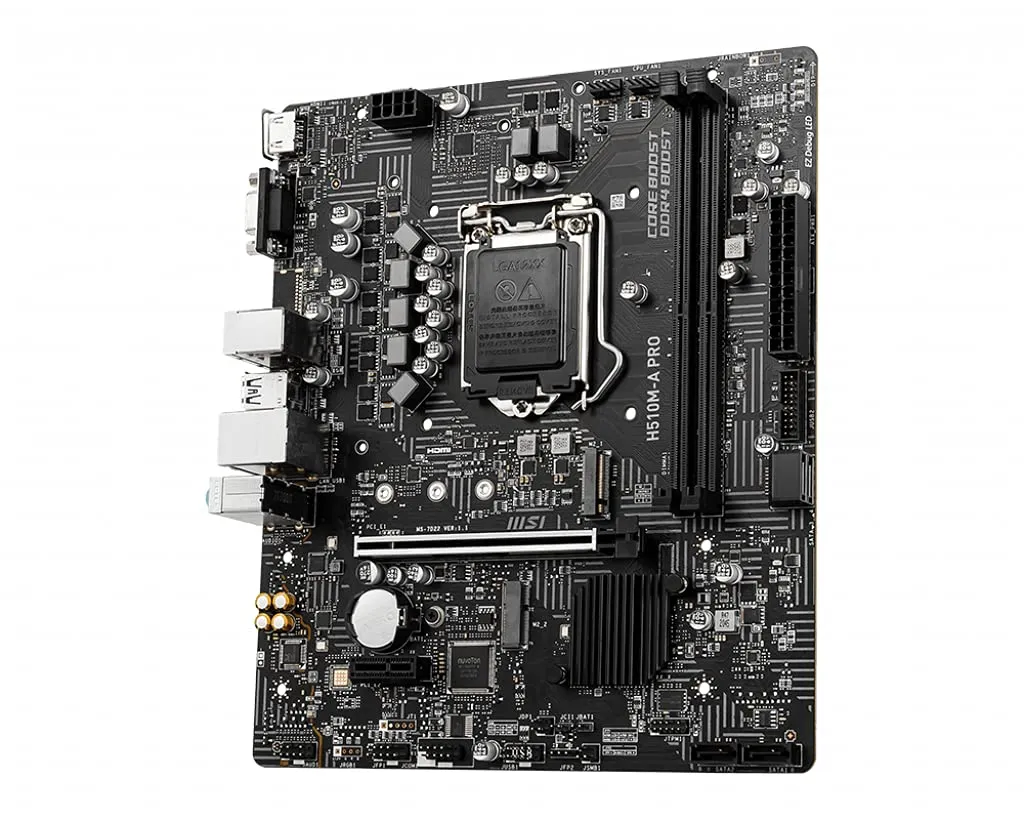

MSI H510M A Pro Motherboard DDR4 Micro ATX Lga 1200 11Th Gen

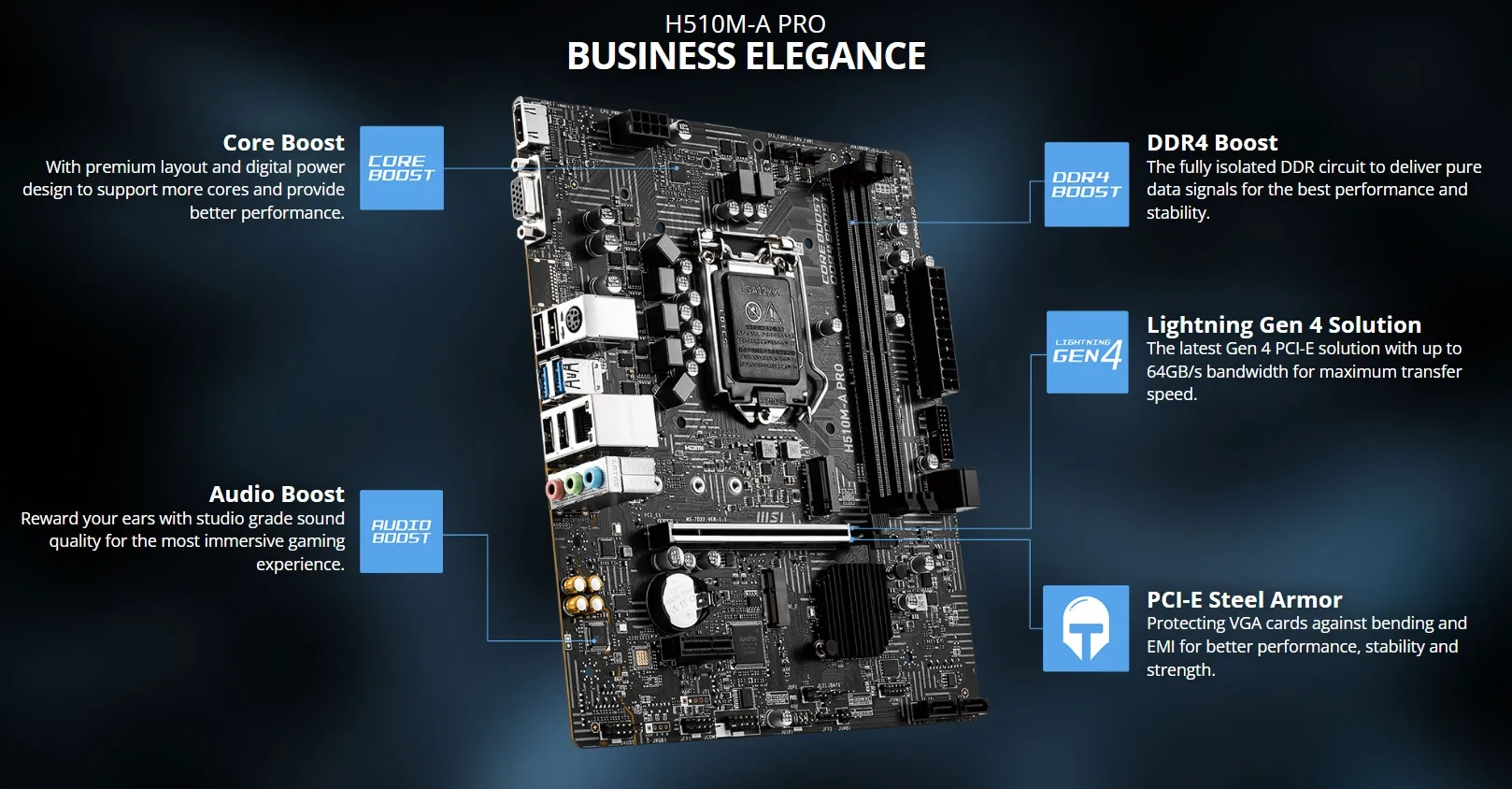

Expert Features

11TH GEN CORE READY –

• The H510M-A PRO is a compact micro-ATX motherboard outfitted with the latest Intel H510 chipset (LGA 1200, 11th Gen Core ready)
• The VRM features MSI Core Boost technology for improved stability & performance

GEN4 GPU SLOT, DUAL DIMMS –

• A PCIe 4.0 x16 slot (with steel frame) supports state-of-the-art graphics cards
• Dual DIMM’s with dual-channel DDR4 architecture support up to 64 GB of SDRAM (3200MHz)

GEN3 M.2 SSD STORAGE –

• The M.2 Gen3 x4 32Gb/s slot is designed to maximize NVMe based SSD performance; SSD storage reduces loading time

PASSIVE & AI COOLING –

• A chipset heatsink provides passive cooling
• a PCB base with thickened copper helps dissipate heat
• Frozr AI cooling automatically adjusts system fan settings based on CPU & GPU temperature

GET CONNECTED –

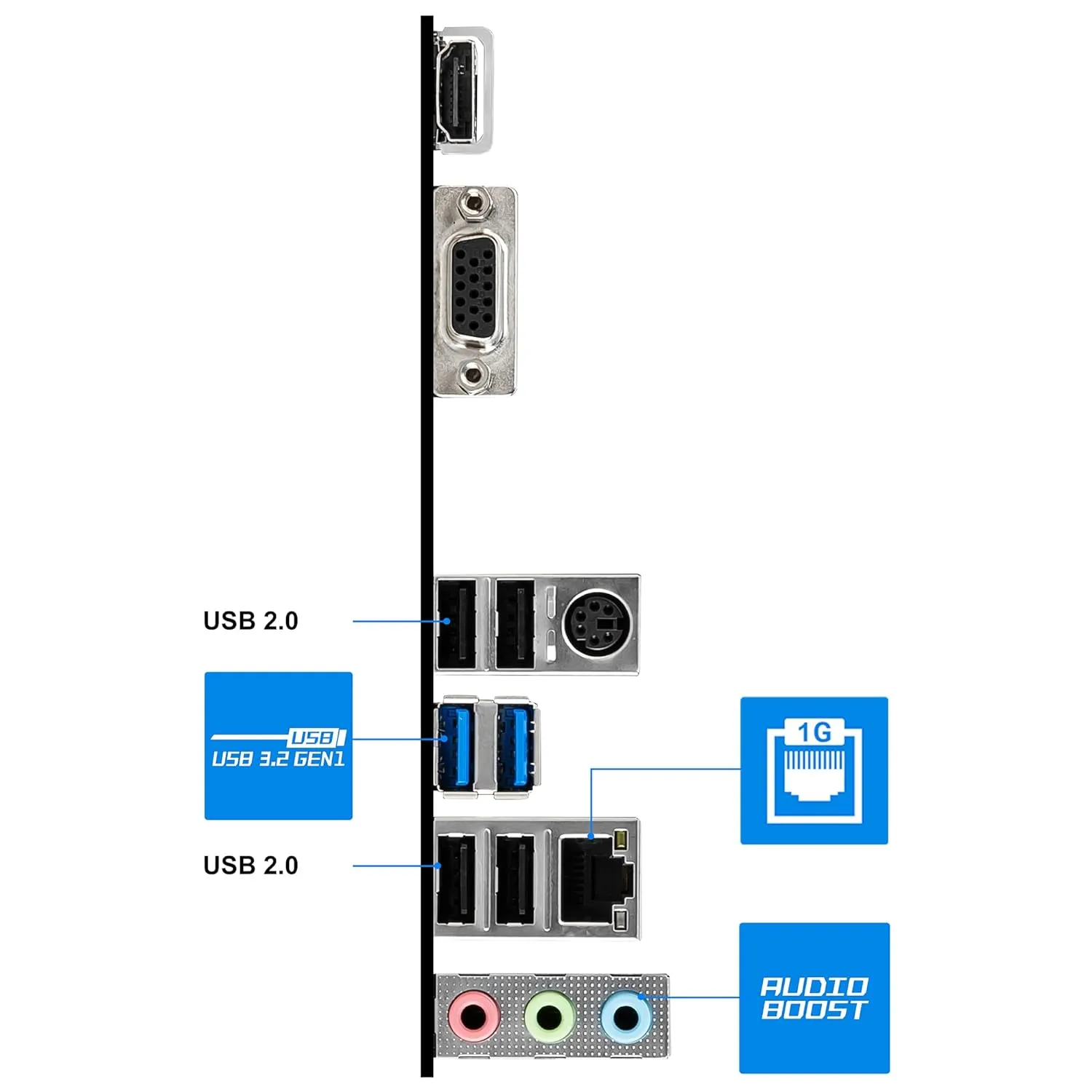

• Features Intel 1219V 1G LAN; Fixed ports include legacy VGA as well as the latest HDMI 2.0b (4K/60Hz)
• requires CPU with integrated graphics; 2 x USB 3.2 Gen 1 Type-A (5Gb/s) and 7.1 HD Audio with Audio Boost

Expert Specs

• SOCKET 1200
• CHIPSET Intel® H510 Chipset
• MEMORY CHANNEL Dual
• DIMM SLOTS 2
• MAX MEMORY (GB) 64
• PCI-E X16 : 1
• PCI-E GEN : Gen 4
• PCI-E X1 : 1
• SATAIII : 4
• M.2 SLOT : 2
• TPM (HEADER) : 1
• USB 3.2 PORTS (FRONT) : 2(Gen 1, Type A)
• USB 3.2 PORTS (REAR) : 2(Gen 1, Type A)
• USB 2.0 PORTS (FRONT) : 2
• USB 2.0 PORTS (REAR) : 4
• SERIAL PORTS(FRONT) : 1
• AUDIO PORTS (REAR) : Realtek® ALC892/ ALC897 Codec
• VGA : 1
• HDMI : 1
• DIRECTX : 12
• CPU SUPPORT : Support for Windows® 10 64-bit
• FORM FACTOR : Mirco-ATX
