SKU: MERCUSYS-AC12

MERCUSYS AC12 AC1200 Dual Band WiFi Router – 4× 5dBi Antennas, 300Mbps + 867Mbps, Guest Network, IPTV & IPv6 Support, Easy 3-Step Setup, WPA2 Security

$ 16.00

Description

Expert Features

  • Next-Gen WiFi with AC1200 Speeds
    Complies with the latest 802.11ac standard, delivering up to 1200Mbps combined speed — 300Mbps on 2.4GHz and 867Mbps on 5GHz. Perfect for streaming, gaming, and HD video calls.
  • Dual-Band Simultaneous Connections
    Use both 2.4GHz and 5GHz bands concurrently for optimized performance across all devices, reducing congestion and improving stability.
  • Extended Range with 4× 5dBi High-Gain Antennas
    Equipped with four external 5dBi antennas and advanced signal amplification to ensure strong coverage and reduced dead zones in homes or offices.
  • 2×2 MIMO Technology
    Boosts wireless throughput and efficiency by handling multiple data streams at once, ensuring smoother performance with multiple users.
  • Guest WiFi Network
    Create a separate, secure network for guests without exposing your main connection.
  • Full IPTV & IPv6 Support
    Seamlessly stream IPTV using IGMP Proxy/Snooping, VLAN, and Bridge mode while preparing your network for future services with IPv6 compatibility.
  • Fast & Easy Setup
    Simple 3-step web-based setup makes installation a breeze for anyone, no technical knowledge required.
  • Smart Management Options
    Includes remote and local management, access control, port forwarding, and network diagnostics to give you full control.
  • Advanced Wireless Security
    WPA-PSK / WPA2-PSK encryption, IP/MAC binding, and firewall tools ensure strong protection against cyber threats.

Expert Specs

CategoryDetails
ModelMERCUSYS AC12
WiFi StandardsIEEE 802.11a/n/ac (5GHz), IEEE 802.11b/g/n (2.4GHz)
WiFi Speeds300Mbps (2.4GHz), 867Mbps (5GHz)
Frequency Bands2.4 – 2.5GHz, 5.15 – 5.25GHz
Antennas4 × 5dBi External Fixed Antennas
MIMO Technology2×2 MIMO
Reception Sensitivity2.4GHz: -95dBm to -71dBm; 5GHz: -92dBm to -60dBm
SecurityWPA-PSK/WPA2-PSK, IP & MAC Binding, SPI Firewall
Wireless FunctionsEnable/Disable Radio, Wireless Statistics
Guest NetworkSeparate networks on both 2.4GHz & 5GHz

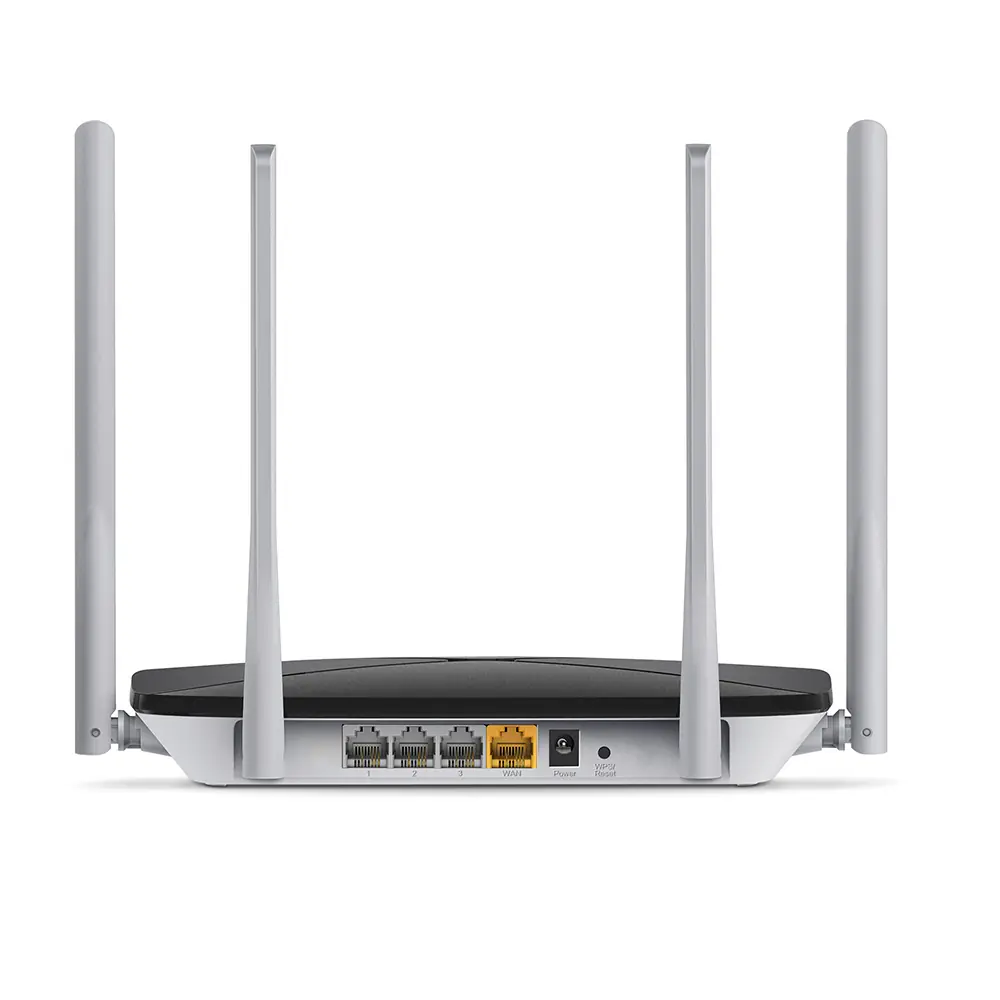

WAN Port1 × 10/100 Mbps
LAN Ports3 × 10/100 Mbps
WAN TypesDynamic IP, Static IP, PPPoE, L2TP, PPTP
Port ForwardingVirtual Server, UPnP, DMZ
ManagementLocal, Remote, Access Control
DHCP ServerYes
Setup MethodWeb Interface (3-Step Installation)
IPTV SupportIGMP Proxy/Snooping, VLAN, Bridge
IPv6 SupportYes
ButtonWPS/Reset
Dimensions222 × 140 × 32 mm
Power Supply9V/0.85A External Adapter
ColorBlack
