SKU: LNM610P500G-RNNNG

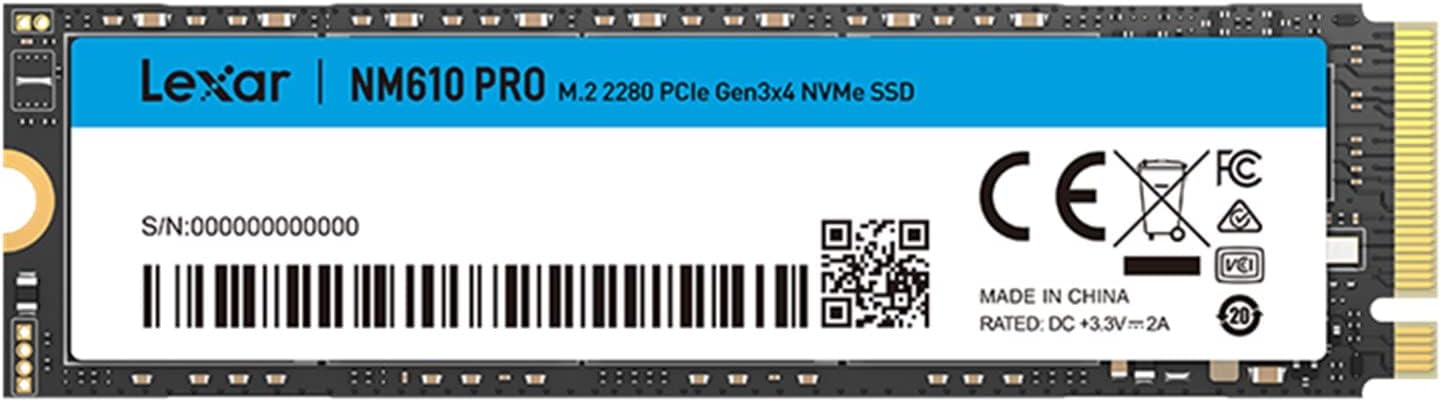

Lexar NM610 PRO 500GB NVMe SSD M.2 2280 With PCIe Gen3x4 Interface, Up To 3300MB/s Read Speed, NVMe 1.4 Technology, Compact Design, High Endurance 120TBW

Description

Expert Features

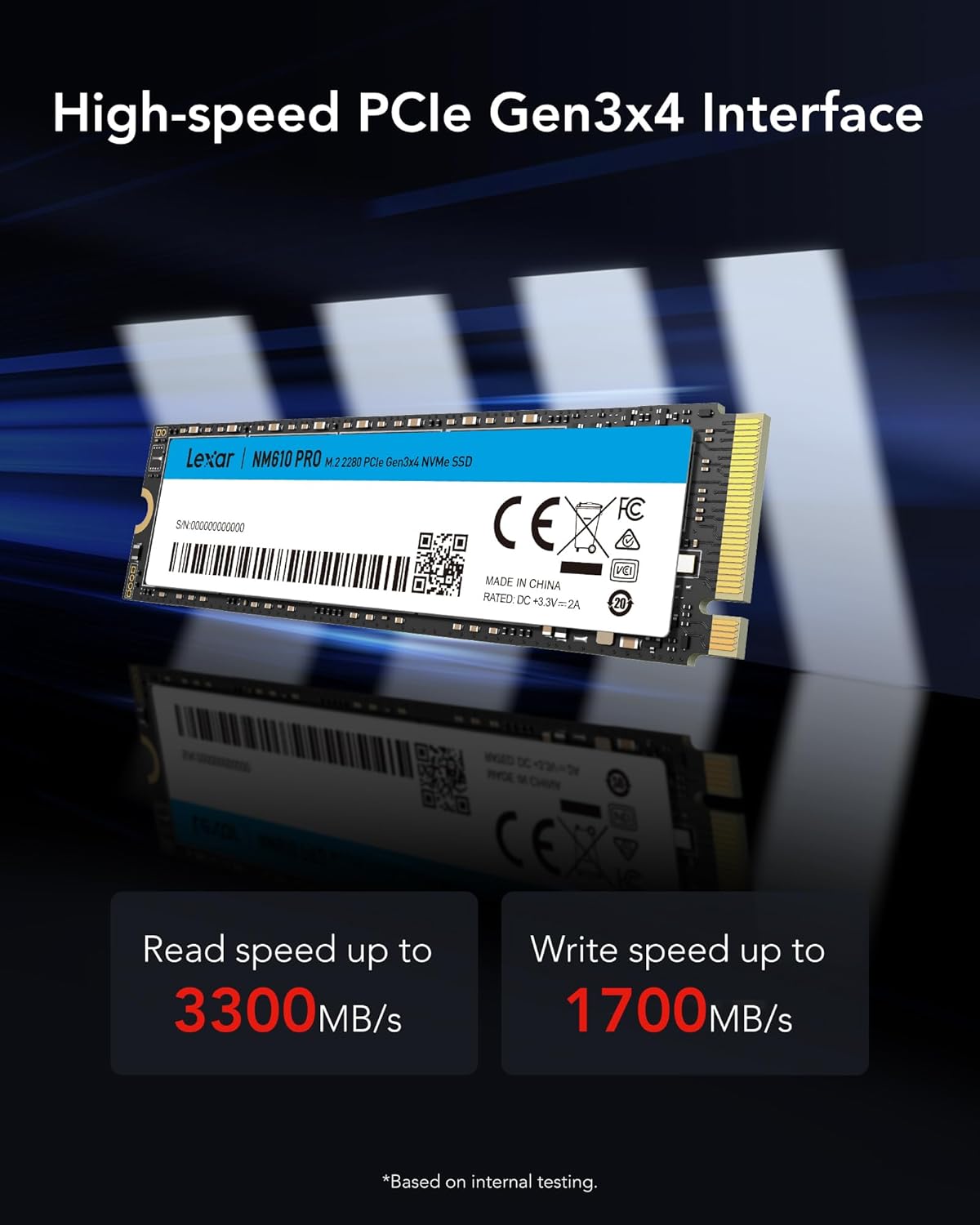

  • PCIe Gen3x4 NVMe Performance: Harnesses the PCIe Gen3x4 interface with NVMe 1.4 technology to deliver read speeds of up to 3300MB/s for faster boot-ups, launches, and file transfers.
  • 500GB High-Speed Storage Capacity: Provides ample space for operating systems, applications, and frequently used files while maintaining rapid responsiveness.
  • NVMe 1.4 Technology Standard: Designed for higher efficiency and lower latency compared to legacy storage interfaces.
  • 6x Faster Than SATA SSDs: Offers up to six times the performance of traditional SATA-based SSDs, significantly reducing load times.
  • Compact M.2 2280 Form Factor: Slim and lightweight design enables easy installation in compatible desktops and laptops.

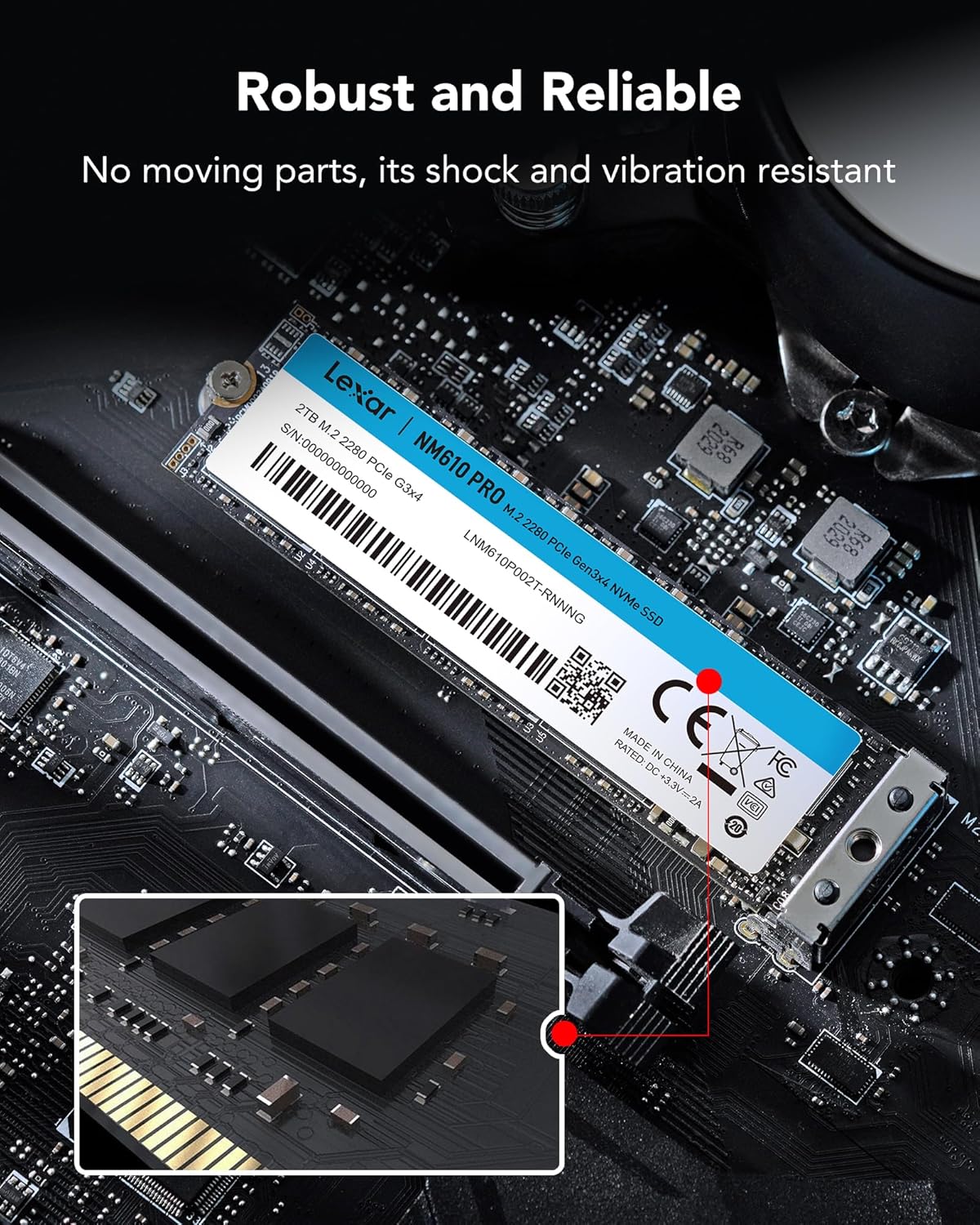

  • Built With No Moving Parts: Solid-state construction enhances durability and long-term reliability compared to mechanical drives.
  • Shock Resistant Design: Rated to withstand shocks up to 1500G for 0.5ms using a half sine wave profile.
  • Vibration Resistant Structure: Engineered to tolerate vibrations from 10–2000Hz at 20G across all axes.
  • Extended Endurance Rating: Rated at 120TBW for the 500GB model, supporting consistent everyday workloads.
  • Lexar Quality Lab Tested: Rigorously tested for performance, compatibility, and reliability across a wide range of systems.

Expert Specs

CategorySpecification
BrandLexar
ModelNM610 PRO
Capacity500GB
Form FactorM.2 2280
InterfacePCIe Gen3x4
ProtocolNVMe 1.4
Sequential Read SpeedUp To 3300MB/s
Operating Temperature0°C To 70°C
Storage Temperature-40°C To 85°C
Dimensions80 × 22 × 2.45 mm
Dimensions (Inches)3.15 × 0.87 × 0.10 inches
Weight9g
Shock Resistance1500G, 0.5ms, Half Sine Wave
Vibration Resistance10–2000Hz, 1.5mm, 20G
TBW (Endurance)120TBW
MTBF1,500,000 Hours
CoolingPassive
Compatible DevicesDesktop PCs, Laptops
Read/Write Speed3300MB/s  | 1700MB/s
