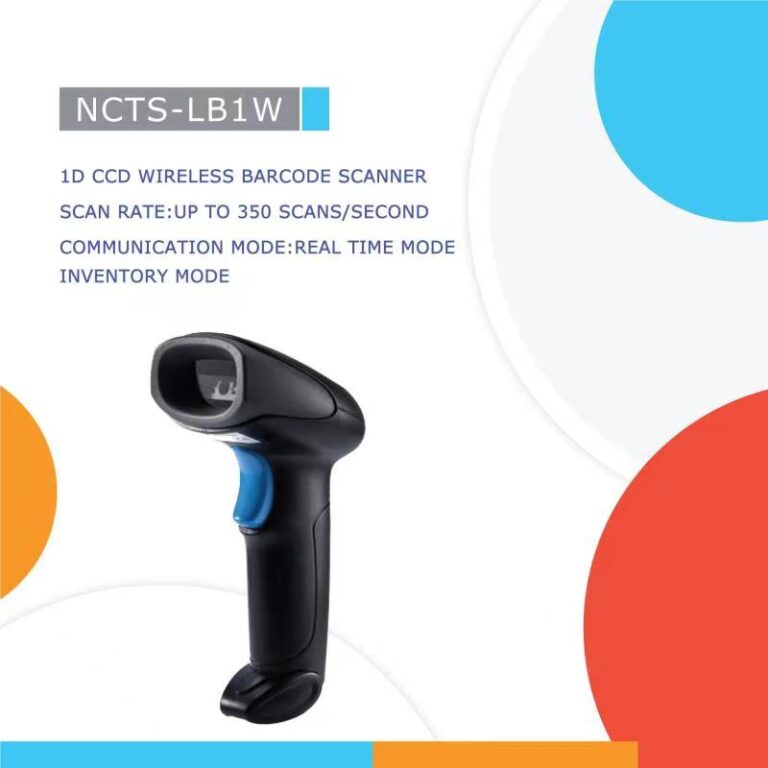

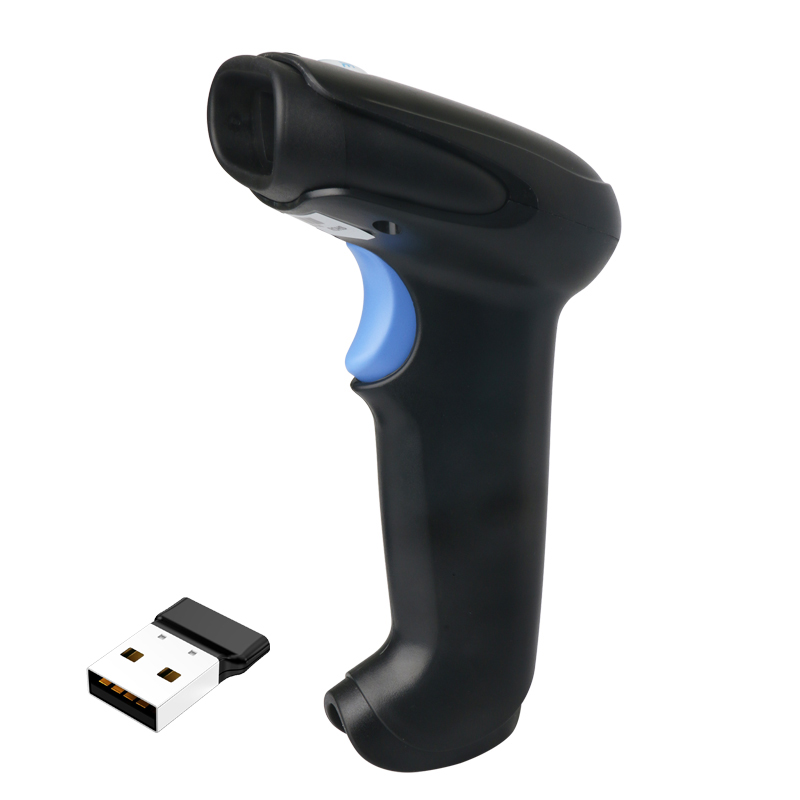

Handheld 1D CCD Wireless Barcode Scanner

Expert Features

• NCTS barcode scanners are compatible with almost all common systems, as Windows, Android, Mac OS, IOS, Linux etc.
• NCTS barcode scanners support multiple keyboard language: USA, Germany, French, Italy, Spanish, Turkey, Belgium, Brazil Czech and so on.
• Support custom function: As add a prefix/suffix, delete the last 4 characters, interlaced upload data.
• Support self-upgrade, as no limitation for Keyboard Cash.
• Can be adjusted the working mode of barcode scanner on the basis of your needs, as continuous reading or single reading, scan the same barcode or not, delay the time to upload data or not.
• NCTS barcode scanners apply to registry office of the airport/train station, hospitals, warehouses, supermarkets, retail stores, libraries, catering, logistics, express delivery, and others.
• Support multi-barcodes, such as: EAN13, EAN8, UPC A, UPC E, CODABAR (NW7-), CODE 39, CODE 93, INTERLEAVED 2OF5, STANDARD 2OF5 MATRIX 2OF5, CODE 128, EAN/UCC 128, CODE 11, CHINESE POST.

Expert Specifications

• Frequency: 2.4 GHz (2.402 to 2.480 GHz)
• Transmission Range: Up to 30 meters (in open space)
• Data Rate: 1 Mbps
• Memory: Can store up to 100,000 barcodes (13 bytes each)
• Battery Capacity: 1500mAh Lithium Battery
• Charging Time: 4.5 hours
• Battery Life (Full Charge):
  • Continuous Reading: 4 hours
  • Manual Reading: 9.5 hours
  • Standby Time: 15+ days

Physical Characteristics

• Scanner Dimensions: 97mm x 67mm x 165mm
• Receiver Dimensions: 83mm x 18mm x 13mm
• Scanner Weight: 162g
• Receiver Weight: 16g

Environmental Characteristics

• Operating Temperature: -20°C to 65°C (-4°F to 149°F)
• Storage Temperature: -30°C to 70°C (-22°F to 158°F)
• Humidity: 5% to 90% (operation & storage)
• Ambient Light: Up to 4000 lx (fluorescent), 80,000 lx (direct sunlight)

Performance & Features

• Scan Rate: 350 scans per second
• Scan Angle:
  • Pitch: ±30°
  • Skew: ±70°
  • Tilt: ±45°
• Minimum Resolution: 0.127mm (5 mil)
• Reading Distance:
  • EAN8: ≥15mm
  • EAN13: ≥20mm
• Barcode Types Supported:
  • EAN8, EAN13, UPC A, UPC E, CODABAR, CODE 39, CODE 93, Interleaved 2of5, Standard 2of5, Matrix 2of5, CODE 128, EAN/UCC 128, CODE 11, Chinese Post
• Shock Resistance: Survives a 1.3m drop onto concrete

Regulatory Compliance

• Safety: UL 60950, EN/IEC 60950
• EMI/RFI: FCC Part 15 Class B, EN 55024/CISPR 22
• Environmental: RoHS compliant
