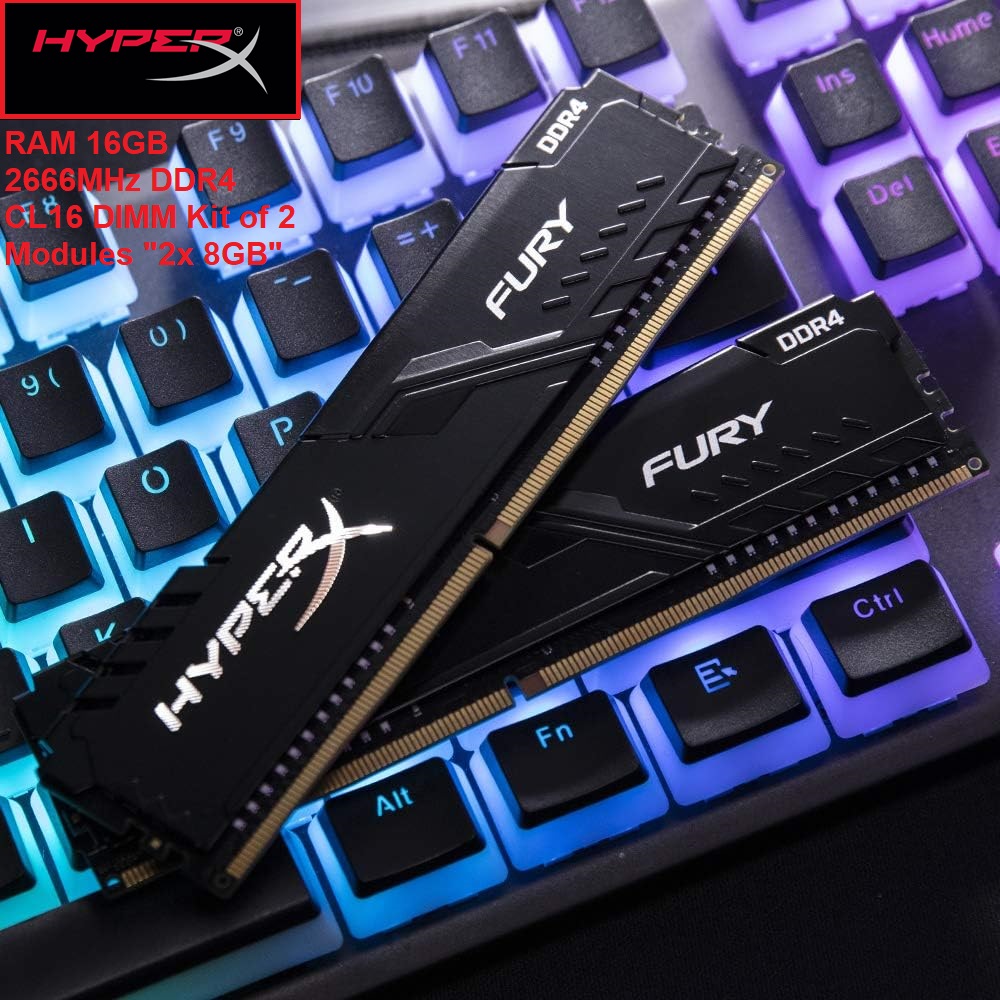

Kingston HyperX HX426C16FB3K2/16 RAM 16GB 2666

EXPERT DESCRIPTION

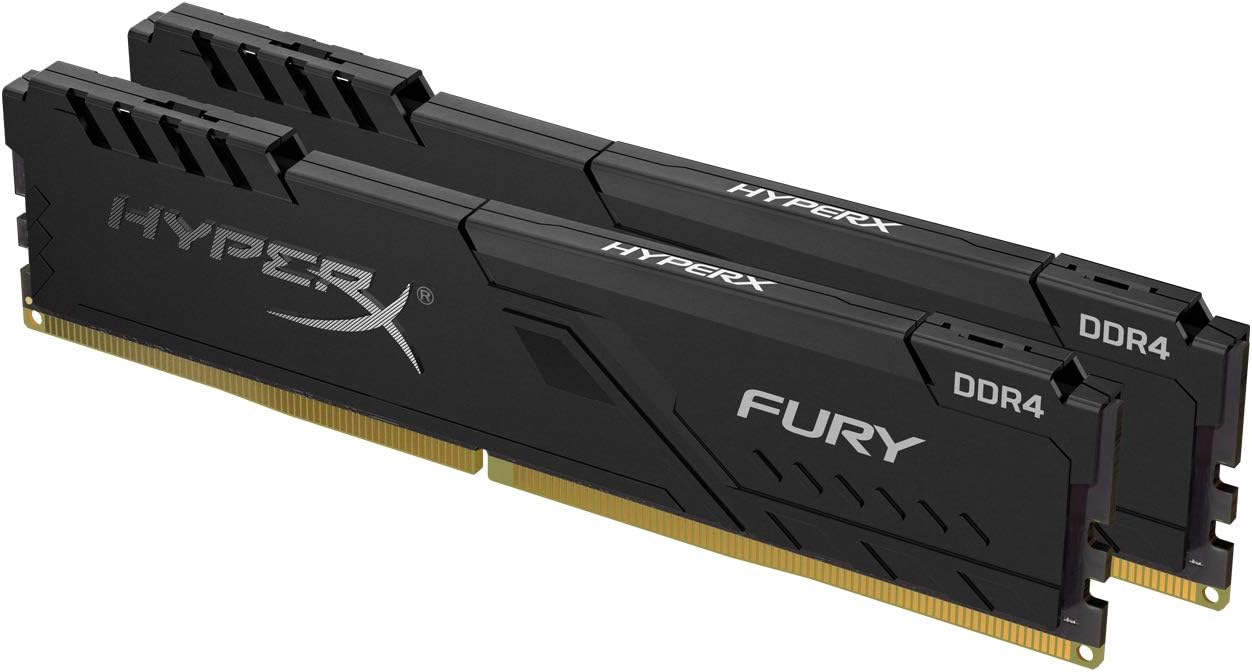

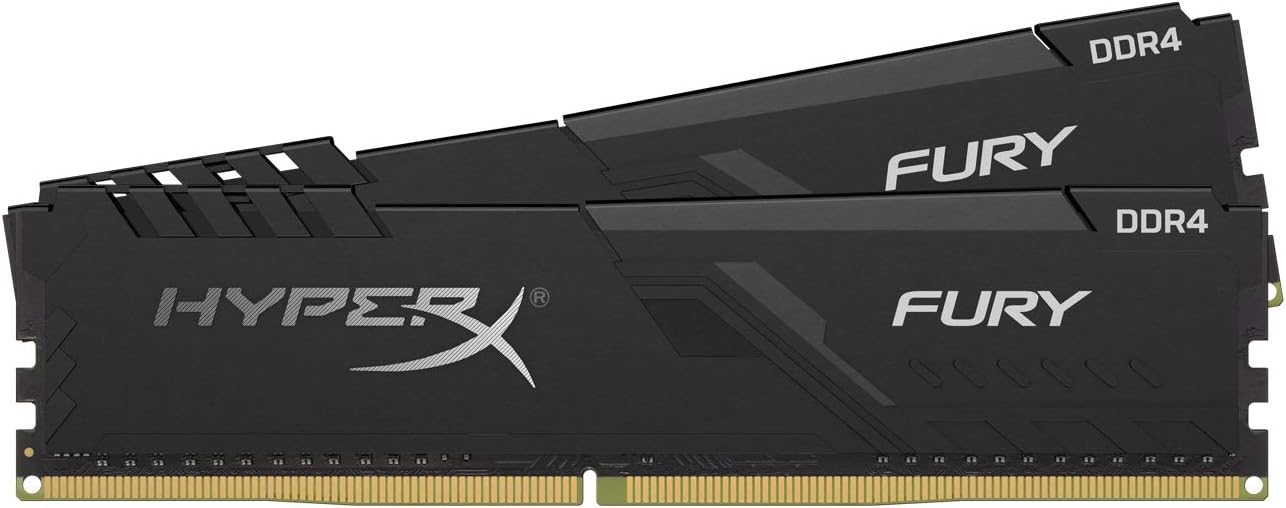

• HyperX HX426C16FB3K2/16 is a kit of two 1G x 64-bit (8GB) DDR4-2666 CL16 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 1G x 8-bit FBGA components per module.

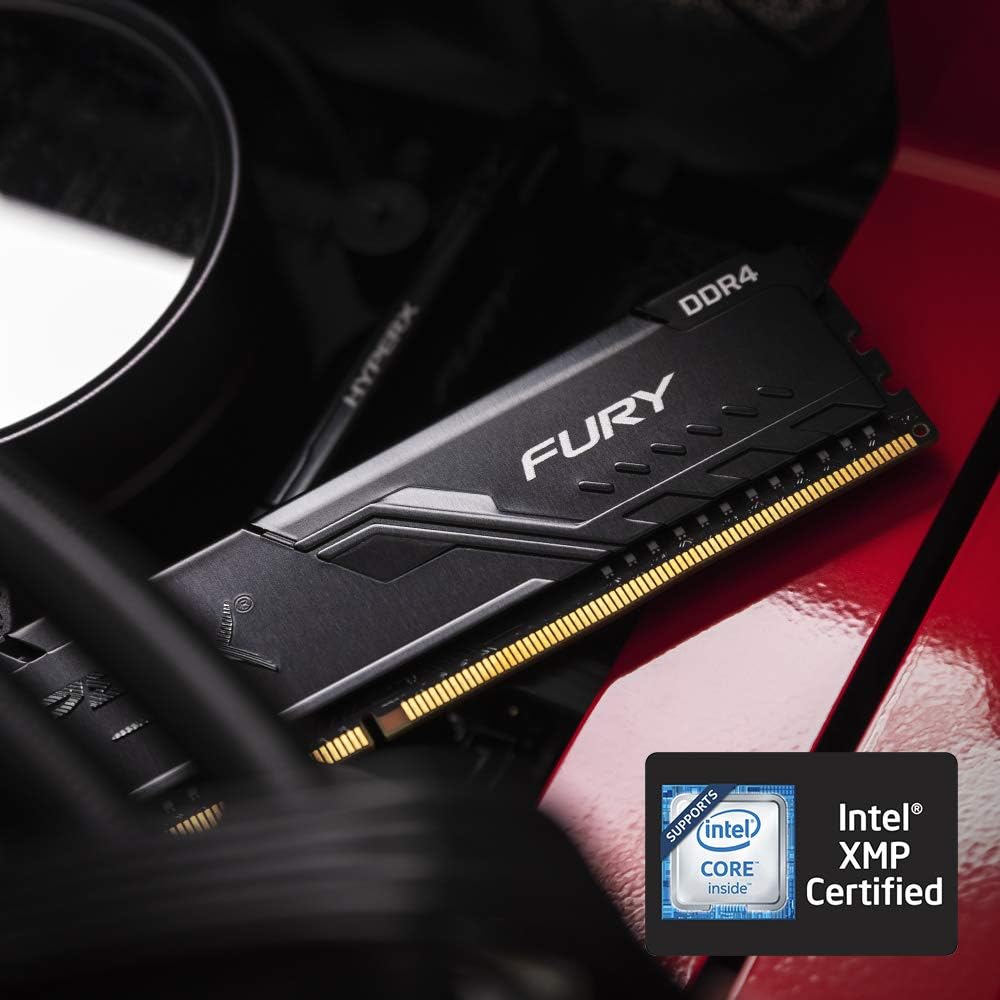

• Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 2.0. Total kit capacity is 16GB.
• Each module has been tested to run at DDR4-2666 at a low latency timing of 16-18-18 at 1.2V.
• Additional timing parameters are shown in the Plug-N-Play (PnP)

EXPERT FEATURES

• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
•  VDDSPD = 2.2V to 3.6V
• On-Die termination (ODT)
• 16 internal banks; 4 groups of 4 banks each
• Bi-Directional Differential Data Strobe
• 8 bit pre-fetch
• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
• Height 1.3425” (34.1mm), w/heatsink

EXPERT SPECIFICATIONS

• CL(IDD) : 16 cycles
• Row Cycle Time (tRCmin) : 45.75ns(min.)
• Refresh to Active/Refresh Command Time (tRFCmin) : 350ns(min.)
• Row Active Time (tRASmin) :  29.25ns(min.)
• UL Rating : 94 V – 0
• Operating Temperature : 0o C to +85o C
• Storage Temperature : -55o C to +100o C
