SKU: KF560C30BBE-16

Kingston Fury Beast 16GB DDR5 6000MT/s Desktop Memory With CL30 Timing 1.40V , AMD EXPO And Intel XMP 3.0 Support, On-Die ECC, Black Aluminum Heat Spreader | BLACK ~ KF560C30BBE-16

Description

Expert Features

  • DDR5 6000MT/s High-Speed Performance: Runs at DDR5-6000 to deliver next-gen bandwidth designed for modern gaming, streaming, and heavy multitasking workloads.
  • Low-Latency CL30 Timing: Tuned at CL30-36-36 for fast response times while maintaining high-frequency stability at 1.40V.

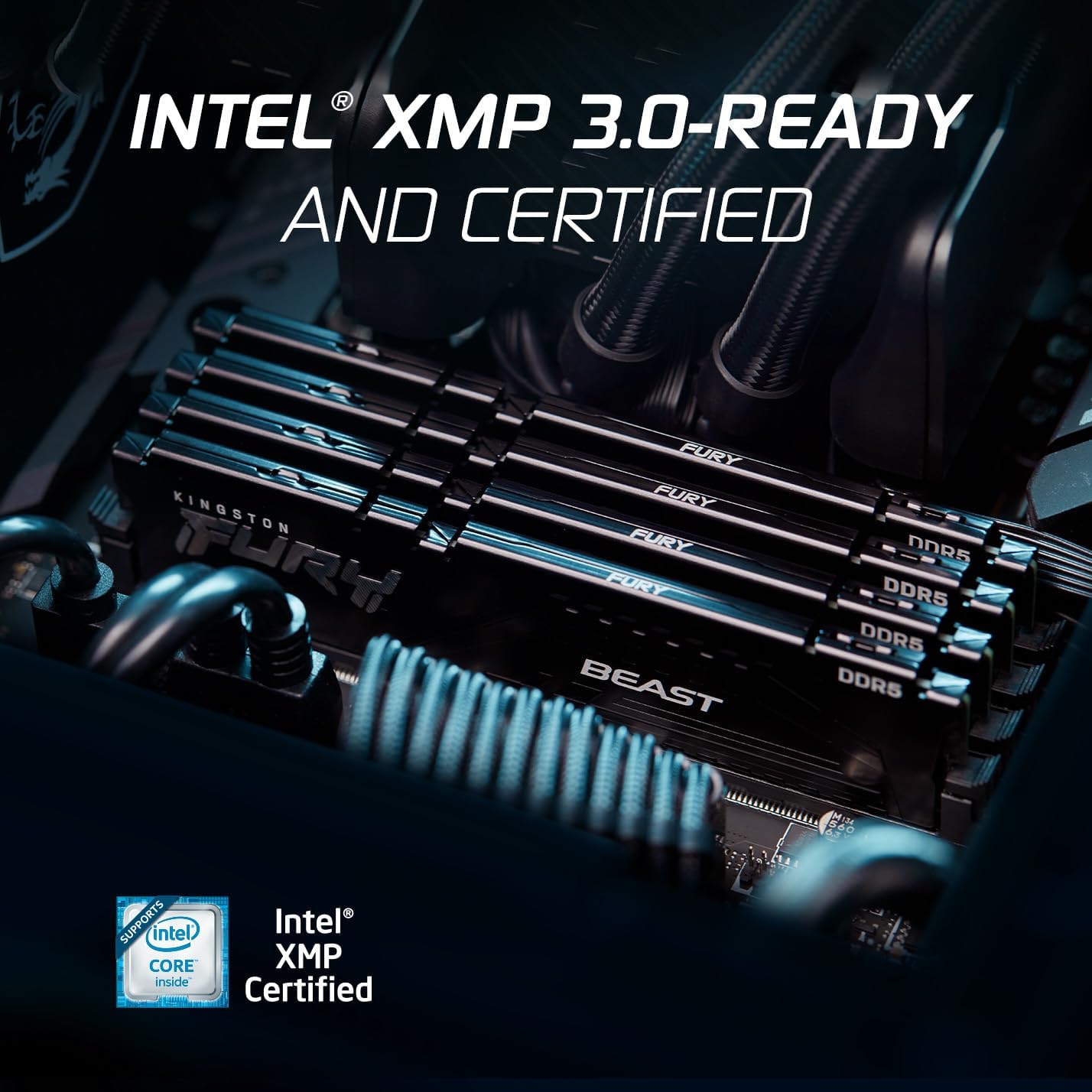

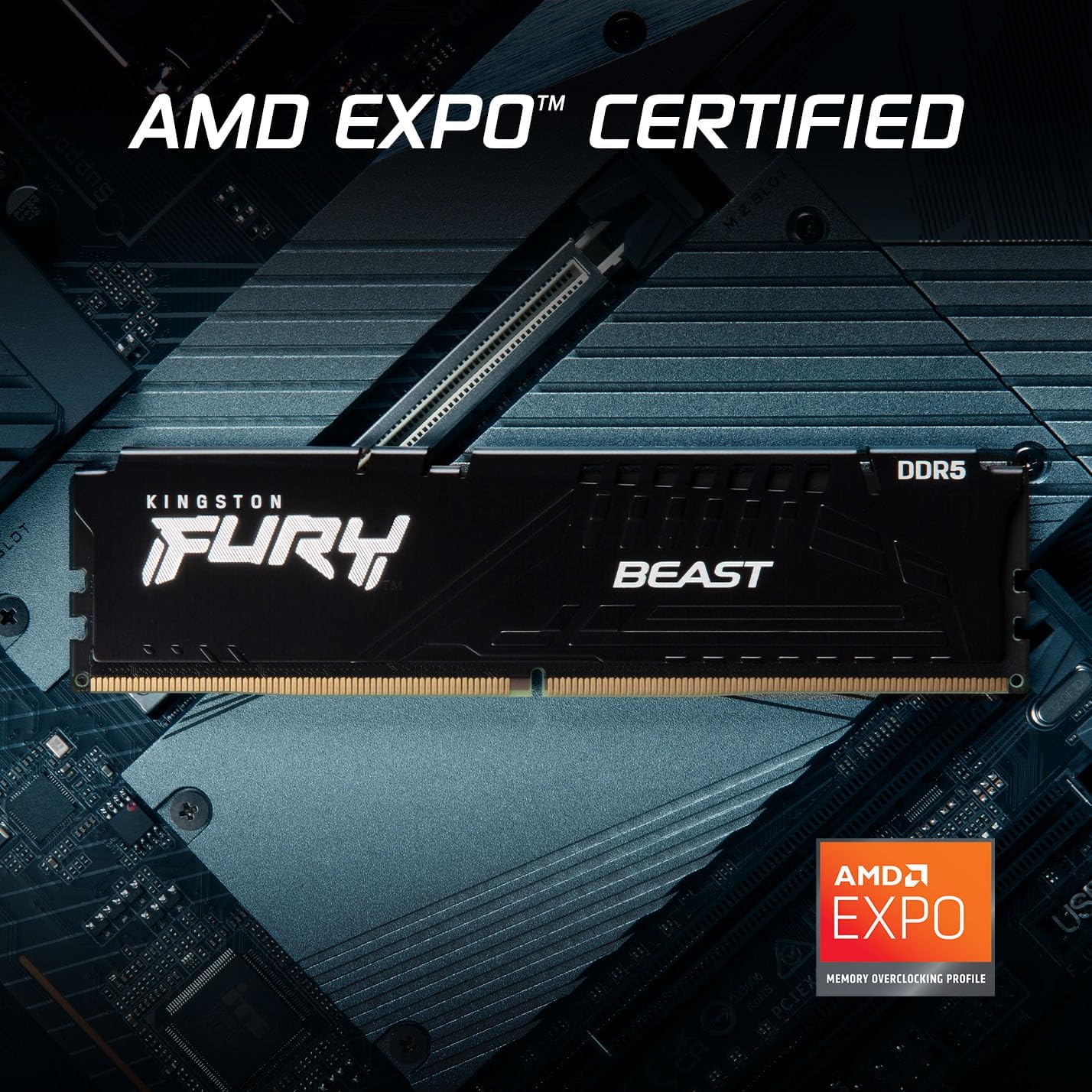

  • AMD EXPO And Intel XMP 3.0 Support: Includes factory-tested EXPO and XMP profiles with customizable speeds and timings for effortless overclocking.
  • On-Die ECC Stability: Integrated on-die ECC (ODECC) enhances data integrity and system stability at extreme DDR5 speeds.
  • Dual 32-Bit Subchannel Architecture: Improves efficiency and data handling by splitting each DIMM into two independent subchannels.
  • On-Module Power Management IC (PMIC): Smart power regulation delivers voltage precisely where it’s needed for improved efficiency and overclocking reliability.
  • Single 16GB 1Rx8 Configuration: Built using eight 2G x 8-bit FBGA components in a 2G x 64-bit architecture for balanced performance.
  • Black Aluminium Heat Spreader: Low-profile heat spreader helps maintain thermal stability while keeping a clean, stealth gaming aesthetic.
  • JEDEC Backward Compatibility: Defaults to JEDEC DDR5-4800 CL40-39-39 at 1.1V for wide platform compatibility.
  • Gold Contact Fingers: High-quality gold contacts ensure reliable electrical connectivity and long-term durability.

Expert Specs

CategorySpecification
BrandKingston
Product LineFURY Beast DDR5
ModelKF560C30BBE-16
Capacity16GB
Configuration1 × 16GB (Single Module)
Memory TypeDDR5 SDRAM
Form Factor288-Pin DIMM
Memory Speed6000MT/s
CAS LatencyCL30
Timing30-36-36
Operating Voltage1.40V
JEDEC DefaultDDR5-4800 CL40-39-39 @ 1.1V
EXPO Profile #0DDR5-6000 CL30-36-36 @ 1.4V
EXPO Profile #1DDR5-5600 CL40-40-40 @ 1.25V
XMP Profile #1DDR5-6000 CL30-36-36 @ 1.4V
XMP Profile #2DDR5-5600 CL40-40-40 @ 1.25V
Rank1Rx8
ECCOn-Die ECC
BufferedUnbuffered
Power SupplyVDD 1.1V / VDDQ 1.1V / VPP 1.8V
VDDSPD1.8V – 2.0V
Row Cycle Time (tRC)48ns (Min)
tRFC295ns (Min)
tRAS32ns (Min)
Operating Temperature0°C to +85°C
Storage Temperature-55°C to +100°C
Module Height34.9mm (1.37”) With Heat Spreader
Heat SpreaderAluminium
ColorBlack
UL Rating94 V-0
